8–172 ELECTRICAL-BODY AND CHASSIS

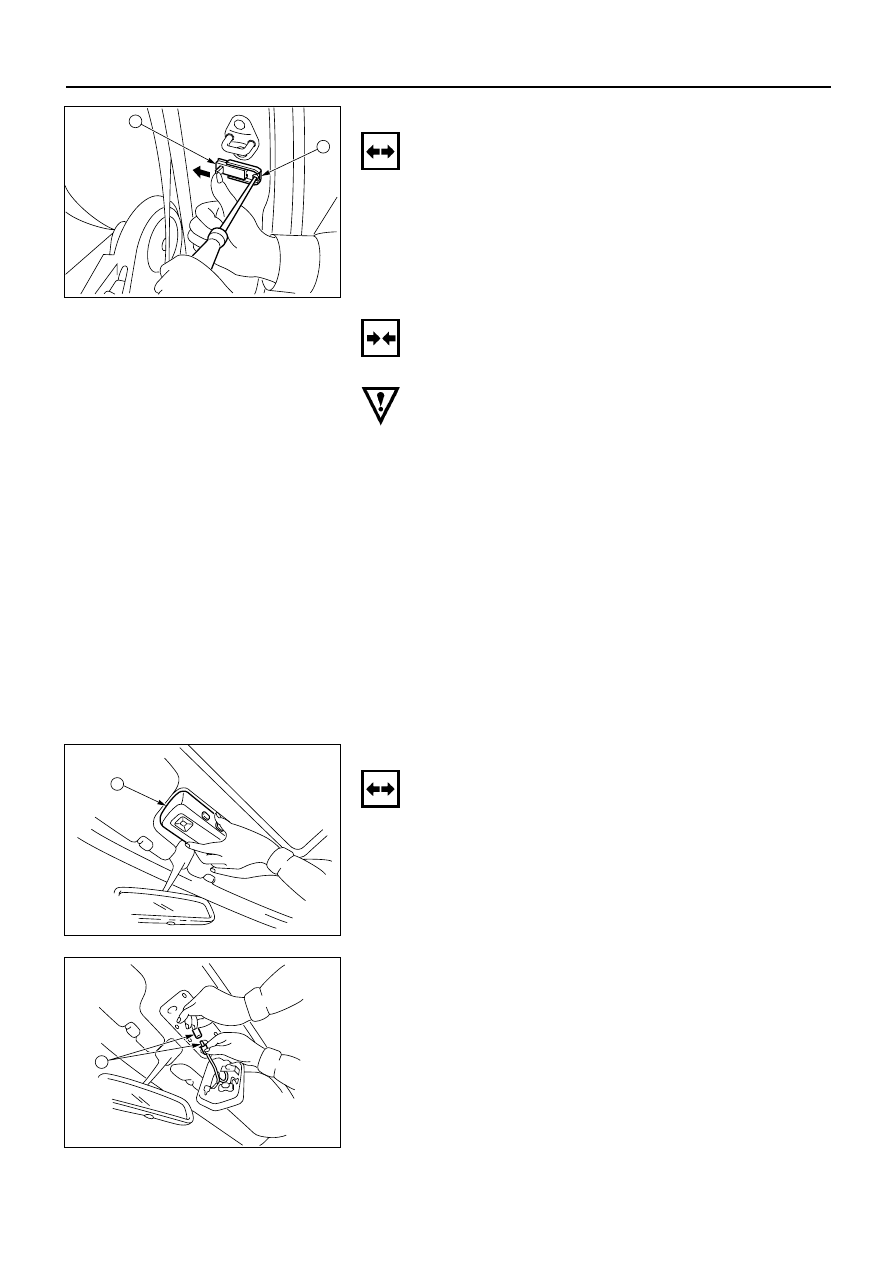

DOOR SWITCH

Removal

1. Push the door switch sliding portion 1 in the

direction of the arrow in the illustration.

2. Loosen the screw 2.

3. Pull the switch free to remove it.

4. Disconnect the door switch connector.

1

2

D08RV874

2. Disconnect the connector 2.

3. Push the bulb in and turn it counterclockwise to

remove it.

2

D08RV876

Installation

Follow the removal procedure in the reverse order to
install the spot light.

Pay close attention to the important points mentioned in
the following paragraphs.

SPOT LIGHT

Removal

1. Grasp the spot light housing 1 with both hands.

Pull the housing straight down.

This will release the clip.

1

D08RV875

Connector

Be absolutely sure that the door switch connector is
securely connected.
This will prevent a poor contact and an open circuit.

ELECTRICAL-BODY AND CHASSIS 8–173

Installation

Follow the removal procedure in the reverse order to
install the spot light.

Pay close attention to the important points mentioned in
the following paragraphs.

Connector

Be absolutely sure that the spot light connector is
securely connected.

This will prevent a poor contact and an open circuit.

Bulb

Be absolutely sure that the spot light bulb is correctly
installed.

This will prevent a poor contact and an open circuit.

Installation

Follow the removal procedure in the reverse order to
install the warning buzzer.

Pay close attention to the important points mentioned in
the following paragraphs.

Connector

Be absolutely sure that the warning buzzer connector is
securely connected.

This will prevent a poor contact and an open circuit.

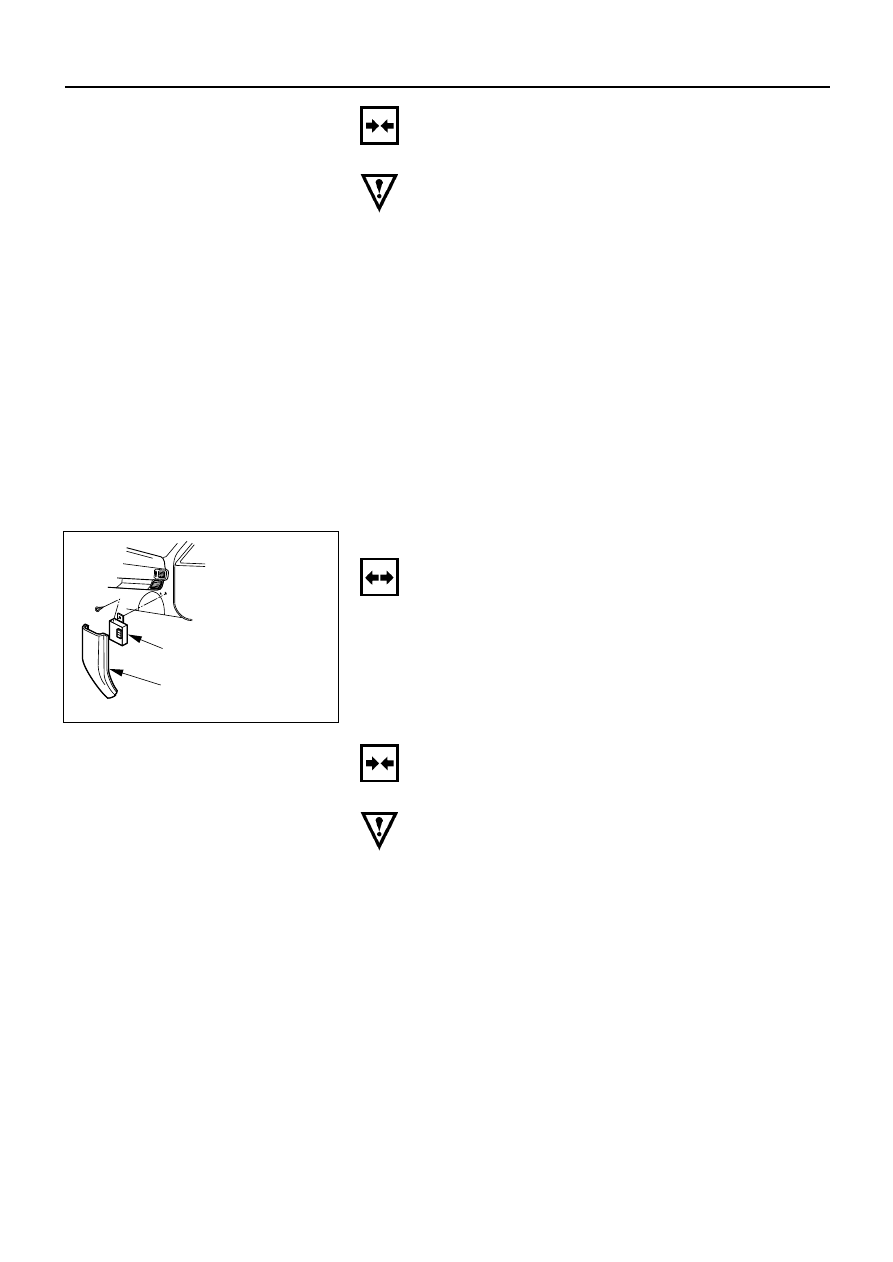

WARNING BUZZER

Removal

1. Dash Side Panel

2. Warning Buzzer

•

Disconnect the connector.

•

Remove the screw.

2. Warning buzzer

1. Dash side panel

This illustration is based on LHD

825RV105

8–174 ELECTRICAL-BODY AND CHASSIS

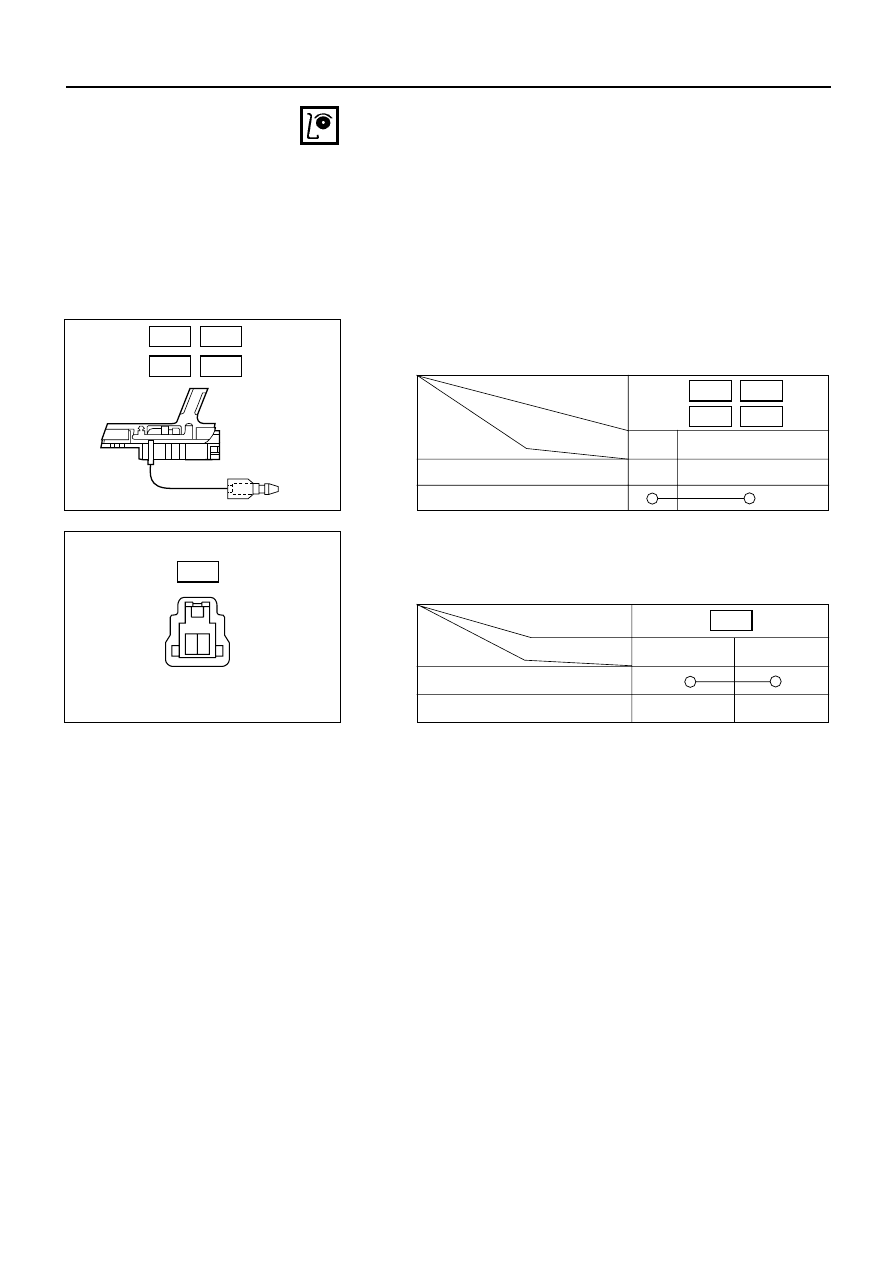

DOOR SWITCH

Door Switch Connections

SEAT BELT SWITCH (SAUDI ARABIA, SOUTH
AFRICA)

Seat Belt Switch Connections

825RV106

Connector

No.

SW

Terminal No.

position

1

Body Ground

PUSHED

RELEASED

INSPECTION AND REPAIR

L-3

L-8

R-1

R-6

L-3

L-8

R-1

R-6

1

2

R-3

Switch side

Connector No.

SW
position

Terminal No.

1

2

ON (Belt tongue removed)

OFF (Belt tongue inserted)

R-3

ELECTRICAL-BODY AND CHASSIS 8–175

WARNING BUZZER (SAUDI ARABIA)

1. Warning Buzzer Circuit

Warning function

Operational conditions

The warning light in the meter assembly turned on about 6 seconds
from the moment the starter switch is turned on.

The buzzer sounds for about 6 seconds when the starter switch is
turned on with the seat belt switch on (when the seat belt is not
used).

The buzzer sounds when both the key remind switch and the FRT
door switch-LH are turned on.
To stop the sound of the buzzer, turn on the starter switch.

The buzzer sounds when the starter switch is turned from the “on”
to “off” position while the taillights are on.

Door SW
(Driver
side)

Warning buzzer

Seat belt
SW

Seat belt
warning
light

Starter
SW

Key
remind
SW

Tail
relay

+

–

3

4

6

5

1

2

D08RV991

2. Warning Buzzer Harness Side Connector Circuit

Disconnect the warning buzzer connector and check
continuity and voltage between the warning buzzer
harness side connector terminals.

1

2

3

6

4 5

B-5

Harness side

Fasten the seat belt

Key left in starter switch

Taillights left on
