ELECTRICAL-BODY AND CHASSIS  8-315

TROUBLE SHOOTING

CIGARETTE LIGHTER

1.  Lighter does not pop out after being pushed in. It does not become hot.


Checkpoint

Trouble

Cause



Countermeasure



Reinstall or replace the fuse
No. CB-20 (15A)

Poor Fuse No. CB-20 (15A,
Fuse box) contact or blown

NG

Replace the lighter

Lighter continuity between
center part and outer area

Open circuit or poor connector
contact

Repair open circuit or
connector contact

Voltage between connector 1

B-21

 and the ground at

starter SW. is ACC position
(Should be battery voltage
present)

Open circuit or poor connector
contact

NG

NG

OK

OK

OK

Audio system (System should
receive power)

Repair open circuit or
connector contact

Open circuit or poor connector
contact

NG

Continuity between connector
1

B-22

 and the ground





2.  Lighter pops out prematurely before becoming hot


Repair or replace the lighter
and/or casing

Deformed lighter or casing

NG

Lighter and casing





3.  Lighter becomes too hot


Repair or replace the lighter
and/or casing

Deformed lighter and casing

NG

Lighter and casing





8-316  ELECTRICAL-BODY AND CHASSIS



  REMOVAL AND INSTALLATION








AUDIO

Refer to Section 9 “ACCESSORIES” for details.






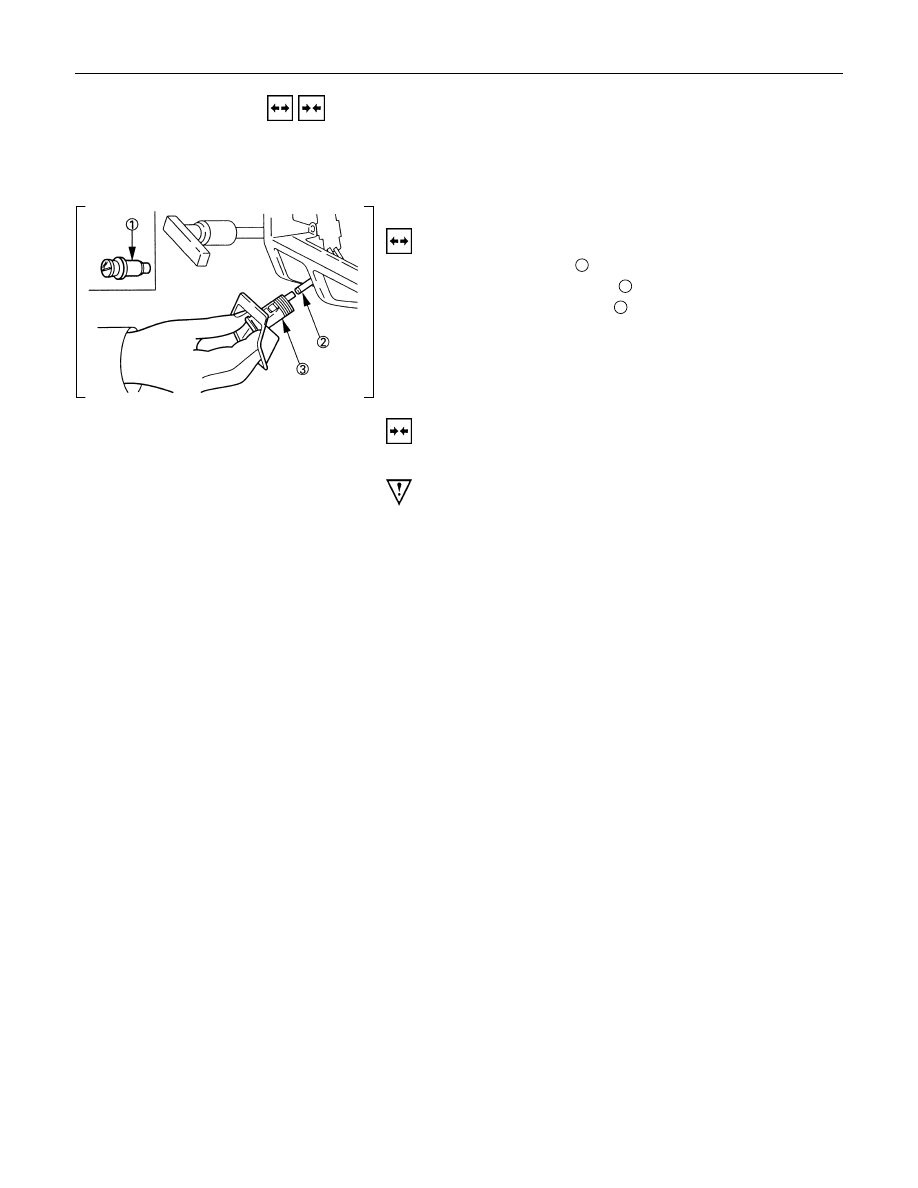

CIGARETTE LIGHTER

Removal

1.  Remove the lighter

1

.

2.  Disconnect the connector

2

.

3.  Loosen the lighter holder

3

 nut at the back side.

4.  Remove the holder from the bezel.








Installation

Follow the removal procedure in the reverse order to install the
lighter.
Pay close attention to the important points mentioned in the
following paragraphs.







Connector

Be absolutely sure that the lighter connector is securely
connected.
This will prevent a poor contact and an open circuit.




ELECTRICAL-BODY AND CHASSIS  8-317

POWER DOOR MIRROR

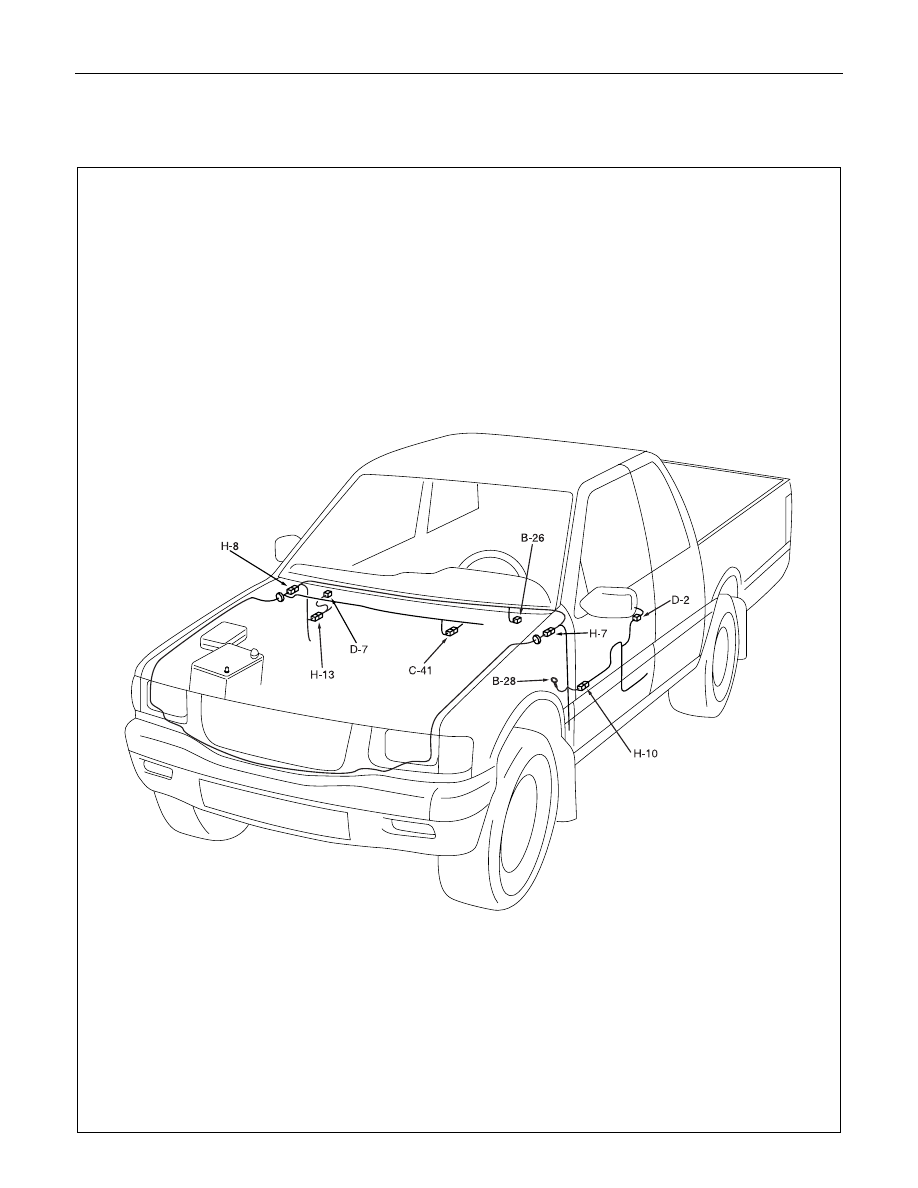

PARTS LOCATION (LHD)





8-318  ELECTRICAL-BODY AND CHASSIS

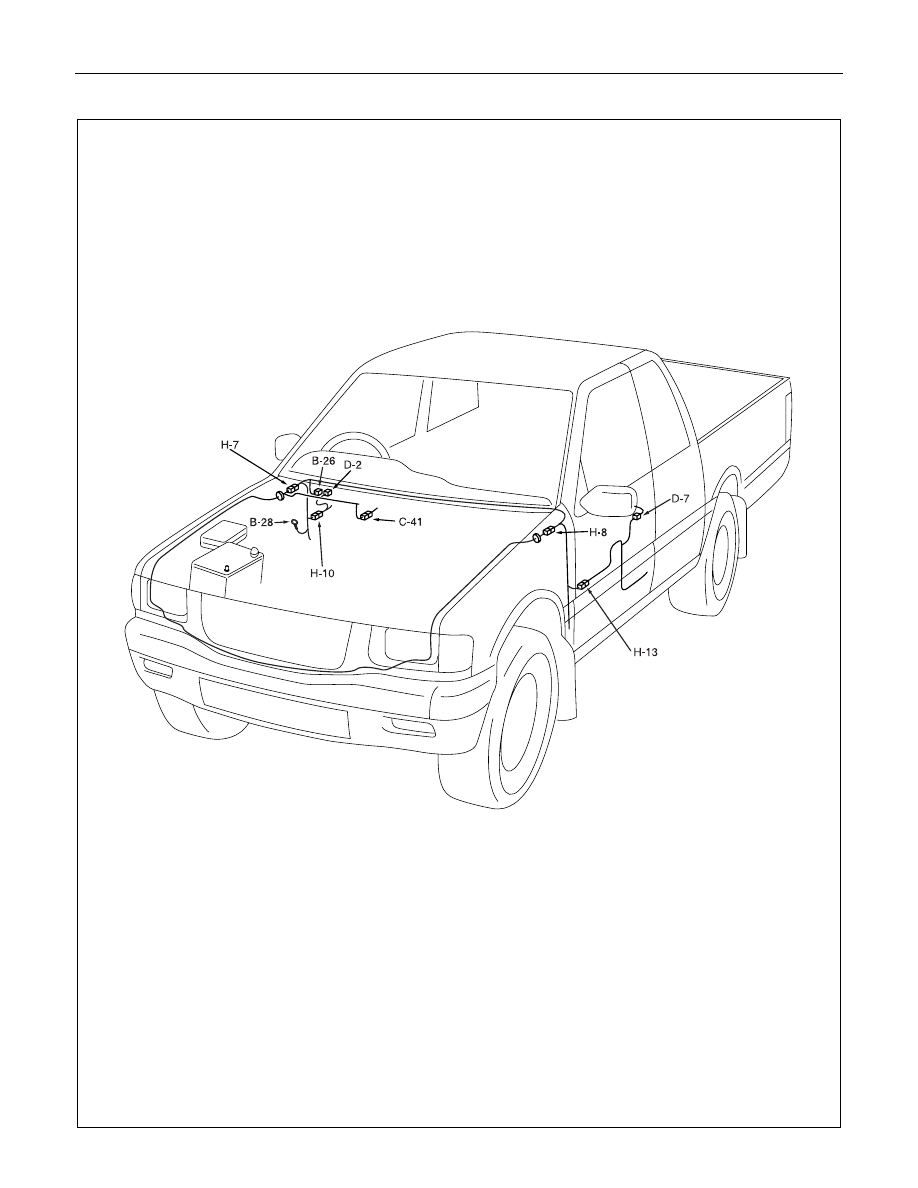

PARTS LOCATION (RHD)
