8-164  ELECTRICAL-BODY AND CHASSIS



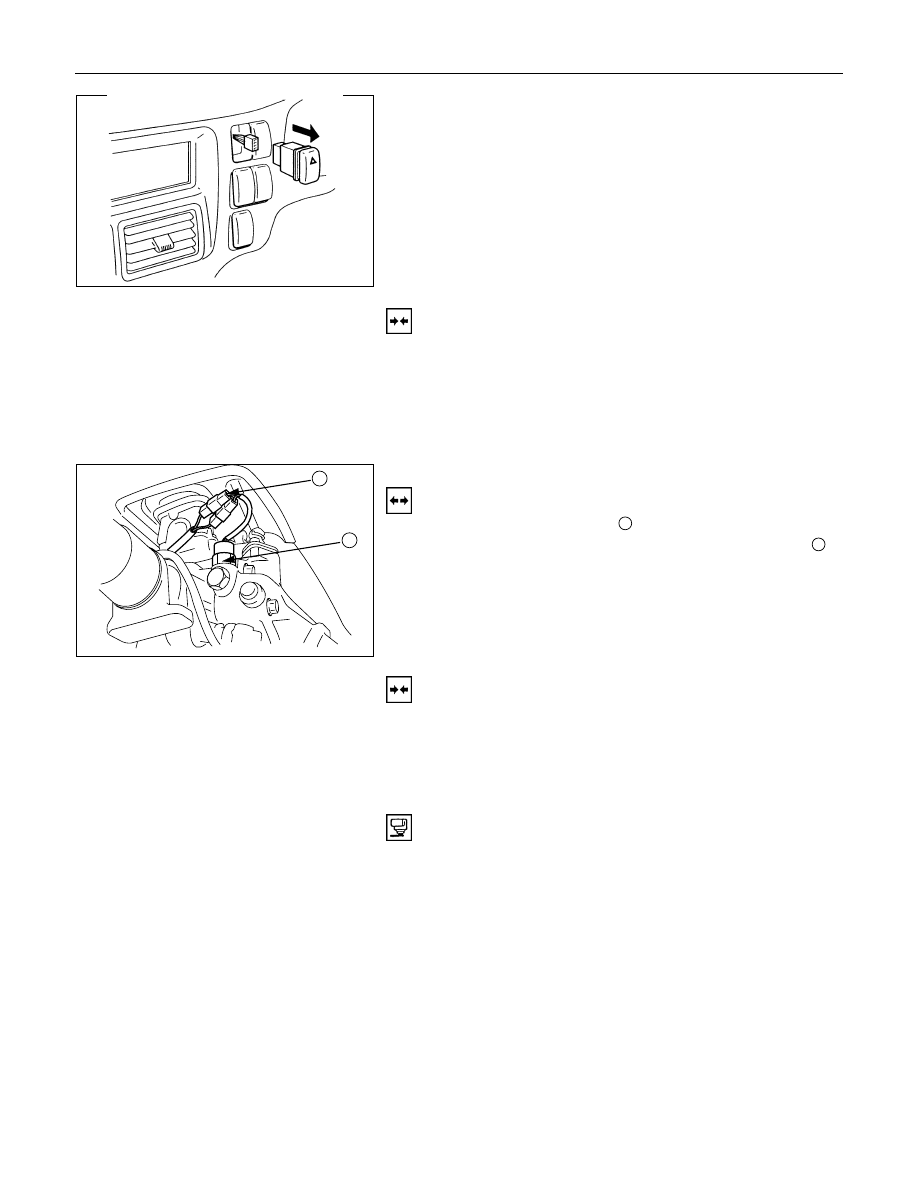

HAZARD WARNING FLASHER SWITCH

Removal

1.  Instrument Panel Cluster Assembly

·  Refer to Section 10 “BODY” for instrument panel cluster

assembly removal steps.

2.  Hazard Warning Switch

·  Disconnect the switch connector.
·  To remove the switch, push the lock from the back side

of the cluster assembly.




Installation

To install, follow the removal procedure in the reverse order.







Connector

Be absolutely sure that the hazard warning flasher switch
connector is securely connected.
This will prevent a poor contact and an open circuit.


1

2





BACK UP LIGHT SWITCH

Removal

1.  Disconnect the connector

1

.

2.  Remove the back up light switch from the transmission

2

.






Installation

Follow the removal procedure in the reverse order to install the
back up light switch.
Pay close attention to the important points mentioned in the
following paragraphs.







Back up Light Switch Threads

Apply liquid gasket to the threaded portion and install the back
up light switch.







Connector

Be absolutely sure that the back up light connector is securely
connected.
This will prevent a poor contact and an open circuit.


ELECTRICAL-BODY AND CHASSIS  8-165



HORN




Installation

Follow the removal procedure in the reverse order to install the
horn.
Pay close attention to the important point mentioned in the
following paragraphs.







Connector

Be absolutely sure the horn connector is securely connected.
This will prevent a poor contact and open circuit.


1

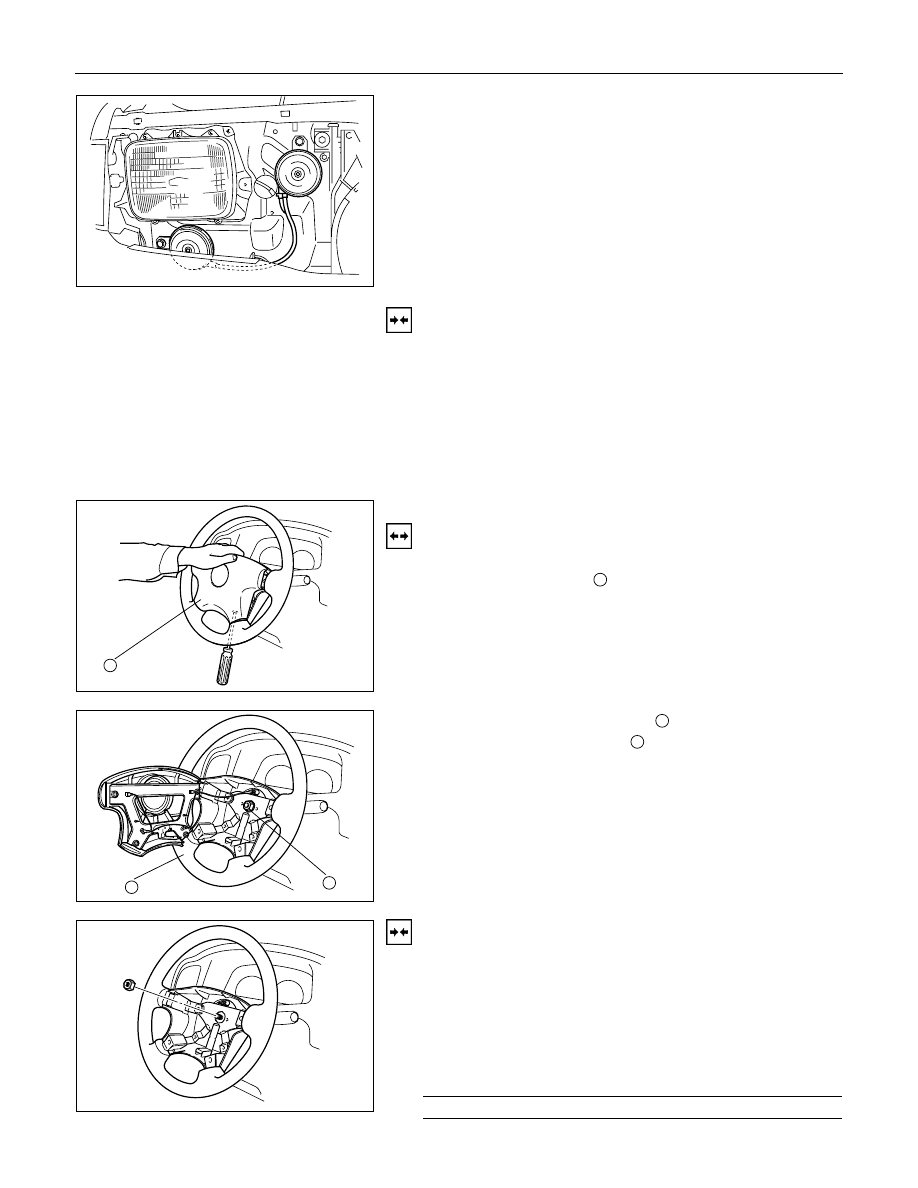

HORN SWITCH

Removal

1.  Remove the screws on the lower part of the steering wheel.
2.  Remove the horn pad

1

.

3.  Remove the horn wiring connector.


3

2





4.  Remove the steering wheel nut

2

.

5.  Remove the steering wheel

3

.

6.  Remove the connector.
7.  Remove the horn switch (combination switch).





Installation

Follow the removal procedure in the reverse order to install the
horn switch.
Pay close attention to the important points mentioned in the
following paragraphs.


Steering Wheel Nut

Tighten the nut to the specified torque.
Steering Wheel Nut Torque

N

×m (kgf×m/lb×ft)

34.3

±4.9 (3.5±0.5 / 25±3.6)





8-166  ELECTRICAL-BODY AND CHASSIS

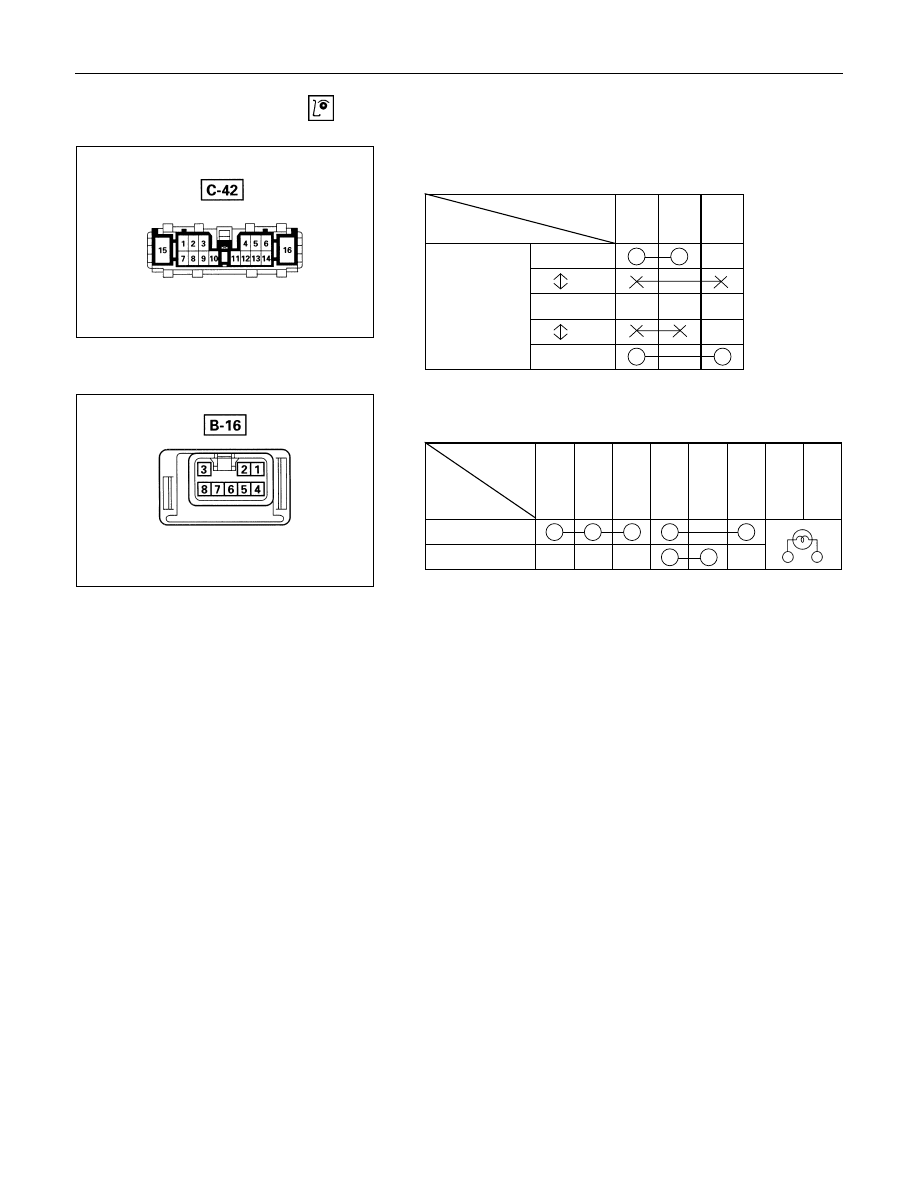

  INSPECTION AND REPAIR



Switch side






TURN SIGNAL SWITCH

Lighting Switch Connections

Terminal No.

SW position

3

4

5

Left

Neutral

Right

Turning
direction



Switch side






HAZARD WARNING FLASHER SWITCH

Hazard Warning Flasher Switch Connections

Terminal

No.

SW position

4

5

6

7

8

2

1

3

ON

OFF






ELECTRICAL-BODY AND CHASSIS  8-167

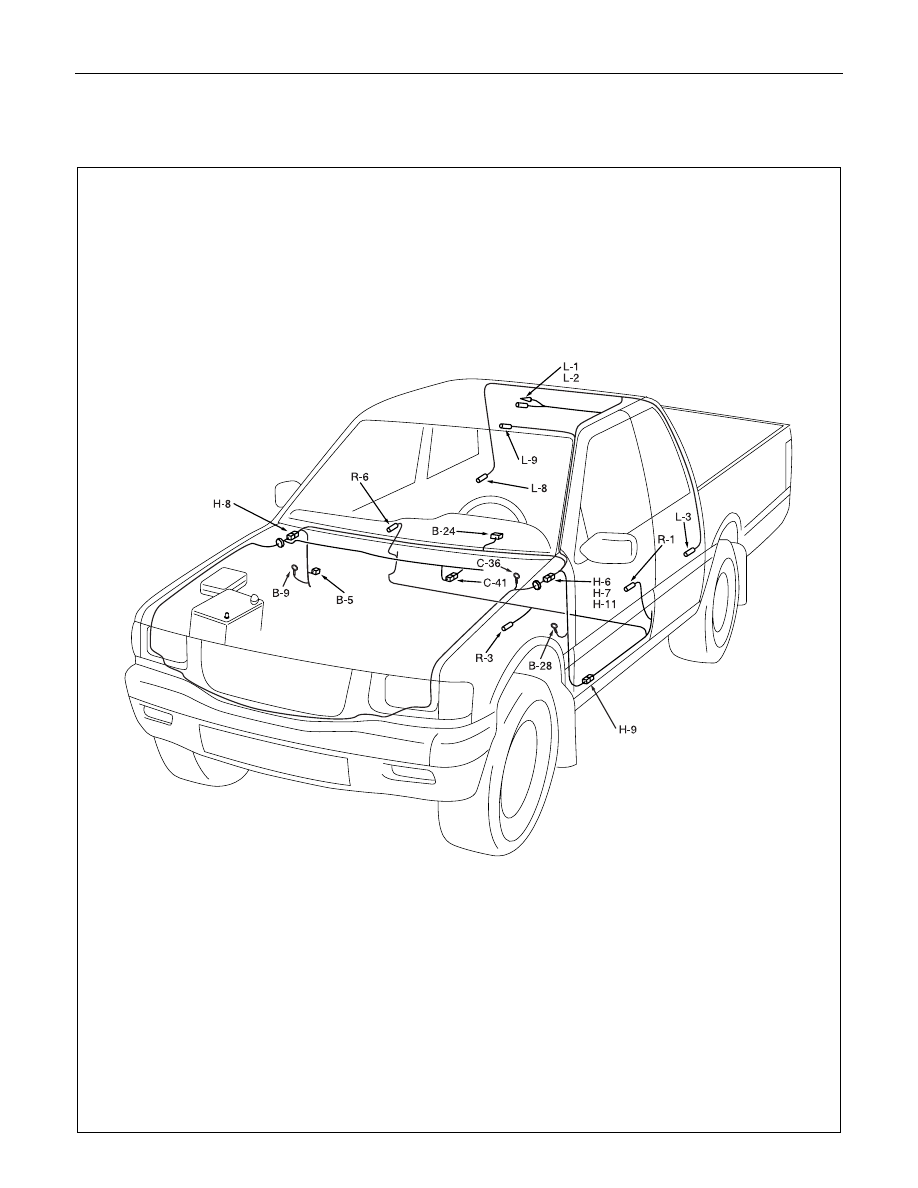

DOME LIGHT, SPOT LIGHT AND WARNING BUZZER

PARTS LOCATION (LHD)
