ELECTRICAL-BODY AND CHASSIS  8-249

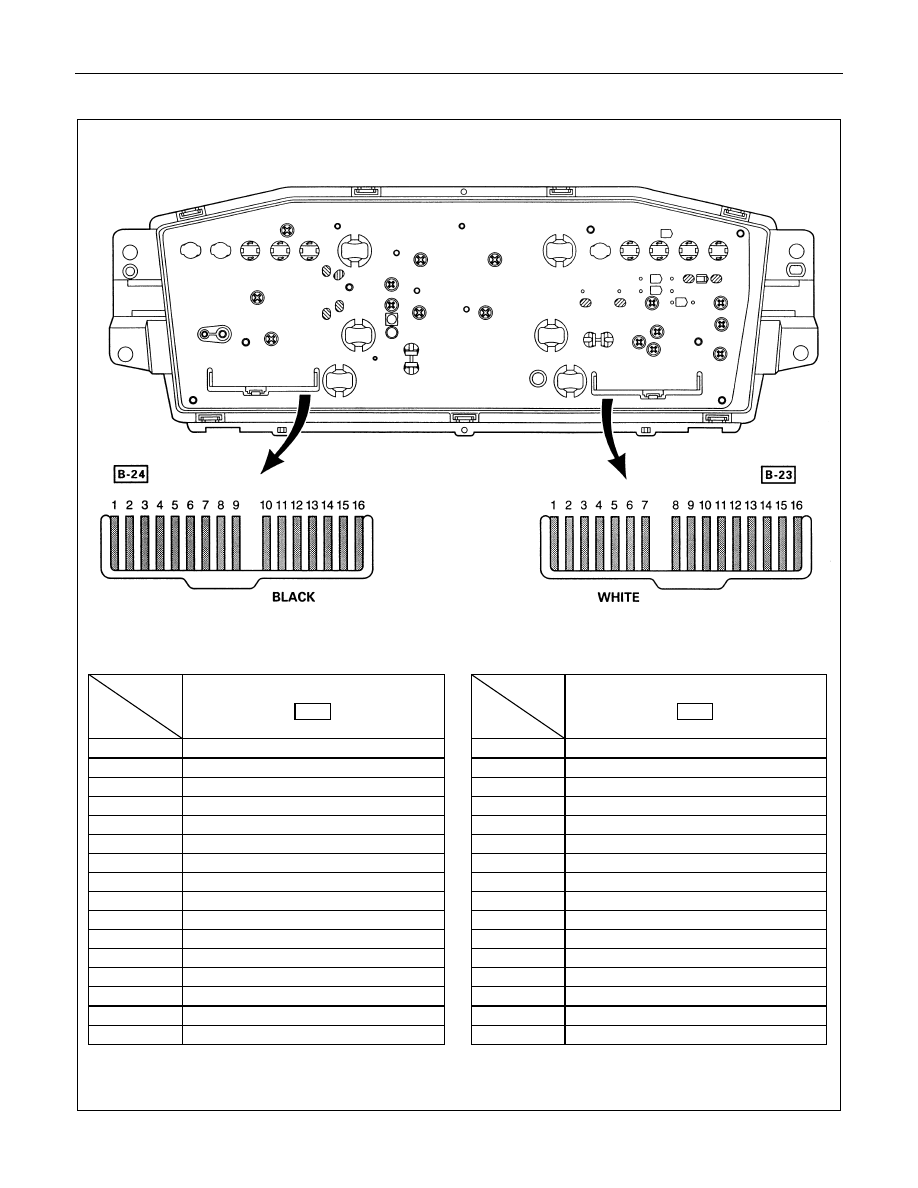

W/ Tachometer-1

Connector

Ter-

No.

minal No.

B-24

1

Ground

2

Ignition

3

Tachometer

4

-

5

-

6

Engine coolant temperature gauge

7

-

8

-

9

Check engine warning light

10

Diff. lock indicator light (South Africa only)

11

-

12

-

13

Illumination light (+)

14

Illumination light (-)

15

4WD indicator light

16

Turn signal indicator light (left)

Connector

Ter-

No.

minal No.

B-23

1

Turn signal indicator light (right)

2

-

3

High-beam indicator light (+)

4

High-beam indicator light (-)

5

Ground

6

-

7

-

8

Speedometer

9

Speedometer

10

Oil pressure warning light

11

Fuel gauge

12

Brake warning light

13

Charge warning light

14

Illumination light (+)

15

Illumination light (-)

16

Fuel warning light (Except Chile)

8-250  ELECTRICAL-BODY AND CHASSIS

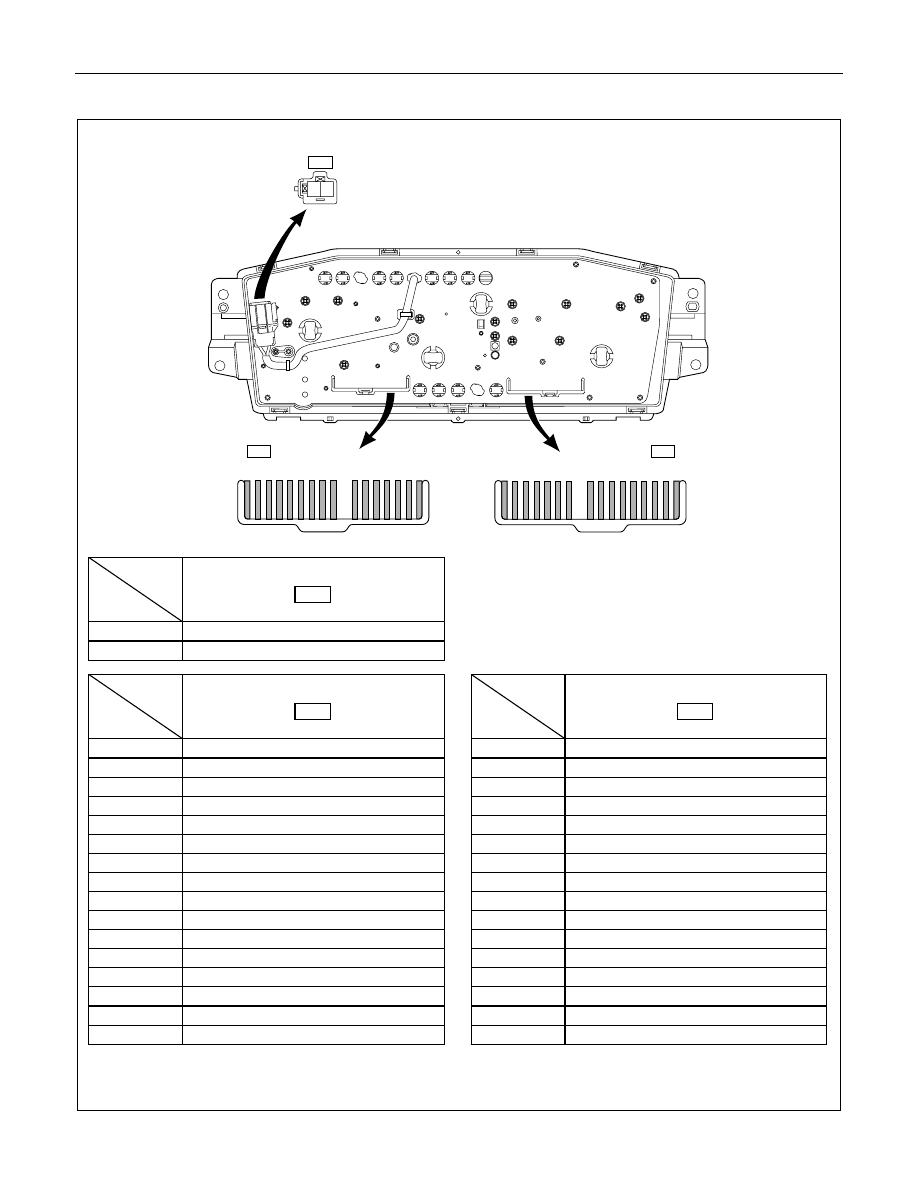

W/ Tachometer-2

YELLOW

B-37

2 1

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16

1 2 3 4 5 6 7

8 9 10 11 12 13 14 15 16

BLACK

B-24

B-23

WHITE

Connector

Ter-

No.

minal No.

B-24

1

Turn signal indicator light

2

Ignition

3

Tachometer

4

-

5

-

6

Engine coolant temperature gauge

7

Seat belt warning light

8

Glow indicator light

9

Water sedimenter warning light

10

Rear fog light indicator light

11

-

12

-

13

Illumination light (+)

14

Illumination light (-)

15

4WD indicator light

16

Turn signal indicator light (left)

Connector

Ter-

No.

minal No.

B-23

1

Turn signal indicator light (right)

2

-

3

High-beam indicator light (+)

4

High-beam indicator light (-)

5

Ground

6

-

7

-

8

Speedometer

9

Speedometer

10

Oil pressure warning light

11

Fuel gauge

12

Brake warning light

13

Charge warning light

14

Illumination light (+)

15

Illumination light (-)

16

Fuel warning light

Connector

Ter-

No.

minal No.

B-37

1

Air bag warning light

2

Air bag warning light

ELECTRICAL-BODY AND CHASSIS  8-251

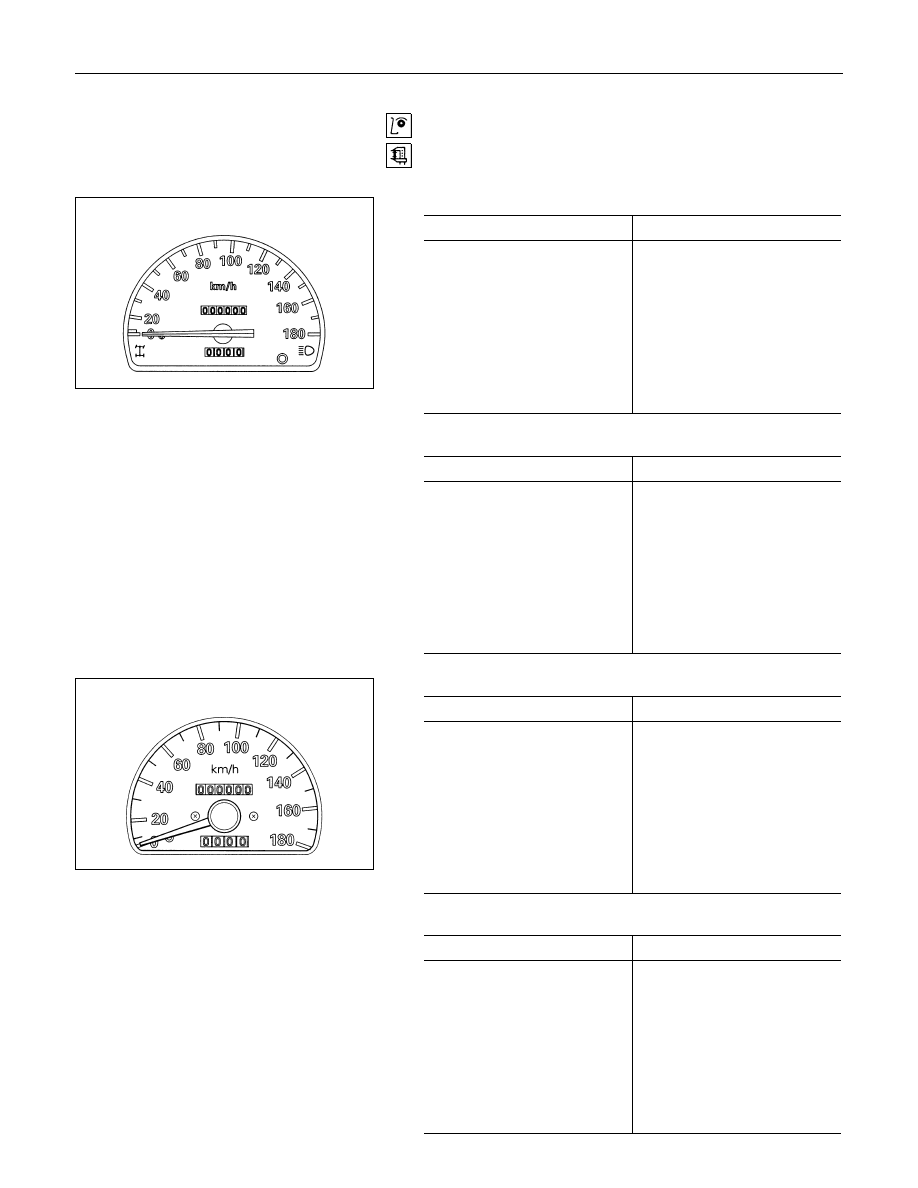

SPEEDOMETER AND TACHOMETER

Speedometer On-Vehicle Inspection

Check the speedometer accuracy with a speedometer tester.
Carefully follow the tester manufacturer’s instructions.

W/O Tachometer

km/h meter (Except Gulf, South Arfrica)

km/h

Indication

Permissible Range

20

17.2-22.8

40

37.2-42.8

60

57.2-62.8

80

77.2-82.8

100

97.3-103.7

120

117.3-123.7

140

137.3-143.7

160

156.9-164.1

km/h meter (For Gulf, South Arfrica)

km/h

Indication

Permissible Range

20

20-25.6

40

40-45.6

60

60-65.6

80

80-85.6

100

99.5-105.9

120

119.5-125.9

140

139.5-145.9

160

159.1-166.3

W/ Tachometer

km/h meter (Except Gulf, South Africa)

km/h

Indication

Permissible Range

20

17.5-22.5

40

37.5-42.5

60

57.5-62.5

80

77.5-82.5

100

97.6-103.4

120

117.6-123.4

140

137.6-143.4

160

157.2-163.8

km/h meter  (For Gulf, South Arfrica)

km/h

Indication

Permissible Range

20

20-25

40

40-45

60

60-65

80

80-85

100

99.8-105.6

120

119.8-125.6

140

139.8-145.6

160

159.4-166

8-252  ELECTRICAL-BODY AND CHASSIS

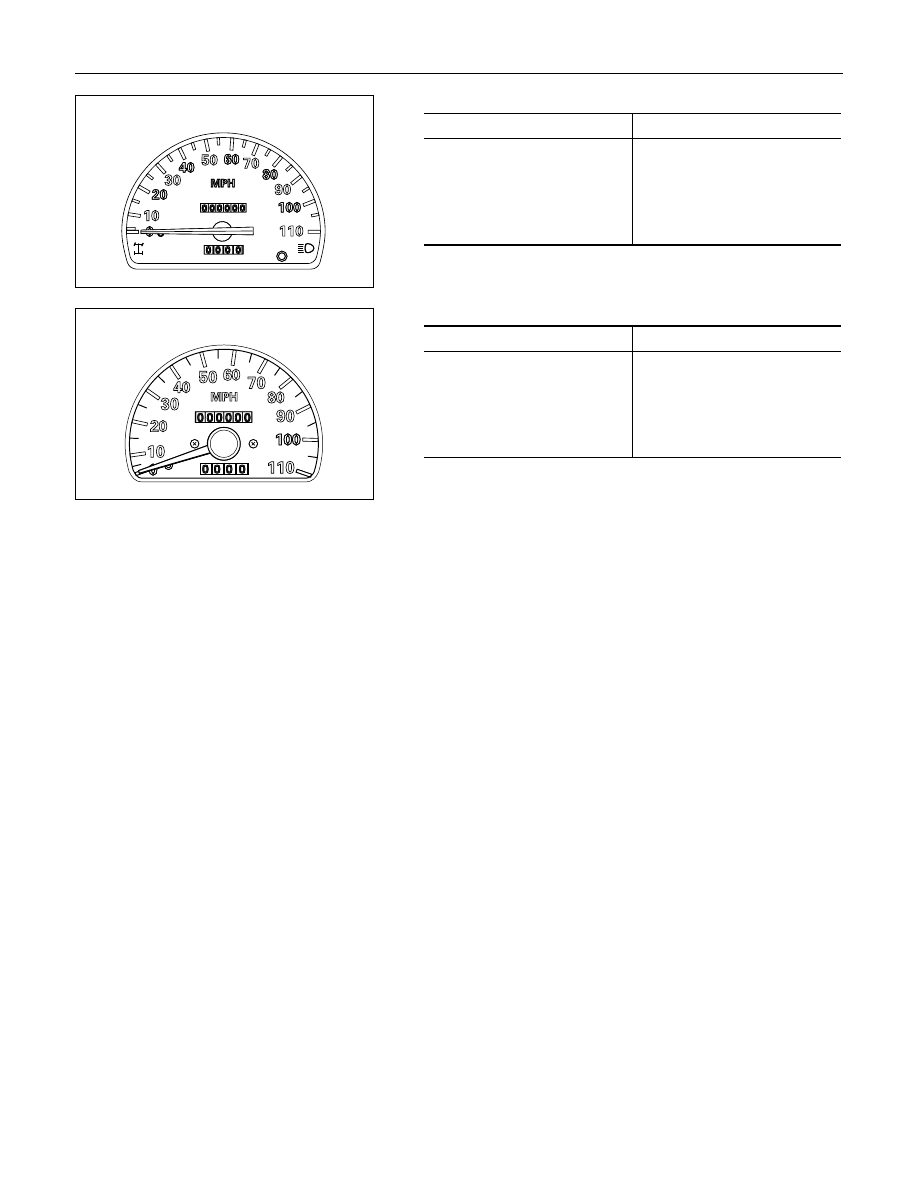

W/O Tachometer

MPH meter

MPH

Indication

Permissible Range

20

18.2-21.8

40

38.2-41.8

60

58.2-61.8

80

78.2-82.8

100

98.5-103.1

W/ Tachometer

MPH meter

MPH

Indication

Permissible Range

20

18.5-21.5

40

38.5-41.5

60

58.5-61.5

80

79.1-82.5

100

98.9-102.7
