Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1122

ELECTRICAL-BODY AND CHASSIS  8-245

  INSPECTION AND REPAIR

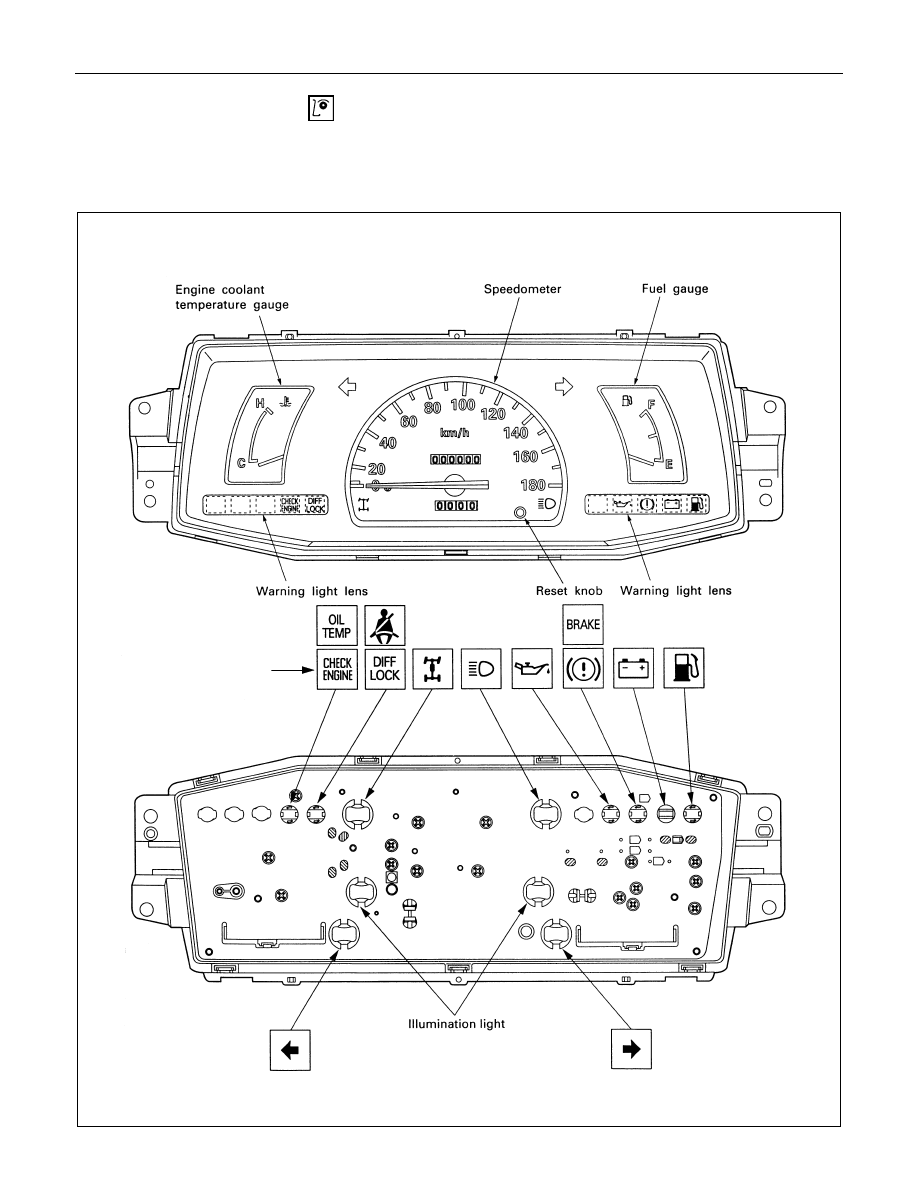

Warning, indicator and illumination light position
W/O tachometer

(This illustration is based on the Km/h meter)

(For South Africa only)

8-246  ELECTRICAL-BODY AND CHASSIS

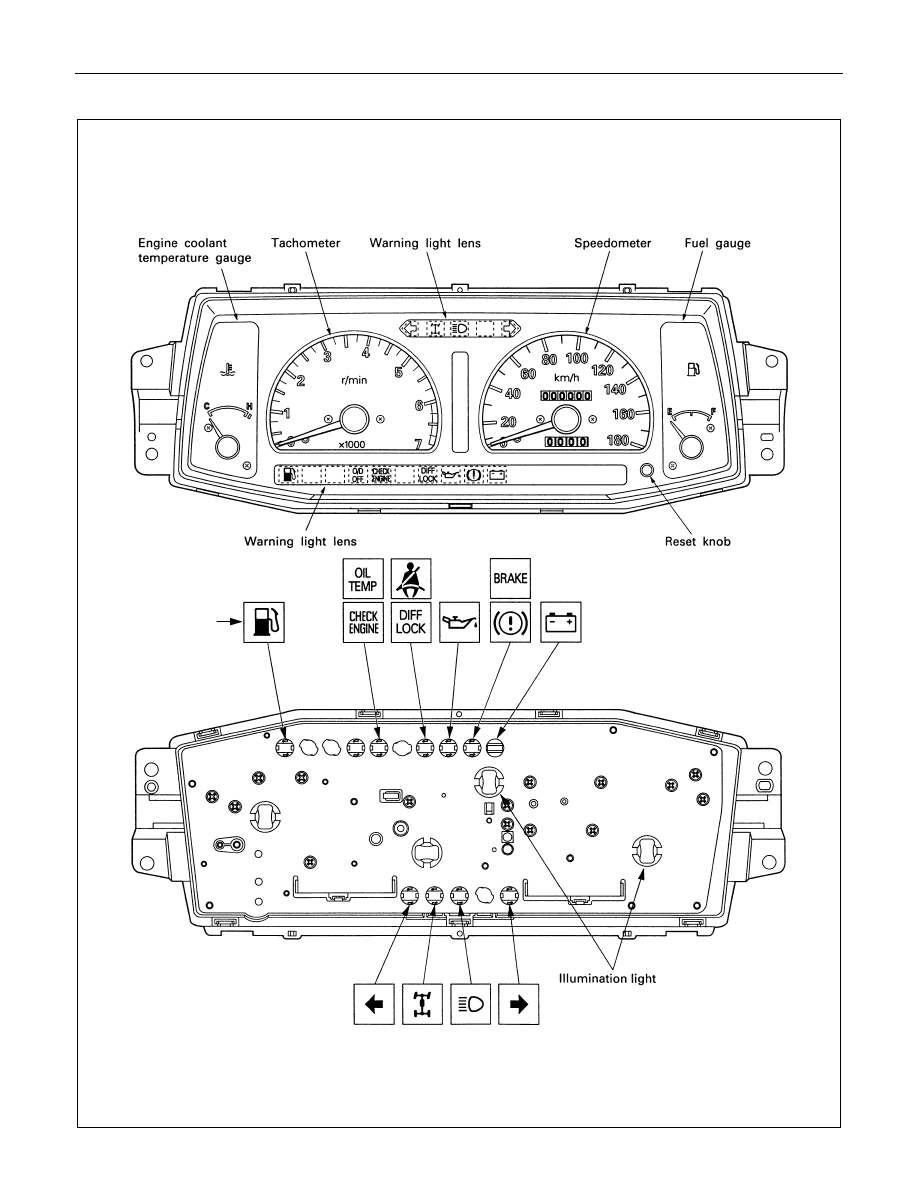

W/ Tachometer

(This illustration is based on the Km/h meter)

(For South Africa

only)

ELECTRICAL-BODY AND CHASSIS  8-247

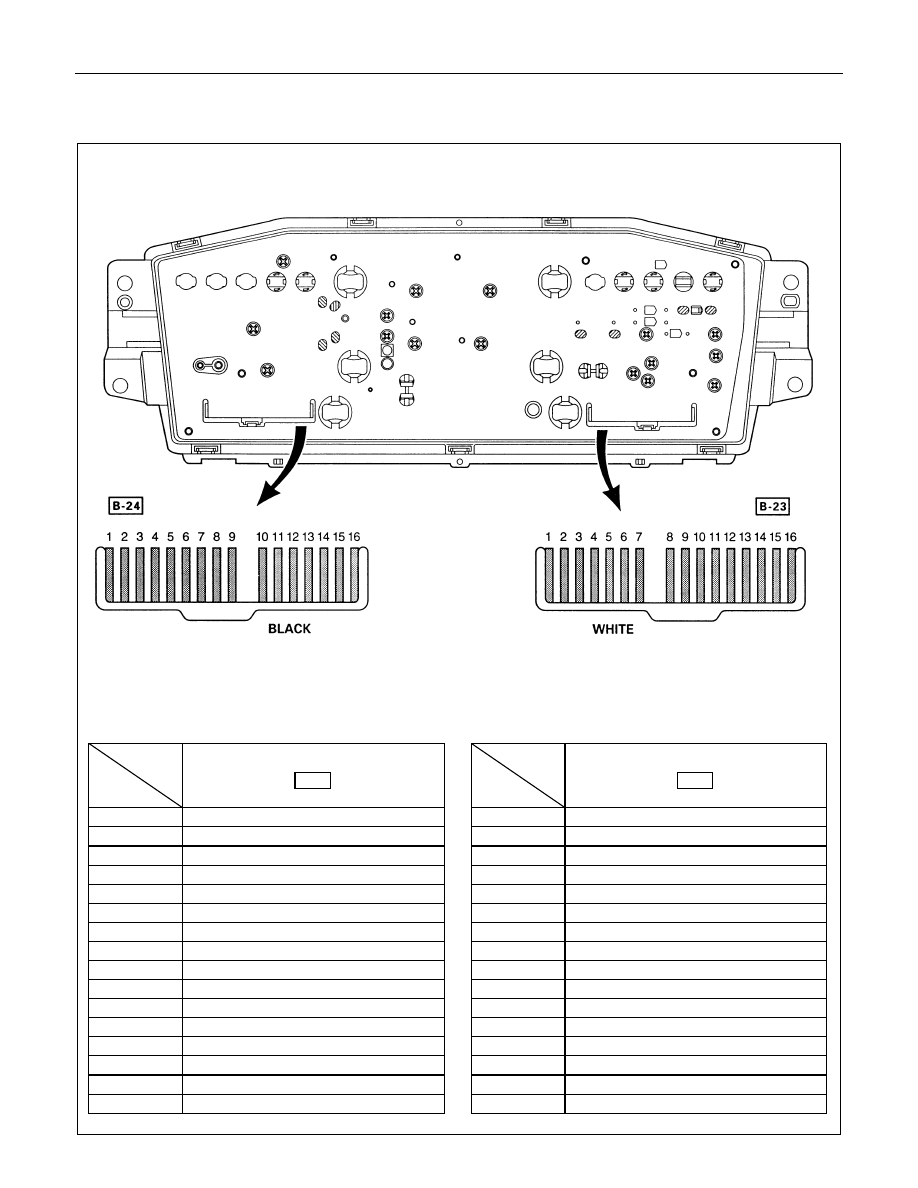

Meter connector pin arrangement
W/O Tachometer-1

Connector

Ter-

No.

minal No.

B-24

1

Ground

2

Ignition

3

-

4

-

5

-

6

Engine coolant temperature gauge

7

-

8

-

9

Check engine warning light

10

Diff. lock indicator light (South Africa only)

11

High-beam indicator light (+)

12

High-beam indicator light (-)

13

Illumination light (+)

14

Illumination light (-)

15

4WD indicator light

16

Turn signal indicator light (left)

Connector

Ter-

No.

minal No.

B-23

1

Turn signal indicator light (right)

2

-

3

-

4

-

5

Ground

6

-

7

Ignition

8

Speedometer

9

Speedometer

10

Oil pressure warning light

11

Fuel gauge

12

Brake warning light

13

Charge warning light

14

-

15

-

16

Fuel warning light (Except Chile)

8-248  ELECTRICAL-BODY AND CHASSIS

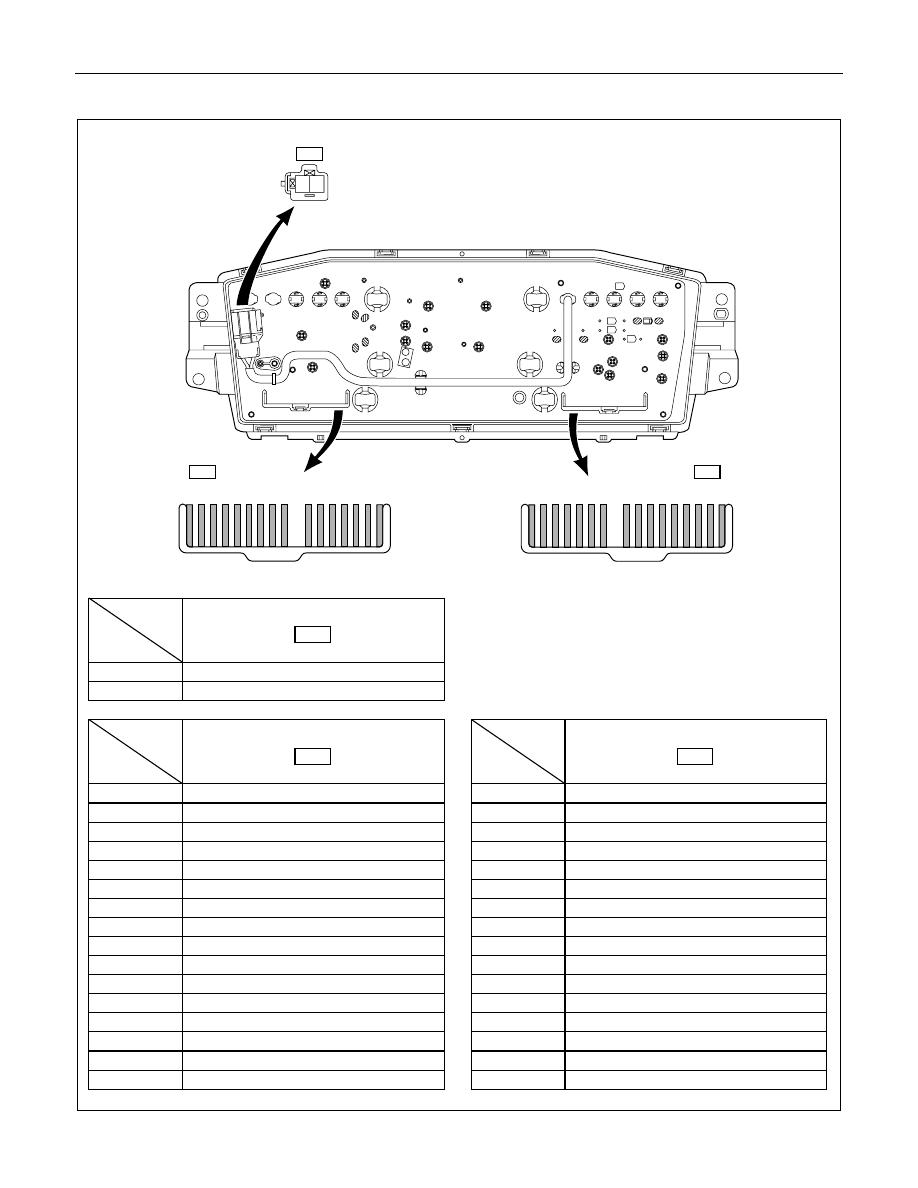

W/O Tachometer-2

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16

1 2 3 4 5 6 7

8 9 10 11 12 13 14 15 16

BLACK

YELLOW

B-24

B-37

B-23

WHITE

2 1

Connector

Ter-

No.

minal No.

B-24

1

Turn signal indicator light

2

Ignition

3

-

4

-

5

-

6

Engine coolant temperature gauge

7

Seat belt warning light

8

Glow indicator light

9

Water sedimenter warning light

10

Rear fog light indicator light

11

High-beam indicator light (+)

12

High-beam indicator light (-)

13

Illumination light (+)

14

Illumination light (-)

15

4WD indicator light

16

Turn signal indicator light (left)

Connector

Ter-

No.

minal No.

B-23

1

Turn signal indicator light (right)

2

-

3

-

4

-

5

Ground

6

-

7

Ignition

8

Speedometer

9

Speedometer

10

Oil pressure warning light

11

Fuel gauge

12

Brake warning light

13

Charge warning light

14

-

15

-

16

Fuel warning light

Connector

Ter-

No.

minal No.

B-37

1

Air bag Warning light

2

Air bag Warning light
