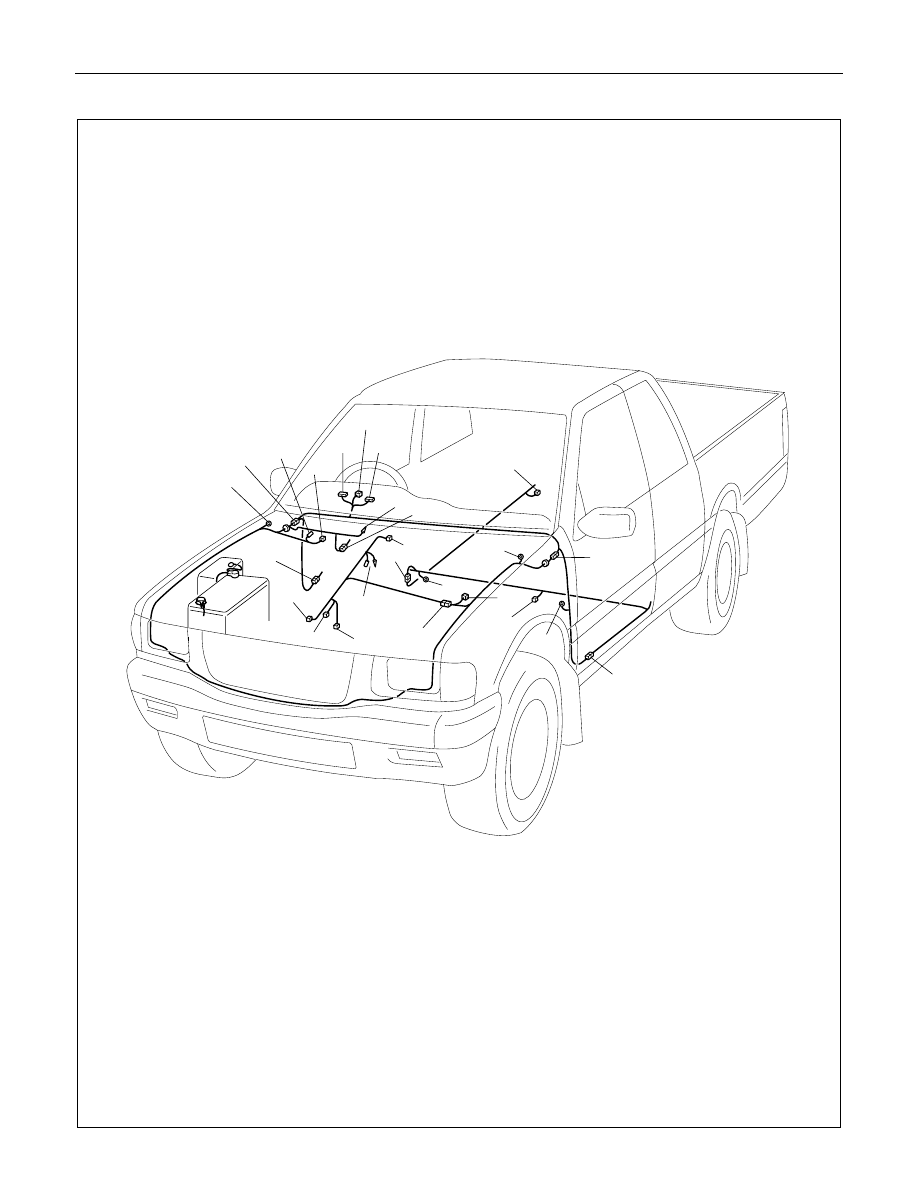

PARTS LOCATION (UK)

H-9

B-9

H-8

C-36

C-41

E-19

E-1

E-36

C-2

H-19

B-23 B-24

B-37

C-39

E-44

E-45

E-46

C-37

C-38

H-6

H-7

H-4

H-5

H-15

R-4

F-1

B-34

B-30

8-214  ELECTRICAL-BODY AND CHASSIS

ELECTRICAL-BODY AND CHASSIS  8-215

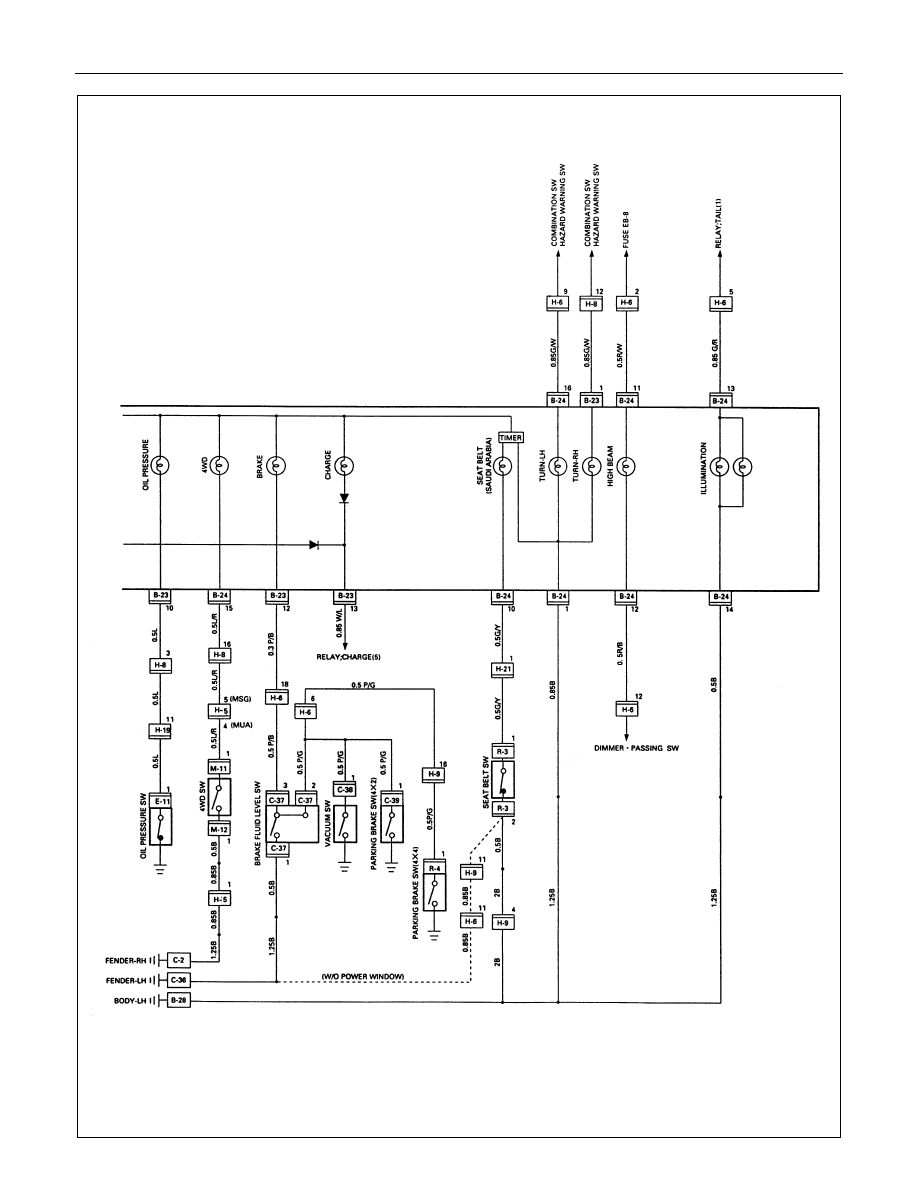

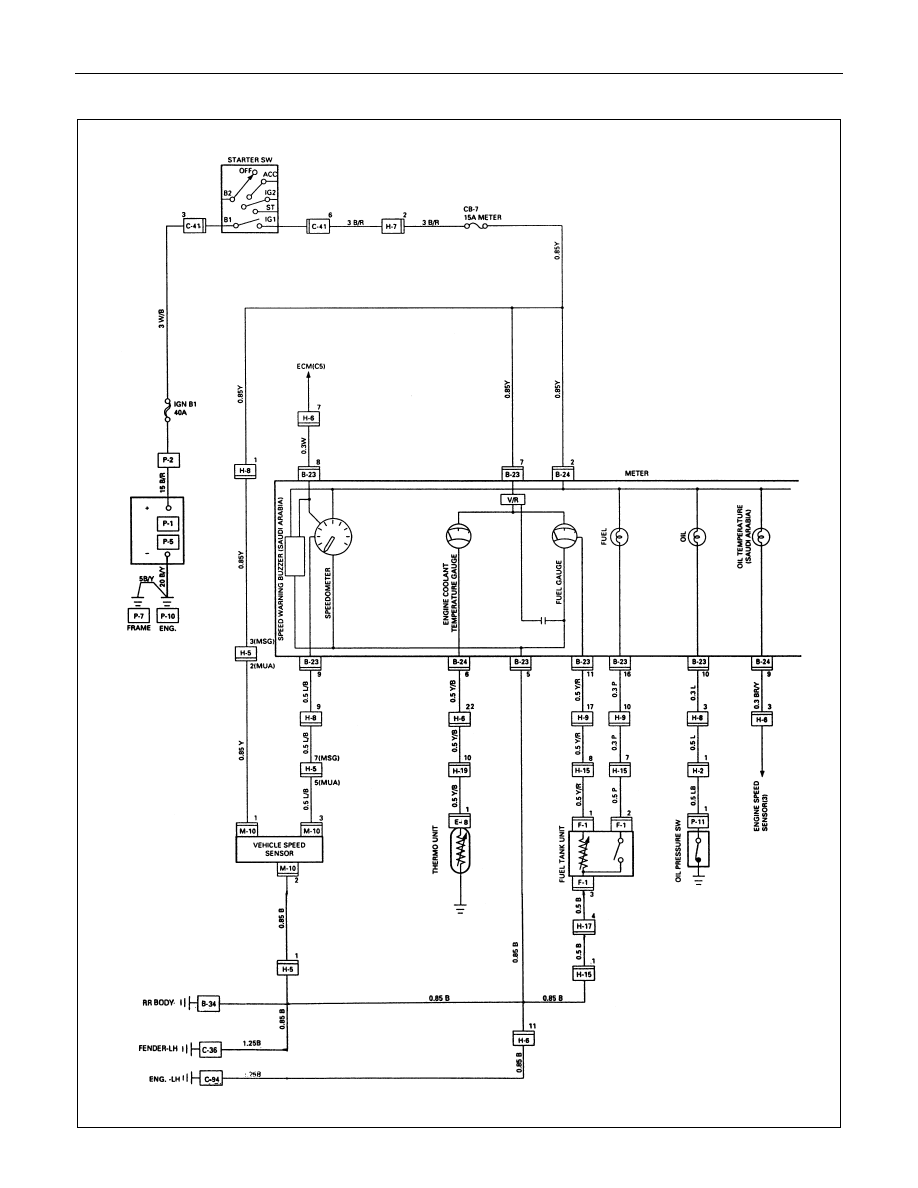

CIRCUIT DIAGRAM (W/O TACHOMETER-LHD EXCEPT EC)
