ELECTRICAL-BODY AND CHASSIS  8-205

TRANSMISSION CONTROL MODULE (TCM)

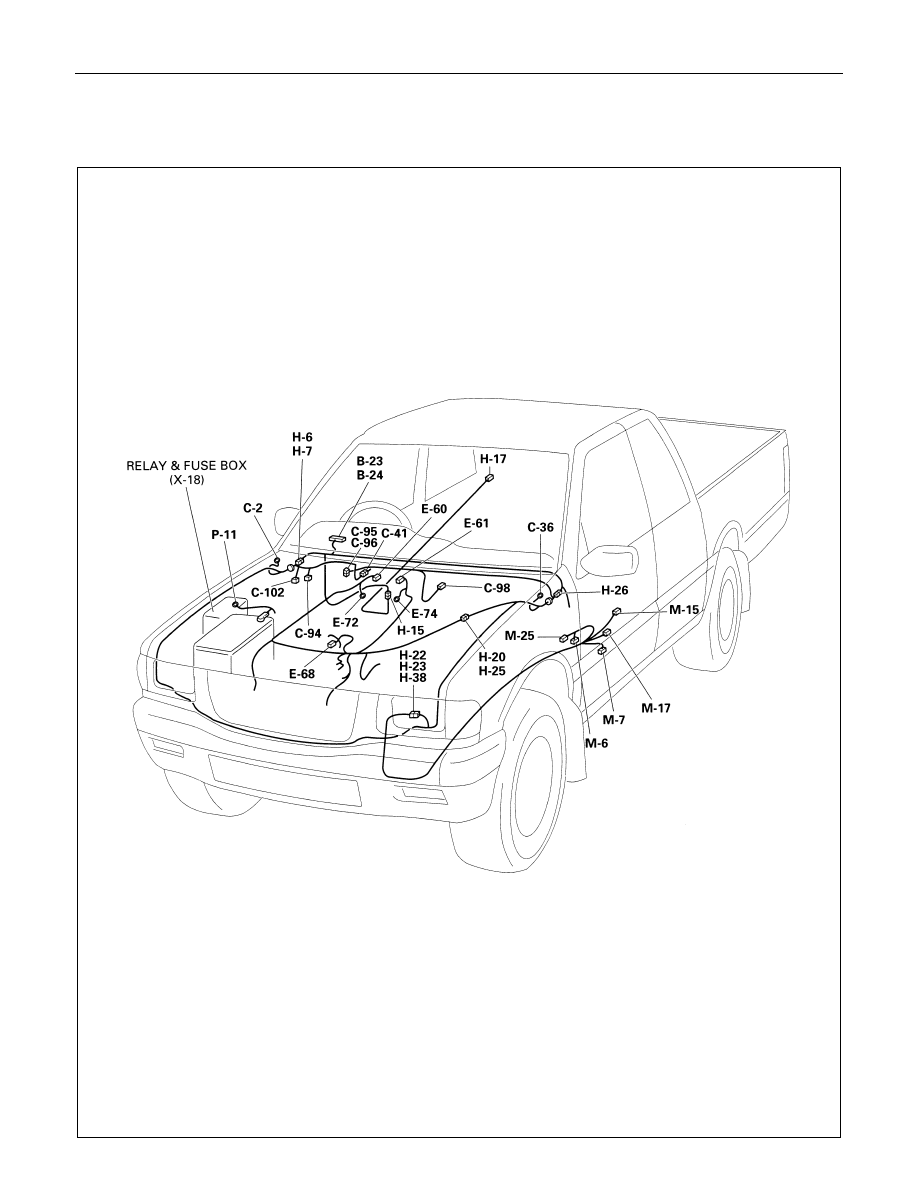

PARTS LOCATION (RHD)

8-206  ELECTRICAL-BODY AND CHASSIS

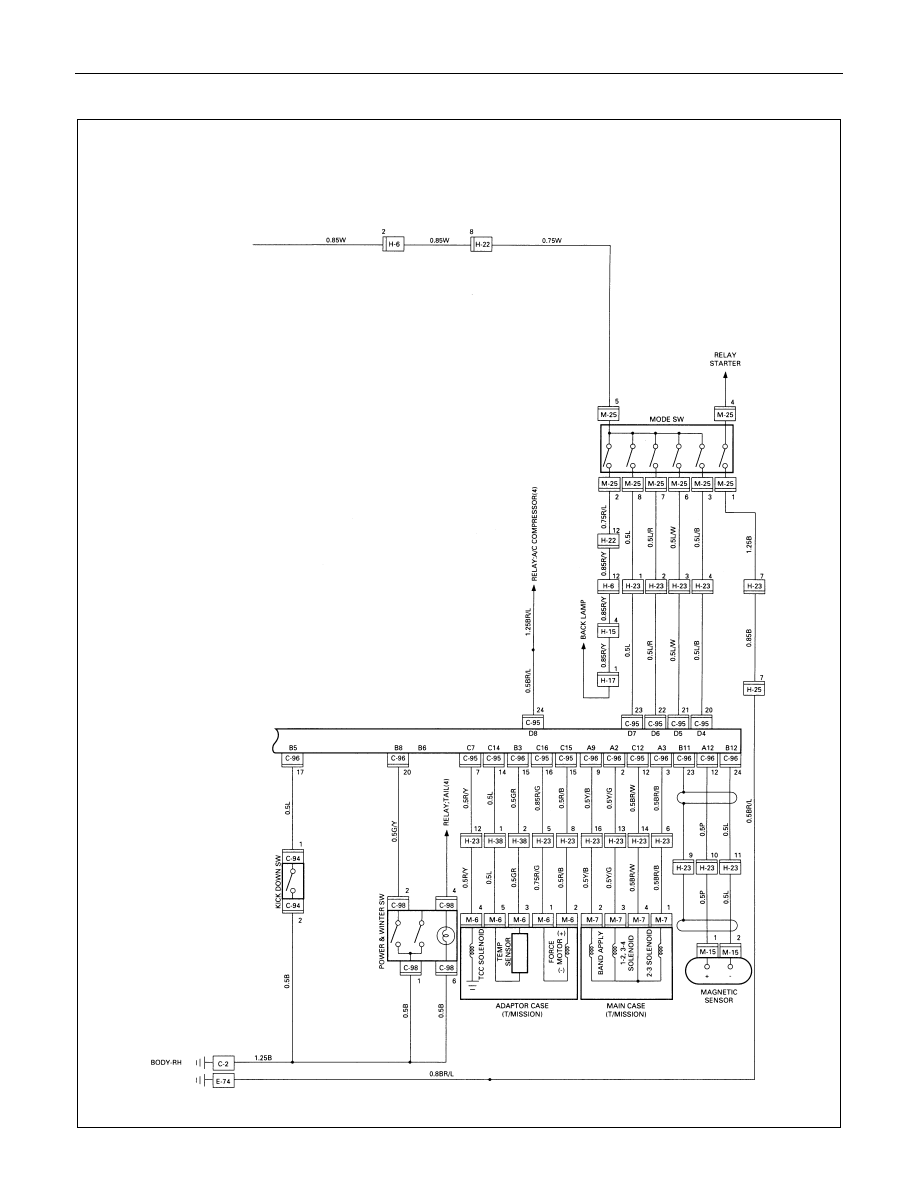

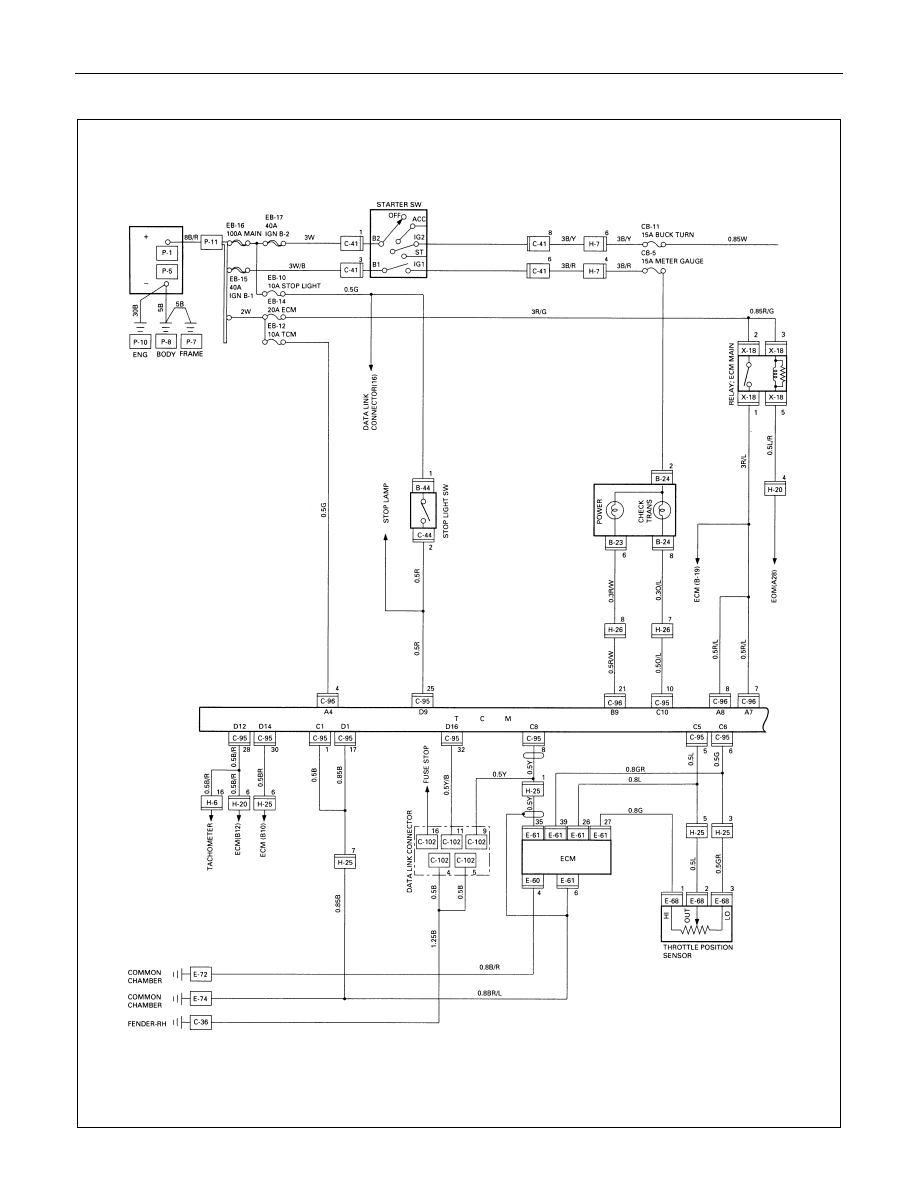

CIRCUIT DIAGRAM (6VD1-W/TCM)

ELECTRICAL-BODY AND CHASSIS  8-207

8-208  ELECTRICAL-BODY AND CHASSIS

METER, WARNING LIGHT AND INDICATOR LIGHT

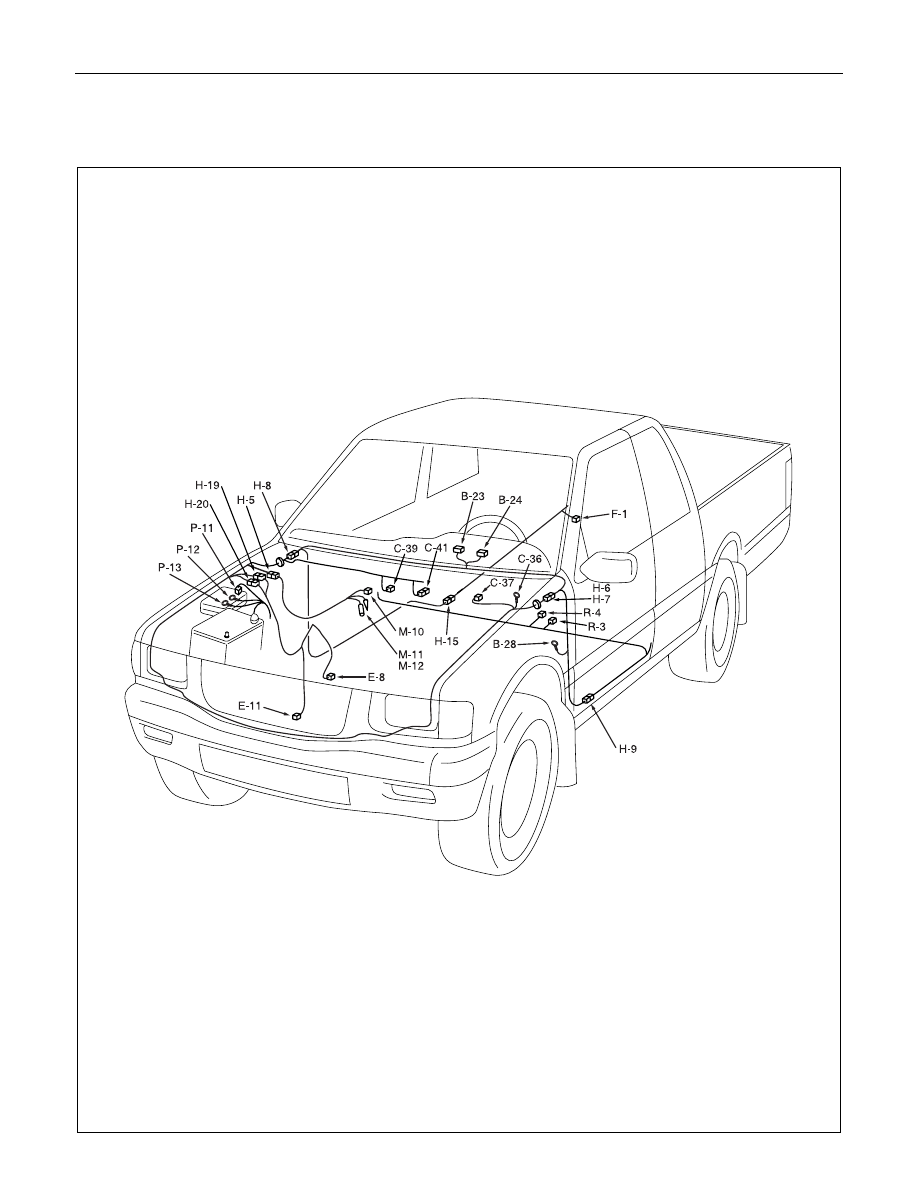

PARTS LOCATION (LHD EXCEPT EC)
