ELECTRICAL-BODY AND CHASSIS  8-201

Installation

Follow the removal procedure in the reverse order to install the
washer tank motor.
Pay close attention to the important points mentioned in the
following paragraphs.

Connector

Be absolutely sure that the washer tank motor connector is
securely connected.
This will prevent a poor contact and an open circuit.

8-202  ELECTRICAL-BODY AND CHASSIS

OVERDRIVE OFF (A/T)

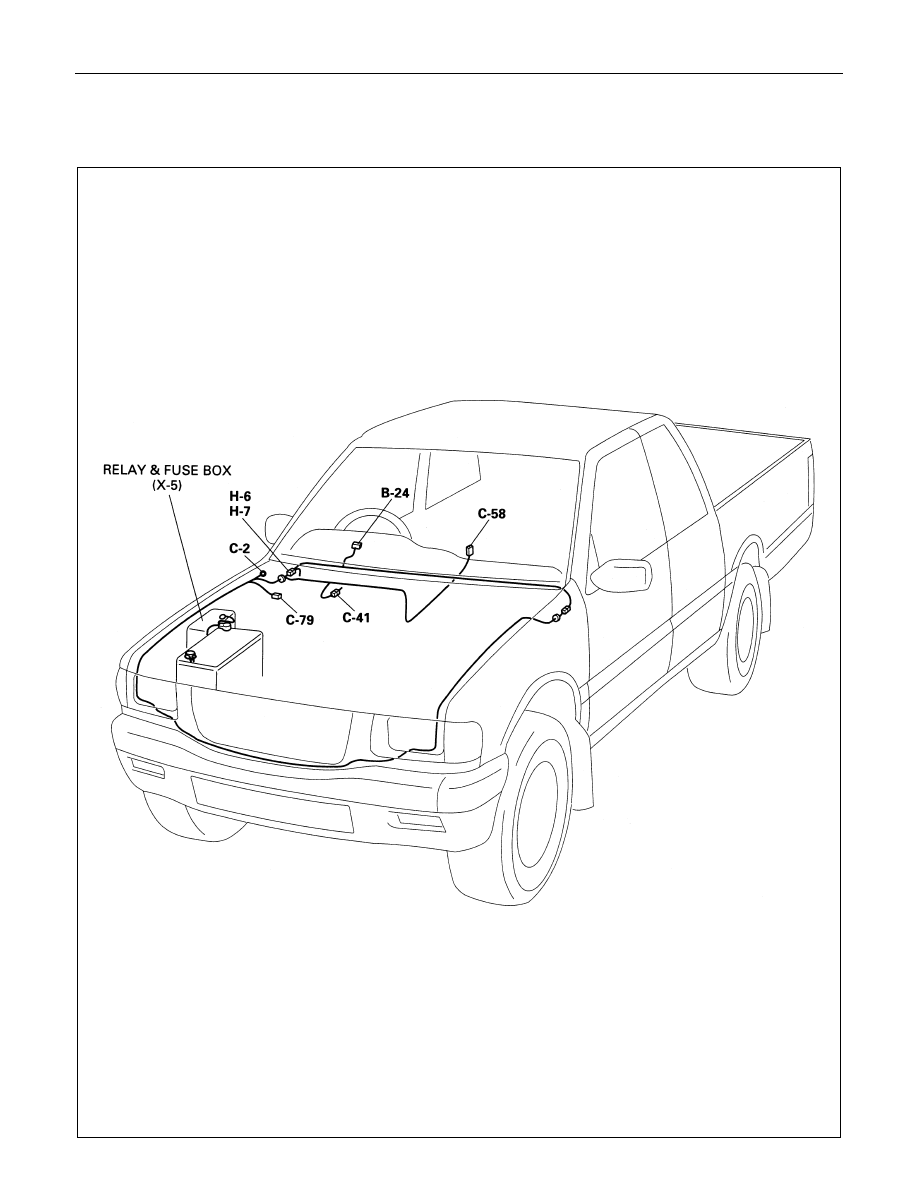

PARTS LOCATION

ELECTRICAL-BODY AND CHASSIS  8-203

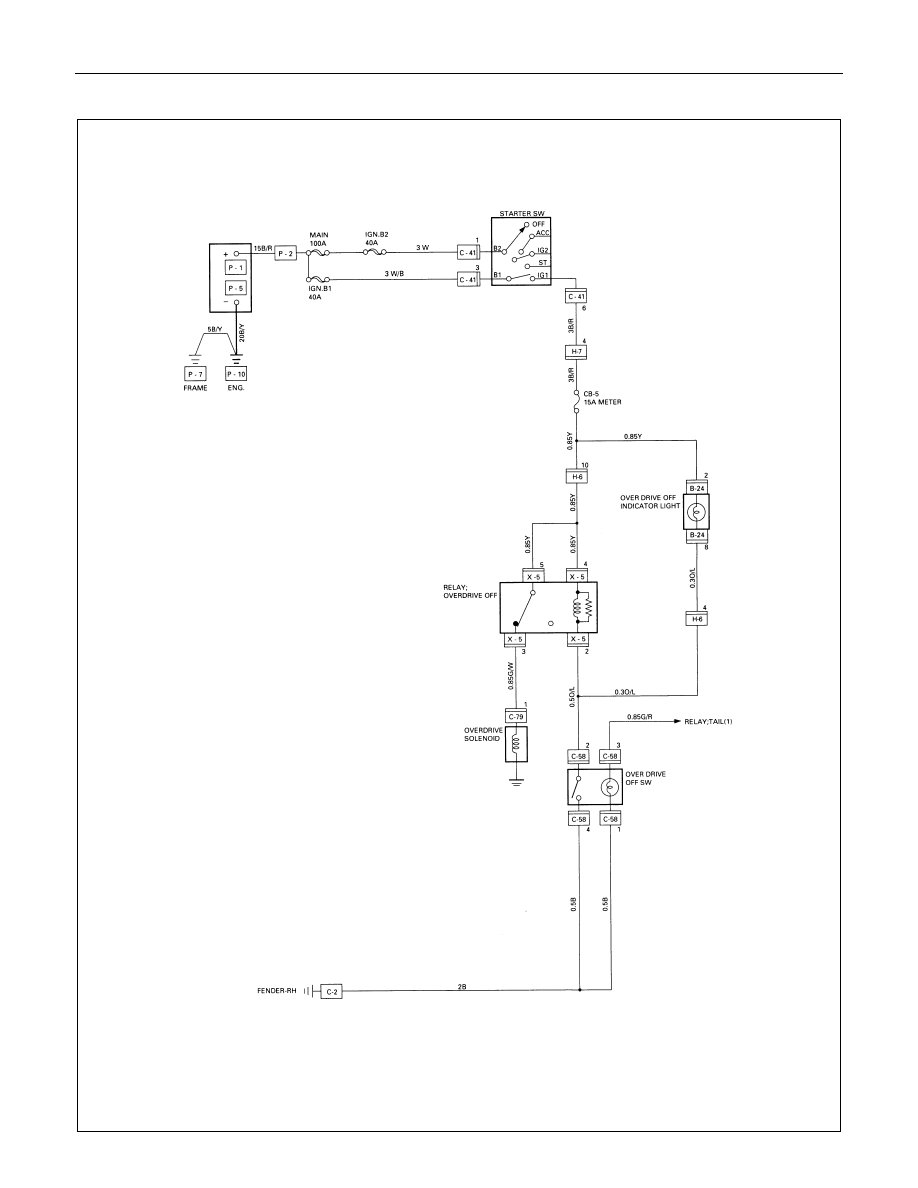

CIRCUIT DIAGRAM

8-204  ELECTRICAL-BODY AND CHASSIS

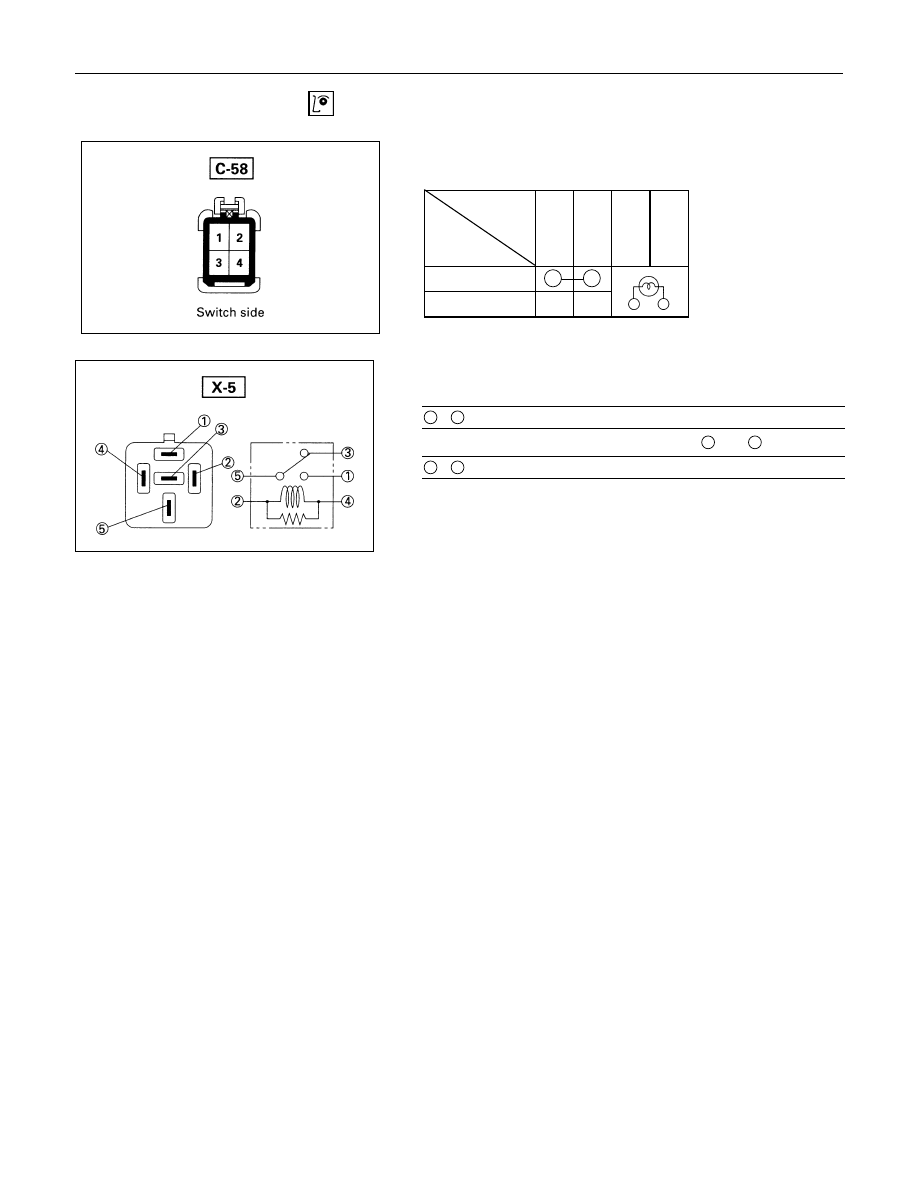

  INSPECTION AND REPAIR

OVERDRIVE OFF SWITCH

Overdrive Off Switch Connections

Terminal

No.

SW position

2

4

1

3

ON

OFF

OVERDRIVE OFF RELAY

Check continuity between the relay terminals.

3

 -

5

............................ Continuity

(When battery voltage is applied between

2

 and

4

)

3

 -

5

............................ No continuity
