Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1102





ELECTRICAL-BODY AND CHASSIS  8-165

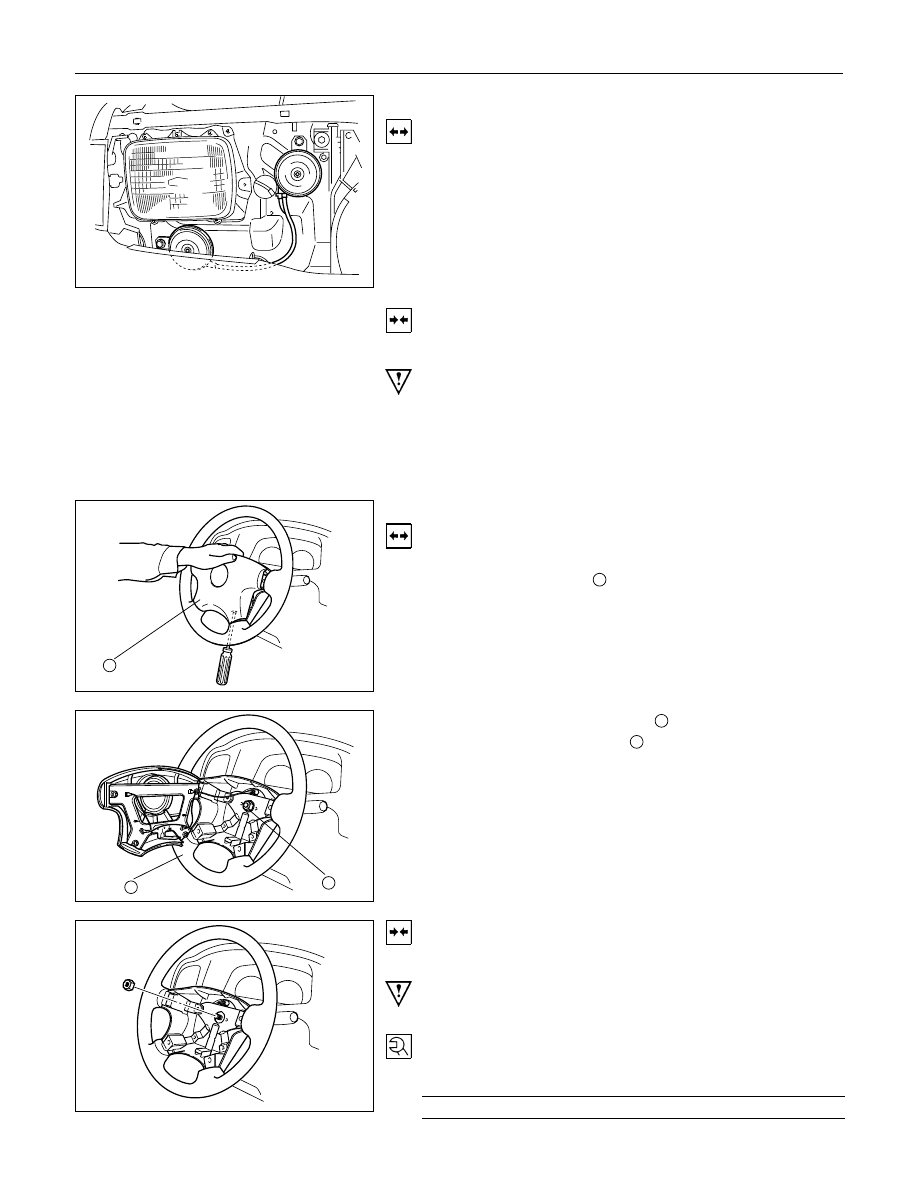

HORN

Removal

1. Remove the radiator grille.

Refer to the “HEADLIGHT” removal procedure.

2. Loosen the horn bolt.

3. Disconnect the horn connector.

Installation

Follow the removal procedure in the reverse order to install the
horn.
Pay close attention to the important point mentioned in the
following paragraphs.

Connector

Be absolutely sure the horn connector is securely connected.
This will prevent a poor contact and open circuit.

1

HORN SWITCH

Removal

1. Remove the screws on the lower part of the steering wheel.

2. Remove the horn pad

1

.

3. Remove the horn wiring connector.

3

2

4. Remove the steering wheel nut

2

.

5. Remove the steering wheel

3

.

6. Remove the connector.

7. Remove the horn switch (combination switch).

Installation

Follow the removal procedure in the reverse order to install the
horn switch.
Pay close attention to the important points mentioned in the
following paragraphs.

Steering Wheel Nut

Tighten the nut to the specified torque.
Steering Wheel Nut Torque

N

⋅m (kgf⋅m/lb⋅ft)

34.3

±4.9 (3.5±0.5 / 25±3.6)

8-166  ELECTRICAL-BODY AND CHASSIS

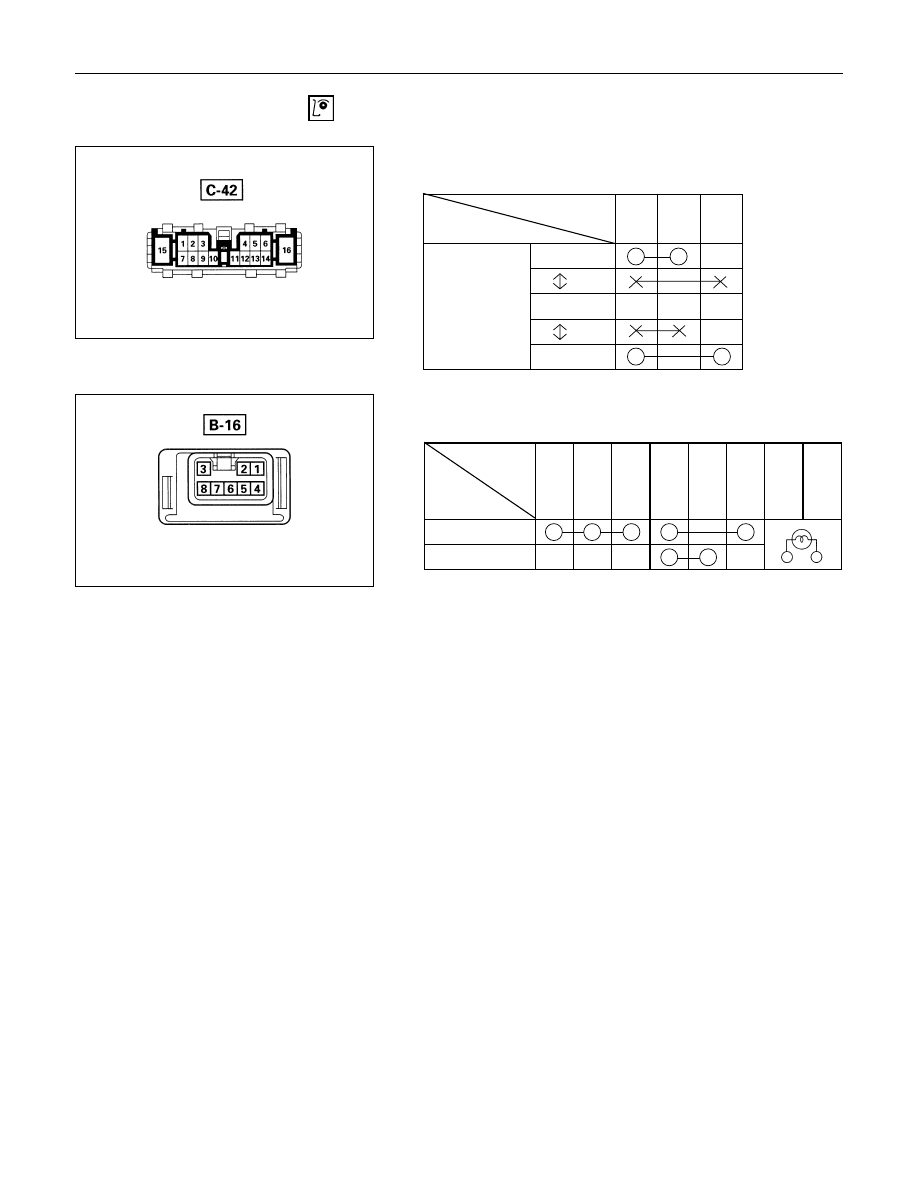

  INSPECTION AND REPAIR

Switch side

TURN SIGNAL SWITCH

Lighting Switch Connections

Terminal No.

SW position

3

4

5

Left

Neutral

Right

Turning

direction

Switch side

HAZARD WARNING FLASHER SWITCH

Hazard Warning Flasher Switch Connections

Terminal

No.

SW position

4

5

6

7

8

2

1

3

ON

OFF

ELECTRICAL-BODY AND CHASSIS  8-167

DOME LIGHT, SPOT LIGHT AND WARNING BUZZER

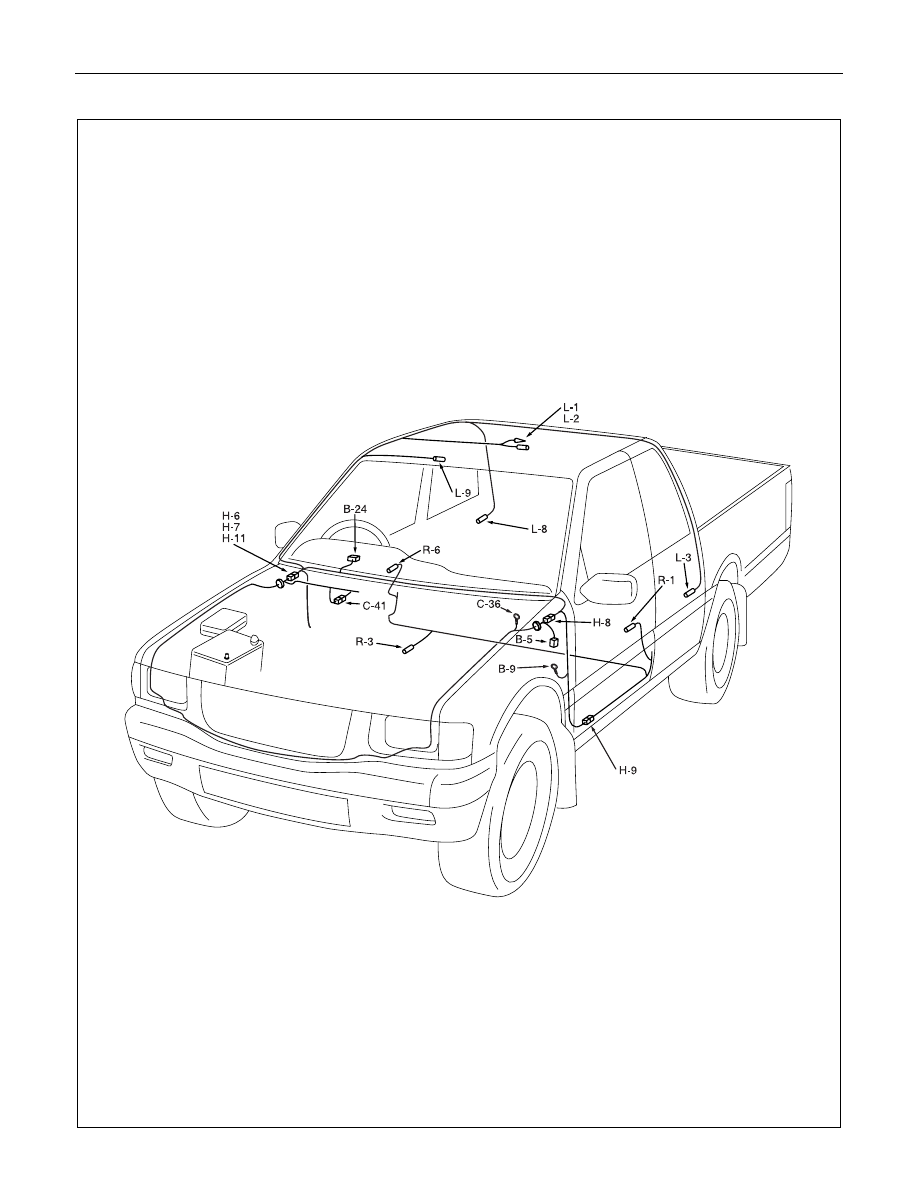

PARTS LOCATION (LHD)

8-168  ELECTRICAL-BODY AND CHASSIS

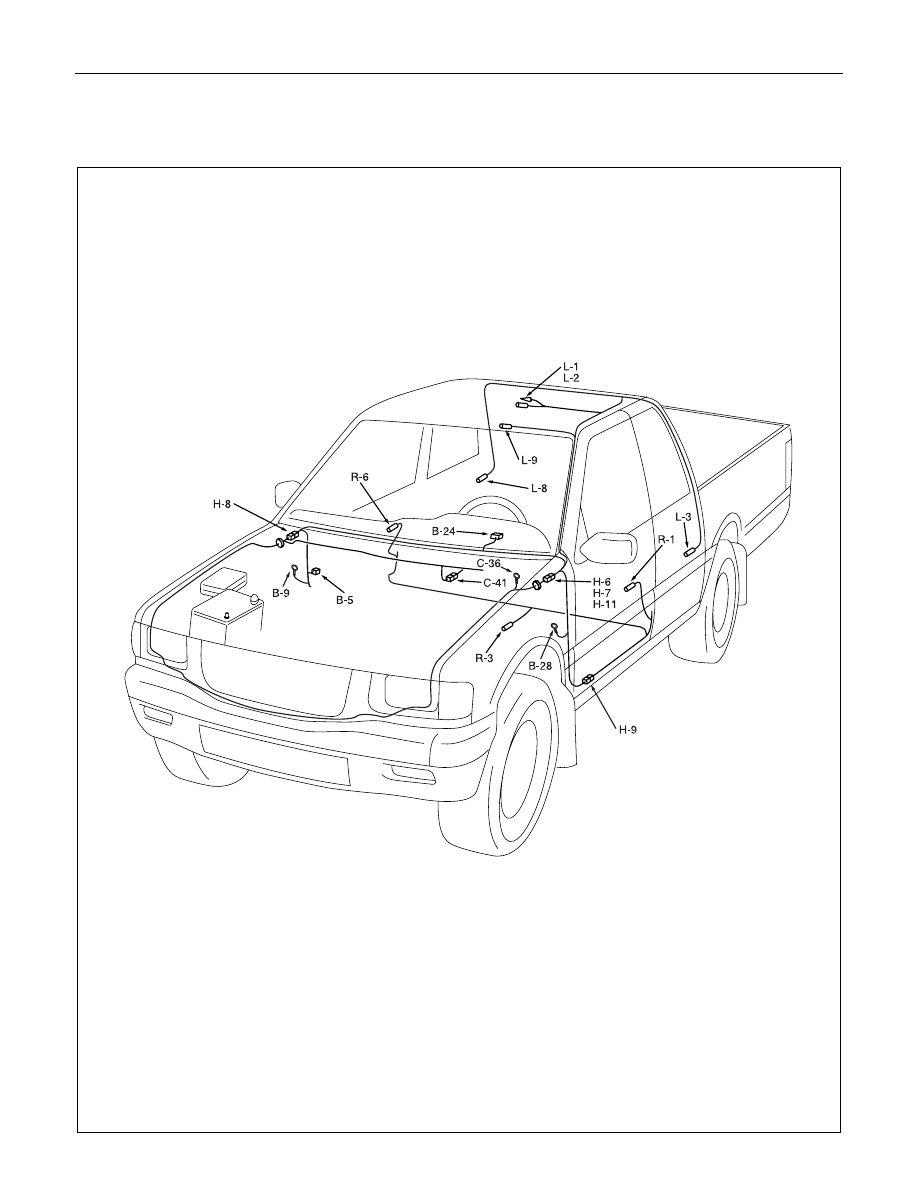

PARTS LOCATION (RHD)
