ELECTRICAL-BODY AND CHASSIS  8-161

REAR COMBINATION LIGHT

Turn Signal Light

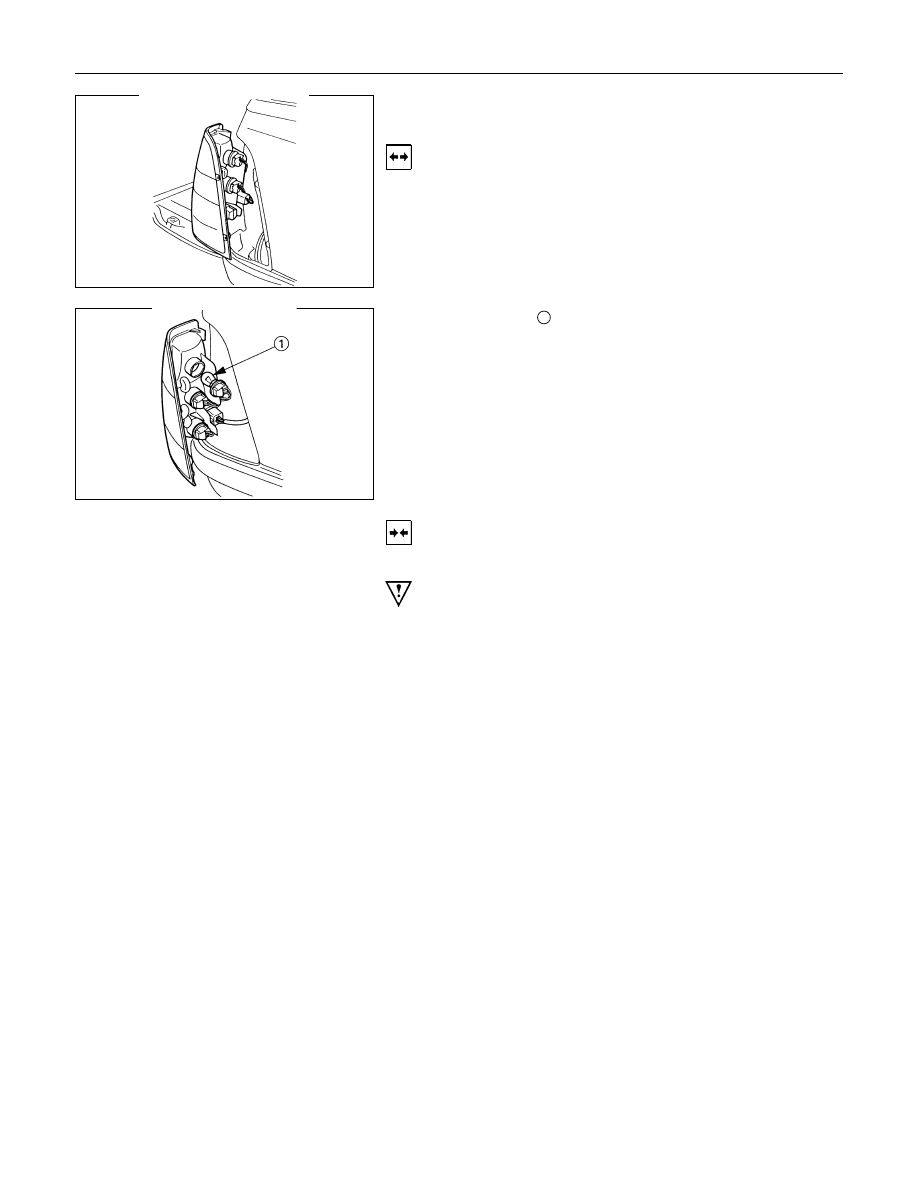

Removal

1. Open the rear gate.

2. Remove the screws.

3. Remove the rear combination light assembly.

4. Turn the bulb

1

 counterclockwise to remove it.

Installation

Follow the removal procedure in the reverse order to install the
rear combination light.
Pay close attention to the important points mentioned in the
following paragraphs.

Bulb

Be absolutely sure that the rear combination light bulb is
correctly installed.
This will prevent a poor contact and an open circuit.

8-162  ELECTRICAL-BODY AND CHASSIS

TURN SIGNAL SWITCH

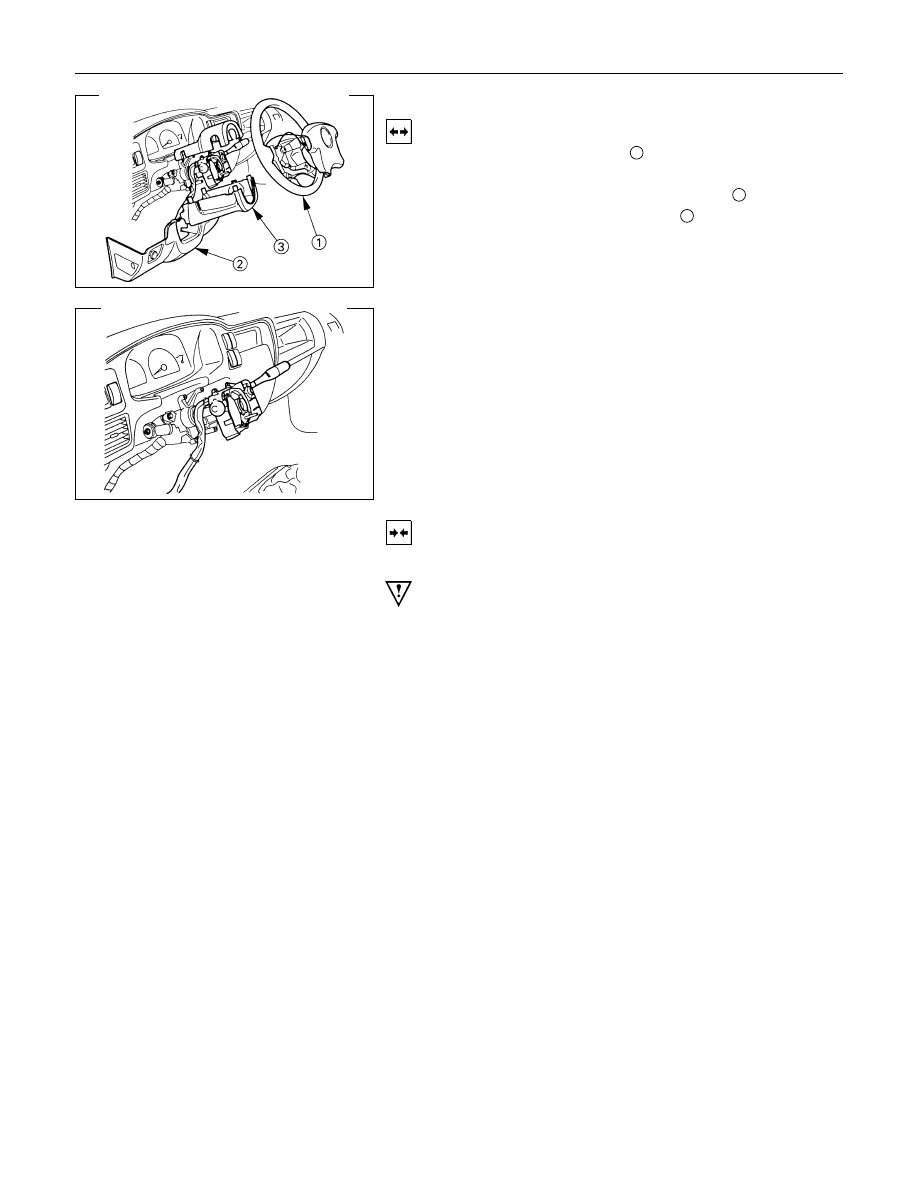

Removal

1. Remove the steering wheel

1

.

Refer to the “STEERING” Section of this Manual.

2. Remove the instruments panel lower cover

2

.

3. Remove the steering column cover

3

.

4. Disconnect the connector.

5. Remove the turn signal switch from the steering shaft.

Installation

Follow the removal procedure in the reverse order to install the
turn signal switch (lever).
Pay close attention to the important points mentioned in the
following paragraphs.

Connector

Be absolutely sure that the turn signal switch connector is
securely connected.
This will prevent a poor contact and at an open circuit.

ELECTRICAL-BODY AND CHASSIS  8-163

REAR COMBINATION LIGHT

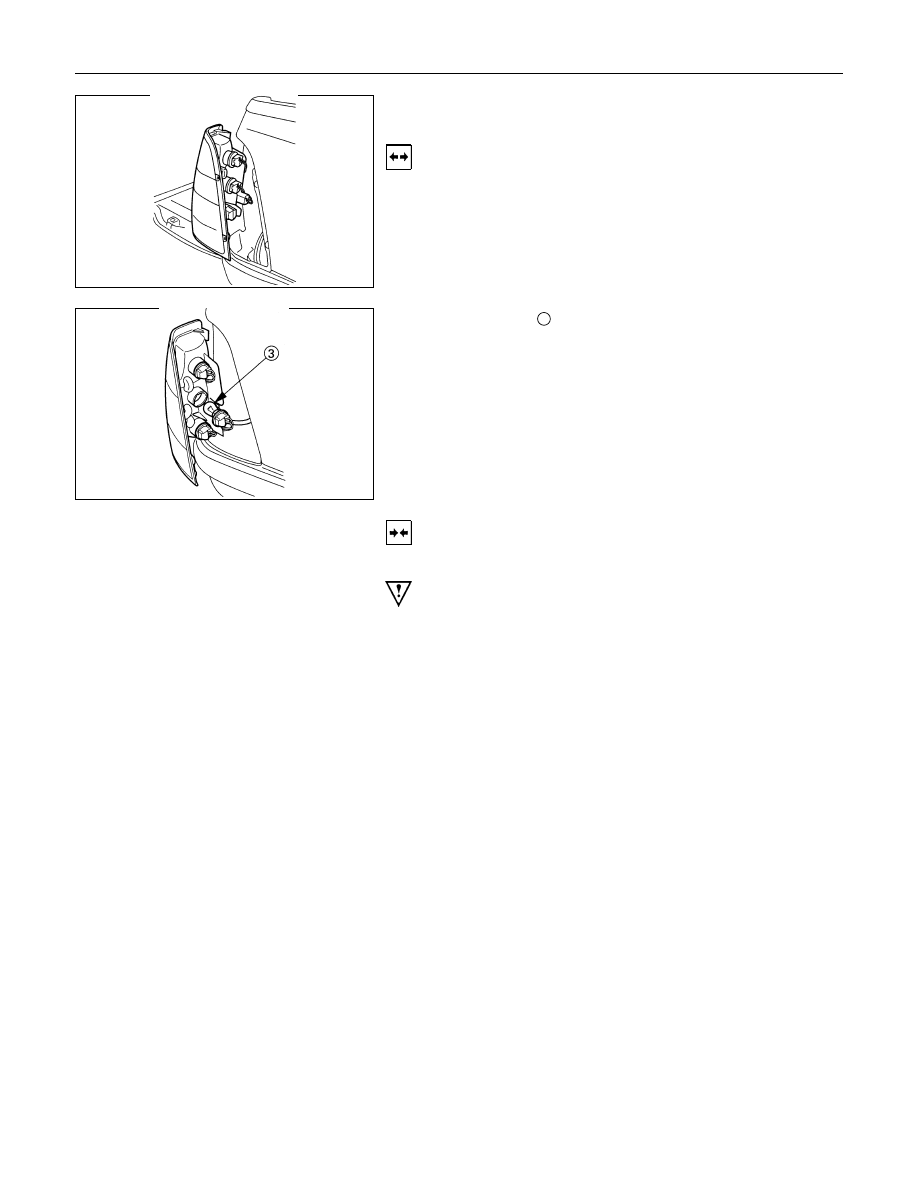

Back Up Light
Removal

1. Open the rear gate.

2. Remove the screws.

3. Remove the rear combination light assembly.

4. Turn the bulb

3

 counterclockwise to remove it.

Installation

Follow the removal procedure in the reverse order to install the
rear combination light.
Pay close attention to the important points mentioned in the
following paragraphs.

Bulbs

Be absolutely sure that each bulb is correctly installed.
This will prevent a poor contact and an open circuit.

8-164  ELECTRICAL-BODY AND CHASSIS

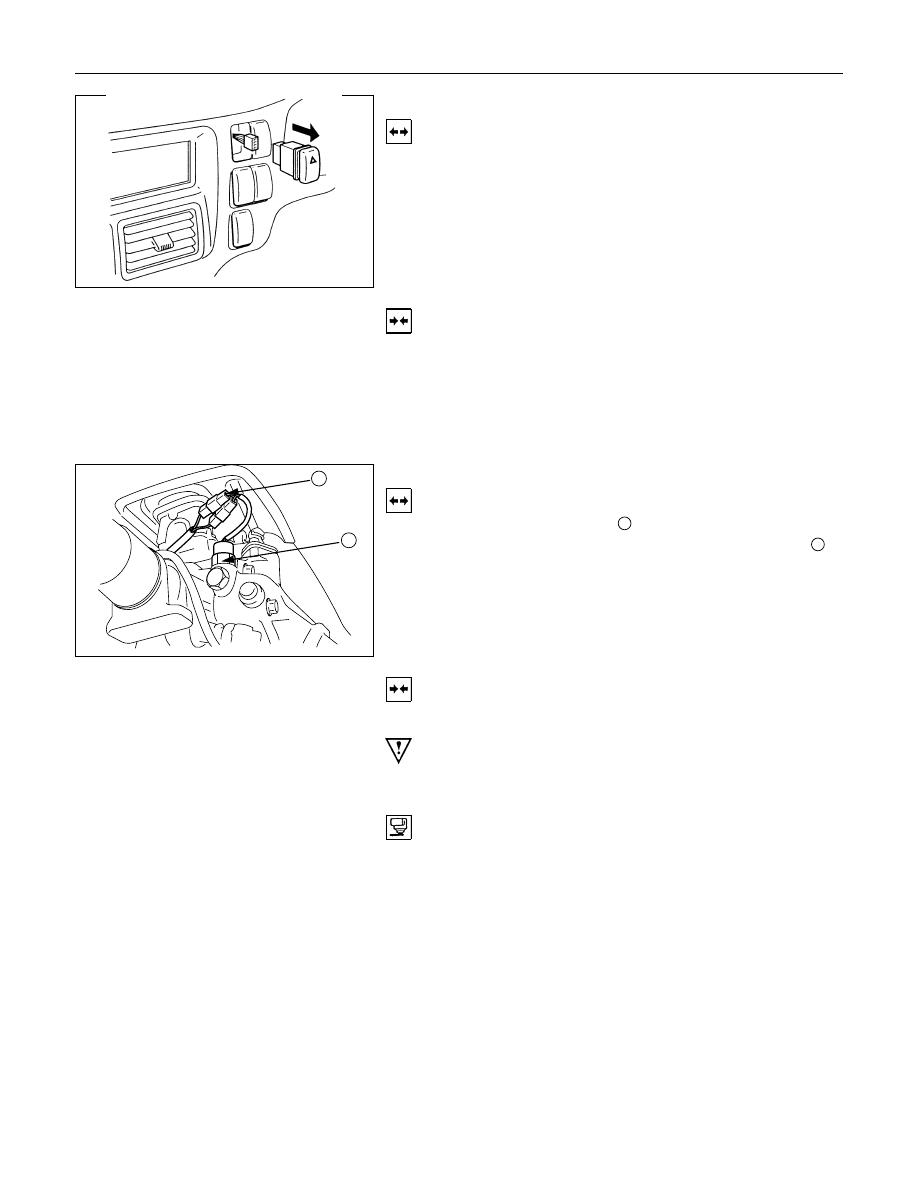

HAZARD WARNING FLASHER SWITCH

Removal

1. Instrument Panel Cluster Assembly

• Refer to Section 10 “BODY” for instrument panel cluster

assembly removal steps.

2. Hazard Warning Switch

• Disconnect the switch connector.
• To remove the switch, push the lock from the back side

of the cluster assembly.

Installation

To install, follow the removal procedure in the reverse order.

Connector

Be absolutely sure that the hazard warning flasher switch
connector is securely connected.
This will prevent a poor contact and an open circuit.

1

2

BACK UP LIGHT SWITCH

Removal

1. Disconnect the connector

1

.

2. Remove the back up light switch from the transmission

2

.

Installation

Follow the removal procedure in the reverse order to install the
back up light switch.
Pay close attention to the important points mentioned in the
following paragraphs.

Back up Light Switch Threads

Apply liquid gasket to the threaded portion and install the back
up light switch.

Connector

Be absolutely sure that the back up light connector is securely
connected.
This will prevent a poor contact and an open circuit.
