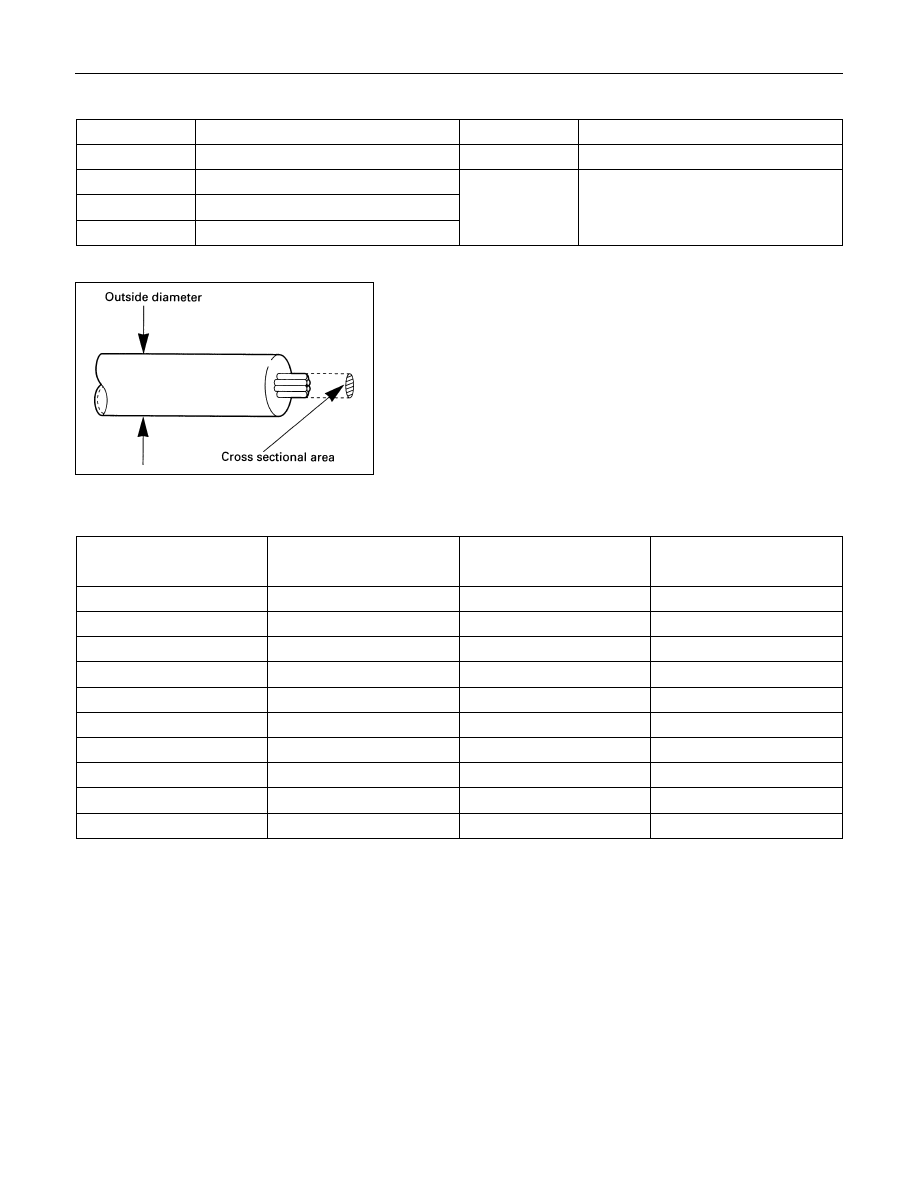

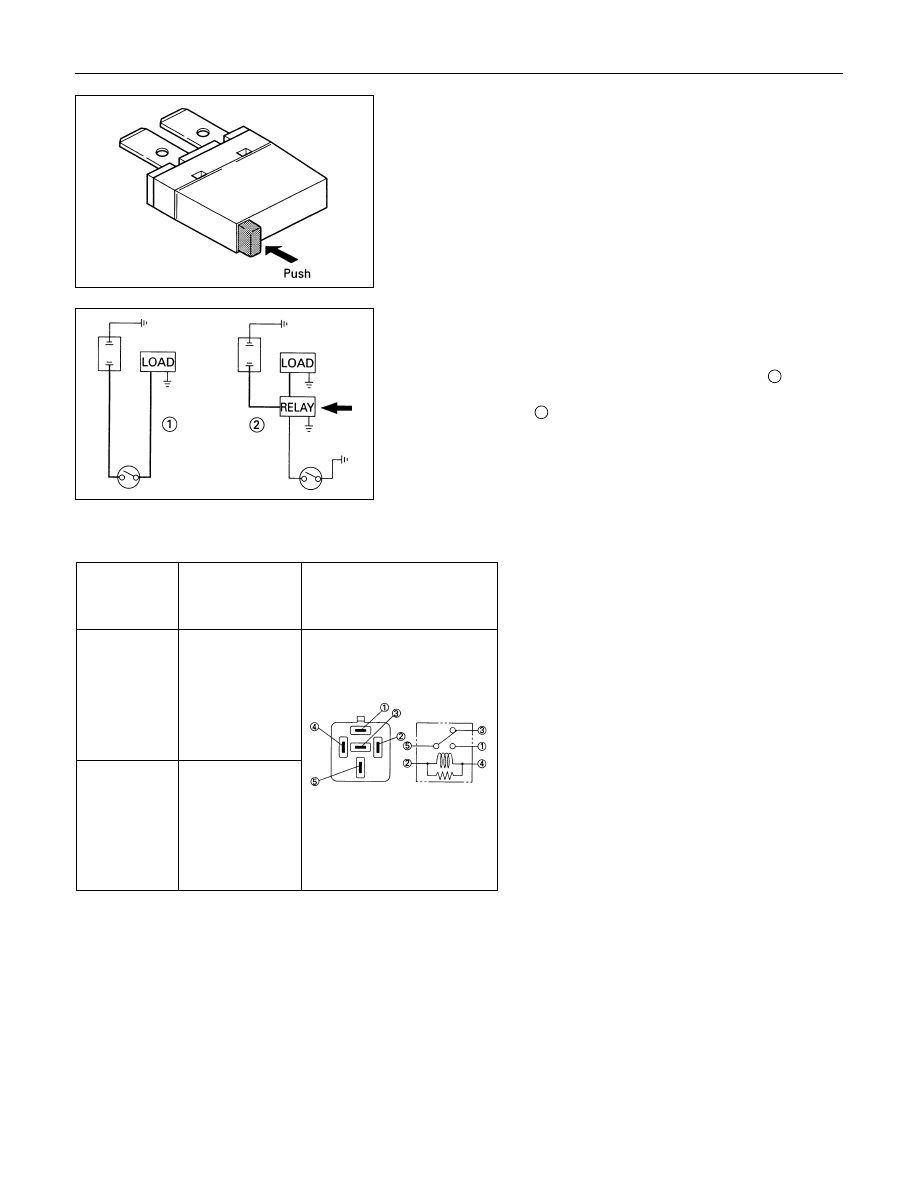

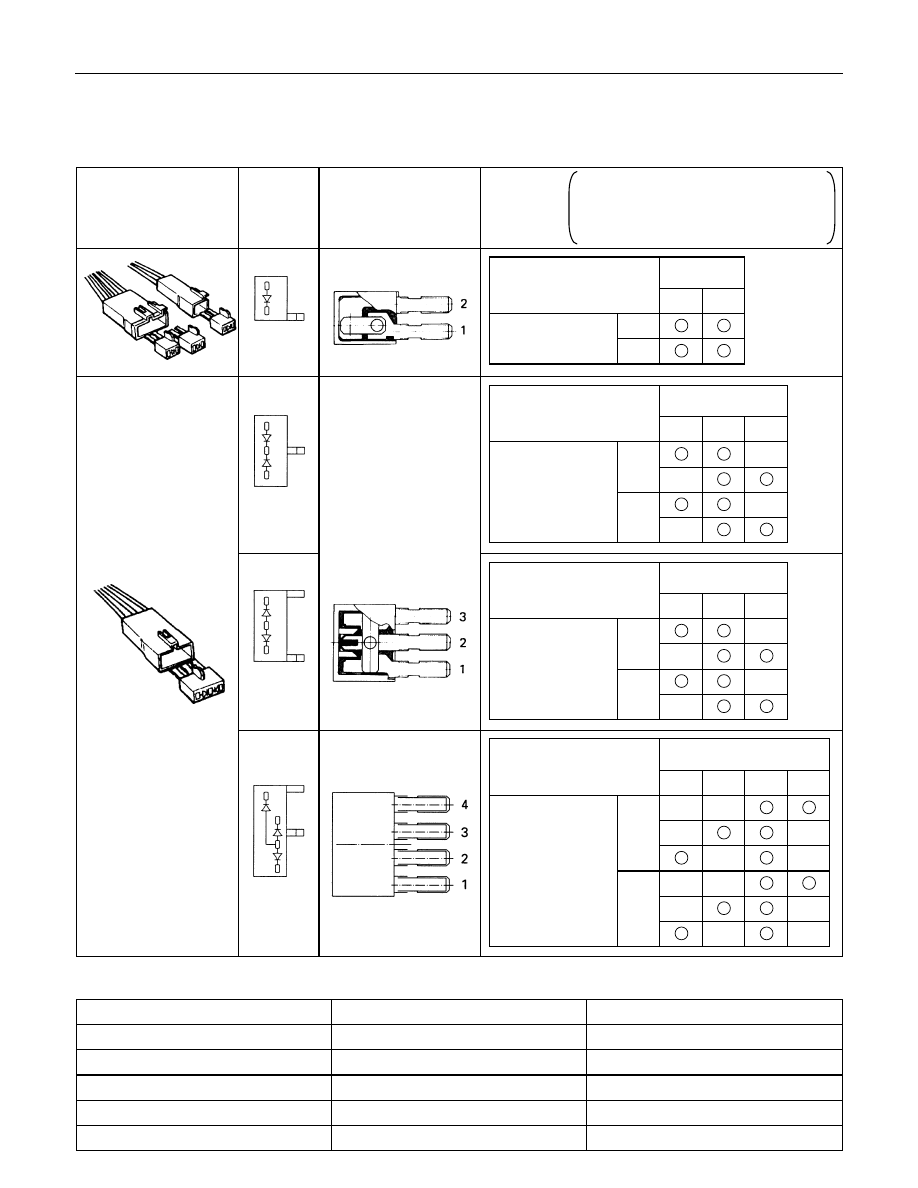

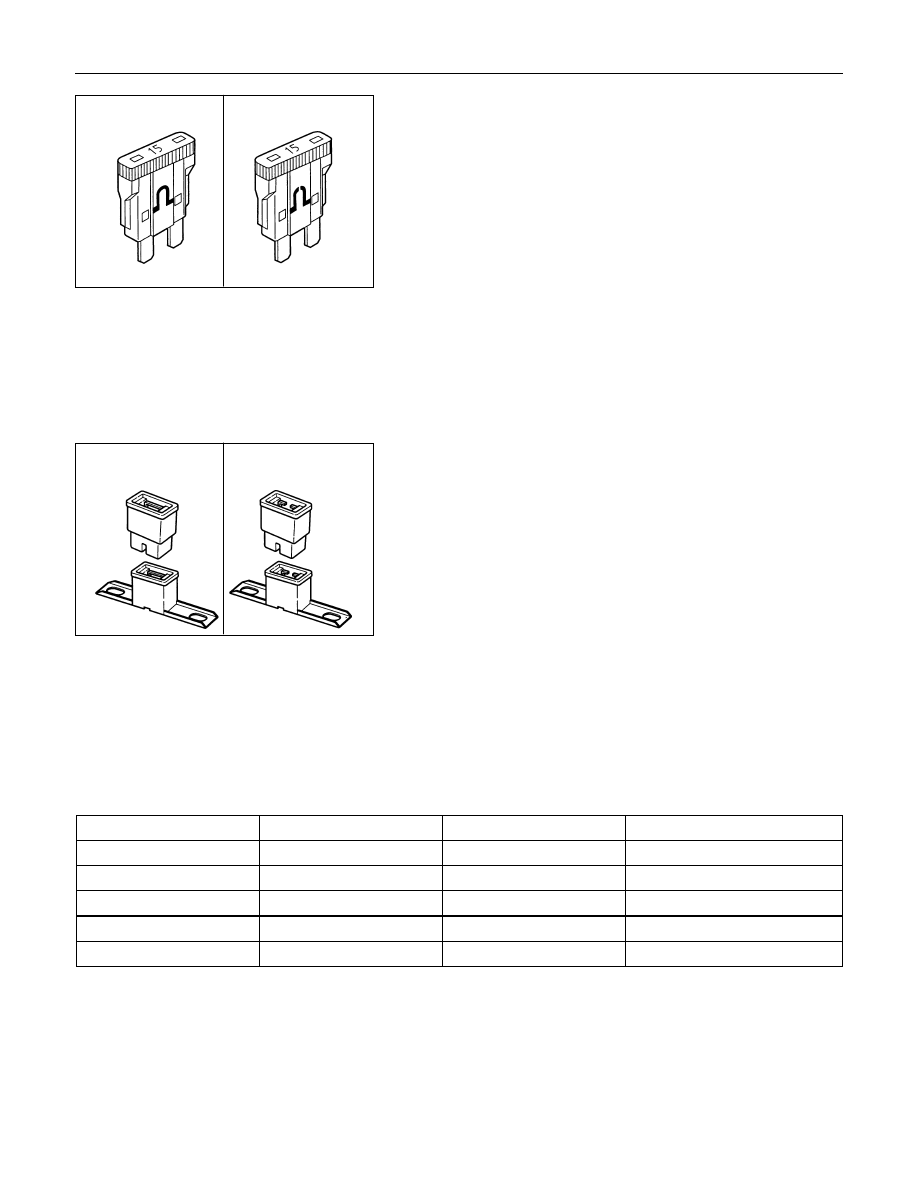

ELECTRICAL-BODY AND CHASSIS 8-13 Distinction of Circuit by Wire Base Color Base color Circuits Base color Circuits B Starter circuit and grounding circuit Y Instrument circuit W Charging circuit L, O, BR, R Lighting circuit LG, GR, Other circuits G Signal circuit P, LB, V Wire Size Wire size is specified with the metric gauge system. Wire Size Specifications Normal size Cross sectional area (mm 2 ) Outside diameter (mm) Allowable current (A) 0.3 0.372 1.8 9 0.5 0.563 2.0 12 0.85 0.885 2.2 16 1.25 1.287 2.5 21 2 2.091 2.9 28 3 3.296 3.6 37.5 5 5.227 4.4 53 8 7.952 5.5 67 15 13.36 7.0 75 20 20.61 8.2 97 |
