Solder

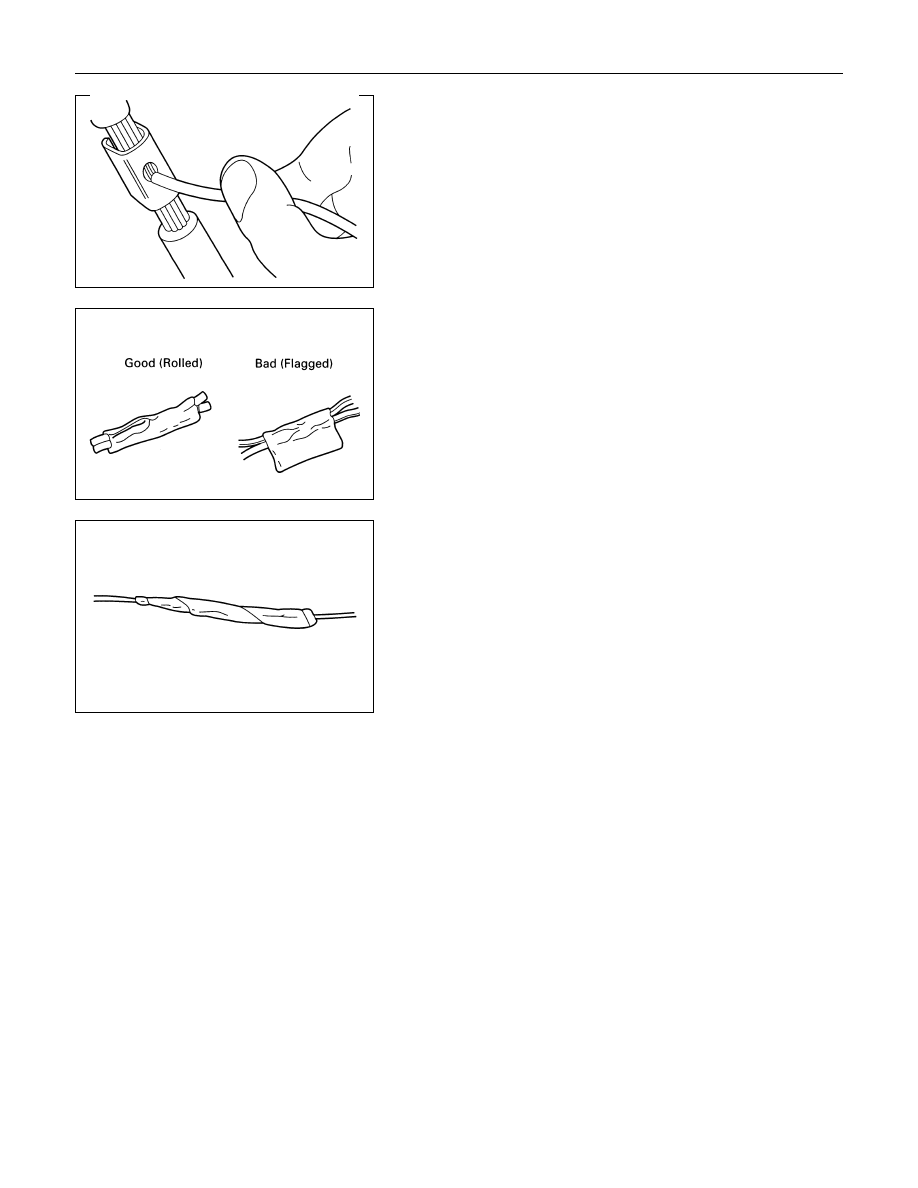

Apply 60/40 rosin core solder to the opening in the back of the
clip.
Follow the manufacturer's instructions for the solder equipment
you are using.

Tape the Splice

Center and roll the splicing tape.
The tape should cover the entire splice.
Roll on enough tape to duplicate the thickness of the insulation
on the existing wires.
Do not flag the tape.
Flagged tape may not provide enough insulation, and the
flagged ends will tangle with the other wires in the harness.

If the wire does not belong in a conduit or other harness
covering, tape the wire again.
Use a winding motion to cover the first piece of tape.

8-10  ELECTRICAL-BODY AND CHASSIS

SYMBOLS AND ABBREVIATIONS

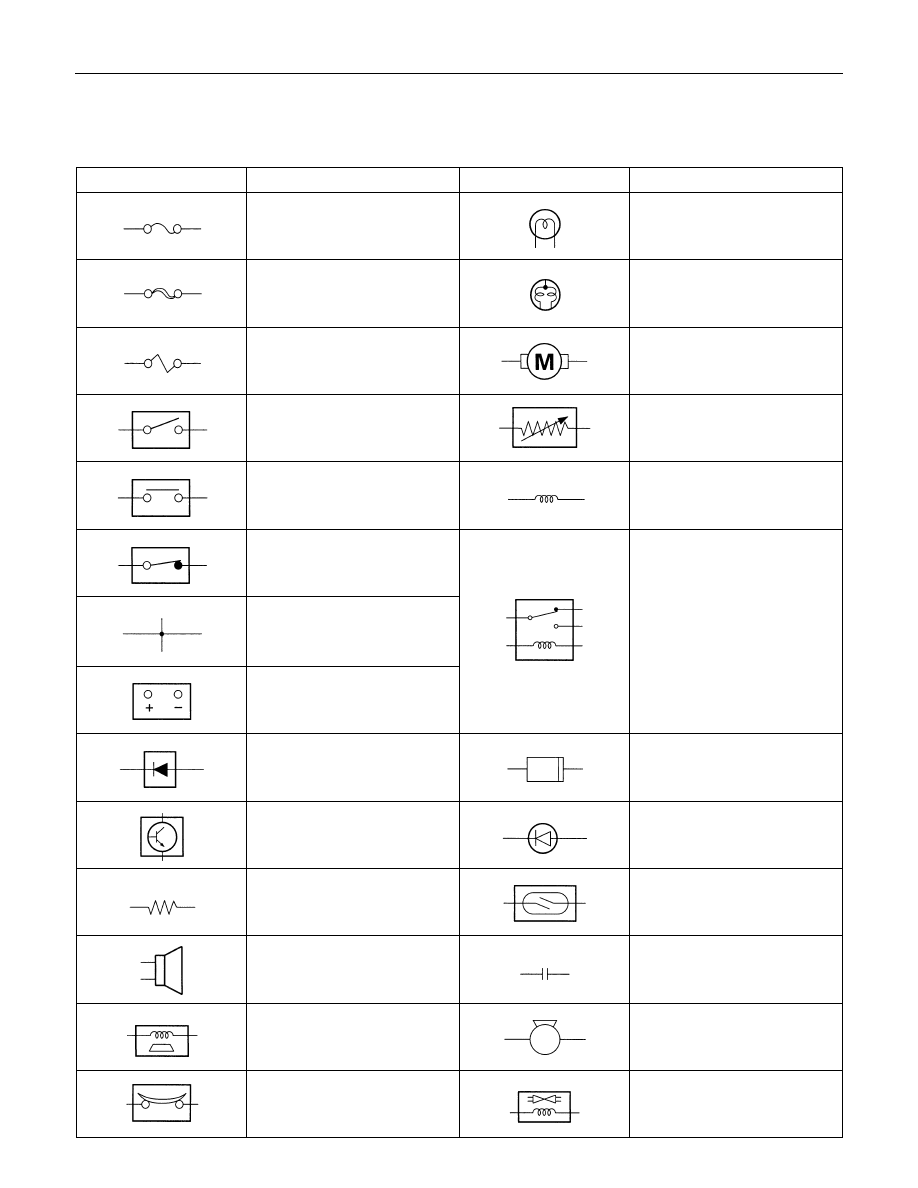

SYMBOLS

Symbol

Meaning of Symbol

Symbol

Meaning of Symbol

Fuse

Bulb

Fusible link

Double filament bulb

Fusible link wire

Motor

Switch

Variable resistor Rheostat

Switch

Coil (inductor),solenoid,

magnetic valve

Switch (Normal close type)

Contact wiring

Relay

Battery

Diode

Connector

Electronic Parts

Light emitting diode

Resistor

Reed switch

Speaker

Condenser

Buzzer

Horn

Circuit breaker

Vacuum switching valve

ELECTRICAL-BODY AND CHASSIS  8-11

ABBREVIATIONS

Abbreviation

Meaning of abbreviation

Abbreviation

Meaning of abbreviation

A

Ampere(S)

LH

Left hand

ABS

Anti-lock brake system

LWB

Long wheel base

ASM

Assembly

MPI

Multiport fuel injection

AC

Alternating current

M/T

Manual transmission

A/C

Air conditioner

QOS

Quick On Start system

ACC

Accessories

RH

Right hand

CARB

Carburetor

RR

Rear

C/B

Circuit breaker

RWAL

Rear wheel anti-lock brake system

CSD

Cold start device

SRS

Supplemental restraint system

DIS

Direct ignition system

ST

Start

EBCM

Electronic brake control module

STD

Standard

ECGI

Electronic control gasoline injection

SW

Switch

ECM

Engine control module

SWB

Short wheel base

ECU

Electronic control unit

TCM

Transmission control module

EFE

Early fuel evaporation

V

Volt

4

×2

Two-wheel drive

VSV

Vacuum switching valve

4

×4

Four-wheel drive

W

Watt(S)

FL

Fusible link

WOT

Wide open throttle

FRT

Front

W/

With

H/L

Headlight

W/O

Without

IC

Integrated circuit

IG

Ignition

kW

kilowatt

8-12  ELECTRICAL-BODY AND CHASSIS

PARTS FOR ELECTRICAL CIRCUIT

WIRING

Wire Color

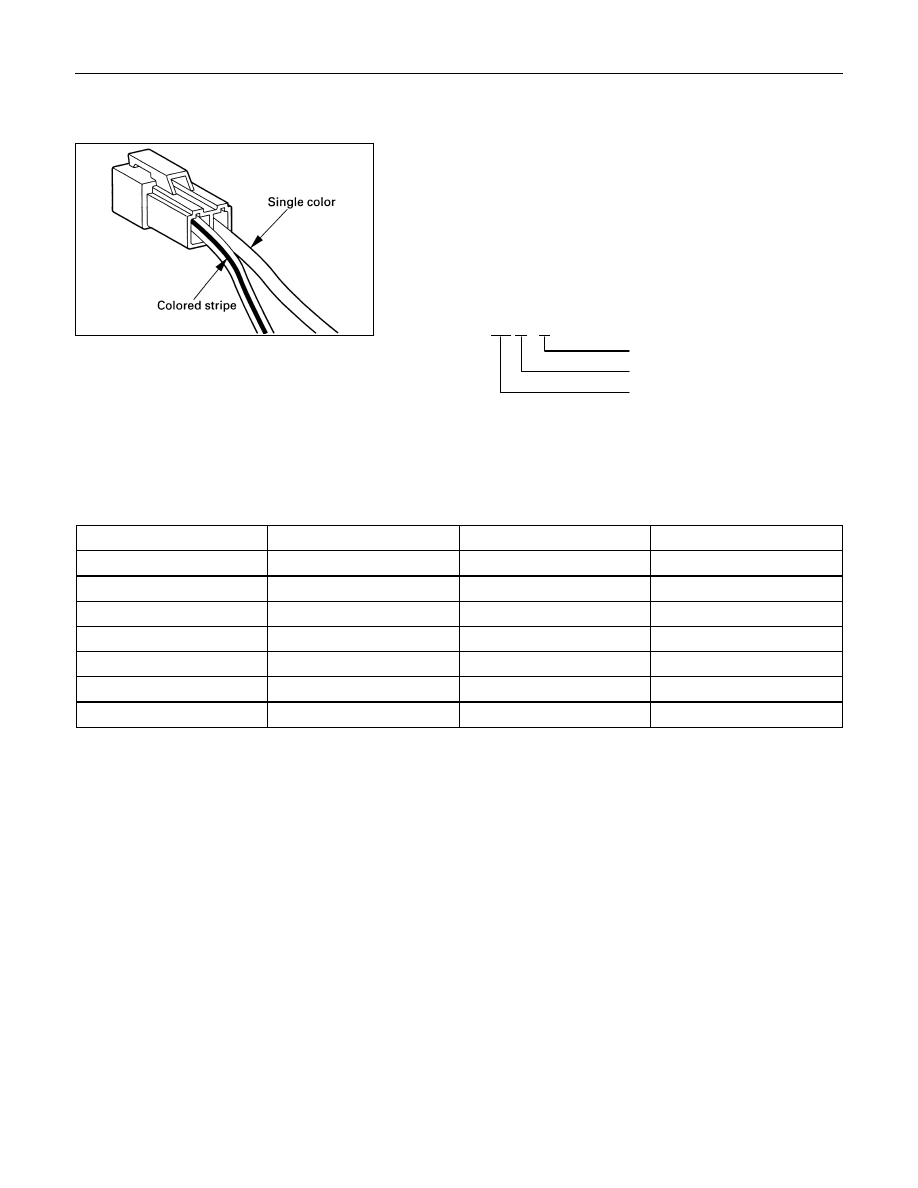

All wires have color-coded insulation.
Wires belonging to system's main harness will have a single
color.
Wires belonging to a system's sub-circuits will have a colored
stripe.
Striped wires use the following code to show wire size and
colors.
Example: 0.5 G / R

Red (Stripe color)

Green (Base color)

Wire size (0.5mm

2

)

Abbreviations are used to indicate wire color within a circuit
diagram.
Refer to the following table.

Wire Color-Coding

Color-Coding

Meaning

Color-Coding

Meaning

B

Black

BR

Brown

W

White

LG

Light green

R

Red

GR

Grey

G

Green

P

Pink

Y

Yellow

LB

Light blue

L

Blue

V

Violet

O

Orange
