CLUTCH  7C-27

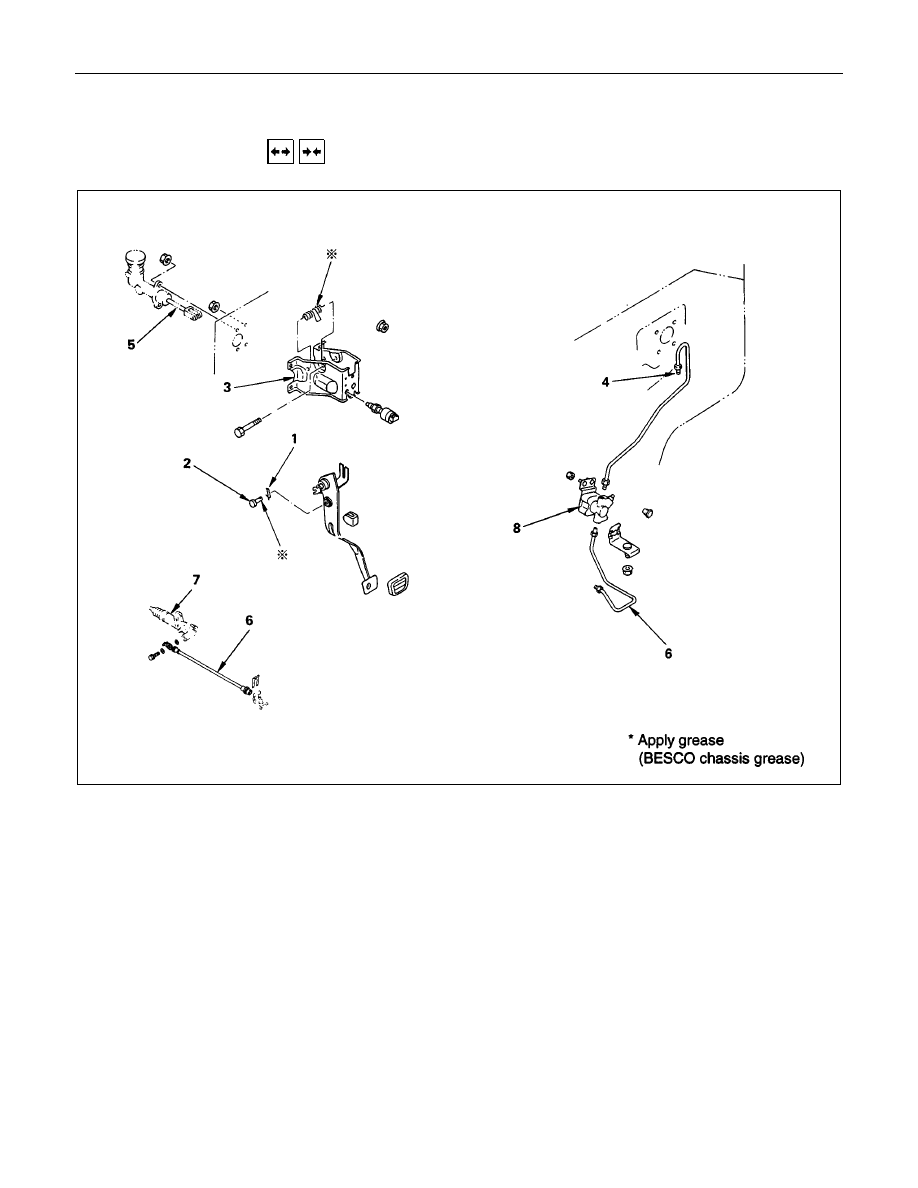

CLUTCH CONTROL



  REMOVAL AND INSTALLATION

Except 6VD1 Engine

Removal Steps

1. Pin
2. Jaw joint pin
3. Pedal assembly
4. Oil line
5. Master cylinder assembly
6. Oil line
7. Slave cylinder assembly
8. Damper cylinder assembly

Installation Steps

To install, follow the removal steps in the
reverse order.

7C-28  CLUTCH

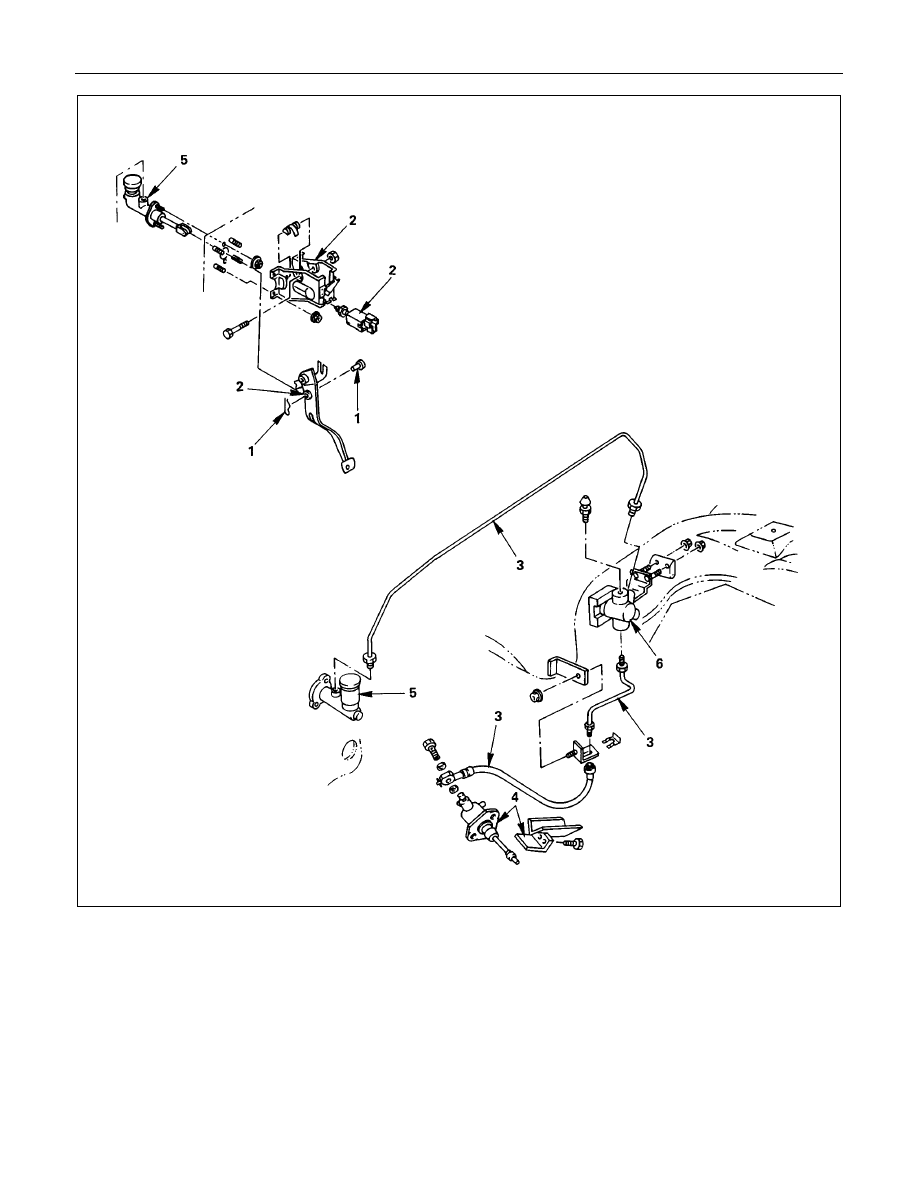

6VD1 RHD Model

Removal Steps

1. Pin and jaw joint pin
2. Pedal assembly and switch
3. Oil line pipe
4. Slave cylinder assembly and heat

protector

5. Master cylinder assembly
6. Damper cylinder assembly

Installation Steps

To install, follow the removal steps in the
reverse order.

CLUTCH  7C-29

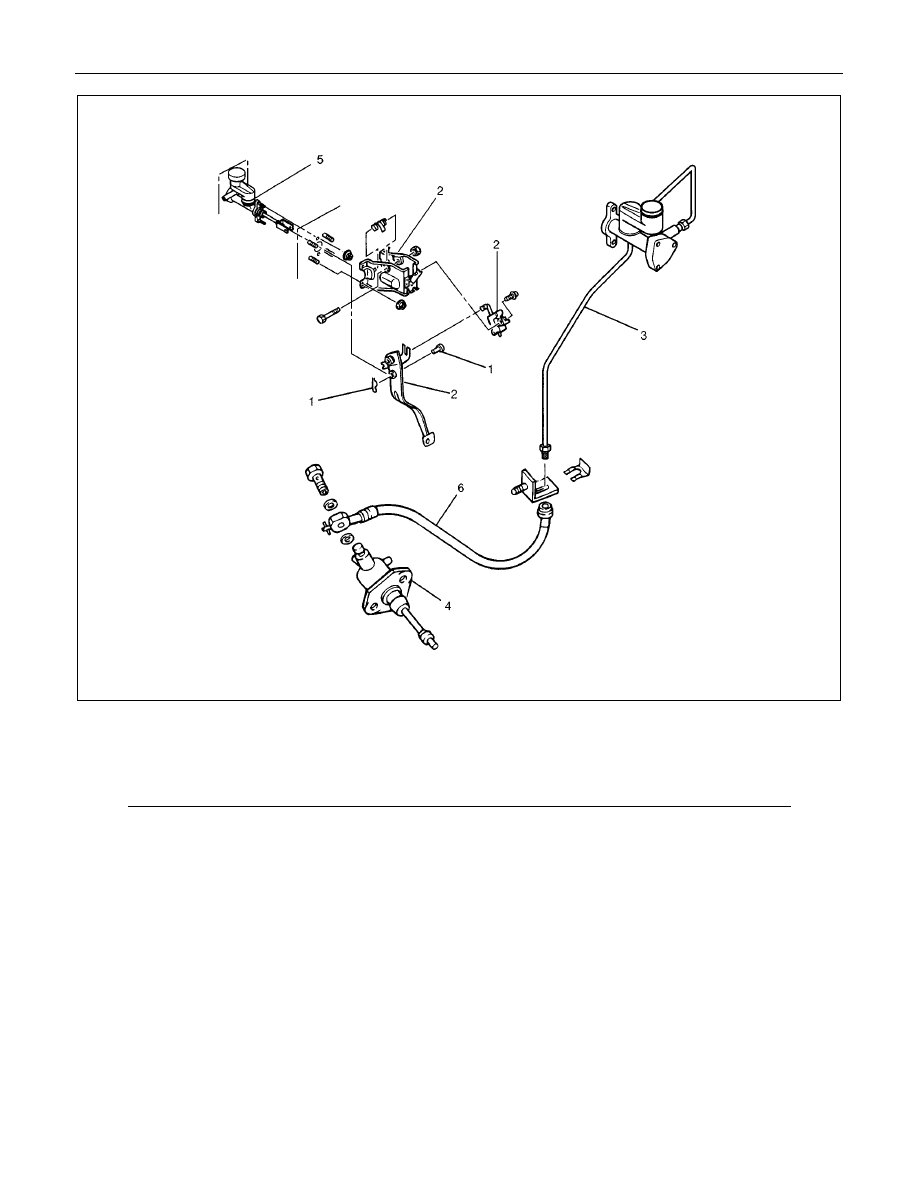

6VD1 LHD Model

Removal Steps

1. Pin and jaw joint pin
2. Pedal assembly and switch
3. Oil line pipe

4. Slave cylinder assembly
5. Master cylinder assmebly
6. Oil line hose

Installation Steps

To install, follow the removal steps in the
reverse order.

7C-30  CLUTCH

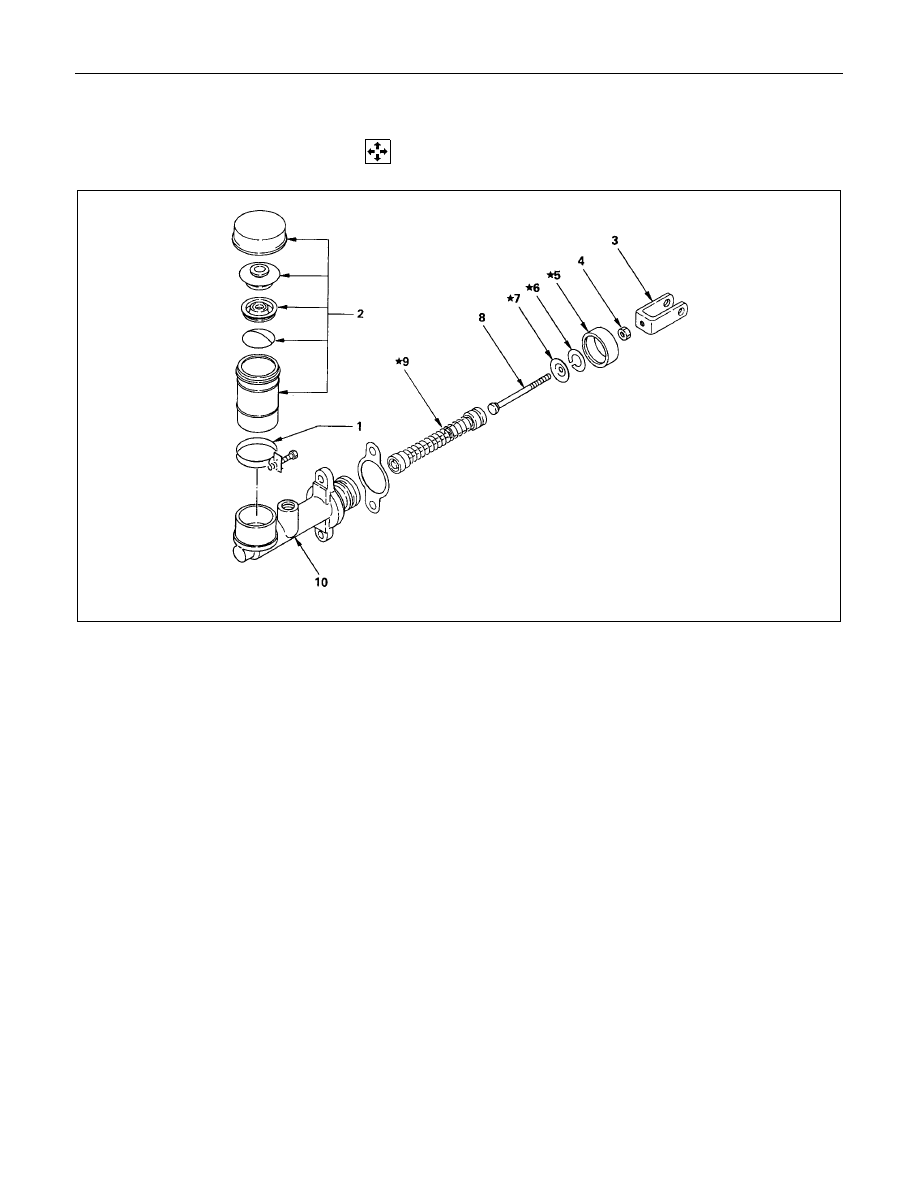

MASTER CYLINDER (Except 6VD1 Engine)

  DISASSEMBLY

★

 Repair Kit

Disassembly Steps

1. Oil tank band
2. Oil tank assembly
3. Joint
4. Lock nut
5. Dust cover

6. Stopper ring
7. Stopper
8. Push rod
9. Piston assembly

10. Cylinder body

Important : Take care not to disassemble the push rod stopper for master cylinder which calk to the master cylinder

body due to the component parts do not disassemble.
