Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1034

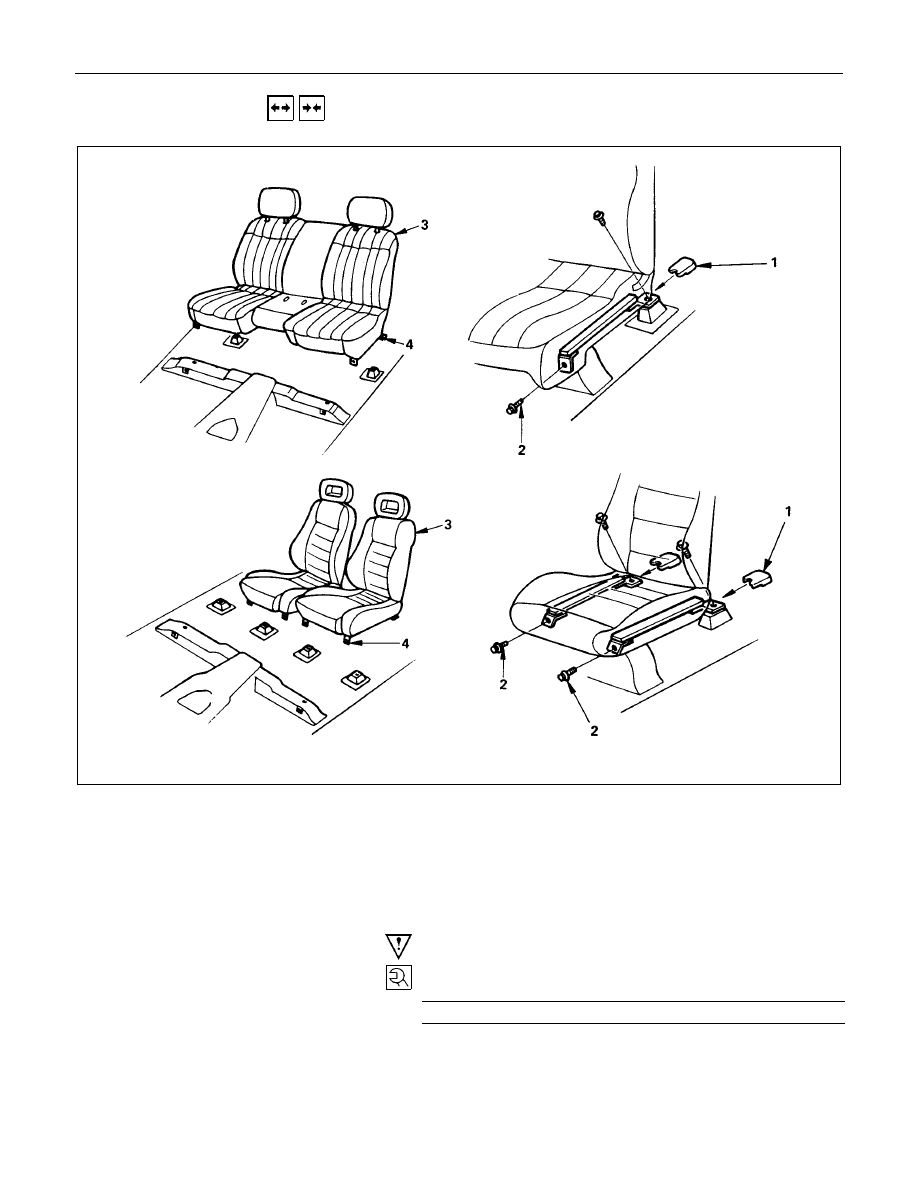

10-38  CAB



  REMOVAL AND INSTALLATION





BUCKET SEAT

BENCH SEAT

Removal Steps

1. Adjust cover
2. Bolt
3. Seat assembly
4. Adjuster

Installation Steps

4. Adjuster
3. Seat assembly

▲

2. Bolt
1. Adjust cover

Important Operation - Installation

2. Bolt

Torque

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

39.2

±

 9.8 (4

±

 1 / 28.9

±

 7.2)

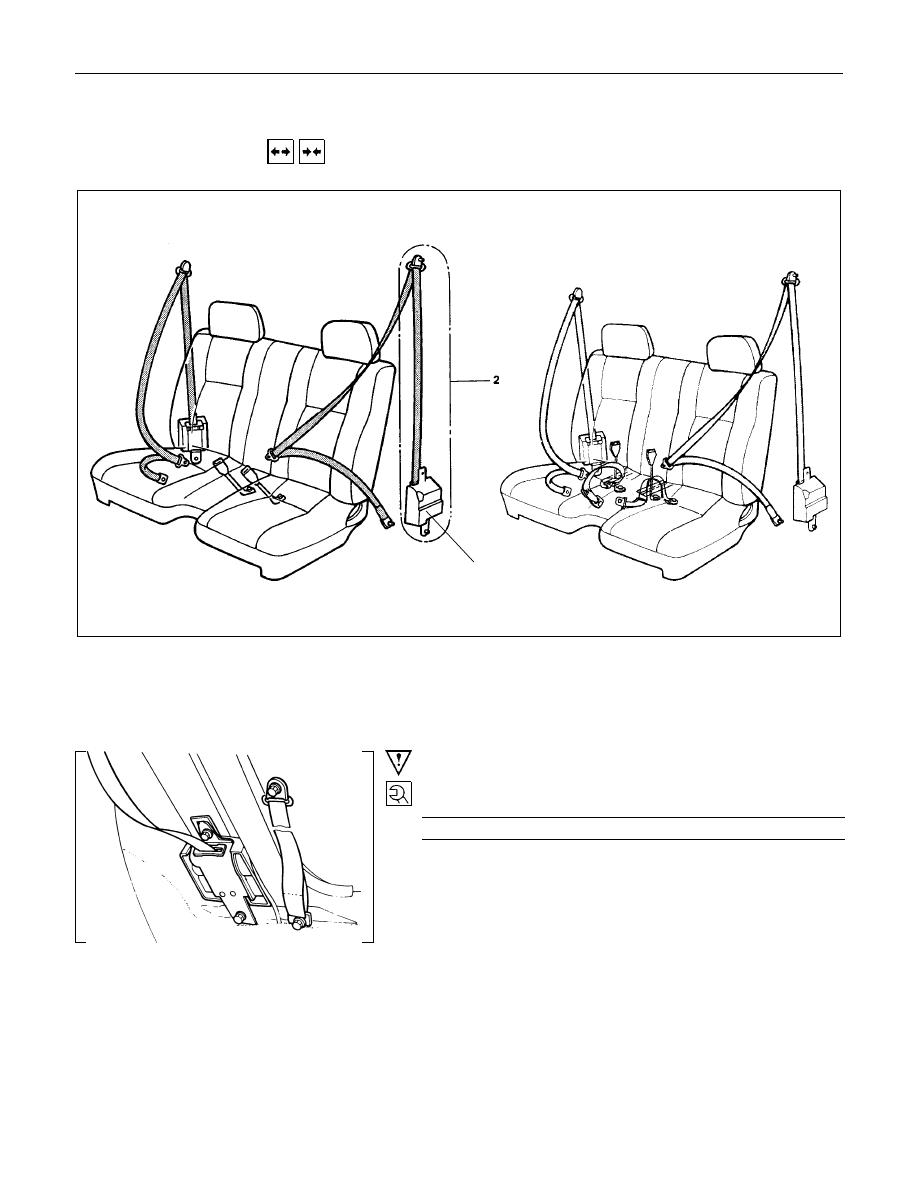

CAB  10-39

FRONT AND REAR SEAT BELT



  REMOVAL AND INSTALLATION

1

Removal Steps

1. Trim
2. Seat belt and retractor

Installation Steps

▲

2. Seat belt and retractor
1. Trim

Important Operation - Installation

2. Seat Belt and Retractor

Bolt Torque

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

39.2

±

 9.8 (4

±

 1 / 28.9

±

 7.2)

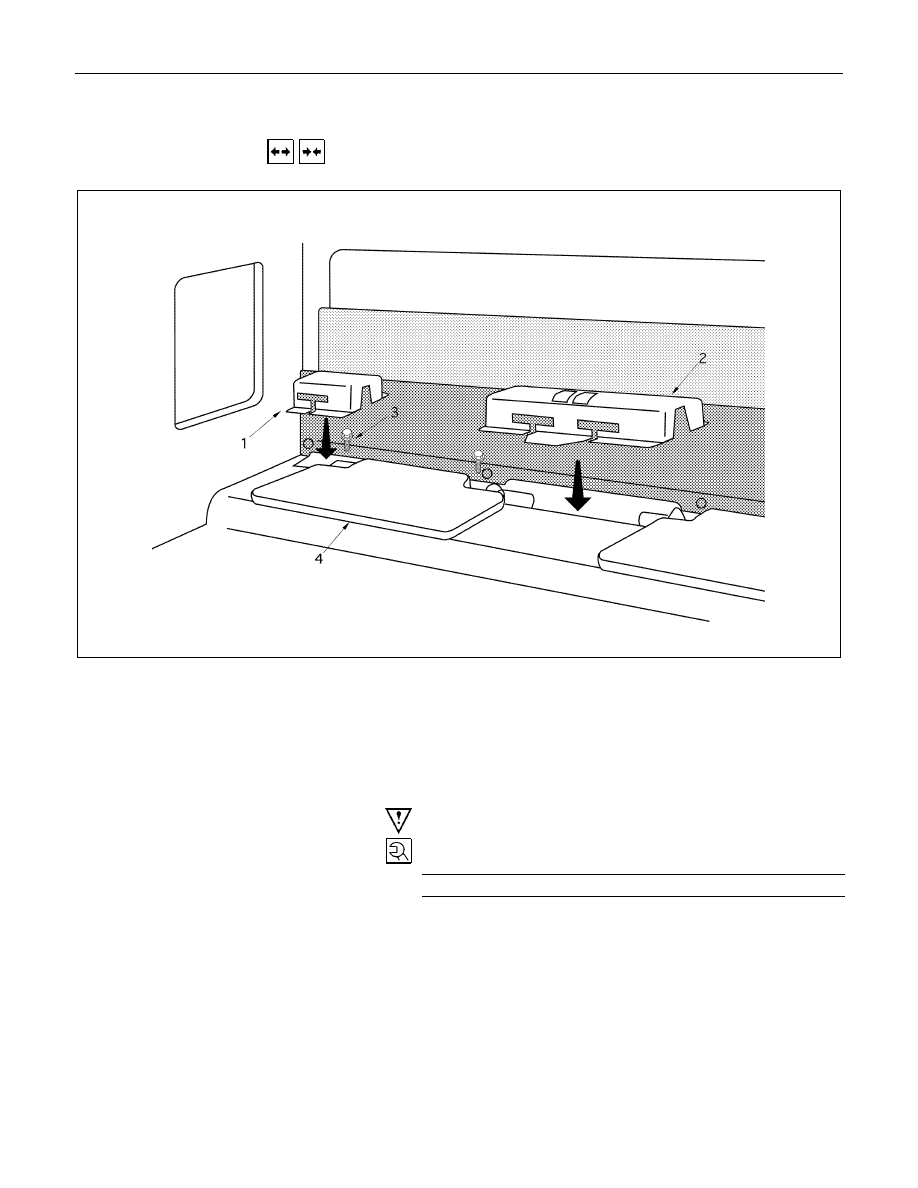

10-40  CAB

JUMP SEAT



  REMOVAL AND INSTALLATION

Removal Steps

1. Head rest and back trim cover
2. Hinge cover, center
3. Bolt
4. Jump seat assembly

Installation Steps

4. Jump seat assembly

▲

3. Bolt
2. Hinge cover ; center
1. Head rest and back trim cover

Important Operation - Installation

3. Bolt

Torque

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

19.6

±

 5 (2

±

 0.5 / 14.5

±

 3.6)

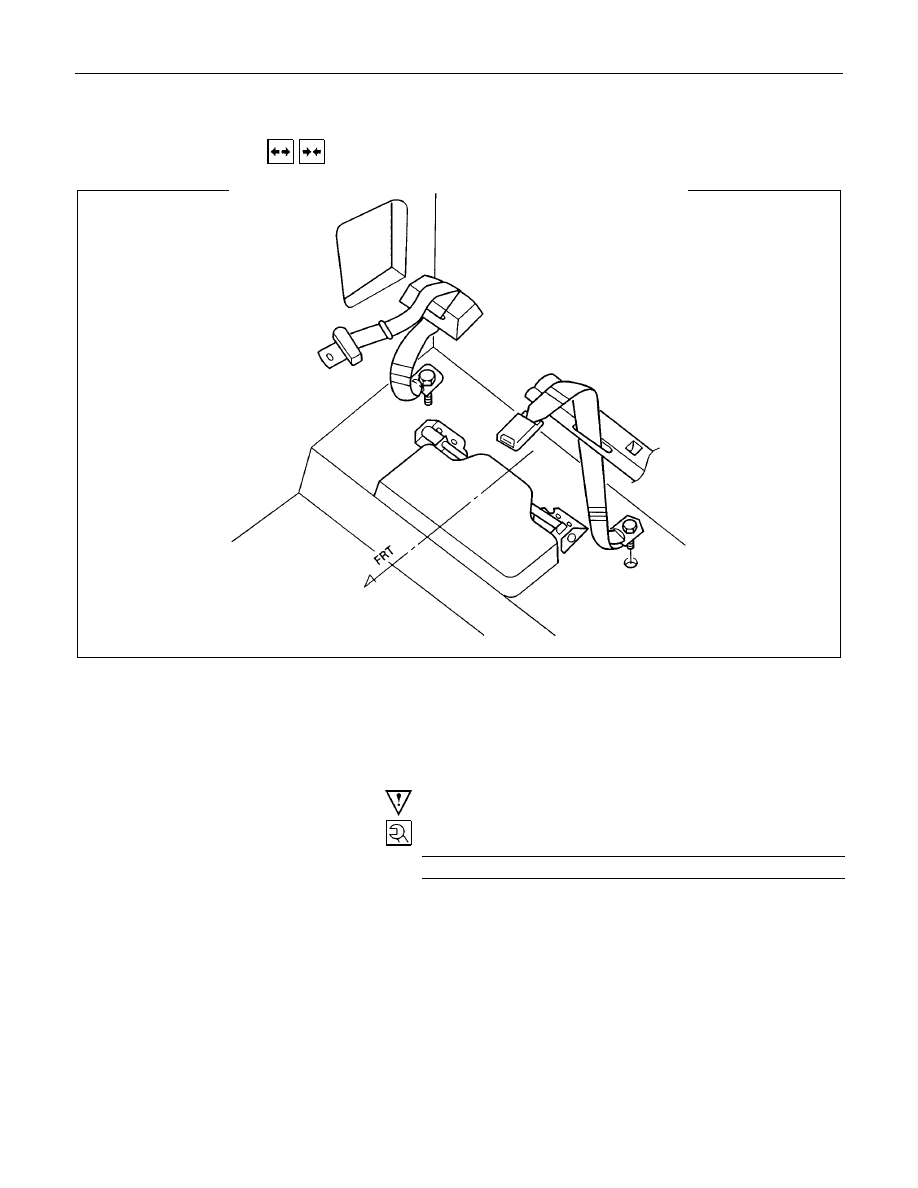

CAB  10-41

JUMP SEAT BELT



  REMOVAL AND INSTALLATION

Removal Steps

1. Hinge cover
2. Hinge cover ; center
3. Bolt

Installation Steps

▲

3. Bolt
2. Hinge cover ; center
1. Hinge cover

Important Operation - Installation

3. Bolt

Torque

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

39.2

±

 9.8 (4

±

 1 / 28.9

±

 7.2)
