Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 103





6E–16

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

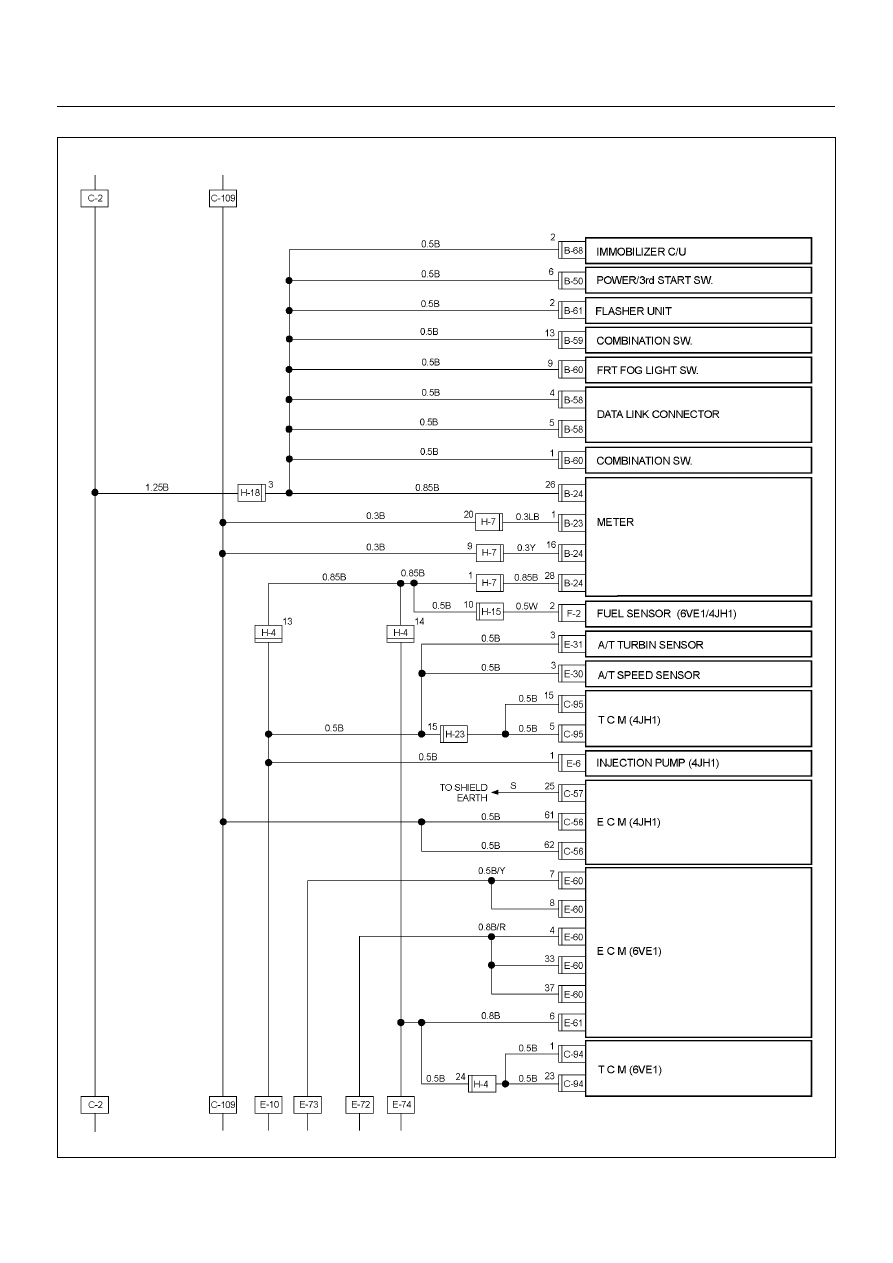

GROUND POINT CHART (3/4)

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

6E–17

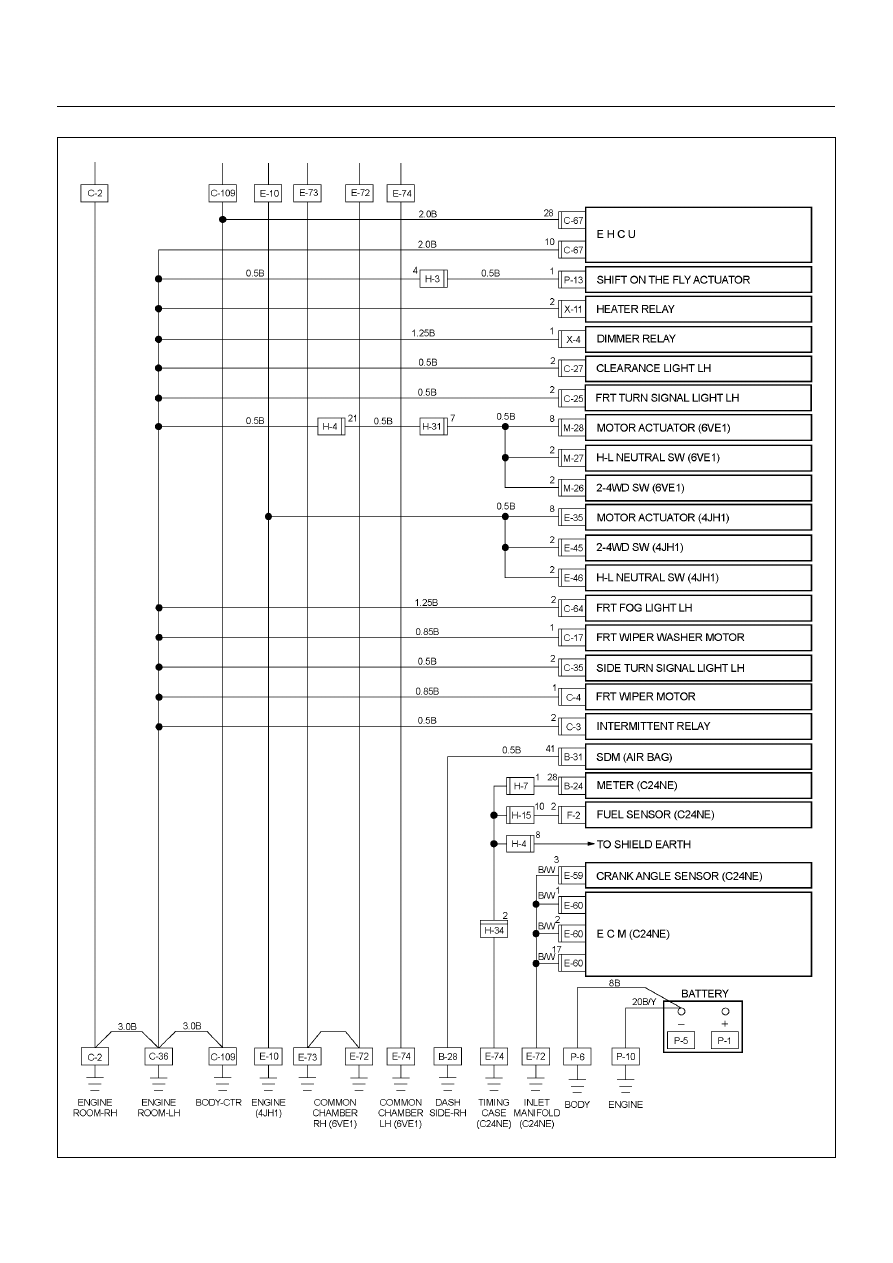

GROUND POINT CHART (4/4)

6E–18

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

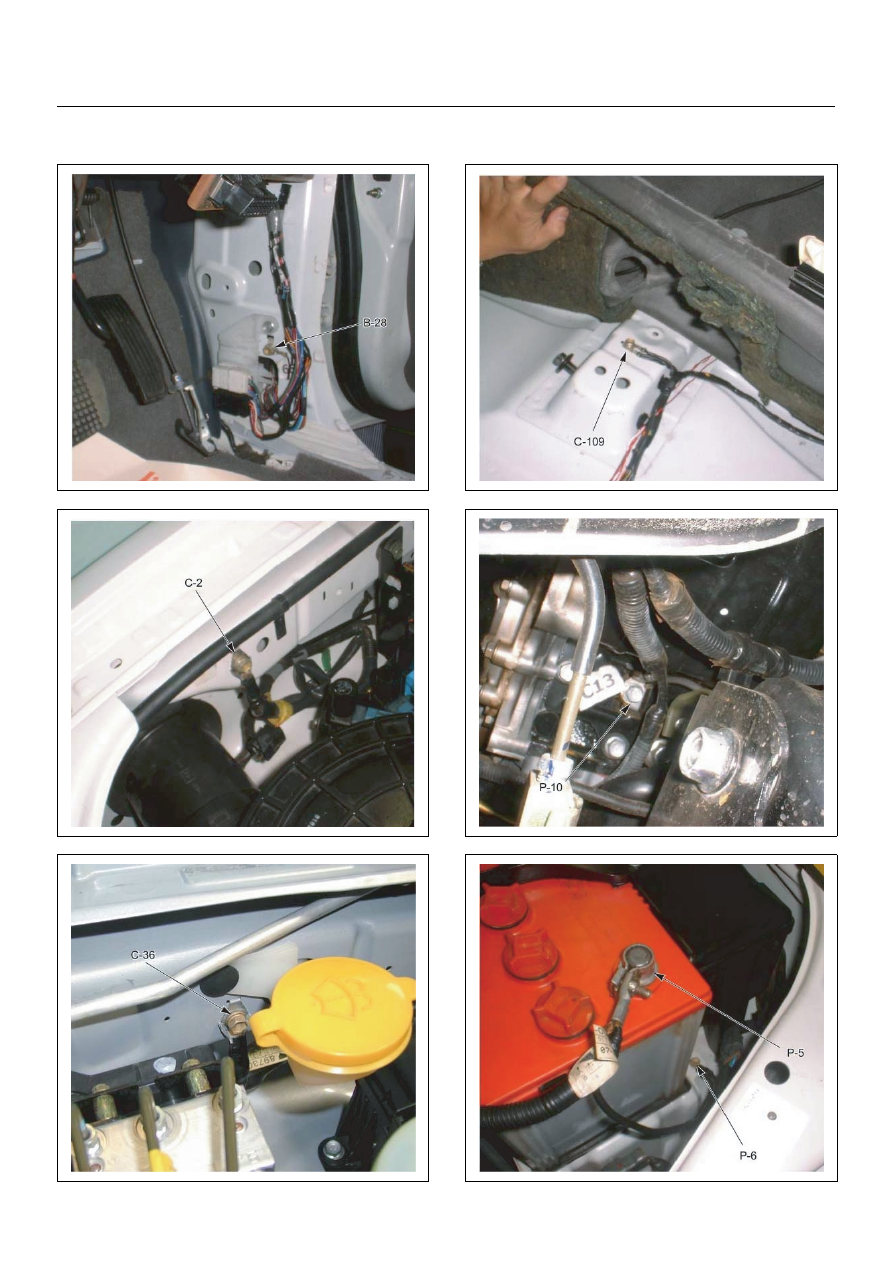

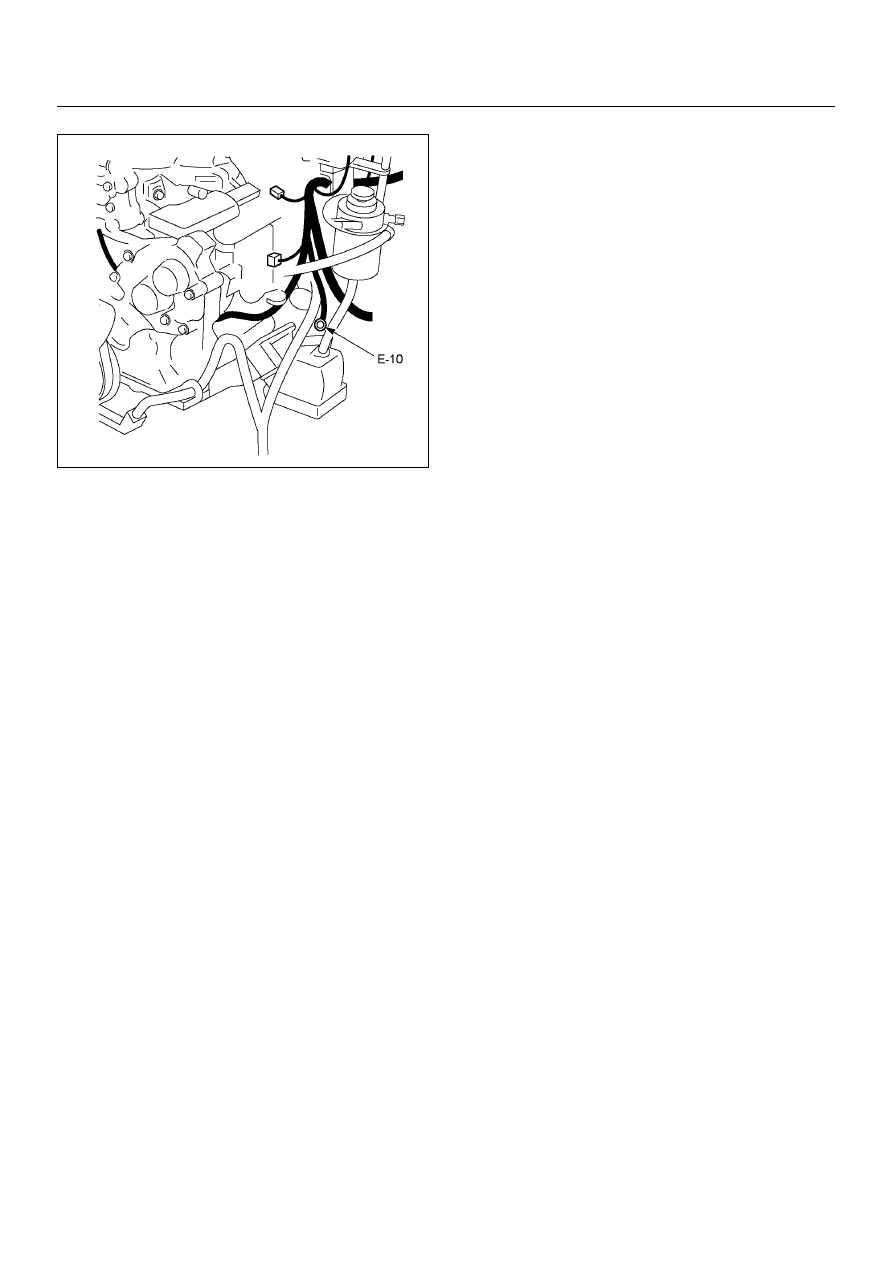

LOCATION

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

6E–19
