6E–12

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

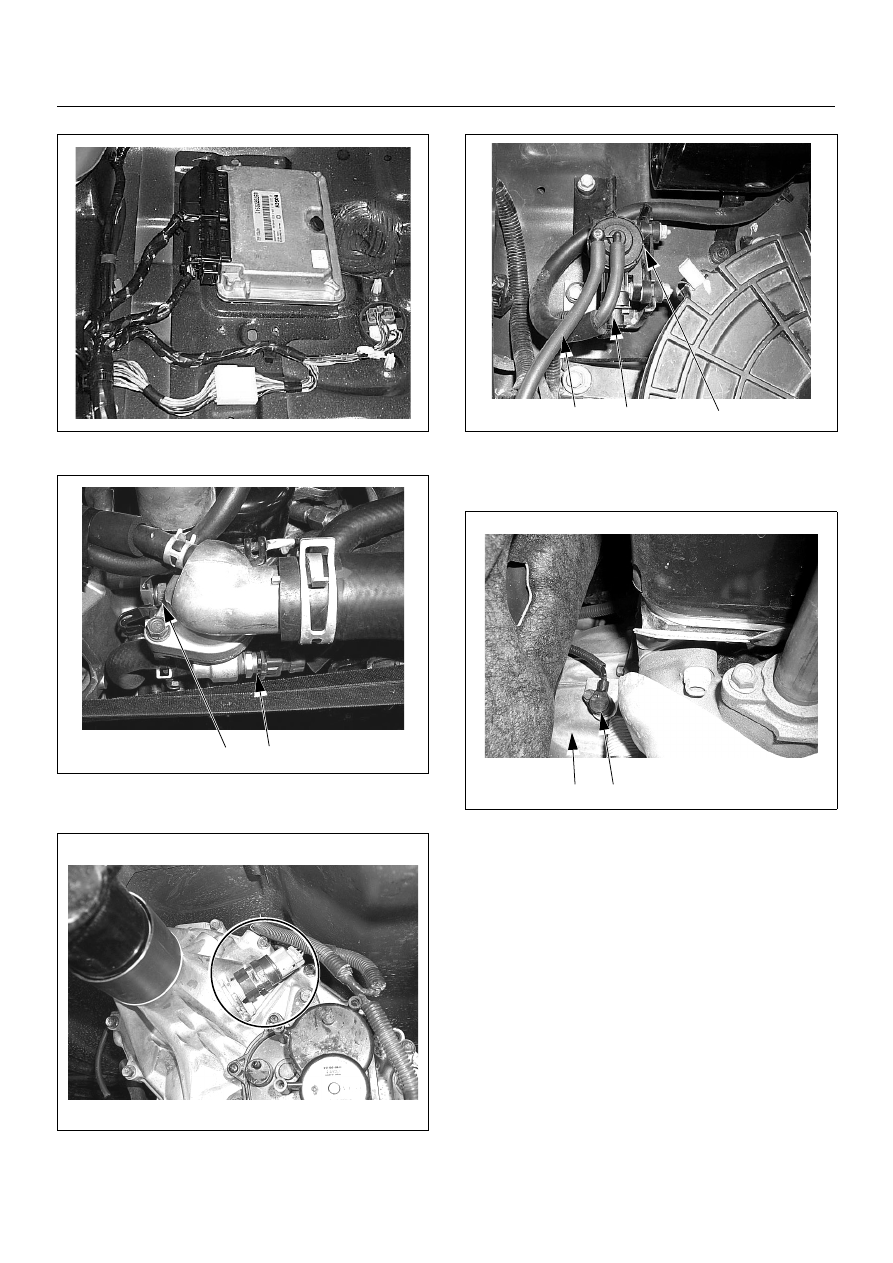

(1) Engine Control Module (ECM)

(1) Engine Coolant Temperature (ECT) Sensor
(2) Thermo Unit for Water Temperature Gauge

(1) Vehicle Speed Sensor (VSS)

2

1

(1) EGR EVRV
(2) To Vacuum Pump
(3) To EGR Valve

(1) Crankshaft Position (CKP) Sensor
(2) Clutch Housing

3

2

1

1

2

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

6E–13

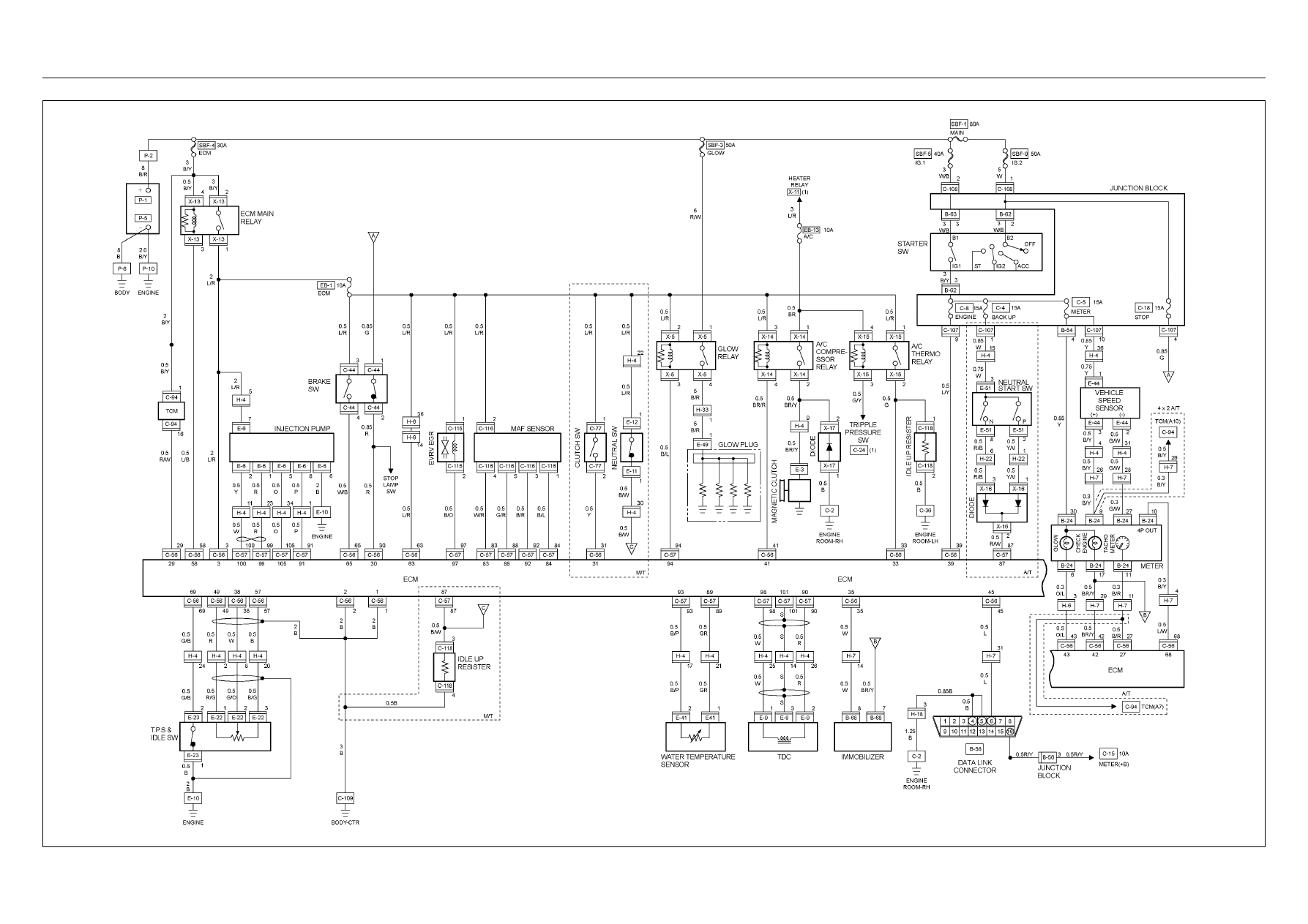

ECM CIRCUIT DIAGRAM

6E–14

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

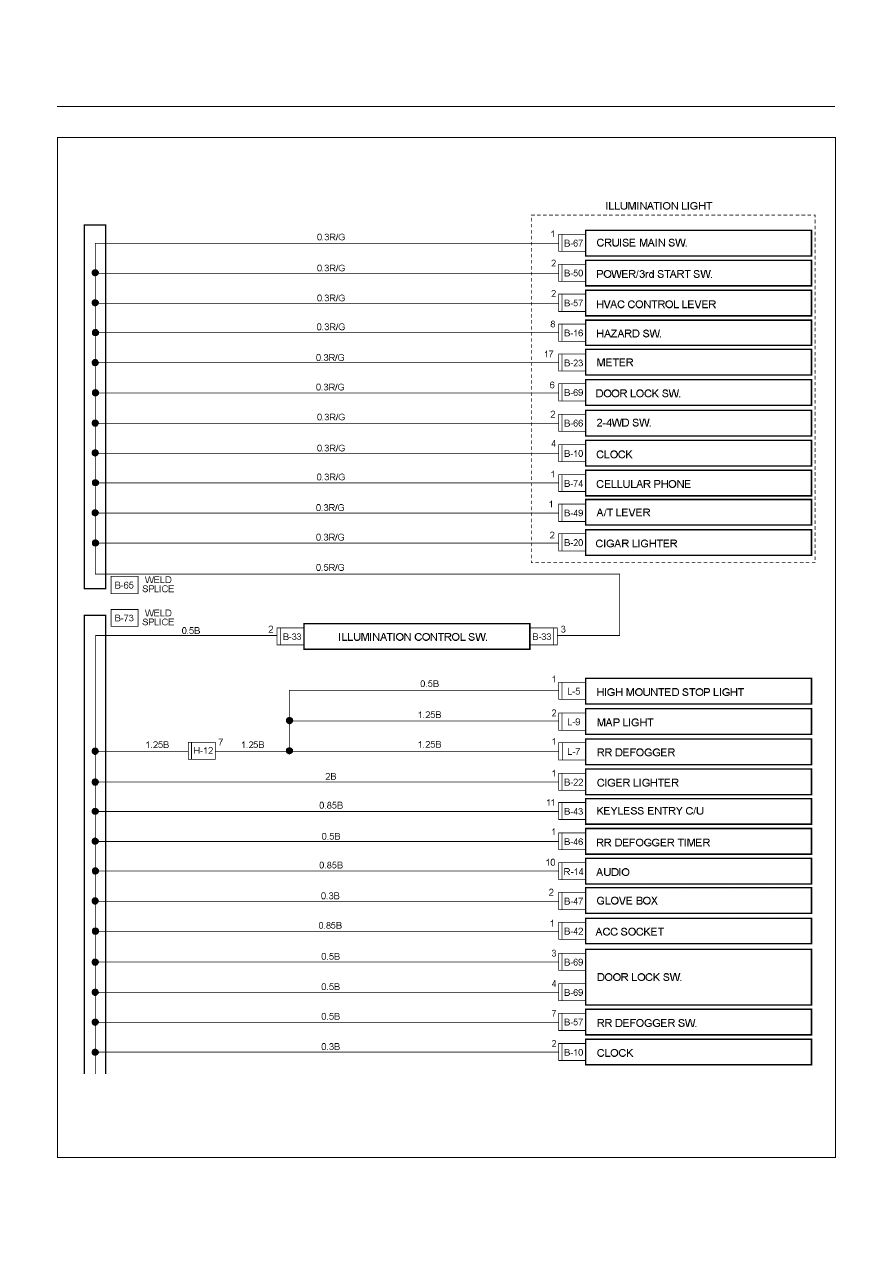

GROUND POINT CHART (1/4)

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

6E–15

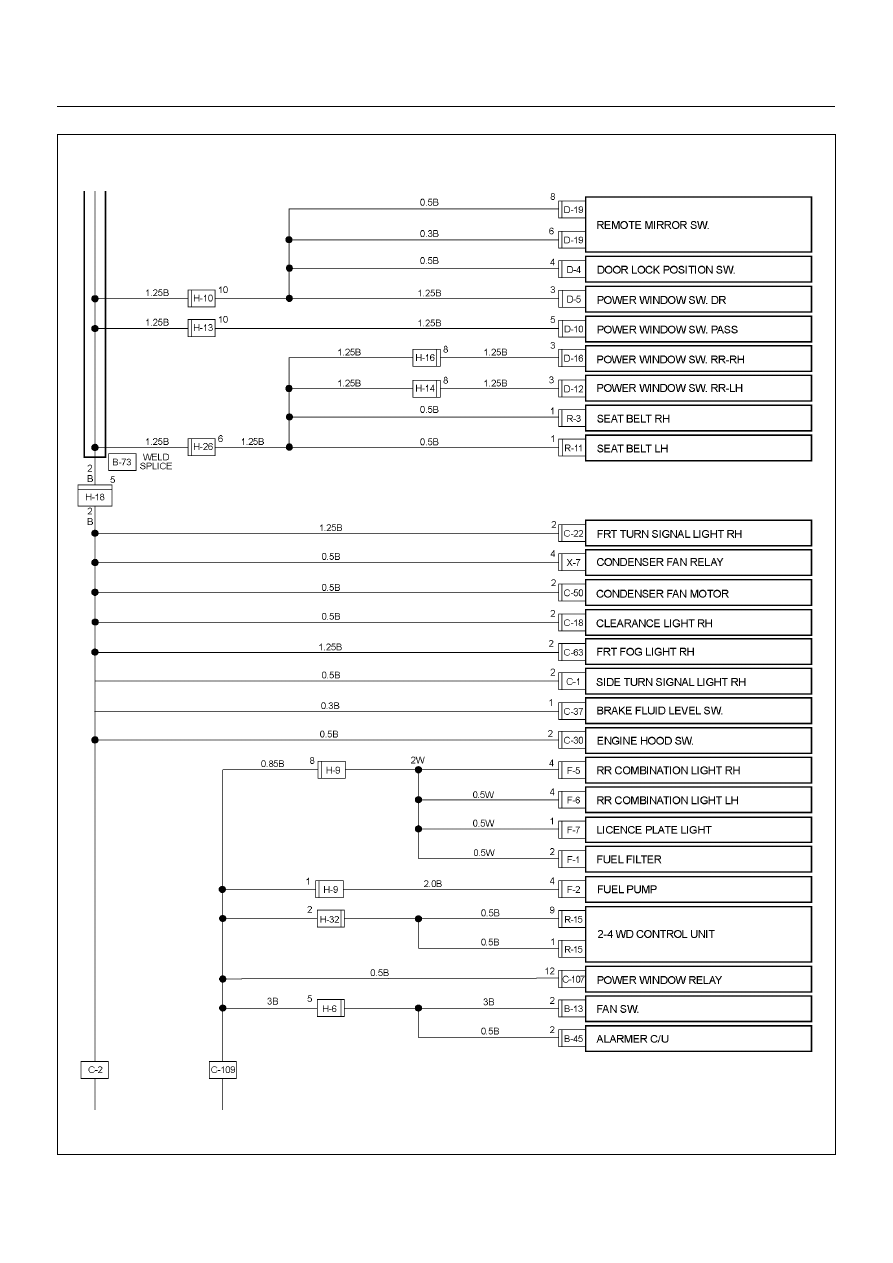

GROUND POINT CHART (2/4)
