CAB  10-9

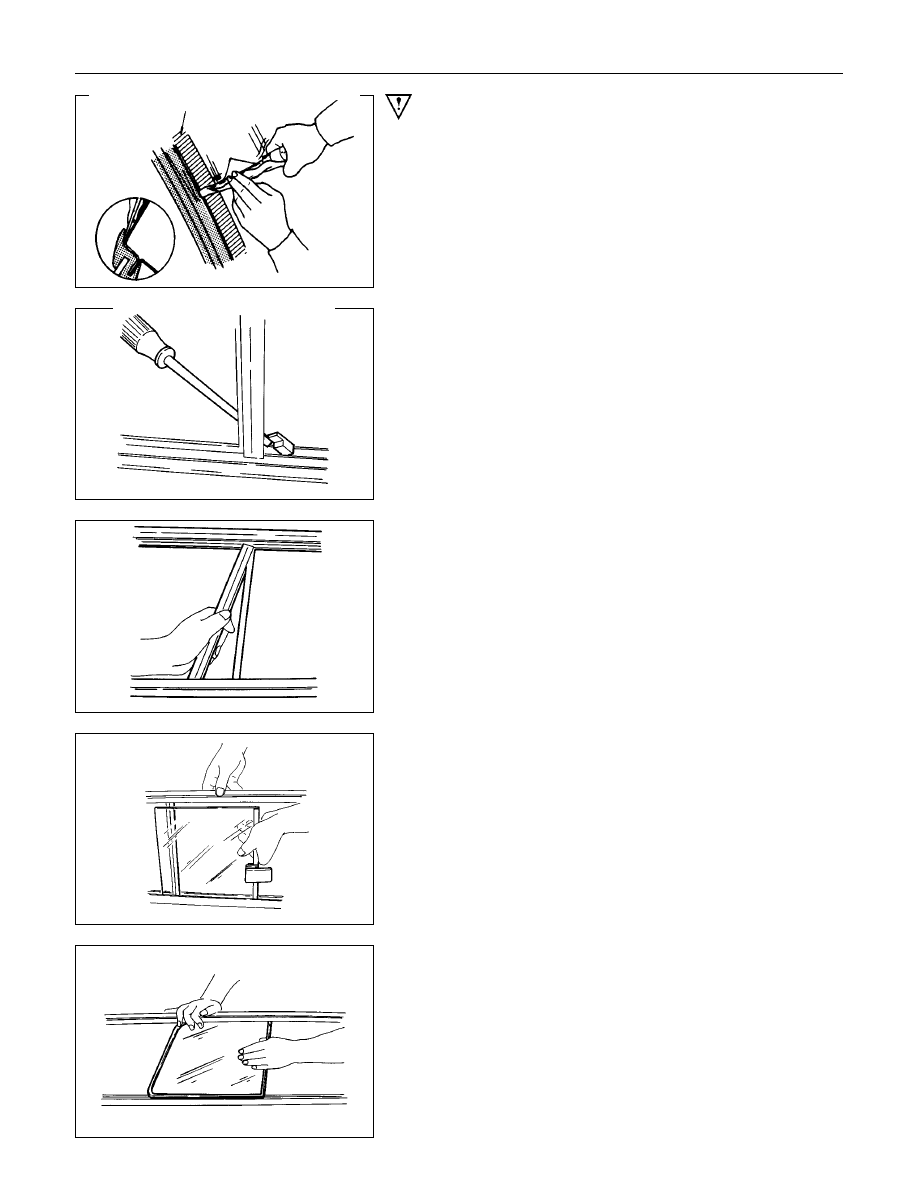

Important Operation - Removal

1. Weather Strip
Remove the weather strip with a knife.

2. Packing ; Rear Window
With a screwdriver or similar tool, remove the window stop.

4. Frame ; Rear Window
Place the window channel in a vertical position and remove the
frame rear by pulling on one end of it with your hand.

6. Rear Window ; Slide
With the window channel held in a vertical position, remove the
rear window ; slide.

9. Glass ; Rear Window Corner
Stand the window channel up and remove the glass ; rear
window corner.

10-10  CAB

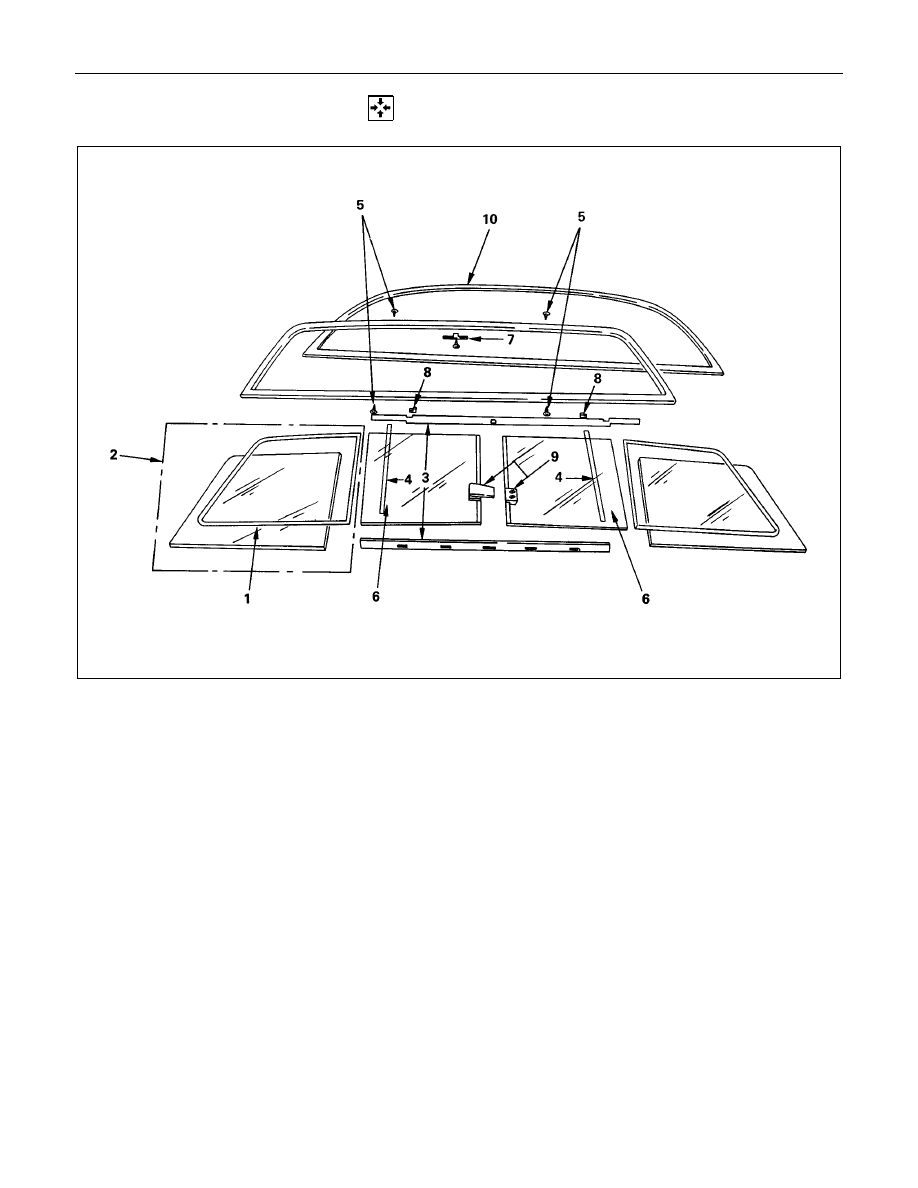

  REASSEMBLY

Riassembly Steps

▲

1. Weather strip ; rear window corner

▲

2. Glass ; rear window corner

▲

3. Glass run
4. Frame ; rear window
5. Screw; binding

▲

6. Rear window ; slide
7. Stopper

▲

8. Packing ; rear window
9. Lock assembly with catchback window

10. Weather strip

CAB  10-11

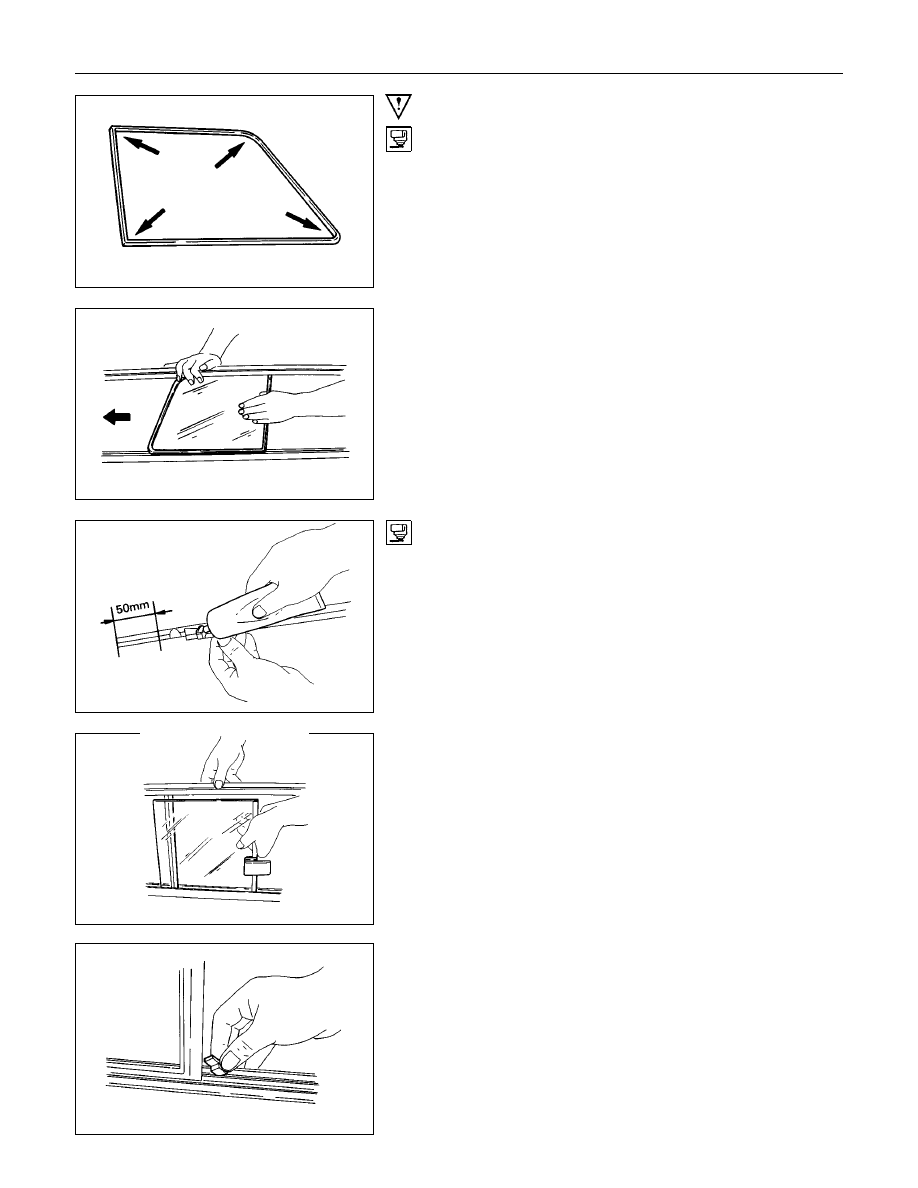

Important Operation - Installation

1. Weather Strip ; Rear Window Corner
Using Semedain #560 (or equivalent) adhesive, glue the
weather strip to the complete circumference of the frame,
paying close attention to the corner areas.

2. Glass ; Rear Window Corner
Apply soap and water to the rim as a lubricant.
Place the channel in a vertical position.  With your hand, apply
pressure to expand the channel.  Insert the window glass in the
center of the channel.

3. Glass Run
Apply Semedain #560 (or equivalent) adhesive to the entire
length of both the upper window glass and the weather strip.
Apply adhesive to both sides of the extreme ends of the lower
portion for a distance of about 50 mm.
There should be no gap between the weather strip rear window
glass channel and the channel.

6. Rear Window ; Slide
Hold the window vertically.  Apply an upward pressure to the
channel and insert the rear window slide.

8. Packing ; Rear Window
Apply a fast setting adhesive agent to both sides of the window
atop and insert it into the channel.

10-12  CAB

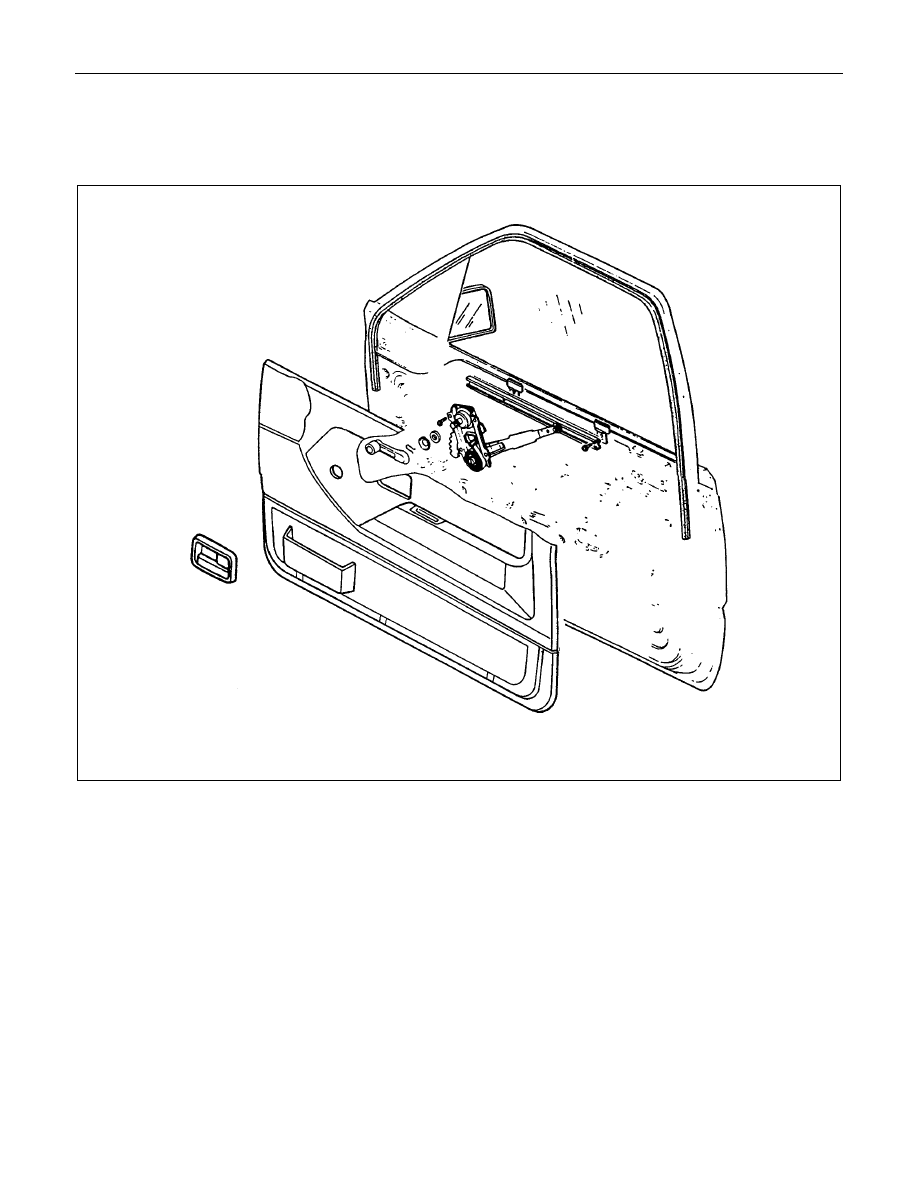

DOORS

GENERAL DESCRIPTION
