Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1014

CAB  10-1

SECTION 10

CAB

TABLE OF CONTENTS

PAGE

Servicing.............................................................................................................................10- 2

Windshield and Back Light Glasses ................................................................................10- 3

Sliding Rear Window Assembly .......................................................................................10- 8

Doors ..................................................................................................................................10- 12

Instrument Panel................................................................................................................10- 26

Console Box.......................................................................................................................10- 31

Head Lining ........................................................................................................................10- 33

Quarter Glass (Space Cab) ...............................................................................................10- 36

Front Seat ...........................................................................................................................10- 37

Front and Rear Seat Belt ...................................................................................................10- 39

Jump Seat...........................................................................................................................10- 40

Jump Seat Belt...................................................................................................................10- 41

INDEX

10-2  CAB

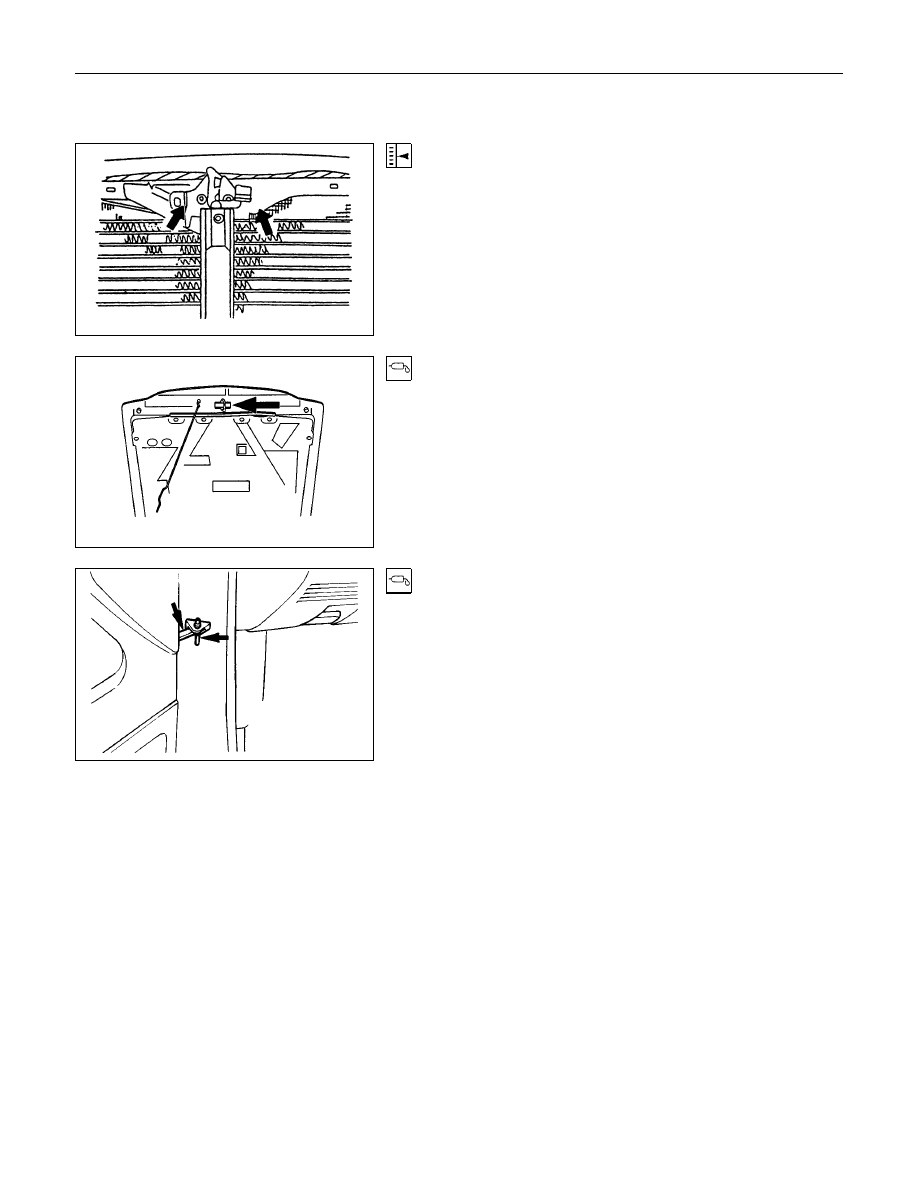

SERVICING

Engine Hood Lock

Align the engine hood lock with the installation holes.

Engine Hood Striker

Apply a light coat of grease to the striker.

Door Checker Arm and Pin

Apply a light coat of grease to the checker arm and pin.

CAB  10-3

WINDSHIELD AND BACK LIGHT GLASSES

GENERAL DESCRIPTION

This vehicle uses two types of safety glass: (1) laminated safety plate, for the windshield, and (2) solid tempered
safety plate, for the back glass.
The windshield glass is one-piece and is directly retained in the windshield opening by the adhesive.
When replacing a cracked windshield glass, it is very important that the cause of the glass breakage be determined
and the condition corrected before a new glass is installed.  Otherwise, it is possible that a small obstruction or high
spot somewhere around the windshield opening will continue to crack or break the newly installed windshield.  This
is especially true when the strain on the glass caused by this obstruction is increased by such conditions as wind
pressures, extremes of temperature, motion of the vehicle, etc.  The procedure for removal of the windshield
applies to the complete windshield assembly.

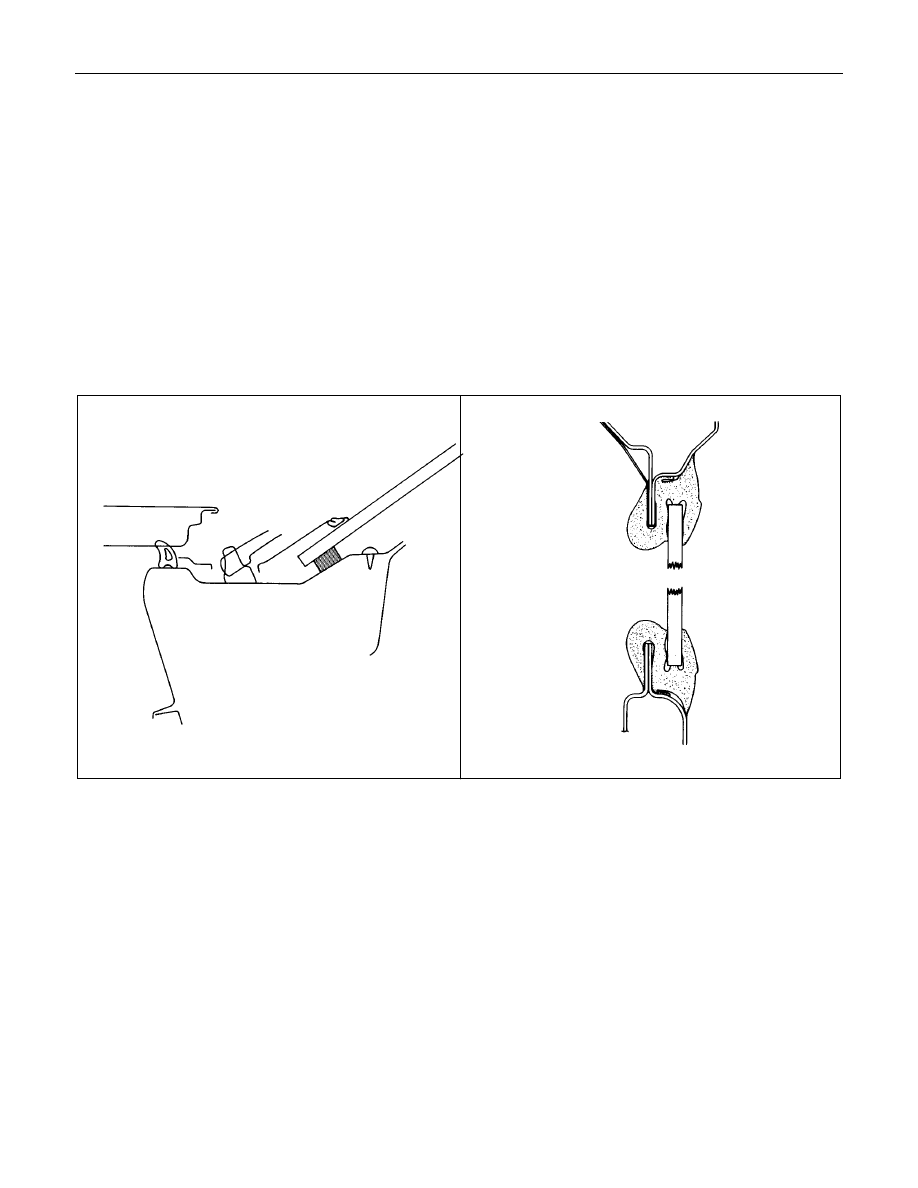

WINDSHIELD GLASS

BACK LIGHT GLASS

10-4  CAB

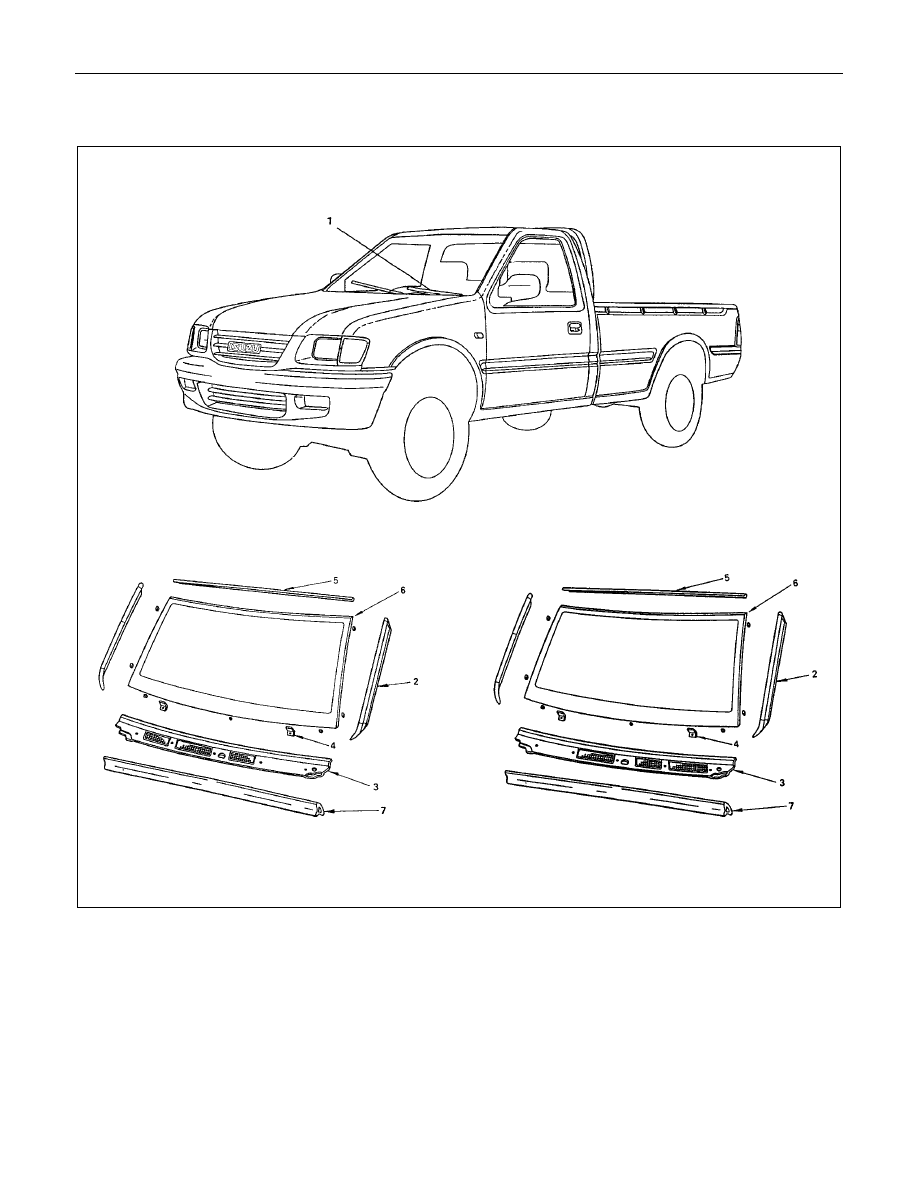

REMOVAL AND INSTALLATION

For RHD model

For LHD model

Removal Steps

1. Wiper arm assembly
2. Side moulding
3. Vent cowl cover
4. Windshield stopper
5. Upper moulding

▲

6. Windshield glass
7. Engine hood rear seal

Installation Steps

▲

7. Engine hood rear seal

▲

6. Windshield glass

▲

5. Upper moulding

▲

4. Windshield stopper
3. Vent cowl cover

▲

2. Side moulding
1. Wiper arm assembly
