Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 79





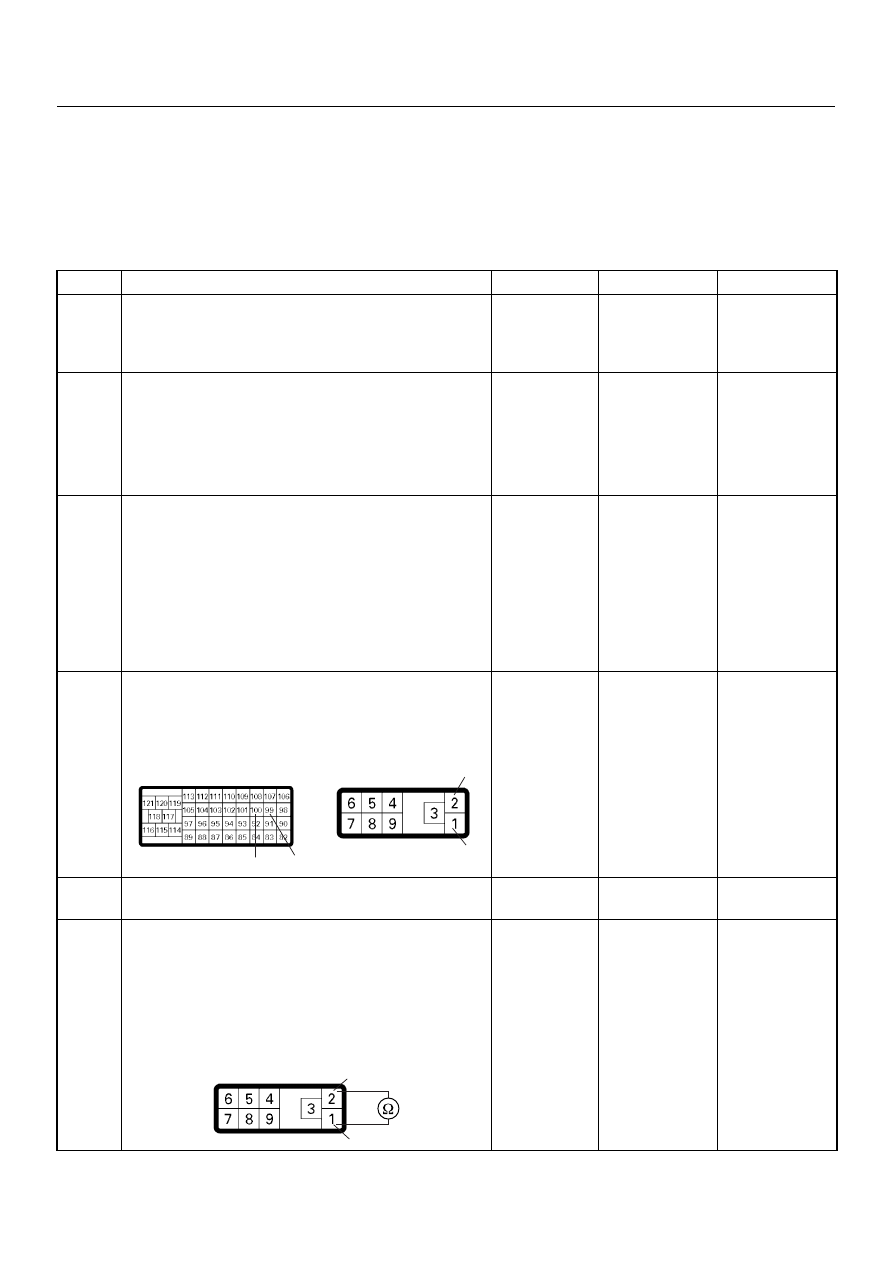

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–311

• Poor connection at ECM and PSG-Inspect harness

connectors for backed out terminals, improper
mating, broken locks, improperly formed or damaged
terminals, and poor terminal to wire connection.

• Damaged harness-Inspect the wiring harness for

damage. If the harness appears to be OK, observe
the DTC P1650 display on the Tech2 while moving
connectors and wiring harnesses.

Diagnostic Trouble Code (DTC) P1650 (Symptom Code A) (Flash Code 44) CAN

Device Offline

Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

2

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor As Stored By ECU” in

“F0: Diagnostic Trouble Codes”.

Is the DTC P1650 (Symptom Code A) stored as
“Present Failure”?

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

3

3

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Select  “F1: Clear DTC Information” in “F0:

Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.

3. Operate the vehicle and monitor the “F0: Read

DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.

Was the DTC P1650 (Symptom Code A) stored in this
ignition cycle?

Go to Step 4

Refer to

Diagnostic Aids

and Go to Step

4

4

Check for poor/faulty connection at the ECM or PSG
(pump control unit) connector. If a poor/faulty
connection is found, repair as necessary.
Was the problem found?

Verify repair

Go to Step 5

5

Visually check the PSG (pump control unit).
Was the problem found?

Go to Step 18

Go to Step 6

6

Using the DVM and check the CAN high circuit.

1. Ignition “Off”, engine “Off”.

2. Disconnect the ECM connector and PSG (pump

control unit) connector.

3. Check the circuit for short to CAN low circuit.

Was the DVM indicated specified value?

No continuity

Go to Step 7

Repair faulty
harness and

verify repair

100

99

1

2

C-57

E-6

2

1

E-6

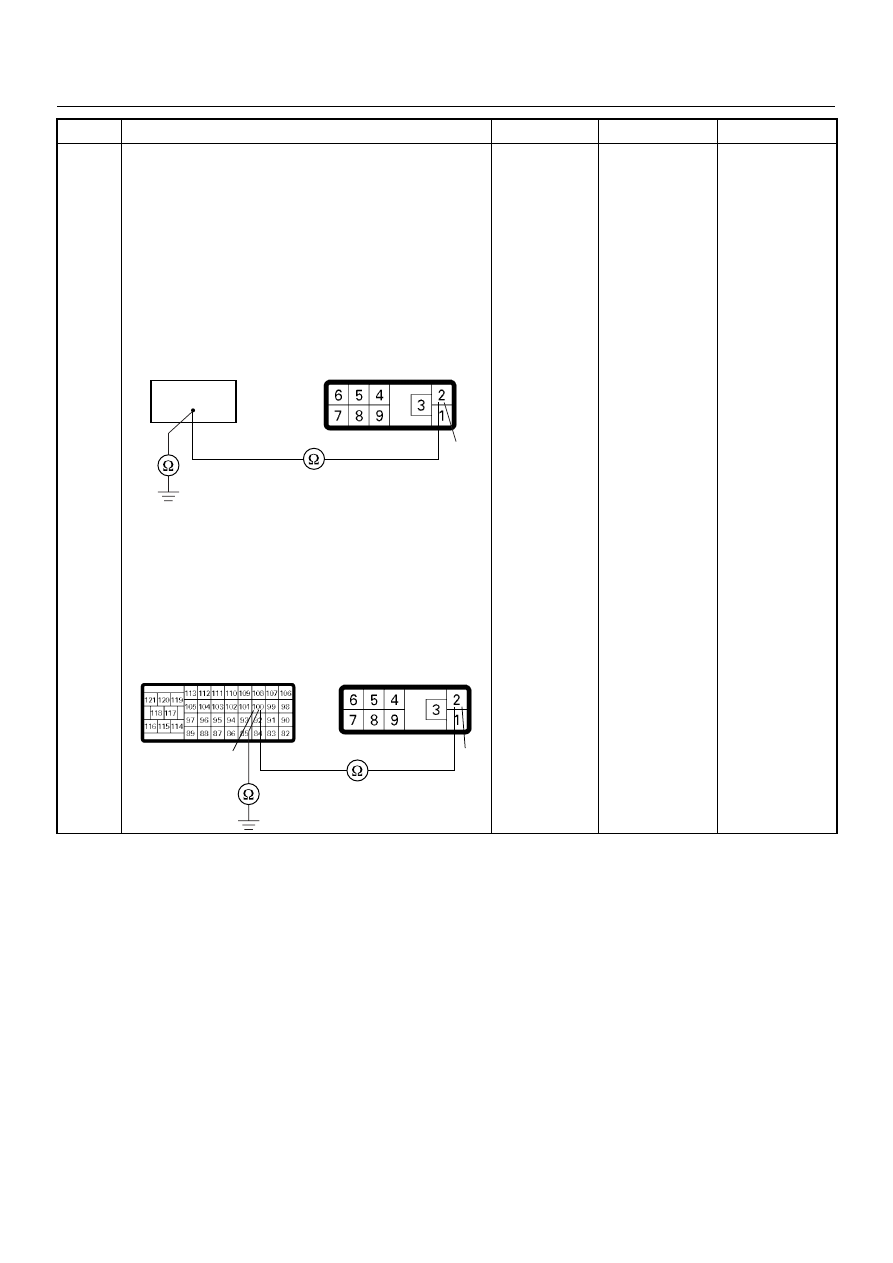

6E–312

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

7

Using the DVM and check the CAN high circuit.
Breaker box is available:

1. Ignition “Off”, engine “Off”.

2. Install the breaker box as type A. (ECM

disconnected) Ref. Page 6E-81

3. Disconnect the PSG (pump control unit)

connector.

4. Check the circuit for open or short to ground

circuit.

Was the problem found?

Breaker box is not available:

1. Ignition “Off”, engine “Off”.

2. Disconnect the PSG (pump control unit)

connector.

3. Check the circuit for open or short to ground

circuit.

Was the problem found?

Repair faulty
harness and

verify repair

Go to Step 8

Step

Action

Value(s)

Yes

No

100

2

E-6

100

2

C-57

E-6

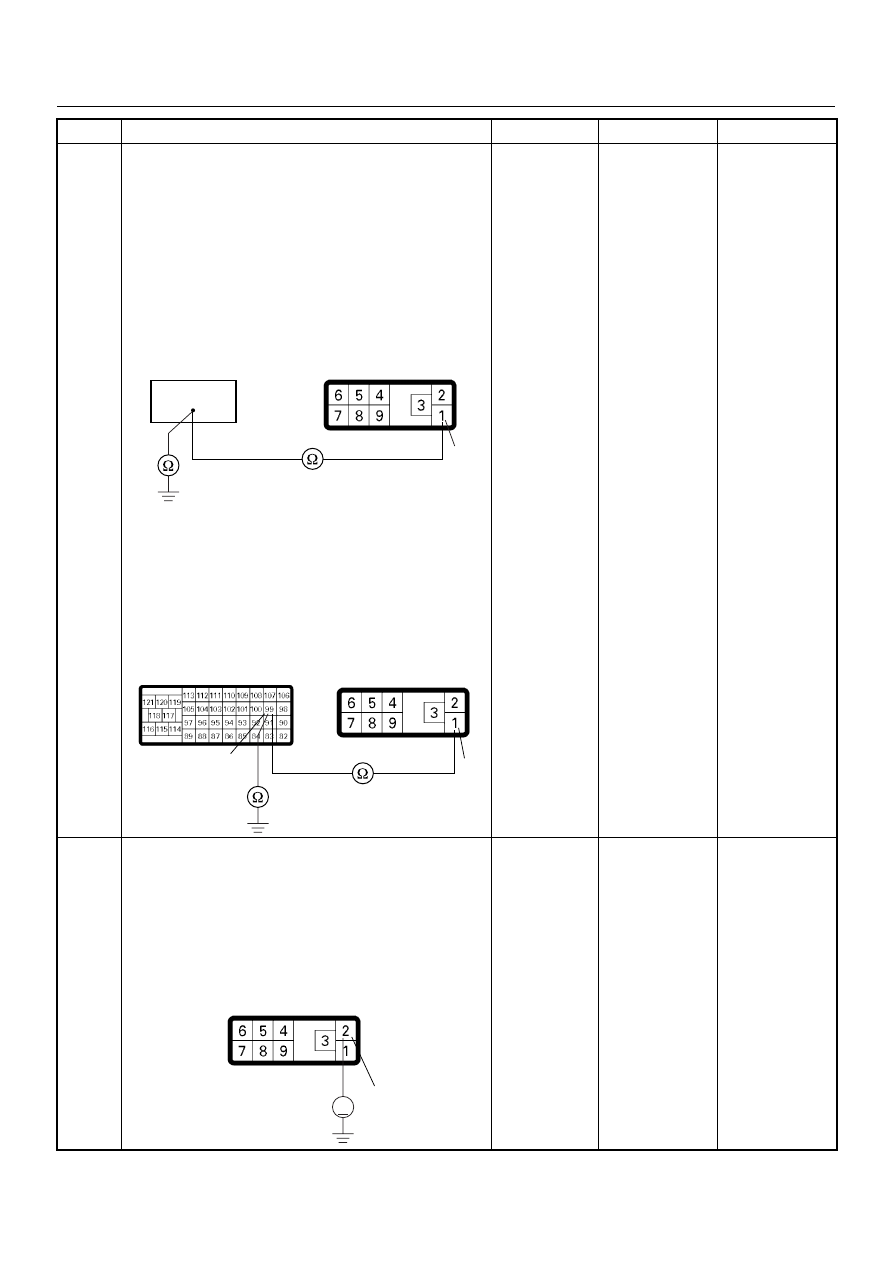

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–313

8

Using the DVM and check the CAN low circuit.
Breaker box is available:

1. Ignition “Off”, engine “Off”.

2. Install the breaker box as type A. (ECM

disconnected) Ref. Page 6E-81

3. Disconnect the PSG (pump control unit)

connector.

4. Check the circuit for open or short to ground

circuit.

Was the problem found?

Breaker box is not available:

1. Ignition “Off”, engine “Off”.

2. Disconnect the PSG (pump control unit)

connector.

3. Check the circuit for open or short to ground

circuit.

Was the problem found?

Repair faulty
harness and

verify repair

Go to Step 9

9

Using the DVM and check the CAN high circuit.

1. Ignition “On”, engine “Off”.

2. Disconnect the PSG (pump control unit)

connector.

3. Check the circuit for short to power supply circuit.

Was the DVM indicated battery voltage or
approximately 5V?

Go to Step 10

Go to Step 11

Step

Action

Value(s)

Yes

No

99

1

E-6

99

1

C-57

E-6

2

V

E-6

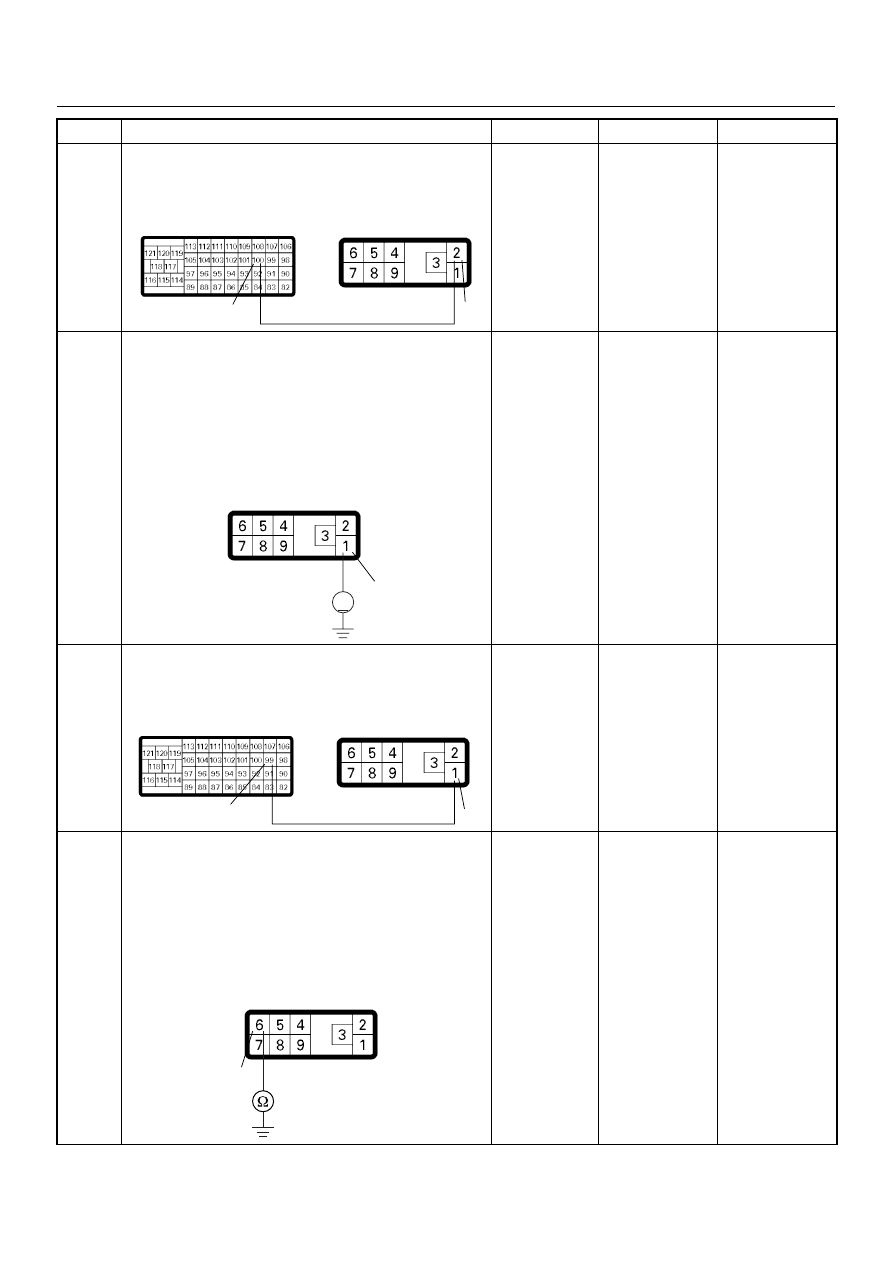

6E–314

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

10

Repair the short to voltage circuit between the ECM
and PSG (pump control unit).
Is the action complete?

Verify repair

11

Using the DVM and check the CAN low circuit.

1. Ignition “On”, engine “Off”.

2. Disconnect the PSG (pump control unit)

connector.

3. Check the circuit for short to power supply circuit.

Was the DVM indicated battery voltage or
approximately 5V?

Go to Step 12

Go to Step 13

12

Repair the short to voltage circuit between the ECM
and PSG (pump control unit).
Is the action complete?

Verify repair

13

Using the DVM and check the PSG (pump control
unit) ground circuit.

1. Ignition “Off”, engine “Off”.

2. Disconnect the PSG (pump control unit)

connector.

3. Check the circuit for open circuit.

Was the problem found?

Repair faulty
harness and

verify repair

Go to Step 14

Step

Action

Value(s)

Yes

No

100

2

C-57

E-6

1

V

E-6

99

1

C-57

E-6

6

E-6
