CHECKING COOLING SYSTEM FOR LEAKS

NBLC0016S04

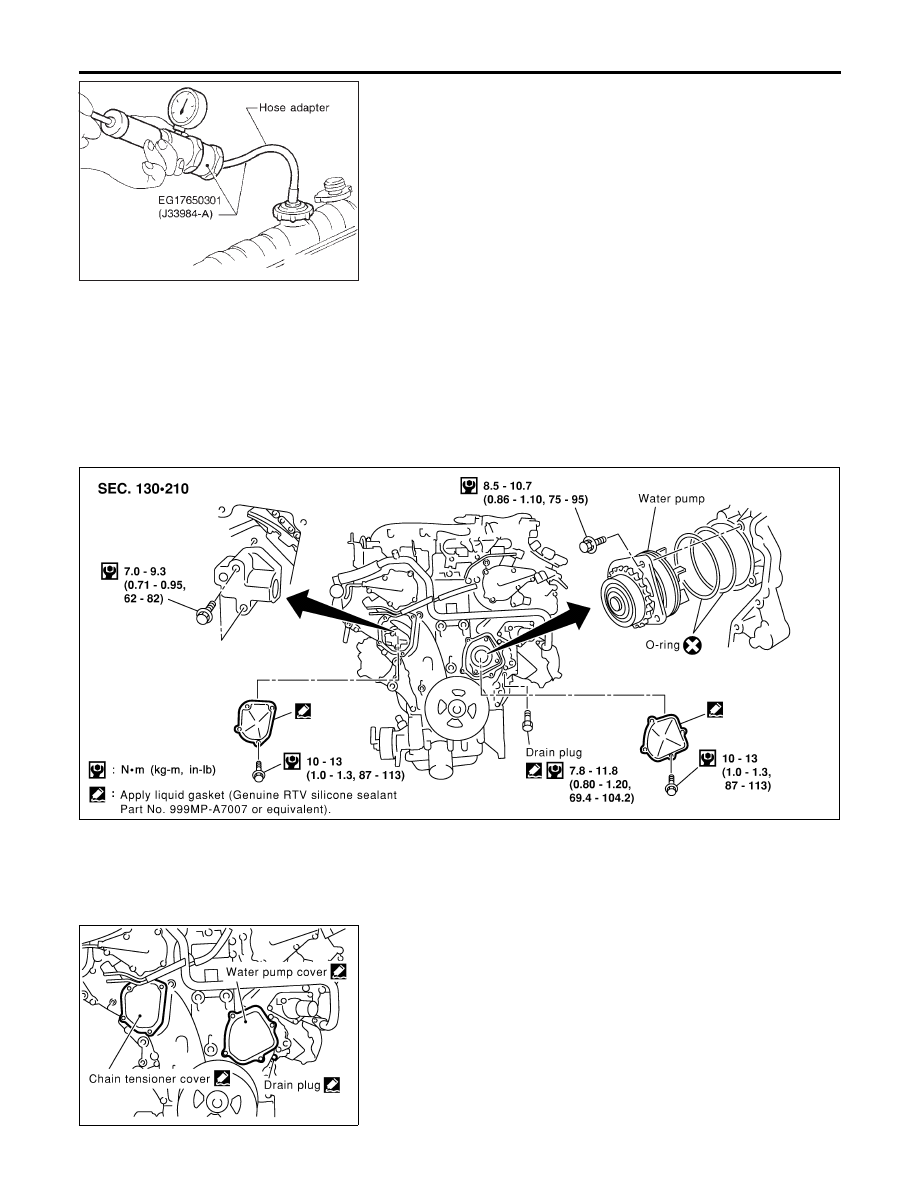

To check for leakage, apply pressure to the cooling system with a
tester.

Testing pressure:

157 kPa (1.6 kg/cm

2

, 23 psi)

CAUTION:

Higher than the specified pressure may cause radiator
damage.

Water Pump

REMOVAL AND INSTALLATION

NBLC0017

CAUTION:

I

When removing water pump assembly, be careful not to
get coolant on drive belt.

I

Water pump cannot be disassembled and should be
replaced as a unit.

I

After installing water pump, connect hose and clamp
securely, then check for leaks using radiator cap tester.

SLC326B

SLC327B

REMOVAL

NBLC0018

1.

Remove under cover.

2.

Remove suspension member stay.

3.

Drain coolant from radiator.

4.

Remove radiator shrouds.

5.

Remove drive belts.

6.

Remove cooling fan.

7.

Remove water drain plug on water pump side of cylinder block.

8.

Remove chain tensioner cover and water pump cover.

ENGINE COOLING SYSTEM

System Check (Cont’d)

LC-12

SLC328B

9.

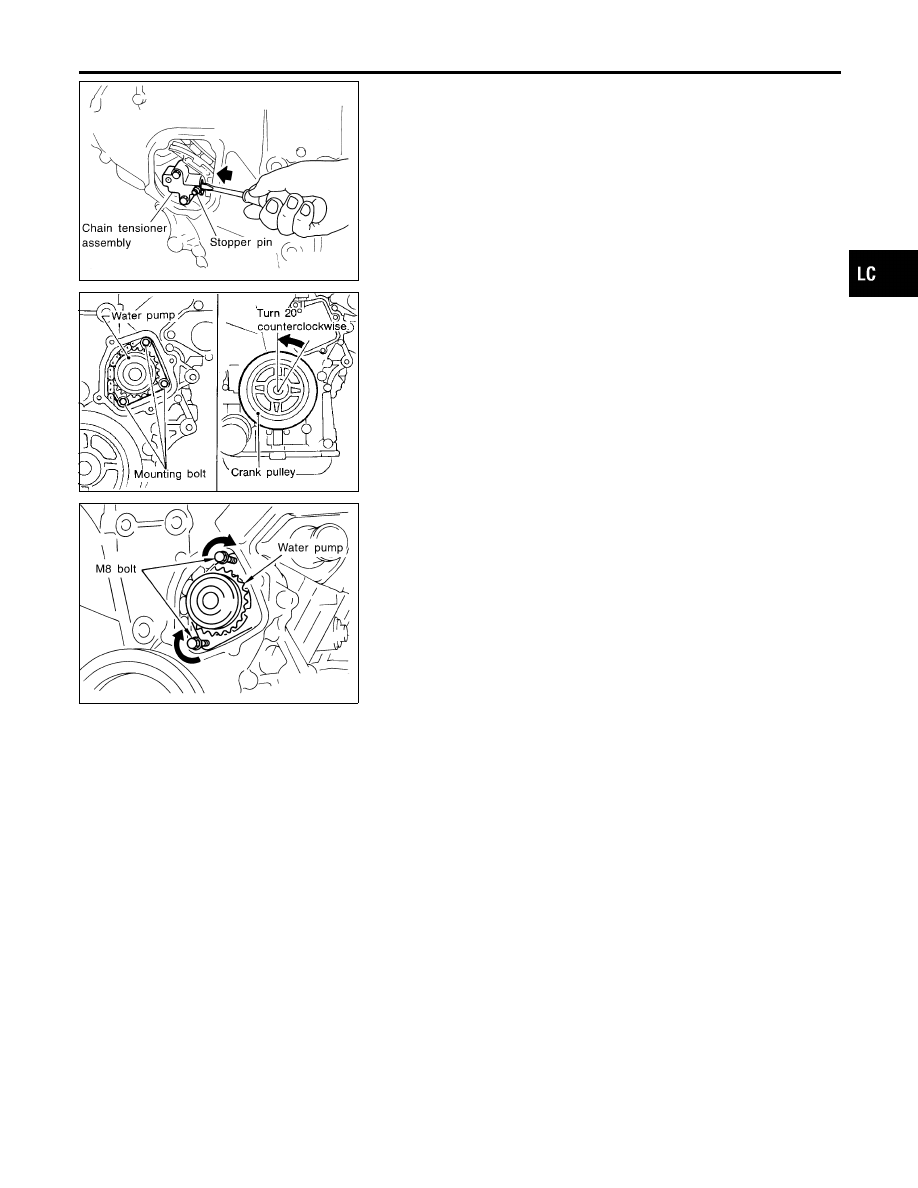

Pushing timing chain tensioner sleeve, apply a stopper pin so
it does not return. Then remove the chain tensioner assembly.

SLC941A

10. Remove the 3 water pump fixing bolts. Secure a gap between

water pump gear and timing chain, by turning crankshaft pul-
ley 20° backwards.

JLC357B

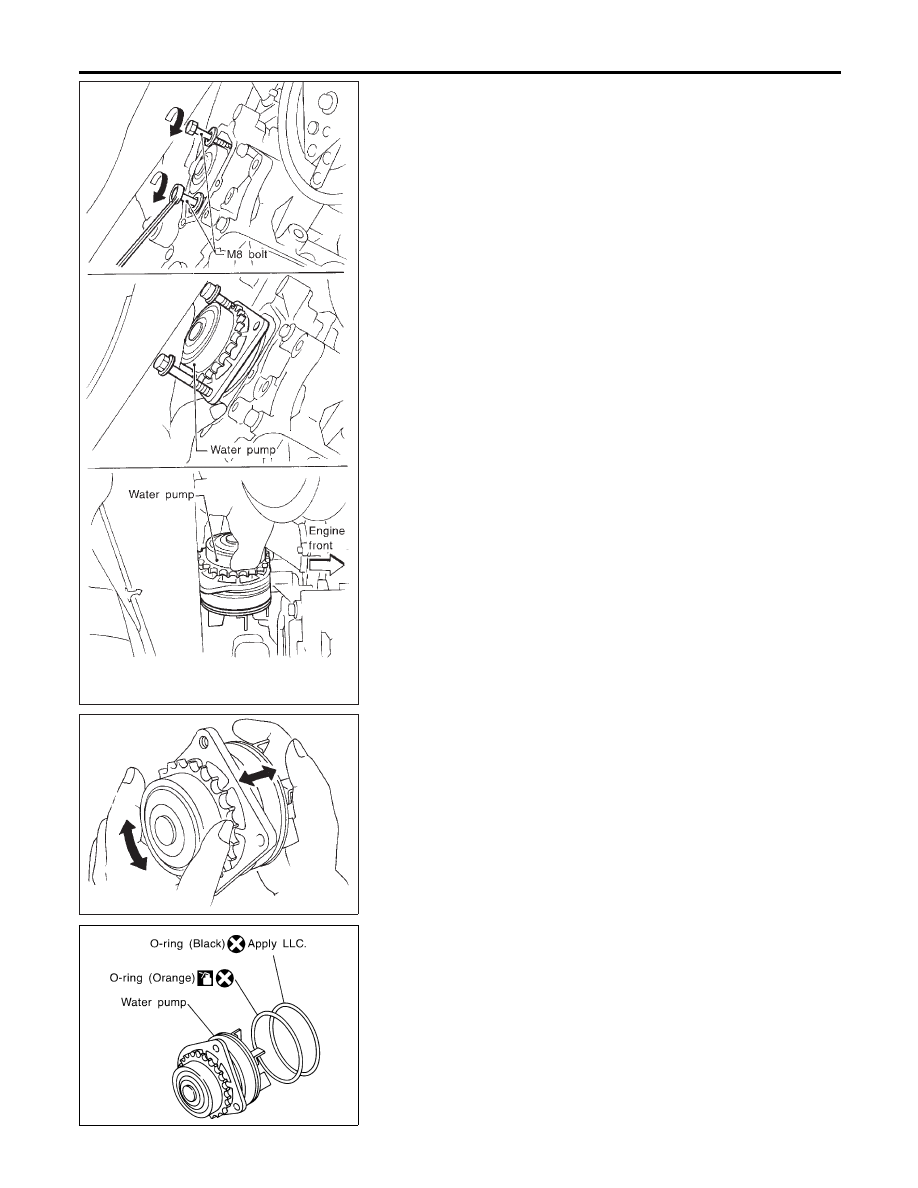

11. Put M8 bolts to two water pump fixing bolt holes.

GI

MA

EM

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ENGINE COOLING SYSTEM

Water Pump (Cont’d)

LC-13

SLC116B

12. Tighten M8 bolts by turning half turn alternately until they reach

timing chain rear case.

I

In order to prevent damages to water pump or timing chain rear
case, do not tighten one bolt continuously. Always turn each
bolt half turn each time.

13. Lift up water pump and remove it.

I

When lifting up water pump, do not allow water pump gear to
hit timing chain.

SLC943A

INSPECTION

NBLC0019

1.

Check for badly rusted or corroded body assembly.

2.

Check for rough operation due to excessive end play.

SLC244B

INSTALLATION

NBLC0020

1.

Apply engine oil and coolant to O-rings as shown in the figure.

ENGINE COOLING SYSTEM

Water Pump (Cont’d)

LC-14

SLC031B

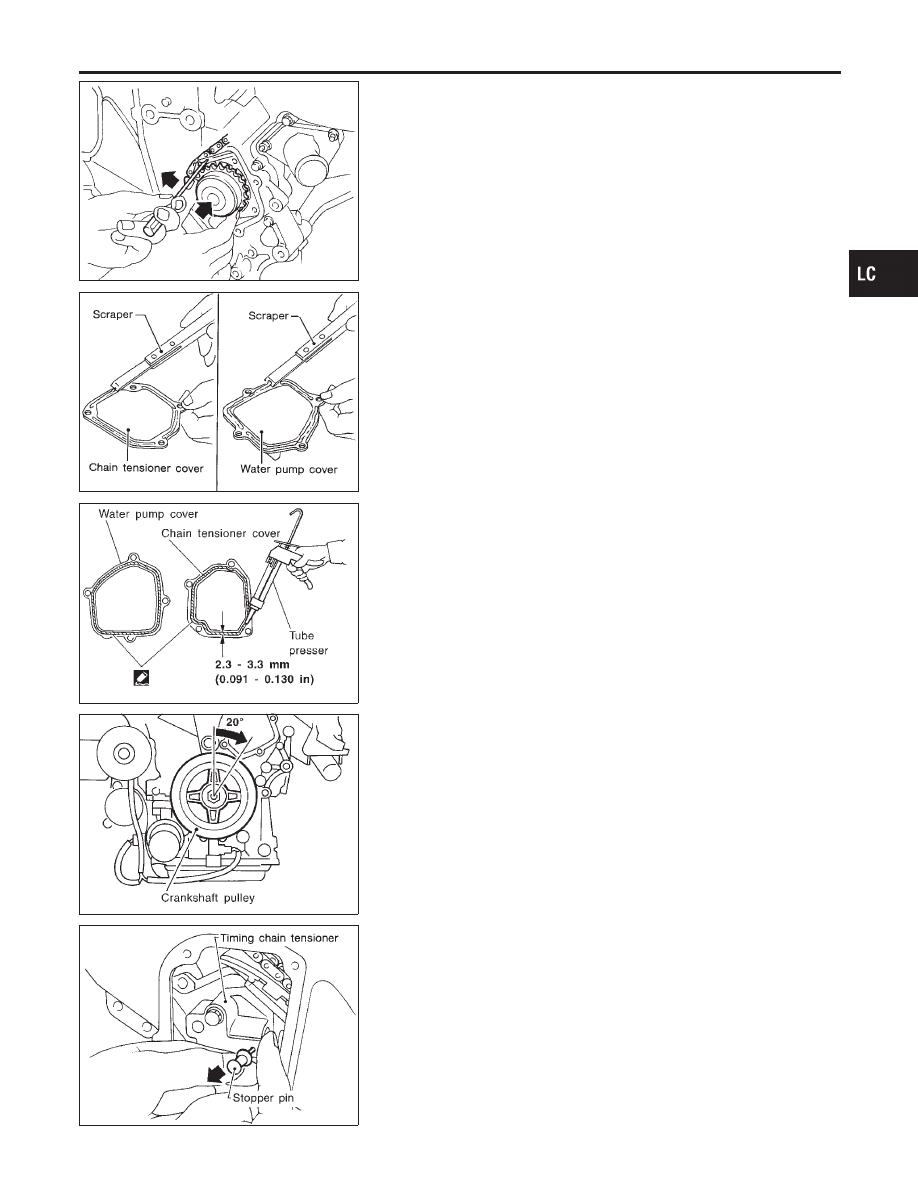

2.

Install water pump.

I

Do not allow cylinder block to nip O-rings when installing
water pump.

SLC944A

3.

Before installing, remove all traces of liquid gasket from mat-
ing surface of water pump cover and chain tensioner cover
using a scraper.
Also remove traces of liquid gasket from mating surface of
front cover.

SLC945AA

4.

Apply a continuous bead of liquid gasket to mating surface of
chain tensioner cover and water pump cover.

SLC156B

5.

Return the crankshaft pulley to its original position by turning
it 20° forward.

SLC961A

6.

Install timing chain tensioner, then remove the stopper pin.

I

When installing the timing chain tensioner, engine oil
should be applied to the oil hole and tensioner.

I

After starting engine, let idle for three minutes, then rev
engine up to 3,000 rpm under no load to purge air from the
high-pressure chamber of the chain tensioners. The
engine may produce a rattling noise. This indicates that
air still remains in the chamber and is not a matter of
concern.

7.

Reinstall any parts removed in reverse order of removal.
