4.

4-3.

Cruise test

AT-74
AT-77

Part-1

l

Vehicle Cannot Be Started From D

1

AT-237.

l

A/T Does Not Shift: D

1

,

D

2

or Does Not Kickdown: D

4

,

D

2

AT-240.

l

A/T Does Not Shift: D

2

,

D

3

AT-243.

l

A/T Does Not Shift: D

3

,

D

4

AT-246.

l

A/T Does Not Perform Lock-up, AT-249.

l

A/T Does Not Hold Lock-up Condition, AT-251.

l

Lock-up Is Not Released, AT-253.

l

Engine Speed Does Not Return To Idle (Light Braking D

4

,

D

3

), AT-254.

Part-2

AT-81

l

Vehicle Does Not Start From D

1

AT-257.

l

A/T Does Not Shift: D

1

,

D

2

or Does Not Kickdown: D

4

,

D

2

AT-240.

l

A/T Does Not Shift: D

2

,

D

3

AT-243.

l

A/T Does Not Shift: D

3

,

D

4

AT-246.

Part-3

AT-83

l

A/T Does Not Shift: D

4

,

D

3

When selector lever is set in D

,

3rd Position, AT-258.

l

Engine Speed Does Not Return To Idle (Engine Brake In D

3

), AT-254.

l

A/T Does Not Shift: D

3

,

2

2

, When Selector Lever D

,

2nd Position, AT-259.

l

Engine Speed Does Not Return To Idle (Engine Brake In 2

2

), AT-254.

l

A/T Does Not Shift: 2

2

,

1

1

, When Selector Lever 2nd

,

1st Position, AT-260.

l

Vehicle Does Not Decelerate By Engine Brake, AT-263.

l

SELF-DIAGNOSTIC PROCEDURE — Mark detected items.

l

Park/neutral position (PNP) switch, AT-108.

l

A/T fluid temperature sensor, AT-114.

l

Vehicle speed sensor·A/T (Revolution sensor), AT-120.

l

Engine speed signal, AT-125.

l

Power train revolution sensor, AT-211.

l

Torque converter clutch solenoid valve, AT-157.

l

Line pressure solenoid valve, AT-172.

l

Shift solenoid valve A, AT-178.

l

Shift solenoid valve B, AT-183.

l

Accelerator pedal position sensor (throttle position sensor), AT-188.

l

Overrun clutch solenoid valve, AT-194.

l

Park/neutral position (PNP) & 3rd position switches, closed throttle position signal and wide-open

throttle position signal, AT-265.

l

A/T fluid temperature sensor and TCM power source, AT-199.

l

Vehicle speed sensor·MTR, AT-206.

l

CAN communication line, AT-104.

l

Control unit (RAM), Control unit (ROM), AT-216.

l

Control unit (EEP ROM), AT-218.

l

Battery

l

Others

5.

l

For self-diagnosis NG items, inspect each component. Repair or replace the damaged parts.

AT-42

6.

l

Perform all ROAD TEST and re-mark required procedures.

AT-69

7.

l

Perform DTC CONFIRMATION PROCEDURE for following MIL indicating items and check out NG items.

Refer to EC-75, “Emission-related Diagnostic Information”.

EC-75

l

DTC (P0731) A/T 1st gear function, AT-130.

l

DTC (P0732) A/T 2nd gear function, AT-136.

l

DTC (P0733) A/T 3rd gear function, AT-142.

l

DTC (P0734) A/T 4th gear function, AT-148.

l

DTC (P0744) A/T TCC S/V function (lock-up), AT-162.

8.

l

Perform the Diagnostic Procedures for all remaining items marked NG. Repair or replace the damaged parts.

Refer to the Symptom Chart when you perform the procedures. (The chart also shows some other possible
symptoms and the component inspection orders.)

AT-87
AT-98

9.

l

Erase DTC from TCM and ECM memories.

AT-38

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — INTRODUCTION

Introduction (Cont’d)

AT-61

Work Flow

NHAT0025

HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR

NHAT0025S01

A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a problem. It is important to fully understand the symptoms
or conditions for a customer complaint.
Make good use of the two sheets provided, “Information from Customer” (AT-59) and “Diagnostic Worksheet”
(AT-60), to perform the best troubleshooting possible.

TROUBLE DIAGNOSIS — INTRODUCTION

Work Flow

AT-62

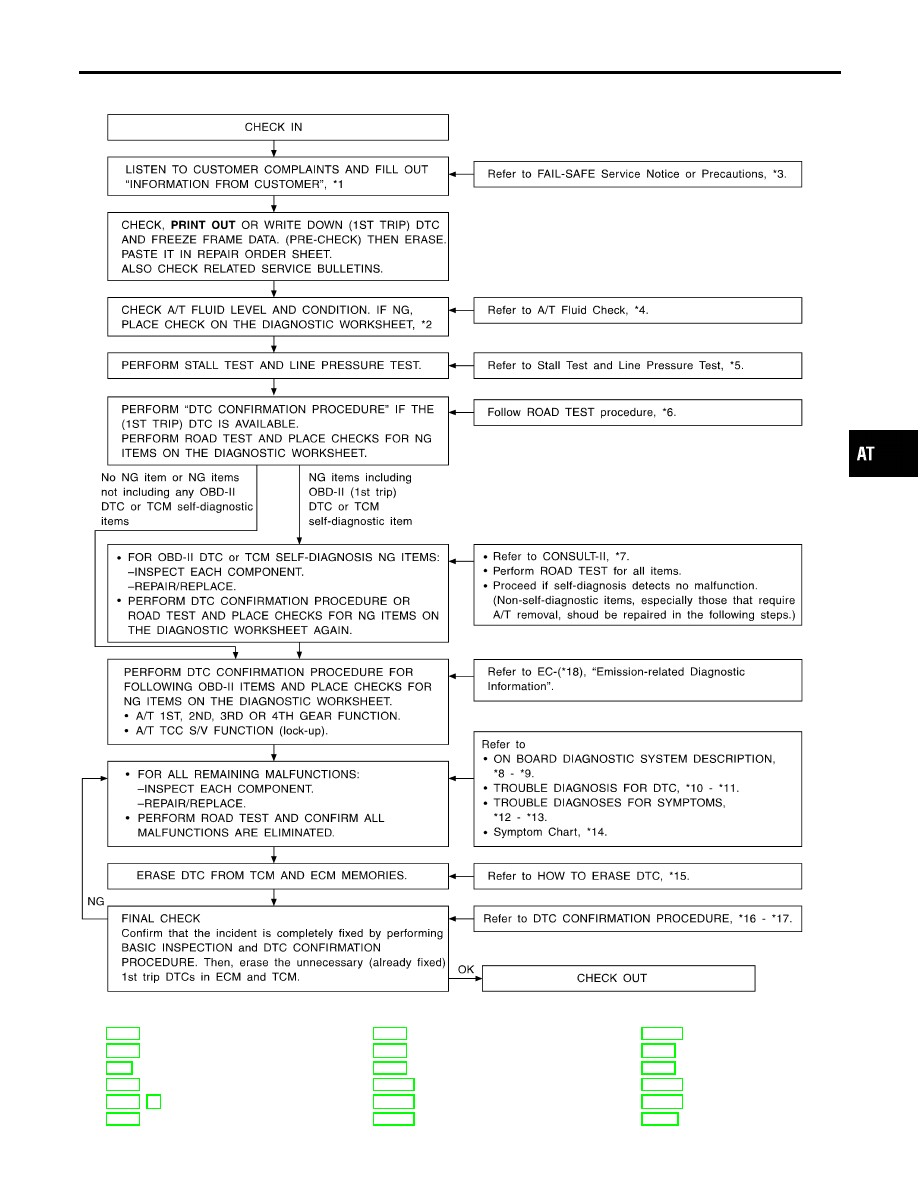

WORK FLOW CHART

=NHAT0025S02

SAT086JI

*1: AT-59
*2: AT-60
*3: AT-9
*4: AT-64
*5: AT-64, 68
*6: AT-69

*7: AT-40
*8: AT-36
*9: AT-55
*10: AT-108
*11: AT-218
*12: AT-220

*13: AT-265
*14: AT-87
*15: AT-38
*16: AT-109
*17: AT-218
*18: EC-75

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — INTRODUCTION

Work Flow (Cont’d)

AT-63

SAT497K

A/T Fluid Check

NHAT0026

FLUID LEAKAGE CHECK

NHAT0026S01

1.

Clean area suspected of leaking. — for example, mating sur-
face of converter housing and transmission case.

2.

Start engine, apply foot brake, place selector lever in D posi-
tion and wait a few minutes.

3.

Stop engine.

SAT288G

4.

Check for fresh leakage.

SAT638A

FLUID CONDITION CHECK

NHAT0026S02

Fluid color

Suspected problem

Dark or black with burned odor

Wear of frictional material

Milky pink

Water contamination — Road water
entering through filler tube or breather

Varnished fluid, light to dark brown
and tacky

Oxidation — Over or under filling, —
Overheating

FLUID LEVEL CHECK

NHAT0026S03

Refer to MA-20, “Checking A/T Fluid”.

SAT647B

Stall Test

NHAT0027

STALL TEST PROCEDURE

NHAT0027S01

1.

Check A/T fluid and engine oil levels. If necessary, add fluid
and oil.

2.

Drive vehicle for approx. 10 minutes or until fluid and oil reach
operating temperature.

ATF operating temperature:

50 - 80°C (122 - 176°F)

TROUBLE DIAGNOSIS — BASIC INSPECTION

A/T Fluid Check

AT-64
