Infiniti G35 (V35). Manual - part 806





WW-32

FRONT WIPER AND WASHER SYSTEM

Removal and Installation of Front Wiper Arms, Adjustment of Wiper Arms Stop
Location

NKS000MG

REMOVAL

1.

Turn front wiper switch ON to operate wiper motor, and then turn front wiper switch OFF (auto stop).

2.

Open hood, remove front wiper arm caps, and remove front wiper arm nuts.

3.

Raise front wiper arms, and remove front wiper arms from vehicle.

INSTALLATION

1.

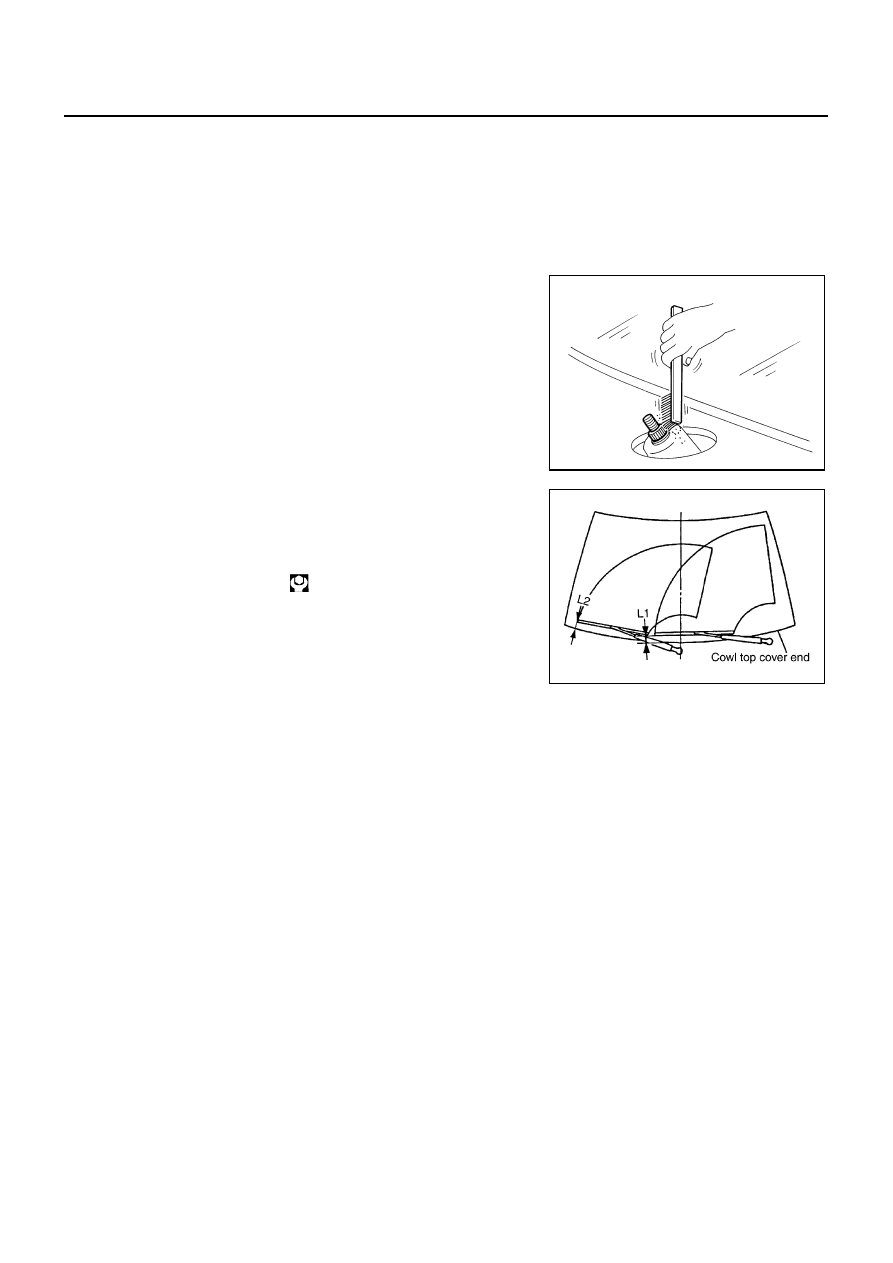

Clean up the pivot area as shown in the figure. This will reduce
possibility of front wiper arm nuts looseness.

2.

Prior to front wiper arms installation, turn front wiper switch ON
to operate wiper motor, and then turn front wiper switch OFF
(auto stop).

3.

Lift the blade up and then set it down onto windshield glass sur-
face to set the blade center to clearance “L1” & “L2” immedi-
ately.

4.

Tighten front wiper arm nuts to specified torque.

5.

Spray washer fluid. Turn front wiper switch ON to operate wiper
motor, and then turn front wiper switch OFF (auto stop).

6.

Make sure that wiper blades stop within clearance “L1” & “L2”.

7.

Install front wiper arm caps.

SEL024J

Front wiper arm nuts

: 23.6 N·m (2.4 kg-m, 17 ft-lb)

Clearance “L1”

: 47.1 - 62.1 mm (1.854 - 2.445 in)

Clearance “L2”

: 32.1 - 47.1 mm (1.264 - 1.854 in)

PKIA9951E

FRONT WIPER AND WASHER SYSTEM

WW-33

C

D

E

F

G

H

I

J

L

M

A

B

WW

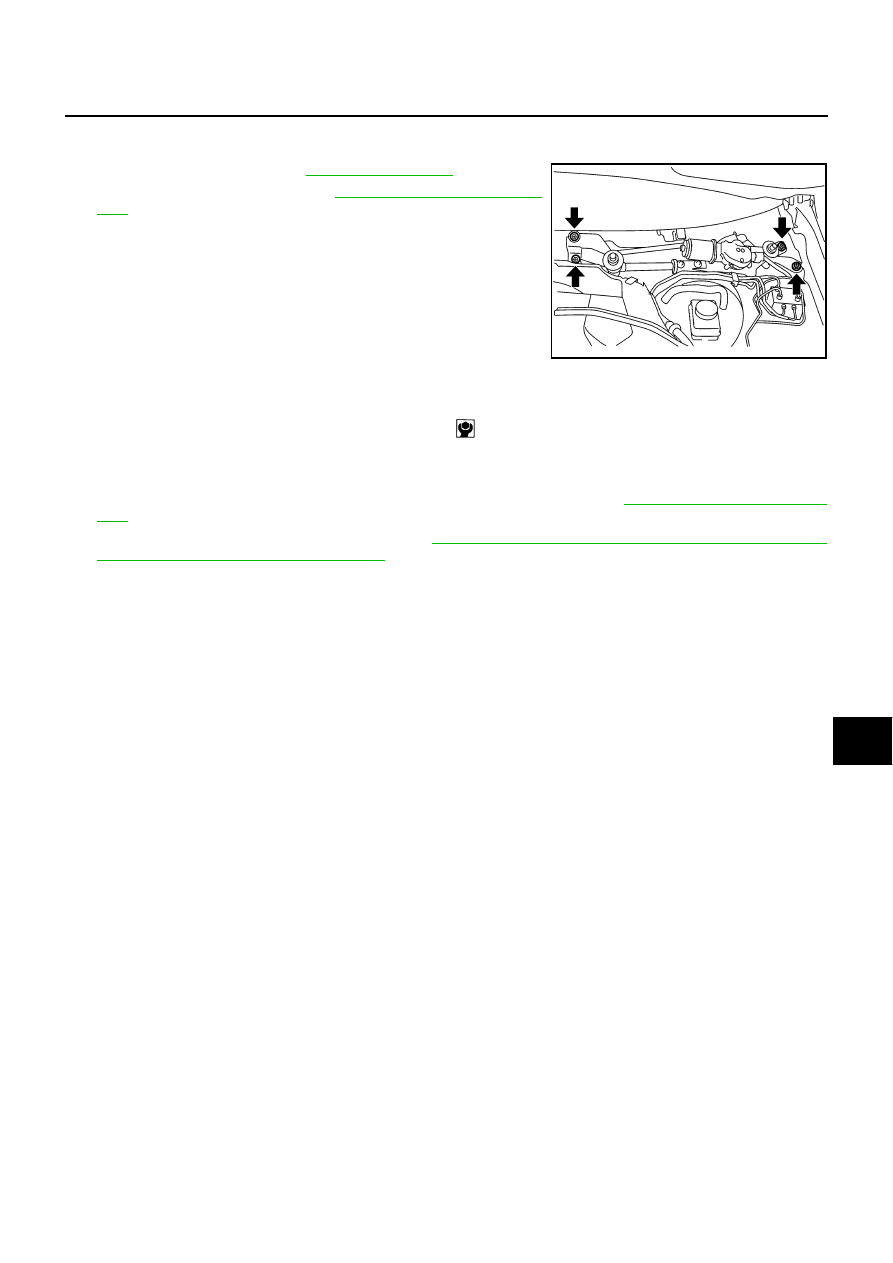

Removal and Installation of Front Wiper Drive Assembly

NKS000MH

REMOVAL

1.

Remove wiper arms. Refer to

WW-32, "REMOVAL"

 .

2.

Remove cowl top cover. Refer to

EI-19, "Removal and Installa-

tion"

 .

3.

Disconnect wiper motor connector and remove connector clips.

4.

Remove front wiper drive assembly mounting bolts, and remove
front wiper drive assembly from the vehicle.

INSTALLATION

1.

Install front wiper drive assembly to the vehicle.

2.

Connect wiper motor connector. Turn front wiper switch ON to operate wiper motor, and then turn front
wiper switch OFF (auto stop).

3.

Install connector clips to the wiper frame, and install cowl top cover. Refer to

EI-19, "Removal and Installa-

tion"

 .

4.

Install front wiper arms and arm caps. Refer to

WW-32, "Removal and Installation of Front Wiper Arms,

Adjustment of Wiper Arms Stop Location"

 .

PKIA1142E

Front wiper drive assembly mounting bolts

: 4.5 N·m (0.46 kg-m, 40 in-lb)

WW-34

FRONT WIPER AND WASHER SYSTEM

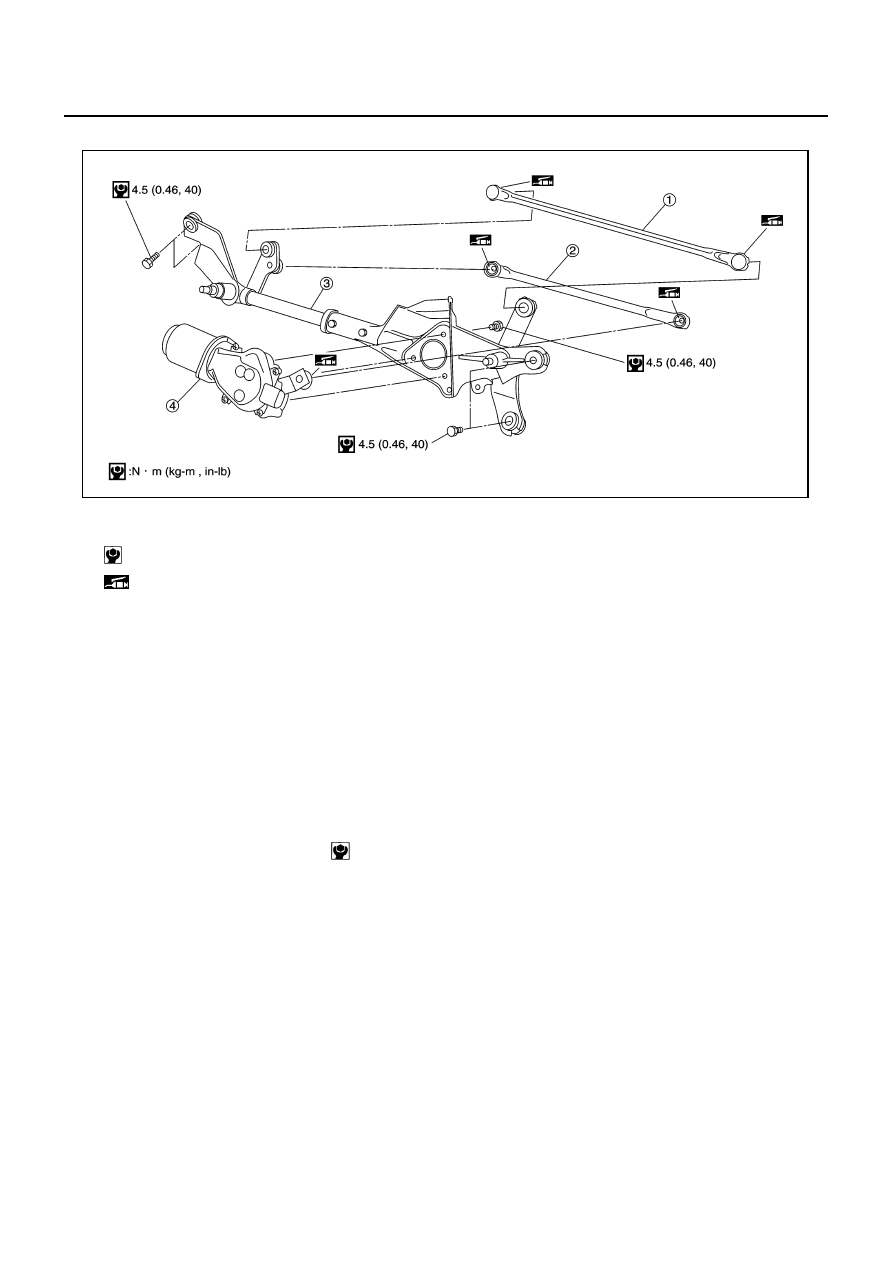

Disassembly and Assembly of Front Wiper Motor and Linkage

NKS000MI

DISASSEMBLY

1.

Remove wiper linkages from wiper motor and wiper frame.

2.

Remove wiper motor mounting bolts, and remove wiper motor from wiper frame.

CAUTION:

Be careful not to bend wiper linkages nor to damage the resin part of ball joint when removing wiper
linkages.

ASSEMBLY

1.

Connect wiper motor connector. Turn front wiper switch ON to operate wiper motor, and then turn front
wiper switch OFF (auto stop).

2.

Disconnect wiper motor connector.

3.

Install wiper motor to wiper frame.

4.

Install wiper linkages to wiper frame and wiper motor.

CAUTION:

Never drop the wiper motor nor cause it to interfere with other parts.

Check joint of motor arm and wiper linkages (at retainer) for grease conditions. Apply grease if
necessary.

1.

Wiper linkage 1

2.

Wiper linkage 2

3.

Wiper frame

4.

Wiper motor

: N-m (kg-m, in-lb)

: Should be lubricated with grease

PKIA7616E

Wiper motor bolts

: 4.5 N·m (0.46 kg-m, 40 in-lb)

FRONT WIPER AND WASHER SYSTEM

WW-35

C

D

E

F

G

H

I

J

L

M

A

B

WW

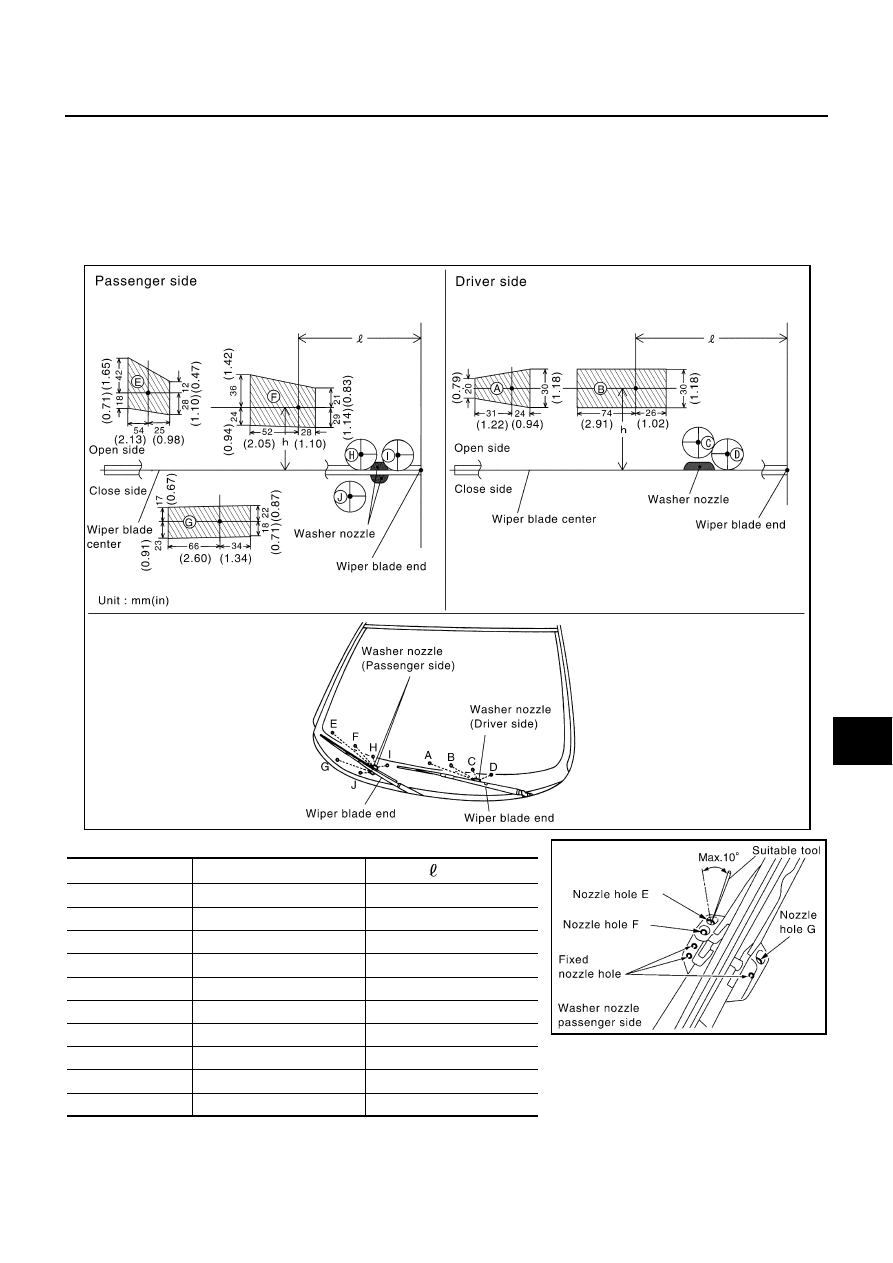

Washer Nozzle Adjustment

NKS000MJ

1.

When wiper blade position is in auto stop condition, remove wiper motor connector to ensure wiper arms
do not move.

2.

Adjust each nozzle position (A, B, E, F, and G) so that spray positions are in the range of shaded parts.

CAUTION:

Only washer nozzles (A, B, E, F, and G) can be adjusted. Washer nozzles (C, D, H, I, and J) cannot
be adjusted because of fixed nozzles.

Unit: mm (in)

Spray position

h (height)

 (width)

A

25 (0.98)

339 (13.35)

B

25 (0.98)

176 (6.93)

(C)

(D)

E

53 (2.09)

306 (12.05)

F

39 (1.54)

158 (6.22)

G

32 (1.26)

244 (9.61)

(H)

(I)

(J)

PKIA1143E

PKIA1144E
