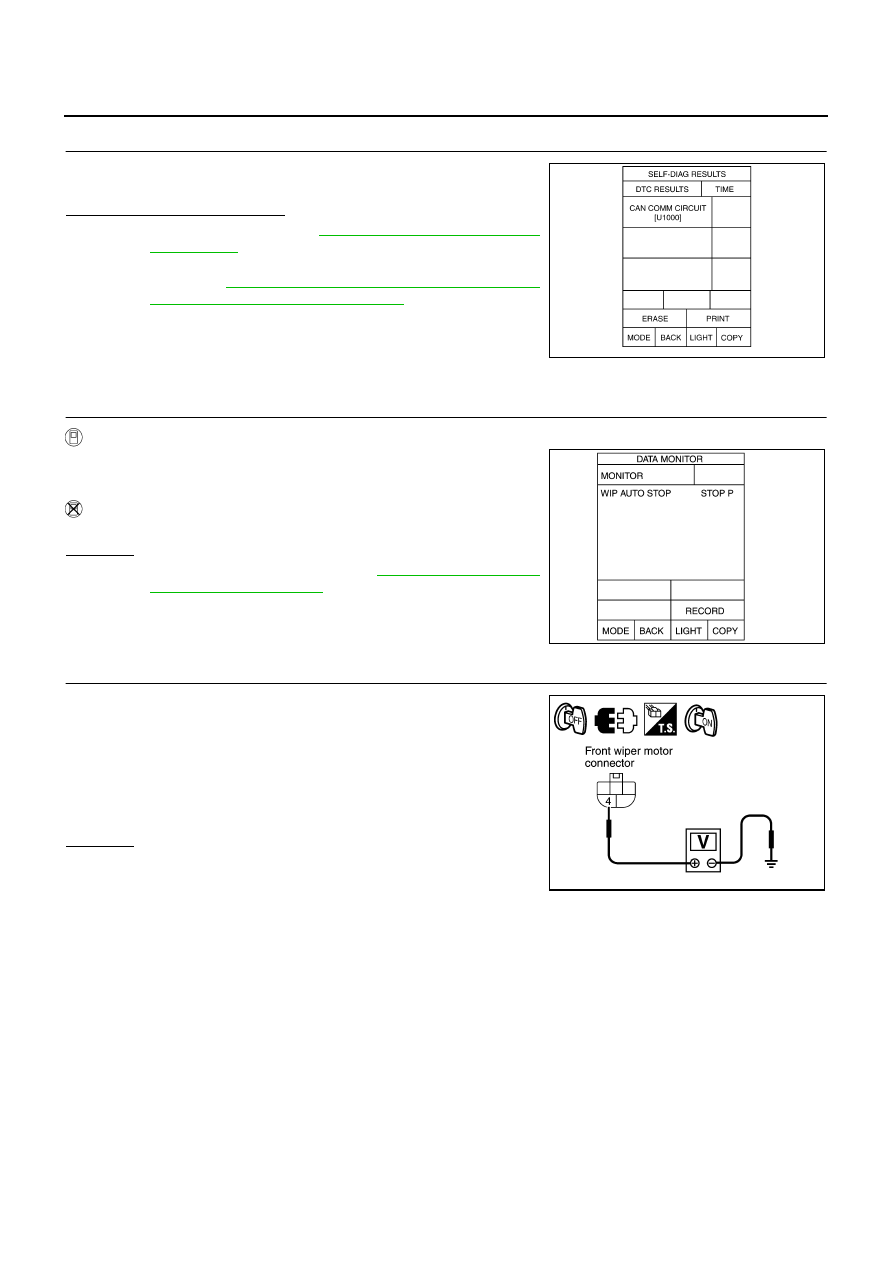

WW-24

FRONT WIPER AND WASHER SYSTEM

6.

CHECK CIRCUIT BETWEEN IPDM E/R AND BCM

Select “BCM” on CONSULT-II, and perform self-diagnosis for
“BCM”.

Displayed self-diagnosis results

NO DTC>>Replace BCM. Refer to

BCS-16, "Removal and Installa-

tion of BCM"

 .

CAN COMM CIRCUIT>>Check CAN communication line of BCM.

Refer to

BCS-15, "CAN Communication Inspection

Using CONSULT-II (Self-Diagnosis)"

 .

Front Wiper Does Not Return to Stop Position

NKS000M7

1.

CHECK FRONT WIPER STOP SIGNAL

With CONSULT-ll

Select “IPDM E/R” on CONSULT-II. With “DATA MONITOR”, make
sure that “WIP AUTO STOP” turns “ACT P” - “STOP P” linked with
front wiper operation.

Without CONSULT-ll

GO TO 2.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-27, "Removal and

Installation of IPDM E/R"

 .

NG

>> GO TO 2.

2.

CHECK IPDM E/R

1.

Turn ignition switch OFF.

2.

Disconnect front wiper motor connector.

3.

Turn ignition switch ON.

4.

Check voltage between front wiper motor harness connector
E52 terminal 4 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

PKIA7627E

PKIA7614E

4 – Ground

: Battery voltage.

PKIB6129E

FRONT WIPER AND WASHER SYSTEM

WW-25

C

D

E

F

G

H

I

J

L

M

A

B

WW

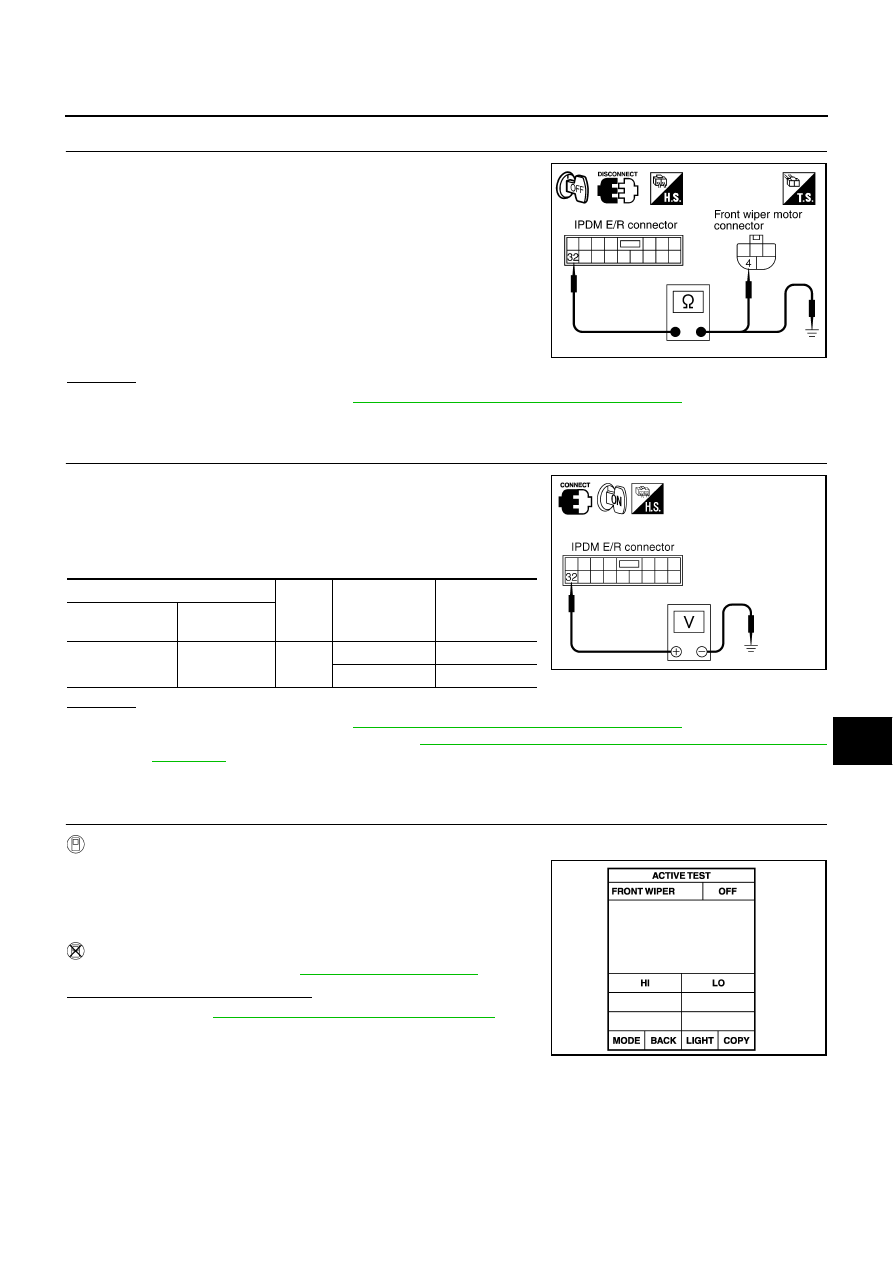

3.

CHECK FRONT WIPER AUTO STOP CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between IPDM E/R harness connector E7 ter-
minal 32 and front wiper motor harness connector E52 terminal
4.

4.

Check continuity between IPDM E/R harness connector E7 ter-
minal 32 and ground.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-27, "Removal and Installation of IPDM E/R"

 .

NG

>> Repair harness or connector.

4.

CHECK IPDM E/R

1.

Connect IPDM E/R connector and front wiper motor connector.

2.

Turn ignition switch ON.

3.

Check voltage between IPDM E/R harness connector and
ground while front wiper motor is stopped and while it is operat-
ing.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-27, "Removal and Installation of IPDM E/R"

 .

NG

>> Replace front wiper motor. Refer to

WW-33, "Removal and Installation of Front Wiper Drive

Assembly"

 .

Only Front Wiper Low Does Not Operate

NKS000M8

1.

ACTIVE TEST

With CONSULT-ll

1.

Select “IPDM E/R” by CONSULT-II, and select “ACTIVE TEST”
on “SELECT DIAG MODE” screen.

2.

Select “FRONT WIPER” on “SELECT TEST ITEM” screen.

3.

Touch “LO” screen.

Without CONSULT-ll

Start up auto active test. Refer to

PG-21, "Auto Active Test"

 .

Does front wiper operate normally?

YES

>> Refer to

LT-100, "Combination Switch Inspection"

 .

NO

>> GO TO 2.

32 – 4

: Continuity should exist.

32 – Ground

: Continuity should not exist.

PKIB4154E

 (+)

(

−

)

Condition

Voltage

IPDM E/R
connector

Terminal

E7

32 Ground

Wiper stopped

Approx. 0 V

Wiper operating

Battery voltage

SKIA5303E

SKIA3486E

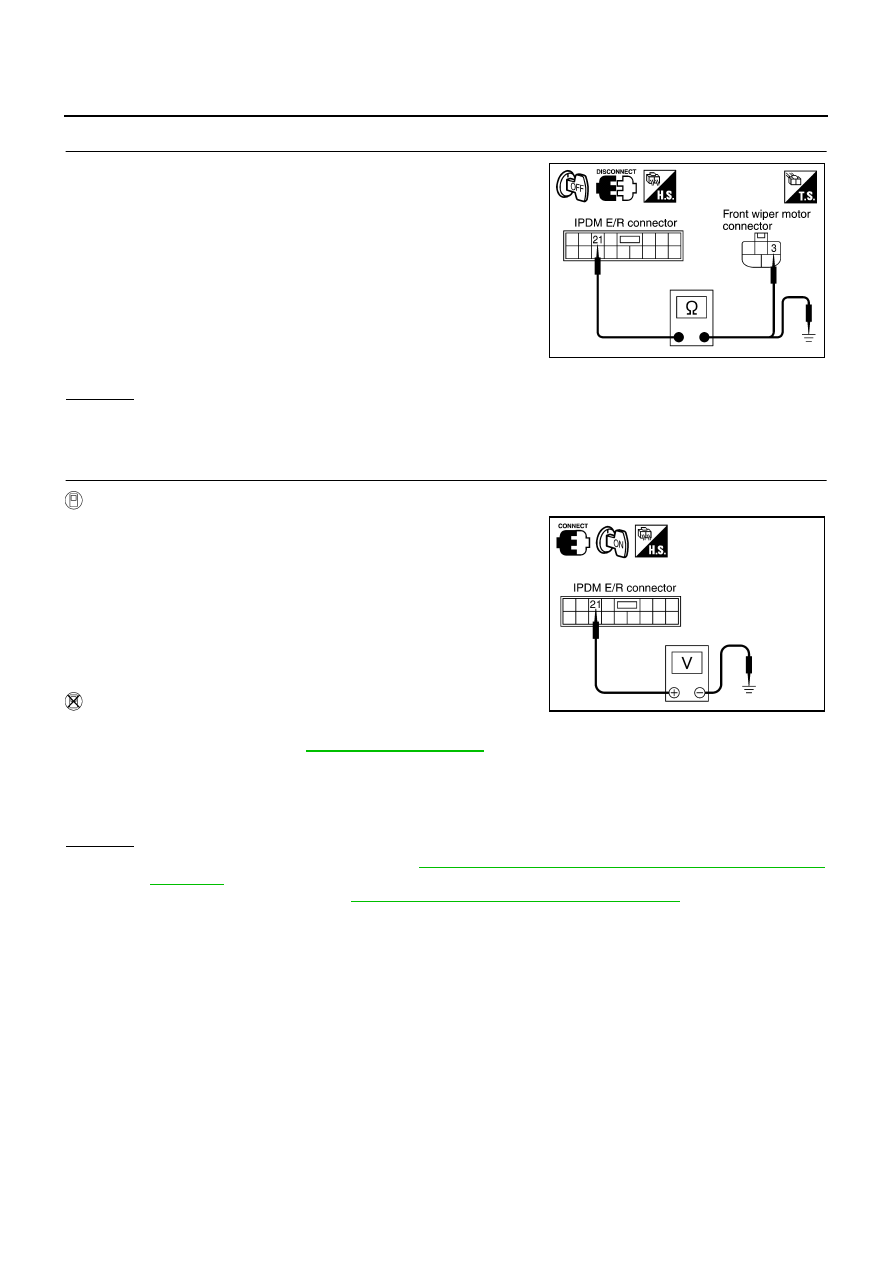

WW-26

FRONT WIPER AND WASHER SYSTEM

2.

CHECK FRONT WIPER MOTOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector and front wiper motor connec-
tor.

3.

Check continuity between IPDM E/R harness connector E7 ter-
minal 21 and front wiper motor harness E52 connector terminal
3.

4.

Check continuity between IPDM E/R harness connector E7 ter-
minal 21 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

3.

CHECK IPDM E/R

With CONSULT-ll

1.

Connect IPDM E/R connector and front wiper motor connector.

2.

Select “IPDM E/R” by CONSULT-II, and select “ACTIVE TEST”
on “SELECT DIAG MODE” screen.

3.

Select “FRONT WIPER” on “SELECT TEST ITEM” screen.

4.

Touch “LO” screen.

5.

Check voltage between IPDM E/R harness connector E7 termi-
nal 21 and ground while front wiper LO is operating.

Without CONSULT-ll

1.

Connect IPDM E/R connector and front wiper motor connector.

2.

Start auto active test. Refer to

PG-21, "Auto Active Test"

 .

3.

Check voltage between IPDM E/R harness connector E7 terminal 21 and ground while front wiper LO is
operating.

OK or NG

OK

>> Replace front wiper motor. Refer to

WW-33, "Removal and Installation of Front Wiper Drive

Assembly"

 .

NG

>> Replace IPDM E/R. Refer to

PG-27, "Removal and Installation of IPDM E/R"

 .

21 – 3

: Continuity should exist.

21 – Ground

: Continuity should not exist.

PKIB1776E

21 – Ground

: Battery voltage.

21 – Ground

: Battery voltage.

SKIA9167E

FRONT WIPER AND WASHER SYSTEM

WW-27

C

D

E

F

G

H

I

J

L

M

A

B

WW

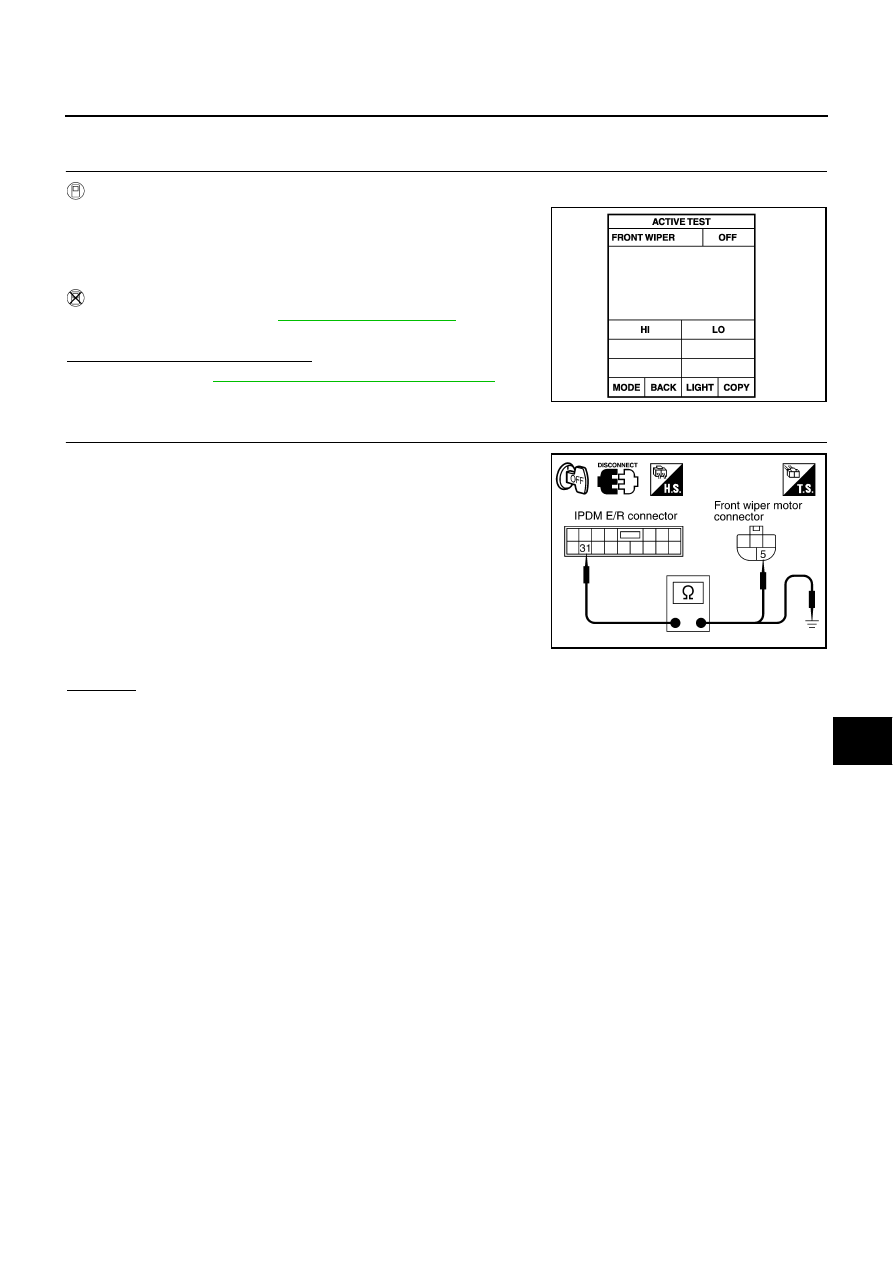

Only Front Wiper Hi Does Not Operate

NKS000M9

1.

ACTIVE TEST

With CONSULT-ll

1.

Select “IPDM E/R” by CONSULT-II, and select “ACTIVE TEST”
on “SELECT DIAG MODE” screen.

2.

Select “FRONT WIPER” on “SELECT TEST ITEM” screen.

3.

Touch “HI” screen.

Without CONSULT-ll

Start auto active test. Refer to

PG-21, "Auto Active Test"

 .

Does front wiper operate normally?

YES

>> Refer to

LT-100, "Combination Switch Inspection"

 .

NO

>> GO TO 2.

2.

CHECK FRONT WIPER MOTOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector and front wiper motor connec-
tor.

3.

Check continuity between IPDM E/R harness connector E7 ter-
minal 31 and front wiper motor harness E52 connector terminal
5.

4.

Check continuity between IPDM E/R harness connector E7 ter-
minal 31 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

SKIA3486E

31 – 5

: Continuity should exist.

31 – Ground

: Continuity should not exist.

PKIB4155E
