RFD-14

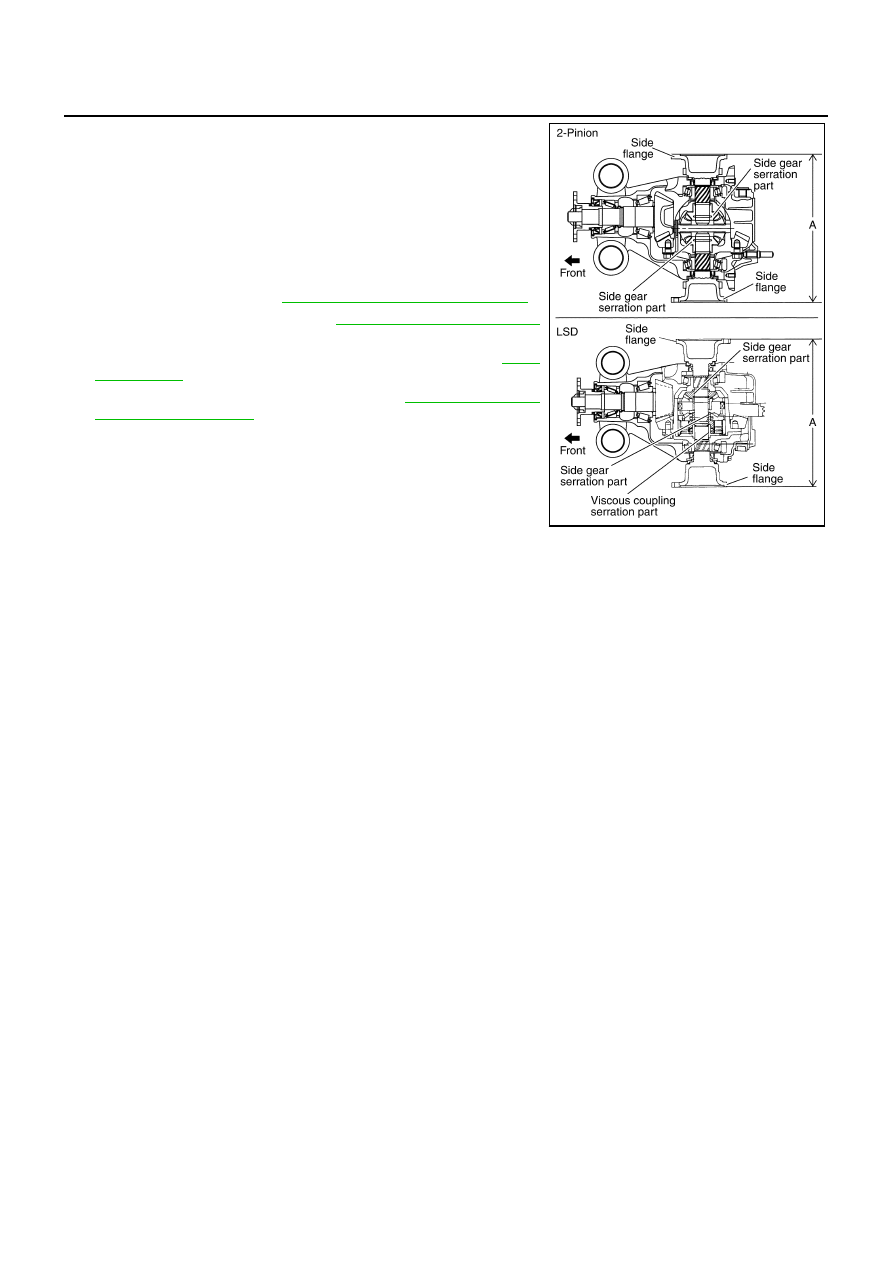

FRONT OIL SEAL

c.

Put a suitable drift on the center of side flange, then drive it until
sound changes.

NOTE:
When installation is completed, driving sound of the side flange
turns into a sound which seems to affect the whole final drive.

d.

Confirm that the dimension of the side flange installation (Mea-
surement A) in the figure comes into the following.

9.

Install drive shaft. Refer to

RAX-10, "Removal and Installation"

 .

10. Install rear wheel sensor. Refer to

BRC-58, "WHEEL SENSOR"

.

11. Refill gear oil to the final drive and check oil level. Refer to

RFD-

9, "FILLING"

 .

12. Check the final drive for oil leakage. Refer to

RFD-9, "OIL LEAK-

AGE AND OIL LEVEL"

 .

Measurement A: 326 – 328 mm (12.83 – 12.91 in)

PDIA0631E

SIDE OIL SEAL

RFD-15

C

E

F

G

H

I

J

K

L

M

A

B

RFD

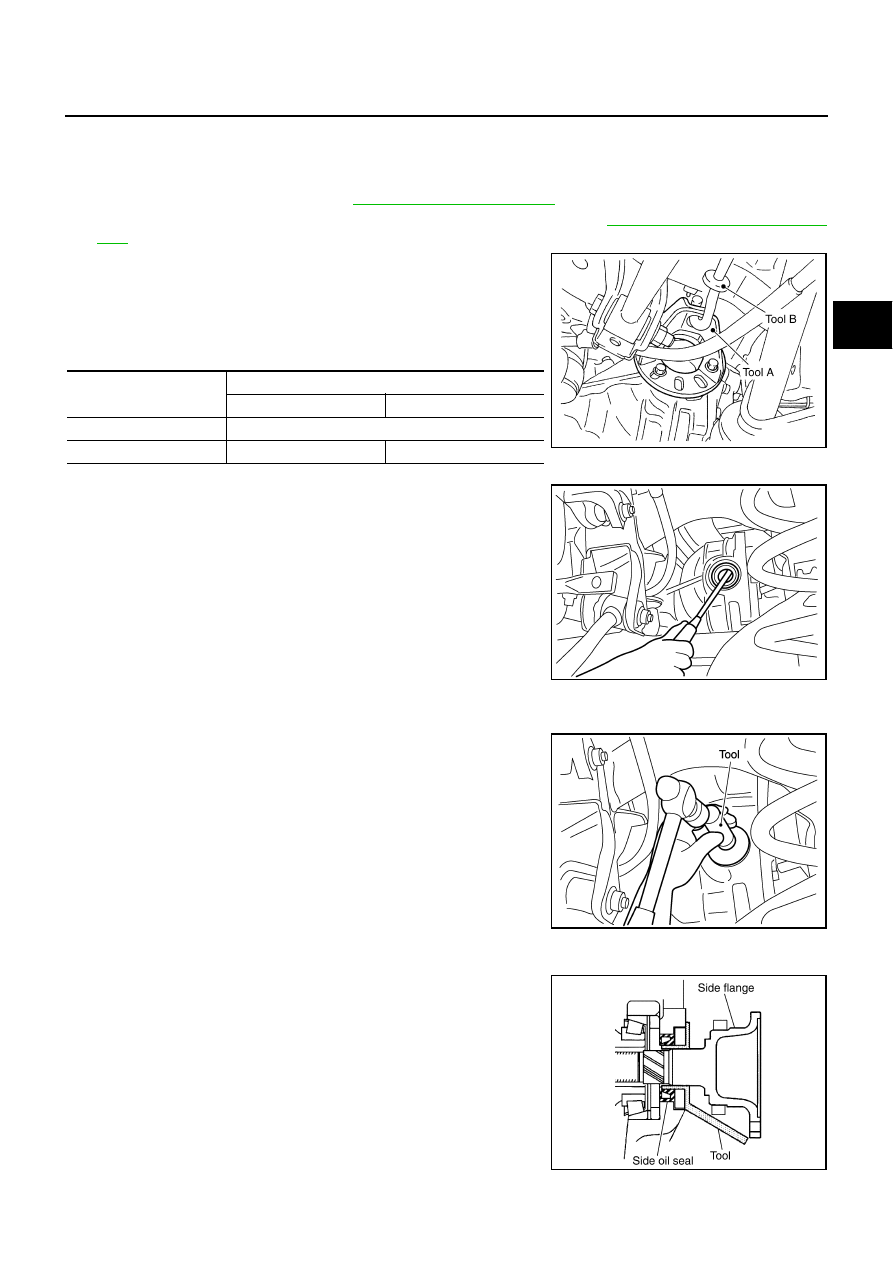

SIDE OIL SEAL

PFP:33142

Removal and Installation

NDS0001N

REMOVAL

1.

Remove rear wheel sensor. Refer to

BRC-58, "WHEEL SENSOR"

 .

2.

Remove drive shaft from final drive. Then suspend it by wire etc. Refer to

RAX-10, "Removal and Installa-

tion"

 .

3.

Install attachment to side flange, and then pull out the side
flange with the sliding hammer.

NOTE:

4.

Remove side oil seal, using a flat-bladed screwdriver.

CAUTION:

Be careful not to damage gear carrier.

INSTALLATION

1.

Apply multi-purpose grease to side oil seal lips.

2.

Install side oil seal until it becomes flush with the case end,
using the drift.

CAUTION:

●

Do not reuse oil seal.

●

When installing, do not incline oil seal.

3.

Install side flange with the following procedure.
NOTE:
Install the RH side flange, then install the LH side flange. If LH
side flange is installed first, the RH side flange comes out some-
times from the shock of installing the RH side flange. [For
R200V (with LSD)]

a.

Attach the protector to side oil seal.

b.

After the side flange is inserted and the serrated part of side
gear has engaged the serrated part of flange, remove the pro-
tector.

Tool number

A: KV40104100 (

—

)

B: ST36230000 (J-25840-A)

Model

Circular clip installation position

Right side

Left side

R200 (2-pinion)

Final drive side

R200V (LSD)

Final drive side

Side flange side

SDIA1005E

SDIA0495E

Tool number

: KV38100200 (J-26233)

Tool number

: KV38107900 (J-39352)

SDIA0496E

SDIA0822E

RFD-16

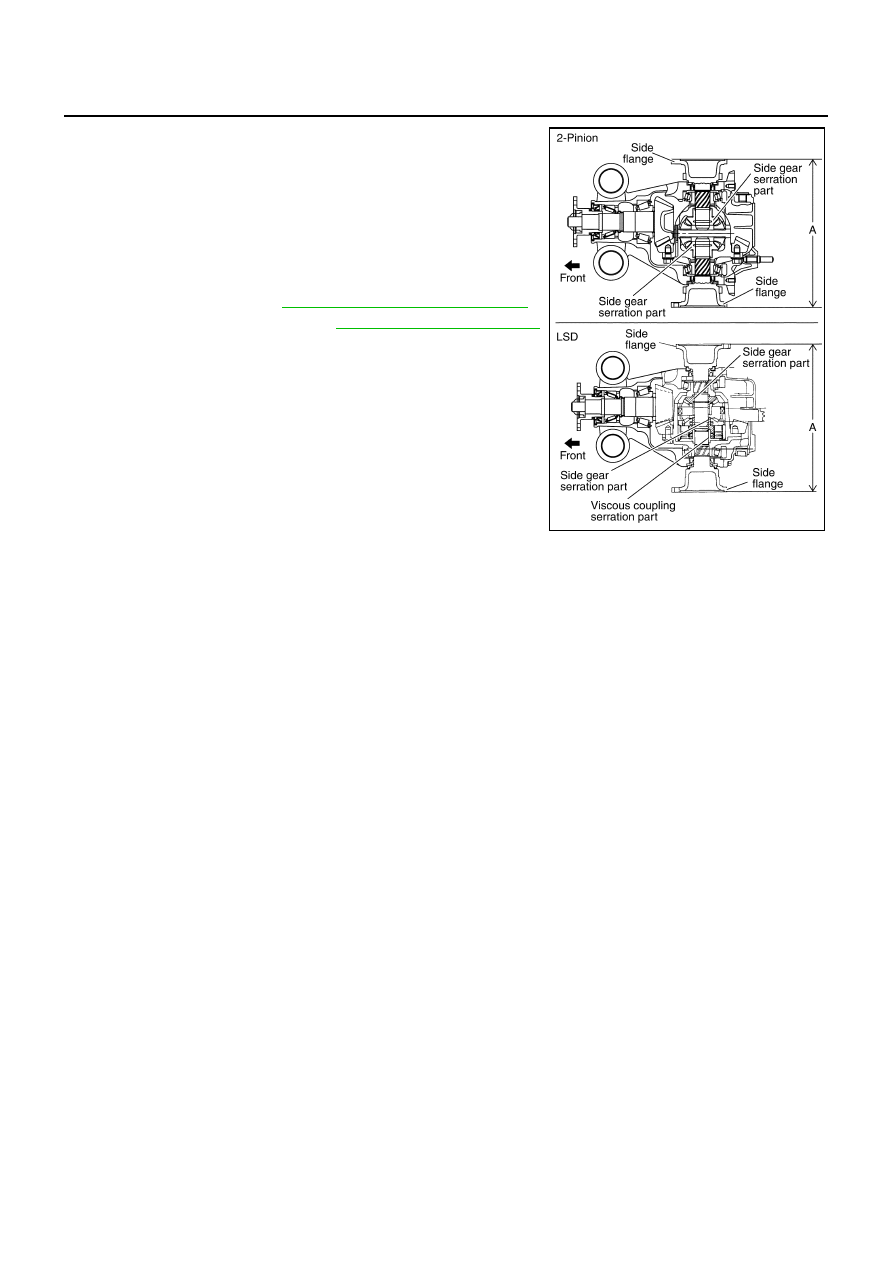

SIDE OIL SEAL

c.

Put a suitable drift on the center of side flange, then drive it until
sound changes.

NOTE:
When installation is completed, driving sound of the side flange
turns into a sound which seems to affect the whole final drive.

d.

Confirm that the dimension of the side flange installation (Mea-
surement A) in the figure comes into the following.

4.

Install drive shaft. Refer to

RAX-10, "Removal and Installation"

 .

5.

Install rear wheel sensor. Refer to

BRC-58, "WHEEL SENSOR"

.

Measurement A: 326 – 328 mm (12.83 – 12.91 in)

PDIA0631E

REAR FINAL DRIVE ASSEMBLY

RFD-17

C

E

F

G

H

I

J

K

L

M

A

B

RFD

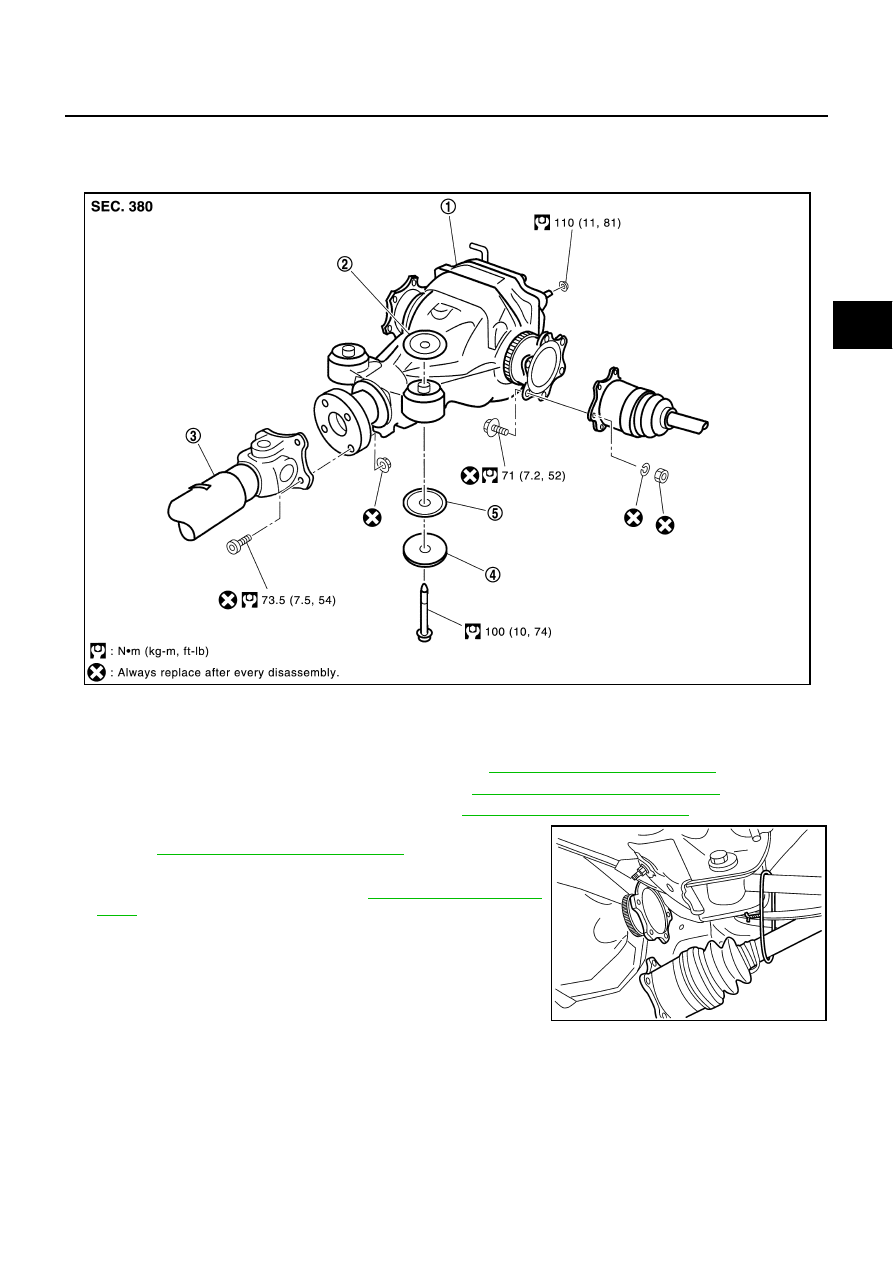

REAR FINAL DRIVE ASSEMBLY

PFP:38300

Removal and Installation

NDS0001O

COMPONENTS

REMOVAL

1.

Remove exhaust center tube with a power tool. Refer to

EX-3, "Removal and Installation"

 .

2.

Remove rear stabilizer bar with a power tool. Refer to

RSU-16, "Removal and Installation"

 .

3.

Remove propeller shaft from the final drive. Refer to

PR-4, "Removal and Installation"

 .

4.

Remove drive shaft from final drive. Then suspend it by wire etc.
Refer to

RAX-10, "Removal and Installation"

 .

5.

Remove breather hose from the final drive.

6.

Remove rear wheel sensor. Refer to

BRC-58, "WHEEL SEN-

SOR"

 .

1.

Rear final drive assembly

2.

Upper stopper

3.

Propeller shaft

4.

Washer

5.

Lower stopper

6.

Drive shaft

SDIA3057E

SDIA1094E
