Infiniti G35 (V35). Manual - part 692

RF-24

SUNROOF

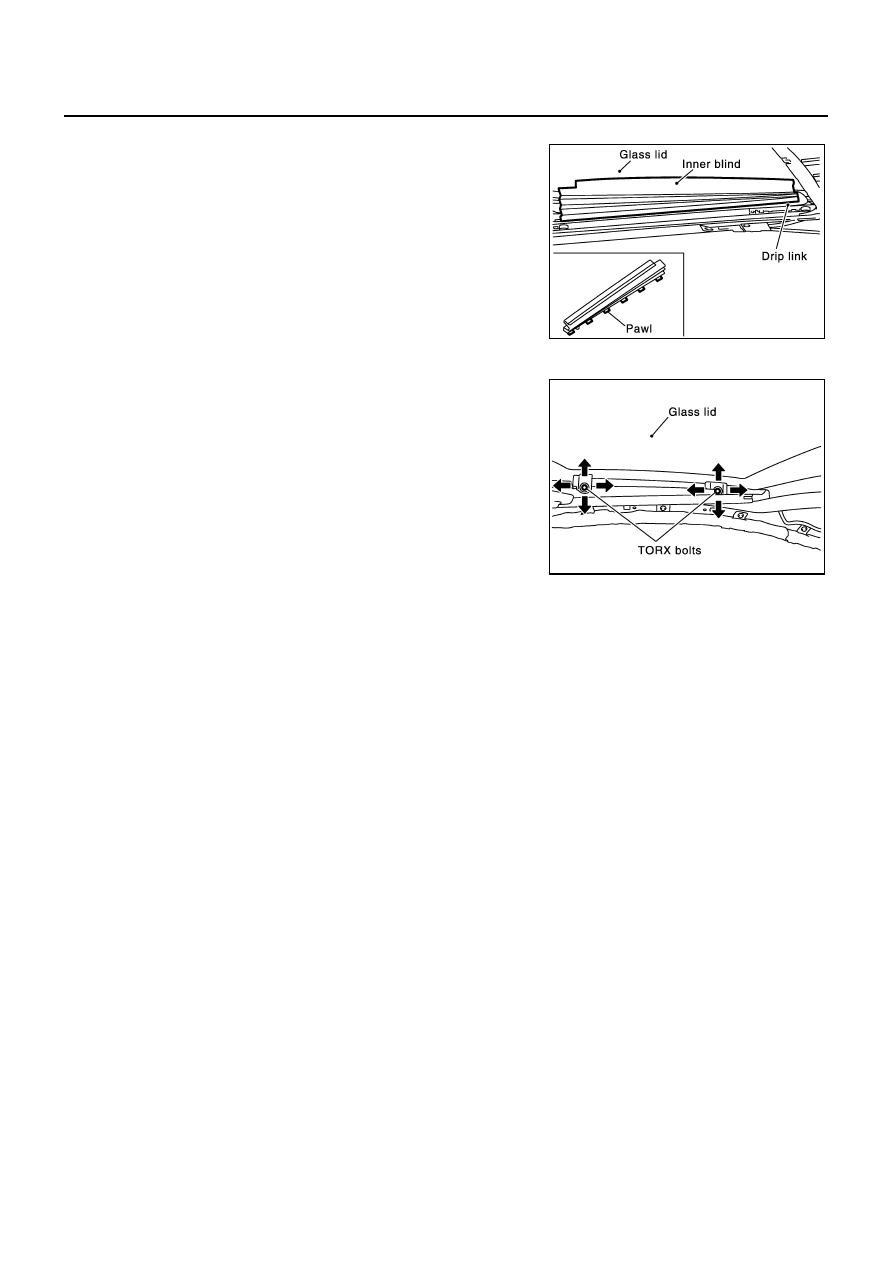

GAP ADJUSTMENT AND HEIGHT DIFFERENCE ADJUSTMENT

1.

Remove the inner blind.

2.

Loosen glass lid TORX bolts (T25), then tilt glass lid down.

3.

Adjust glass lid from outside of vehicle so it resembles “A – A” “B
– B” as shown in the figure above.

4.

Tilt glass lid up and down until it is adjusted to “C – C” as shown
in the figure above.

5.

To prevent glass lid from moving after adjustment, first tighten
the TORX bolts (T25) of front left, and then tighten the TORX
bolts (T25) of rear right.

6.

Tighten remaining TORX bolts (T25), being careful to prevent
glass lid from moving.

7.

Tilt glass lid up and down several times to check that it moves
smoothly.

Removal and Installation

NIS000GC

●

After any adjustment, check sunroof operation and glass lid alignment.

●

Handle finisher plate and glass lid with care so not to cause damage.

●

It is desirable for easy installation to mark each point before removal.

CAUTION:

●

Always work with a helper.

●

Fully close the glass lid assembly, before removal, then do not operate motor assembly after
removal.

PIIA4436E

PIIA3501E

SUNROOF

RF-25

C

D

E

F

G

H

J

K

L

M

A

B

RF

PIIB4818E

RF-26

SUNROOF

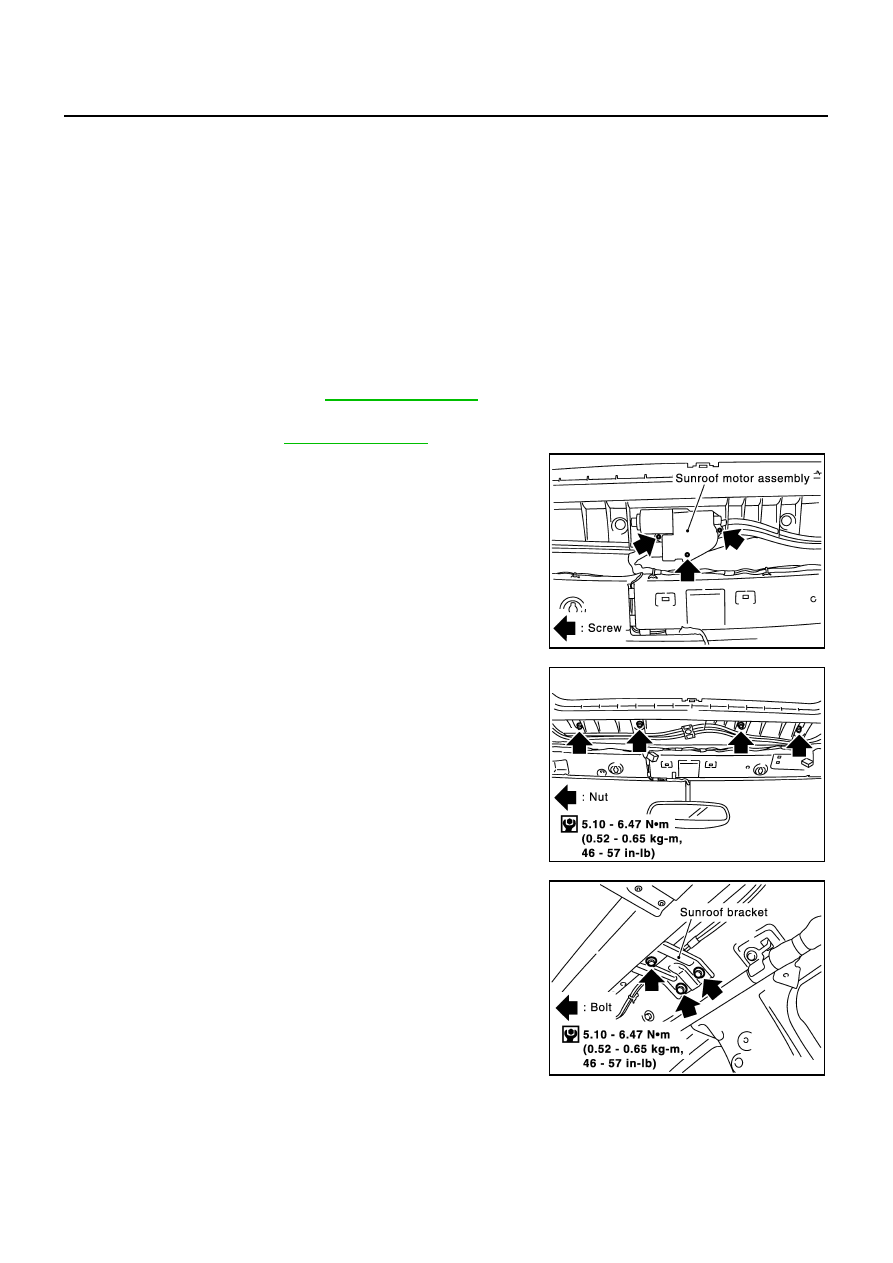

SUNROOF UNIT ASSEMBLY
Removal

CAUTION:

●

Always work with a helper.

●

When taking sunroof unit out, use clothes to protect the seats and trim from damage.

●

After installing the sunroof unit and glass lid, be sure to carry out the leak test and check that
there is no malfunction.

1.

Tilt up glass lid.

2.

Remove the headlining. Refer to

EI-36, "HEADLINING"

 .

3.

Disconnect drain hoses.

4.

Remove glass lid. Refer to

RF-27, "GLASS LID"

 .

5.

Remove sunroof motor mounting screws. Disconnect connector
from sunroof motor, then remove sunroof motor assembly.

CAUTION:

●

Before removing sunroof motor assembly, make sure
that sunroof is fully closed.

●

After removing sunroof motor assembly, do not attempt
to rotate sunroof motor as a single unit.

6.

Remove nuts from the front end and side rail.

7.

Remove sunroof bracket bolts, then remove sunroof unit assem-
bly from roof panel.

8.

Remove sunroof unit assembly through the passenger compartment while being careful not to damage
the seats and trim.

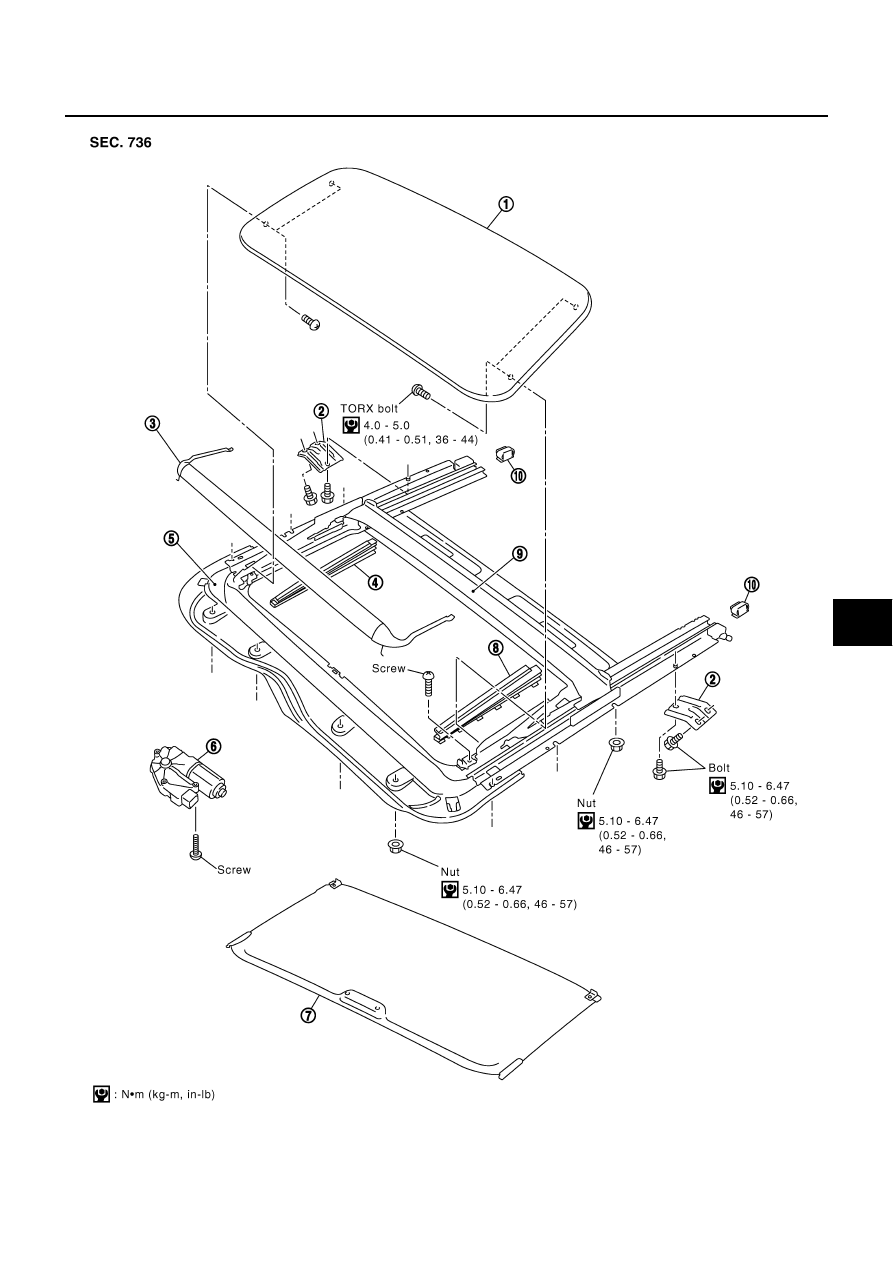

1.

Glass lid

2.

Sunroof bracket

3.

Wind deflector

4.

Inner blind (RH)

5.

Sunroof unit assembly

6.

Sunroof motor assembly

7.

Sunshade

8.

Inner blind (LH)

9.

Drain channel

10. Sunshade stopper

PIIA3502E

PIIA3503E

PIIA3504E

SUNROOF

RF-27

C

D

E

F

G

H

J

K

L

M

A

B

RF

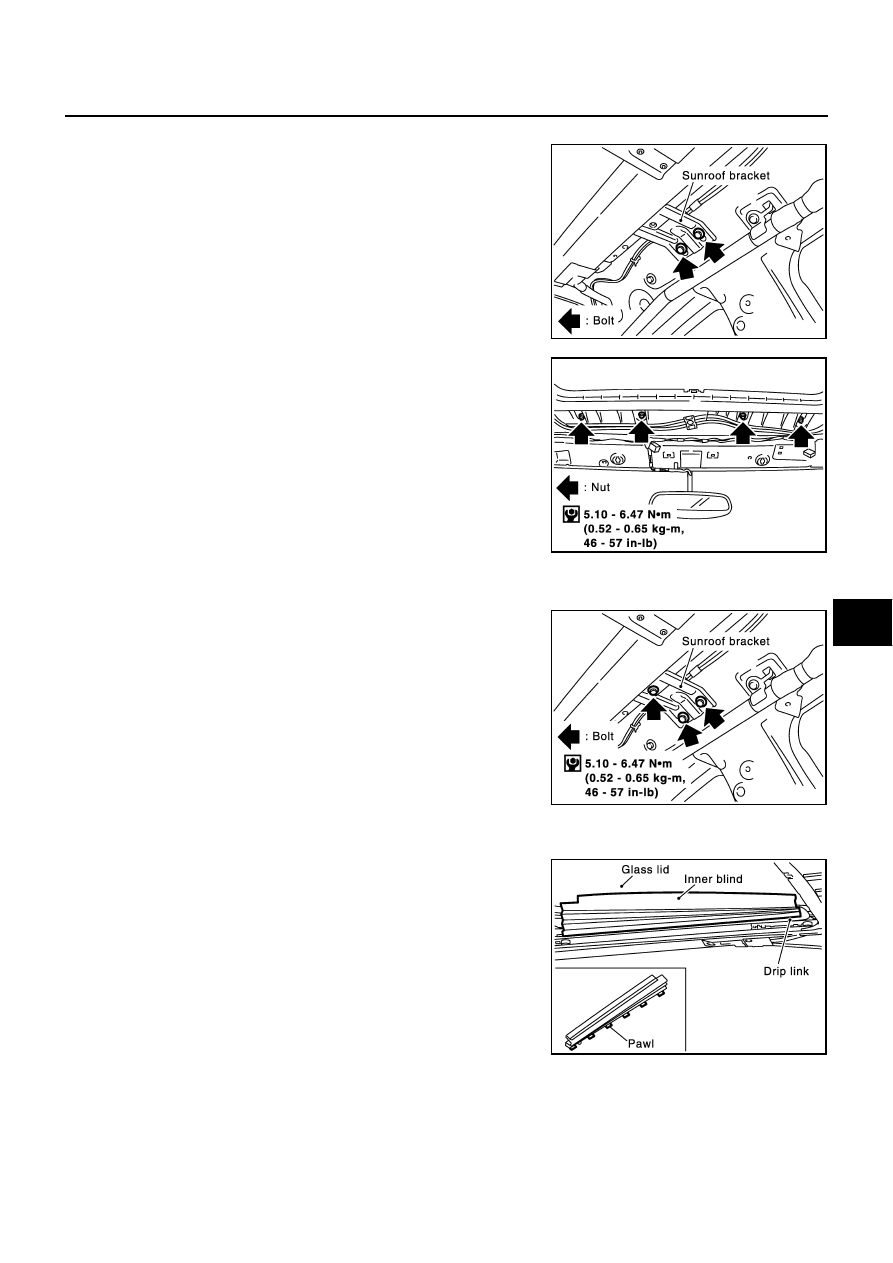

Installation

1.

Temporarily tighten the mounting bolts to the sunroof brackets
(RH/LH).

2.

Bring sunroof unit assembly into passenger compartment and
place the rear end of the rail onto the sunroof brackets.

3.

Temporarily tighten the mounting nuts to the front end of sunroof
unit assembly.

4.

Tighten the installation points diagonally excluding the installation point of the sunroof bracket around the
roof opening.

5.

Tighten the sunroof bracket mounting bolts of the vehicle side
and then tighten the bolts of the rail side.

6.

Install all parts where they're originally fitted.

GLASS LID
Removal

1.

Remove the inner blind.

2.

Tilt up glass lid.

PIIA3505E

PIIA3503E

PIIA3504E

PIIA4436E
