PG-26

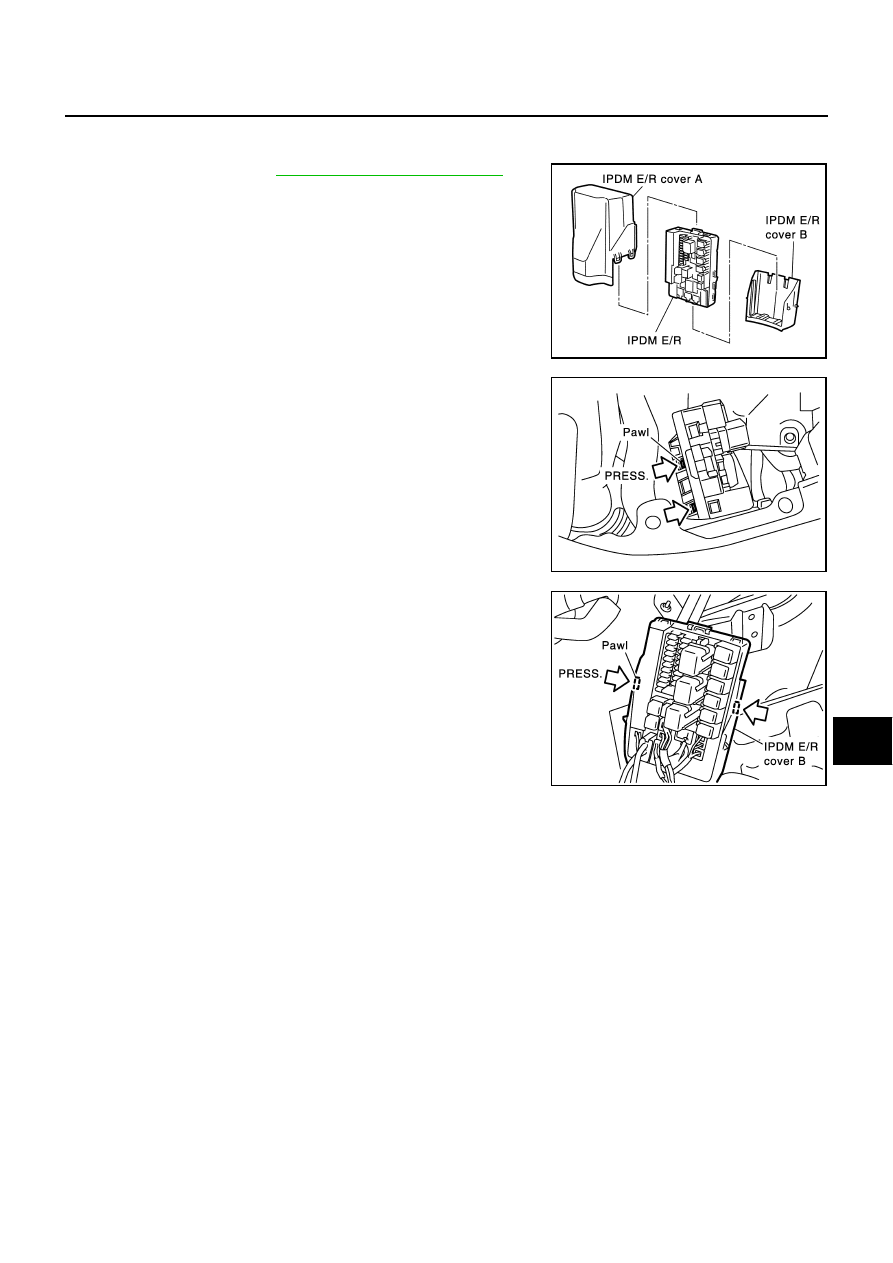

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Inspection With CONSULT-II (Self-Diagnosis)
NKS000QN
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1.
CHECK SELF DIAGNOSTIC RESULT
1.
Connect CONSULT-II and select “IPDM E/R” on the “SELECT SYSTEM” screen.
2.
Select “SELF-DIAG RESULTS” on the “SELECT DIAG MODE” screen.
3.
Check display content in self diagnostic results.
NOTE:
The details for display of the period are as follows:
●
CRNT: Error currently detected with IPDM E/R
●
PAST: Error detected in the past and memorized with IPDM E/R
Contents displayed
NO DTC IS DETECTED.FURTHER TESTING MAY BE REQUIRED.>>INSPECTION END
CAN COMM CIRC>>After print-out of the monitor items, refer to
LAN-42, "Precautions When Using CON-
CONSULT-II display
CONSULT-II
display code
TIME
Details of diagnosis result
CRNT
PAST
NO DTC IS DETECTED.
FURTHER TESTING MAY BE REQUIRED.
—
—
—
No malfunction
CAN COMM CIRC
U1000
×
×
Any of or several items below have errors.
●
TRANSMIT DIAG
●
ECM
●
BCM/SEC
