Infiniti G35 (V35). Manual - part 657





PG-22

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Concept of Auto Active Test

IPDM E/R actuates auto active test mode when it receives door switch signal from BCM via CAN commu-
nication line. Therefore, when auto active test mode is activated successfully, CAN communication
between IPDM E/R and BCM is normal.

If any of systems controlled by IPDM E/R cannot be operated, possible cause can be easily diagnosed
using auto active test.

Diagnosis chart in auto active test mode

Symptom

Inspection contents

Possible cause

Rear window defogger
does not operate.

Perform auto active
test. Does rear win-
dow defogger oper-
ate?

YES

BCM signal input circuit malfunction

NO

Rear window defogger relay malfunction

Harness/connector malfunction between IPDM E/R and rear window
defogger relay

Open circuit of rear window defogger

IPDM E/R malfunction

Any of front wipers, tail
and parking lamps, front
fog lamps, and head
lamps (Hi, Lo) do not
operate.

Perform auto active
test. Does system in
question operate?

YES

BCM signal input system malfunction

NO

Lamp/wiper motor malfunction

Lamp/wiper motor ground circuit malfunction

Harness/connector malfunction between IPDM E/R and system in question

IPDM E/R (integrated relay) malfunction

A/C compressor does
not operate.

Perform auto active
test. Does magnetic
clutch operate?

YES

BCM signal input circuit malfunction

CAN communication signal between BCM and ECM.

CAN communication signal between ECM and IPDM E/R

NO

Magnetic clutch malfunction

Harness/connector malfunction between IPDM E/R and magnetic clutch

IPDM E/R (integrated relay) malfunction

Cooling fan does not
operate.

Perform auto active
test. Does cooling
fan operate?

YES

ECM signal input circuit

CAN communication signal between ECM and IPDM E/R

NO

Cooling fan motor malfunction

Harness/connector malfunction between IPDM E/R and cooling fan motor

IPDM E/R (integrated relay) malfunction

Oil pressure warning
lamp does not operate.

Perform auto active
test. Does oil pres-
sure warning lamp
blink?

YES

Harness/connector malfunction between IPDM E/R and oil pressure switch

Oil pressure switch malfunction

IPDM E/R malfunction

NO

CAN communication signal between IPDM E/R and combination meter

Combination meter

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-23

C

D

E

F

G

H

I

J

L

M

A

B

PG

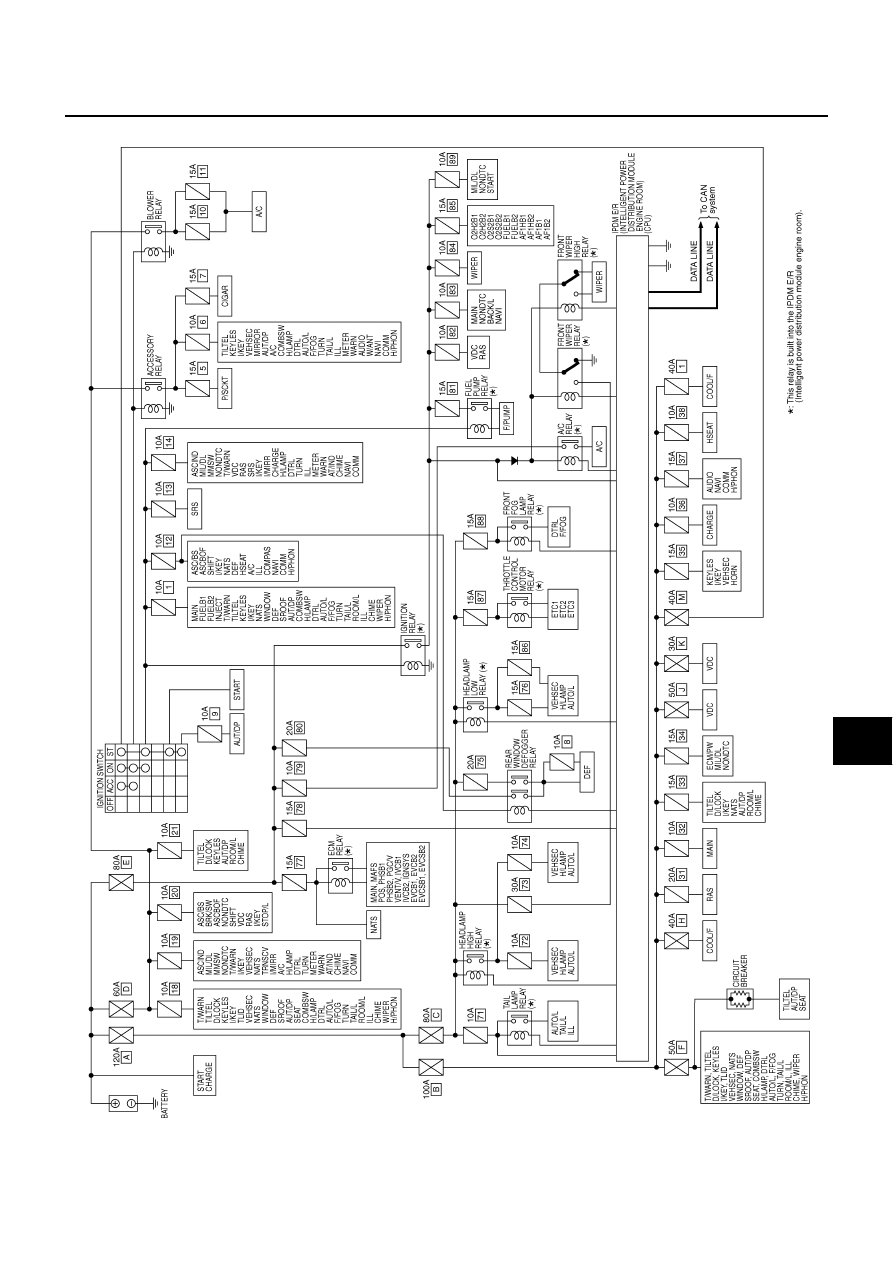

Schematic

NKS000QK

TKWM5245E

PG-24

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

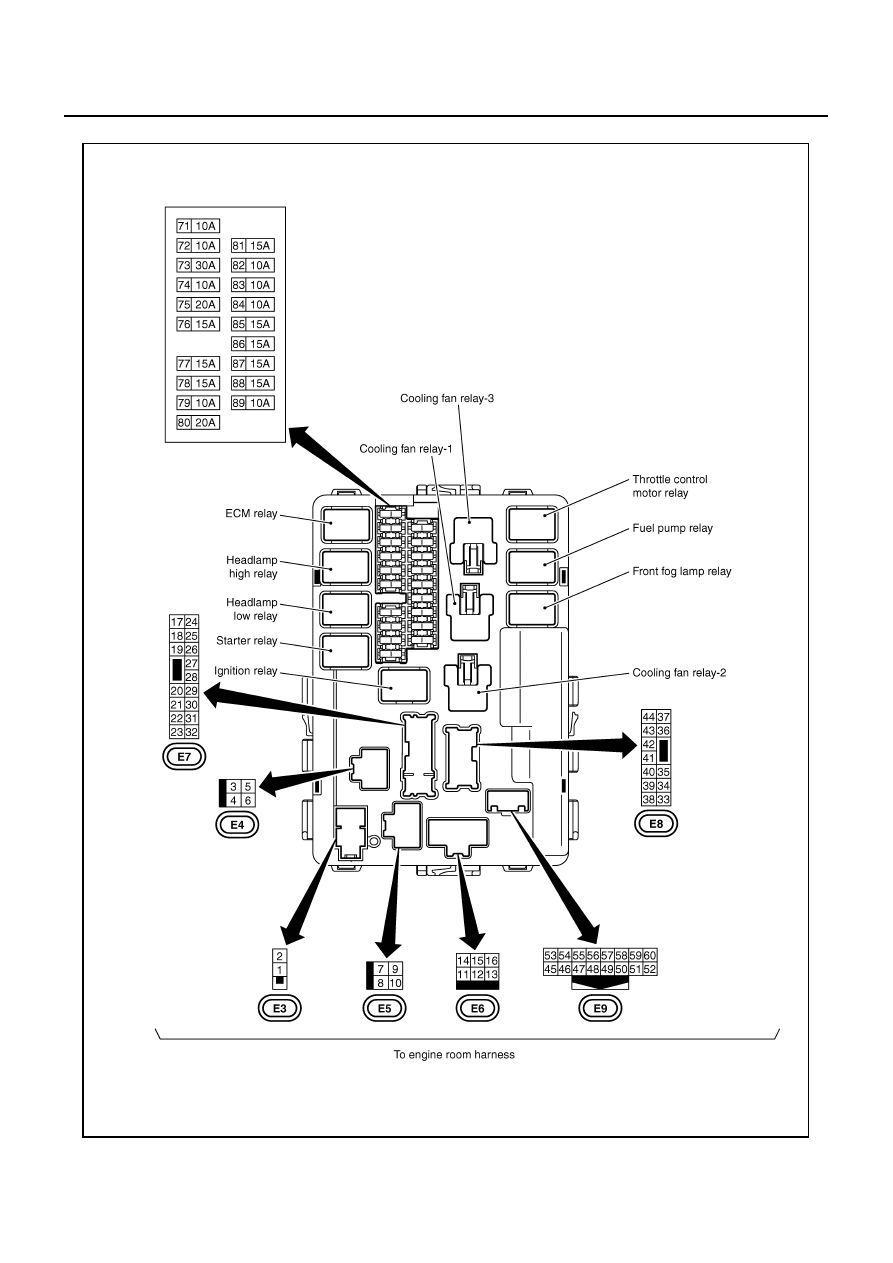

IPDM E/R Terminal Arrangement

NKS000QL

CKIM0763E

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-25

C

D

E

F

G

H

I

J

L

M

A

B

PG

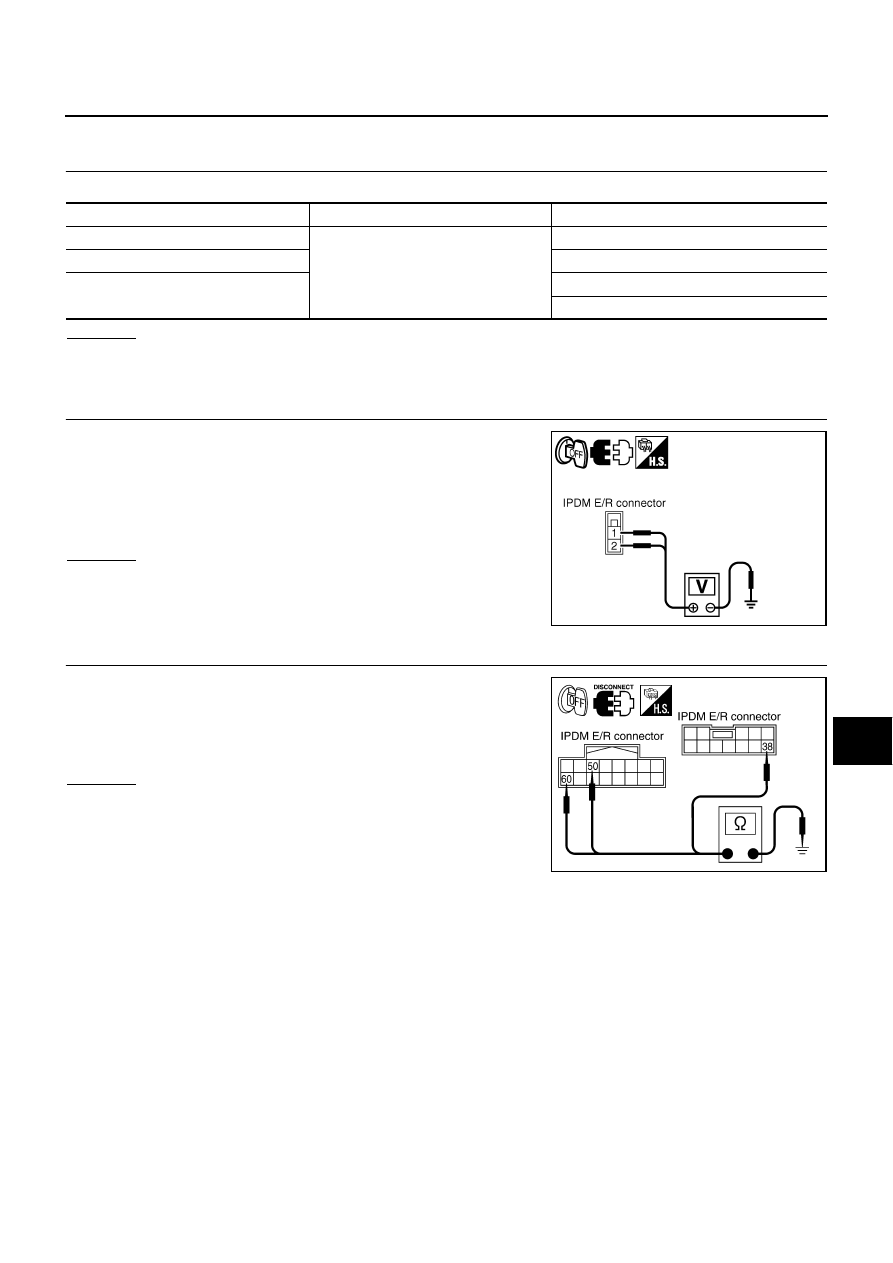

IPDM E/R Power/Ground Circuit Inspection

NKS000QM

1.

CHECK FUSE AND FUSIBLE LINK

Make sure the following fusible links or IPDM E/R fuses are not blown.

OK or NG

OK

>> GO TO 2.

NG

>> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new one.

2.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R harness connector E3.

3.

Check voltage between IPDM E/R harness connector E3 termi-
nals 1, 2 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness and connector.

3.

CHECK GROUND CIRCUIT

1.

Disconnect IPDM E/R harness connectors E8 and E9.

2.

Check continuity between IPDM E/R harness connectors E8 ter-
minal 38, E9 terminal 50, 60 and ground.

OK or NG

OK

>> INSPECTION END

NG

>> Repair harness and connector.

Terminal No.

Power source

Fuse, fusible link No.

1

Battery

2

C

71

78

1, 2 – Ground

: Battery voltage

PKIB6562E

38, 50, 60 – Ground

: Continuity should exist.

SKIA6184E
