MT-52

TRANSMISSION ASSEMBLY

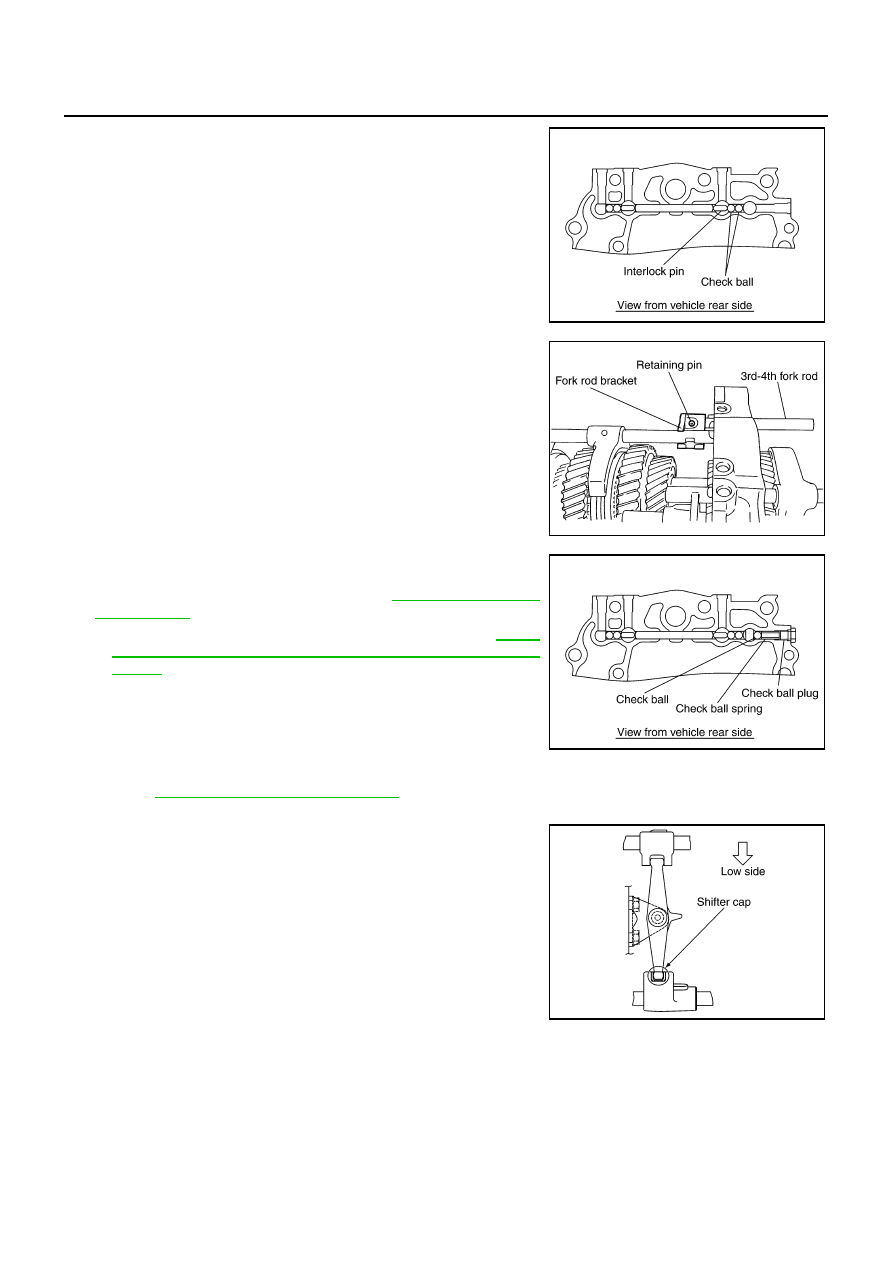

19. Install interlock pin and check balls to the adapter plate.

CAUTION:

Apply lithium-based grease check ball.

20. Install 3rd-4th fork rod to the adapter plate.

21. Install 3rd-4th fork rod bracket to the 3rd-4th fork rod.

22. Using a pin punch [6 mm (0.24 in) dia.] to tap the retaining pin

into the 3rd-4th fork rod bracket.

CAUTION:

Do not reuse retaining pin.

23. Install check ball, check ball spring into the adapter plate, apply

liquid gasket to the check ball plug threads, and tighten check
ball plug to the specified torque. Refer to

MT-24, "Shift Control

Components"

 .

●

Use Genuine Silicone RTV or equivalent.  Refer to

GI-46,

"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS"

 .

CAUTION:

Apply lithium-based grease check ball.

24. Install 3rd-4th control lever to the adapter plate, and then tighten mounting bolts to the specified torque.

Refer to

MT-24, "Shift Control Components"

 .

CAUTION:

Make sure the top and bottom are oriented correctly.

PCIB0146E

PCIB0145E

PCIB0144E

PCIB1352E

TRANSMISSION ASSEMBLY

MT-53

D

E

F

G

H

I

J

K

L

M

A

B

MT

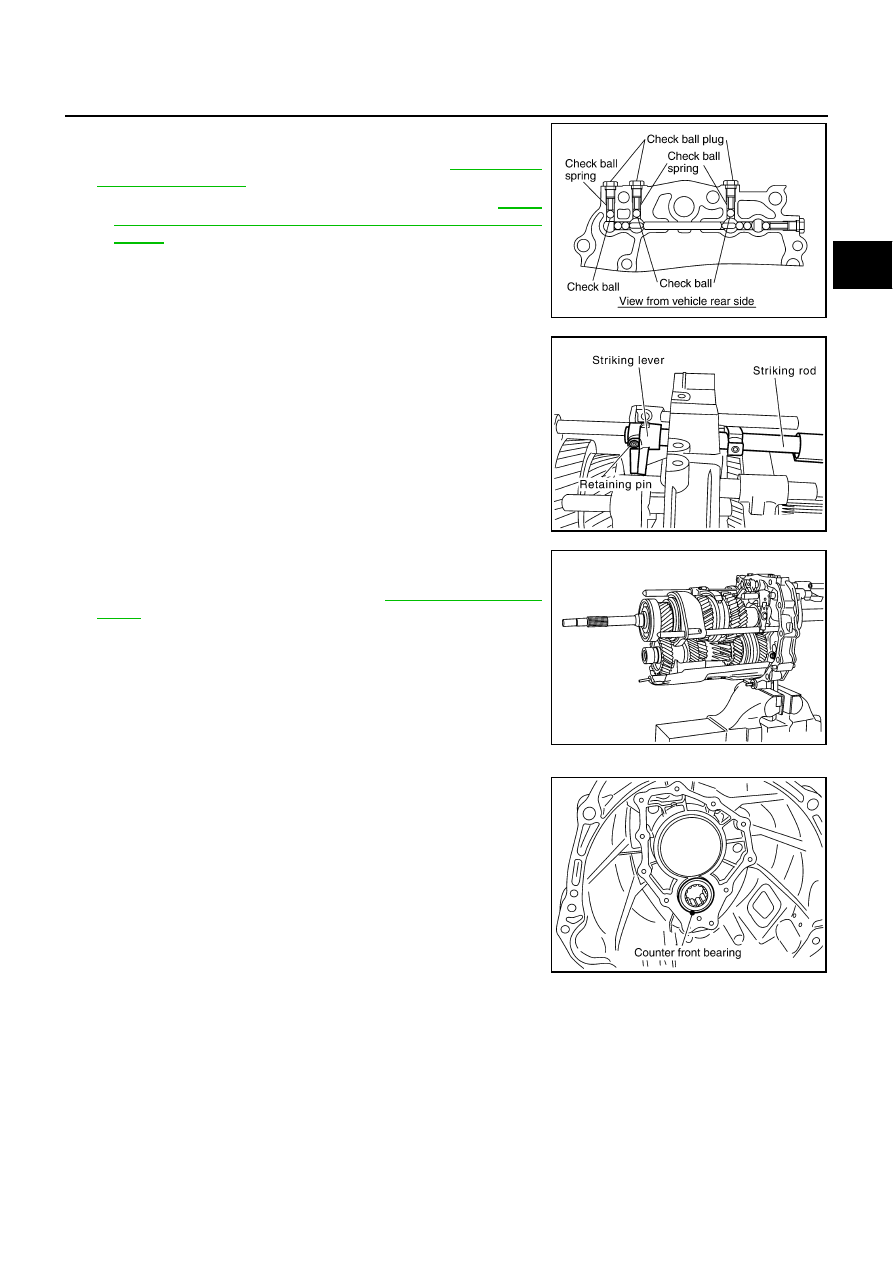

25. Install check balls, check ball springs into the adapter plate,

apply liquid gasket to the check ball plugs threads, and tighten
check ball plugs to the specified torque. Refer to

MT-24, "Shift

Control Components"

 .

●

Use Genuine Silicone RTV or equivalent.  Refer to

GI-46,

"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS"

 .

CAUTION:

Apply lithium-based grease check ball.

26. Install striking rod to the adapter plate.

27. Install striking lever to the striking rod.

28. Using a pin punch [6 mm (0.24 in) dia.] to tap the retaining pin

into the striking lever.

CAUTION:

Do not reuse retaining pin.

29. Install magnet to the adapter plate.

30. Install baffle plate to the adapter plate, and then tighten mount-

ing bolts to the specified torque. Refer to

MT-21, "Case Compo-

nents"

 .

Case Components

1.

Install counter front bearing to the transmission case.

2.

Install oil gutter to transmission case.

3.

Install breather to transmission.

CAUTION:

Do not reuse breather.

PCIB0143E

PCIB0414E

PCIB0154E

PCIB0436E

MT-54

TRANSMISSION ASSEMBLY

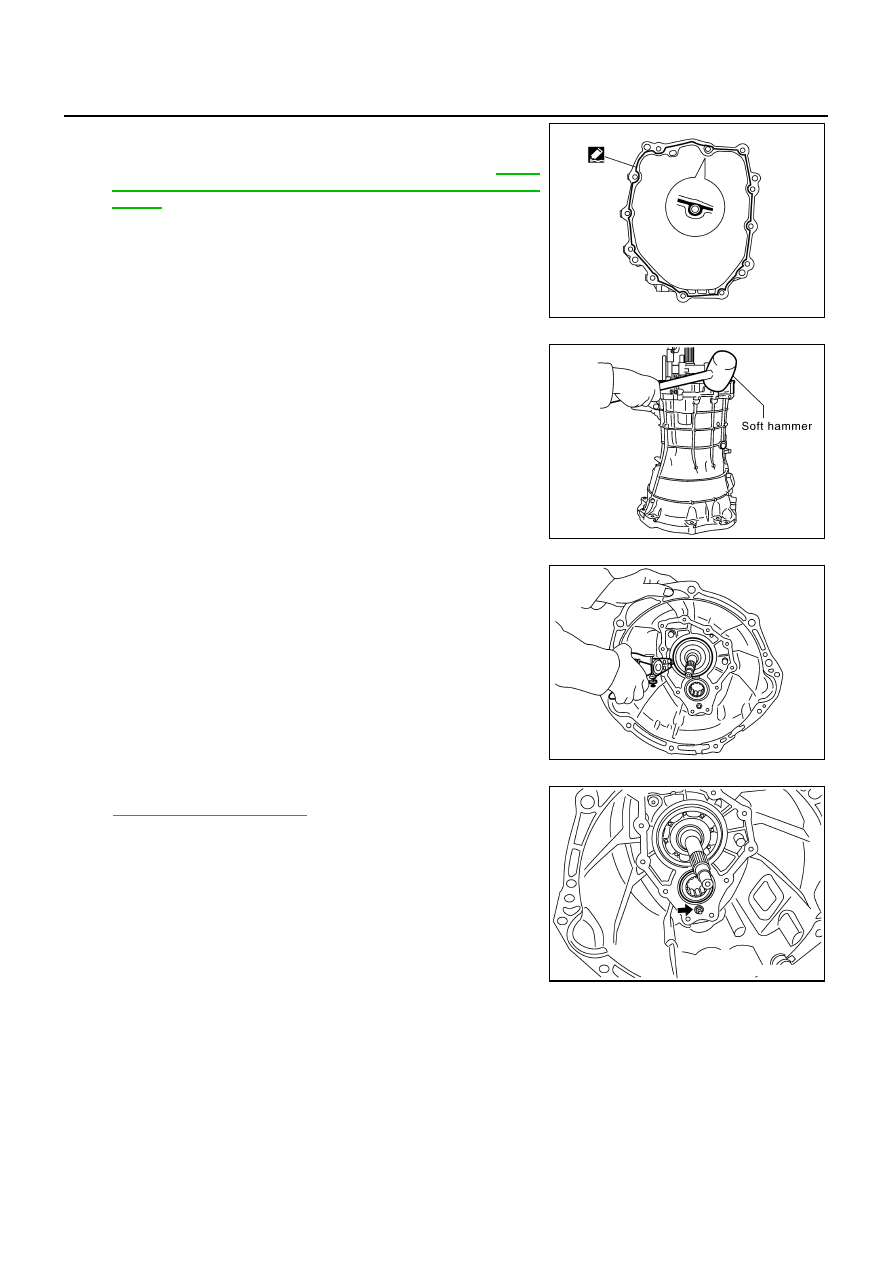

4.

Apply liquid gasket to the transmission case adapter plate
mounting surface as shown in the figure.

●

Use Genuine Silicone RTV or equivalent.  Refer to

GI-46,

"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS"

 .

CAUTION:

Complete remove all moisture and oil, etc., from the trans-
mission case and adapter plate mounting surfaces.

5.

Place the adapter plate in the transmission case, using a soft
hammer to tap the adapter plate to install it into the transmission
case.

6.

Install snap ring to main drive gear bearing, using snap ring pli-
ers.

CAUTION:

Do not reuse snap ring.

7.

Tighten baffle plate mounting nut to the specified torque. Refer
to

MT-21, "Case Components"

 .

PCIB1373E

SCIA1436E

SCIA1532E

SCIA1443E

TRANSMISSION ASSEMBLY

MT-55

D

E

F

G

H

I

J

K

L

M

A

B

MT

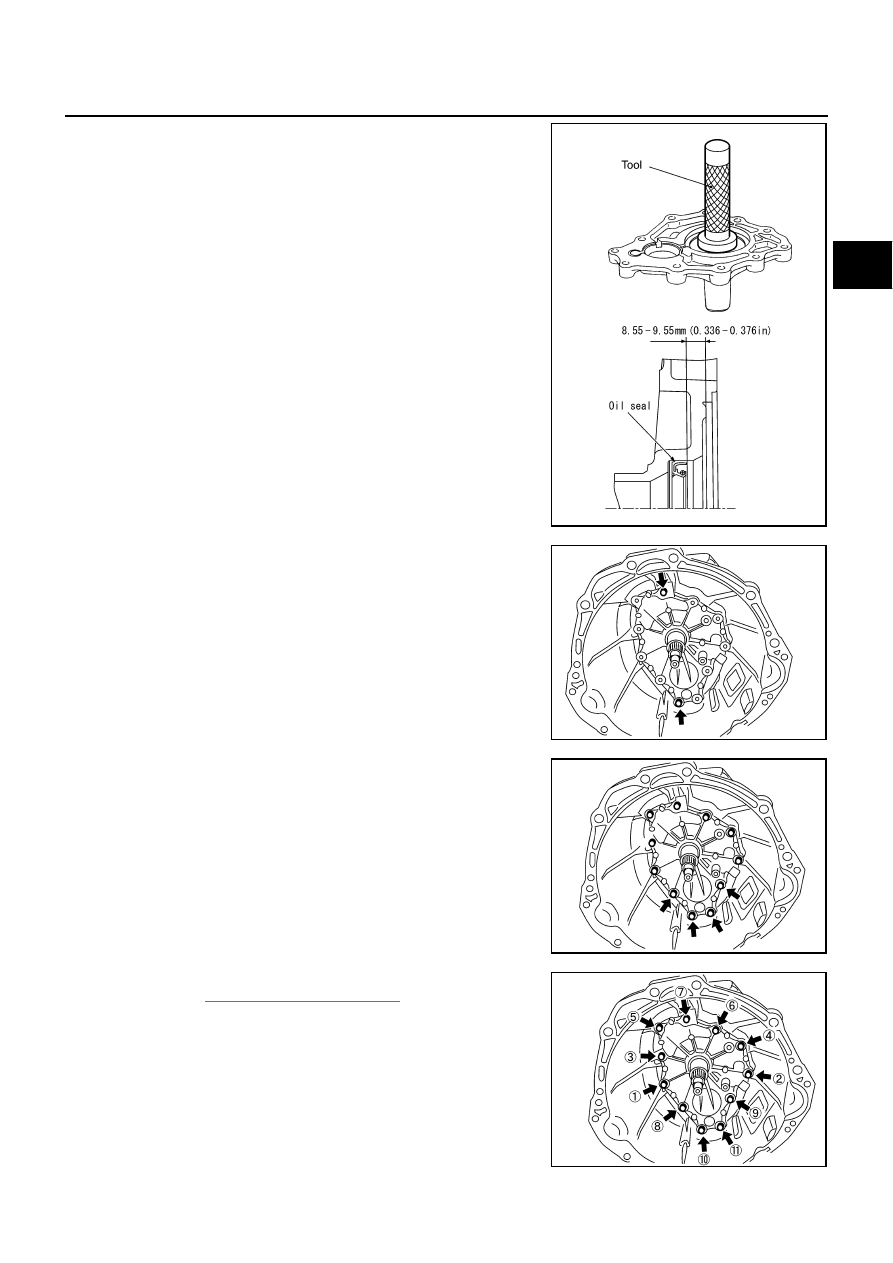

8.

Apply multi-purpose grease to the lip of the front cover oil seal.
Using a drift,  to install oil seal approx. 8.55-9.55 mm (0.336-
0.376 in) above from the front cover edge surface.

CAUTION:

●

Do not reuse front cover oil seal.

●

When installing, do not incline the front cover oil seal.

9.

Install front cover gasket and front cover to the transmission
case.

CAUTION:

Do not reuse front cover gasket.

10. Temporary tightening 2 bolts in the positions shown in the figure.

11. Temporary tightening remaining 9 bolts.

CAUTION:

Four bolts pointed by arrows in the figure are not reusable.

12. Tighten bolts to the specified torque in order as shown on the

figure. Refer to

MT-21, "Case Components"

 .

Tool number

: KV38102100 (J-25803-01)

PCIB0415E

PCIB0454J

PCIB0455J

PCIB0258E
