MT-40

TRANSMISSION ASSEMBLY

3.

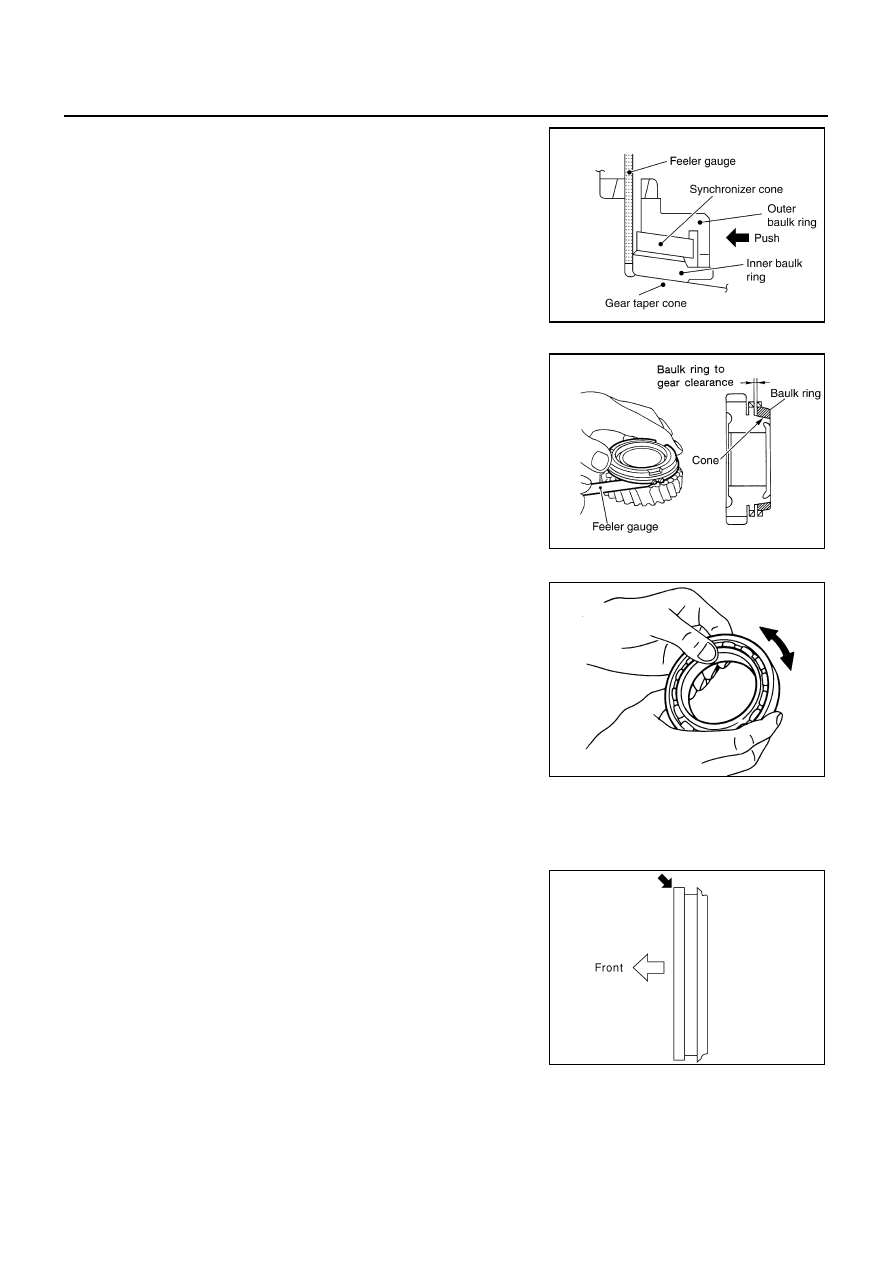

Using filler gauge put and press baulk ring on gear taper cone,
and then measure “clearance C” at more then 2 diagonal points,
and calculate the average.

Reverse synchronizer
Push baulk ring on the cone and measure baulk ring back sur-
face clearance at two locations or more on opposite sides, find
the average value, and replace if it is outside the limit value.

Bearing

If the bearing does not rotate smoothly or the contact surface on ball
or race is damaged or peeled, replace with new ones.

ASSEMBLY
Gear Components

1.

Install 5th-6th coupling sleeve and 5th-6th shifting insert in the 5th-6th synchronizer hub.

CAUTION:

Install 5th-6th coupling sleeve with the thicker flange on
the front side.

Do not reuse 5th-6th coupling sleeve and 5th-6th syn-
chronizer hub.

Replace 5th-6th coupling sleeve and 5th-6th synchro-
nizer hub as a set.

Clearance C

Standard value
(1st)

: 0.80 - 1.2 mm (0.031 - 0.047 in)

Standard value
(2nd,3rd)

: 0.75 - 1.25 mm (0.030 - 0.049 in)

Limit value

: 0.3 mm (0.012 in) or less

PCIB1361E

Clearance

Standard value

: 0.75 - 1.20 mm (0.030 - 0.047 in)

Limit value

: 0.5 mm (0.020 in) or less

PCIB1328E

SMT418A

PCIB1362E

TRANSMISSION ASSEMBLY

MT-41

D

E

F

G

H

I

J

K

L

M

A

B

MT

2.

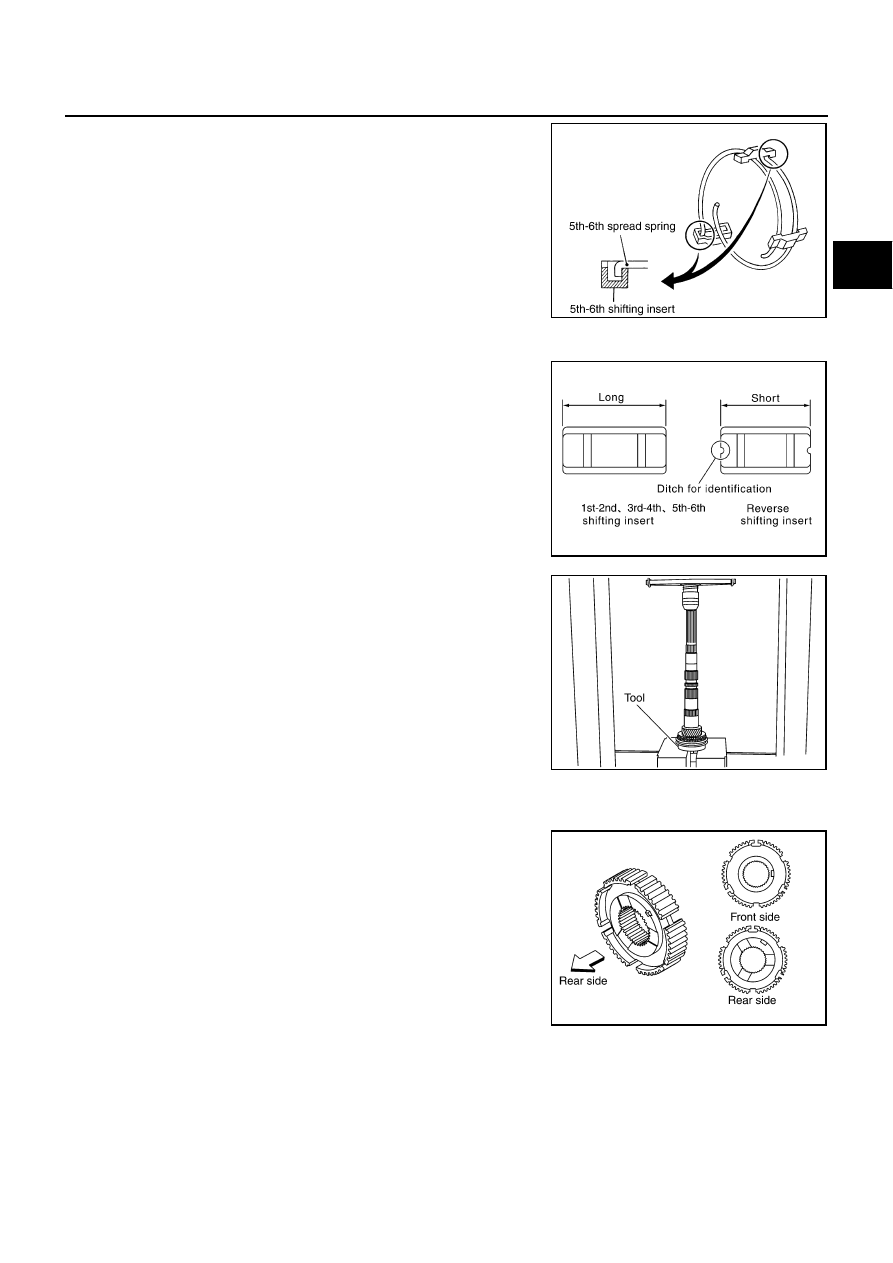

Install 5th-6th spread spring in the 5th-6th shifting insert.

CAUTION:

Do not install 5th-6th spread spring hook onto the same
5th- 6th shifting insert.

Be careful with the shape of reverse shifting insert to
avoid misassembly.

3.

Install 6th needle bearing, 6th main gear, and 6th baulk ring on
the main shaft and then using an inserter and a press to press fit
the 5th-6th synchronizer assembly.

CAUTION:

Do not reuse 5th-6th synchronizer hub.

When press fitting, install with the side having the three
boss edge oil grooves facing the rear side.

PCIB0607E

PCIB0608E

Tool number

: ST30911000 (

)

PCIB0219E

PCIB1363E

MT-42

TRANSMISSION ASSEMBLY

NOTE:

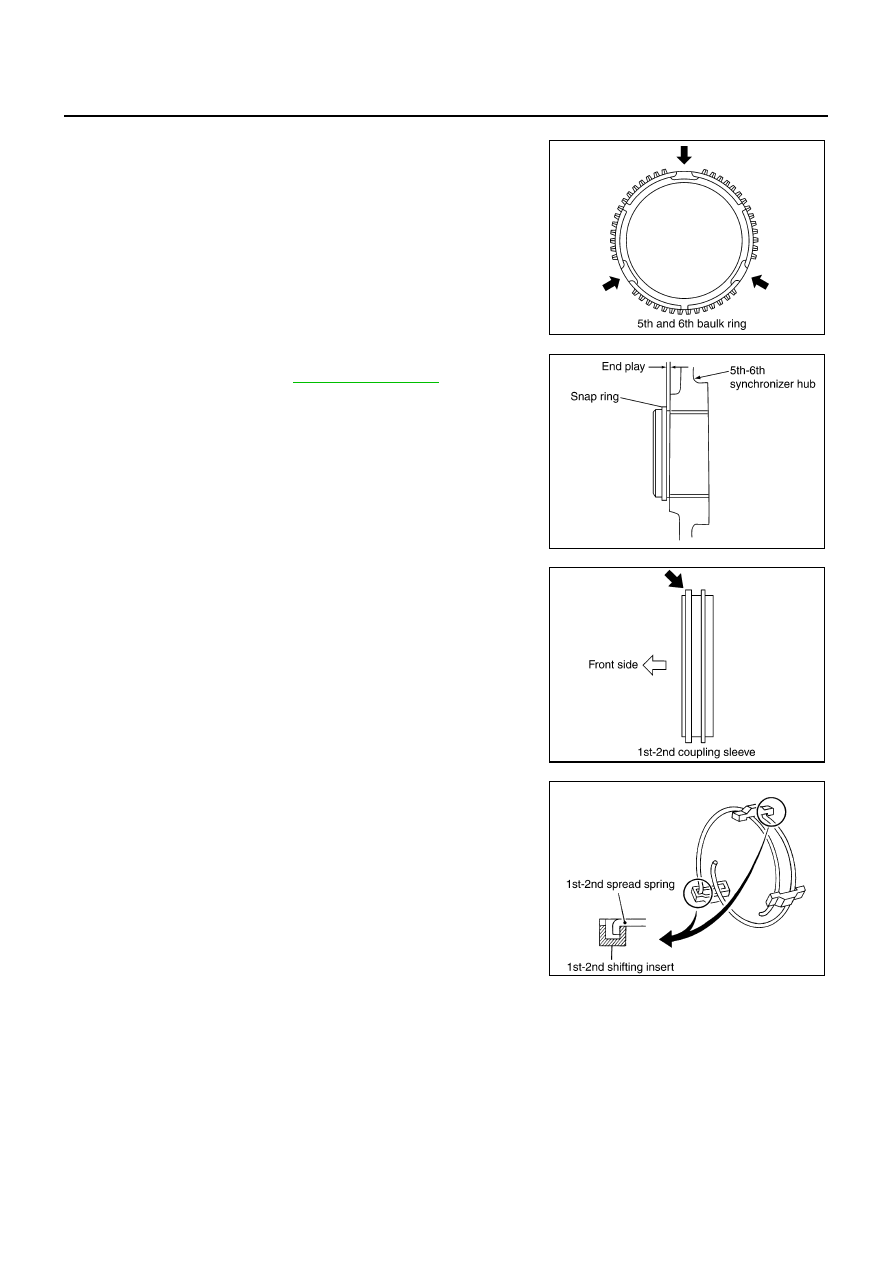

5th and 6th baulk rings have three spaces that four gear teeth
are missing as shown in the figure.

4.

Select and install a snap ring so that the end play comes within
the standard value. Refer to

MT-60, "Snap Rings"

 .

CAUTION:

Do not reuse snap ring.

5.

Install 1st-2nd coupling sleeve and 1st-2nd shifting insert into
the 1st-2nd synchronizer hub.

CAUTION:

Install 1st-2nd coupling sleeve with the thicker flange faced
the front side.

6.

Install 1st-2nd spread spring in the 1st-2nd shifting insert.

PCIB1330E

End play

: 0 - 0.10 mm (0 - 0.004 in)

PCIB0609E

PCIB0610E

PCIB0611E

TRANSMISSION ASSEMBLY

MT-43

D

E

F

G

H

I

J

K

L

M

A

B

MT

CAUTION:

Do not install 1st-2nd spread spring hook onto the same
1st-2nd shifting insert.

Be careful with the shape of reverse shifting insert to
avoid misassembly.

7.

Install 2nd main gear, 2nd needle bearing, 2nd inner baulk ring,
2nd synchronizer cone, 2nd outer baulk ring on the main shaft
and then using a support ring and a press to press fit the 1st-2nd
synchronizer assembly.

CAUTION:

Replace 2nd inner baulk ring, 2nd synchronizer cone and
2nd outer baulk ring as a set.

CAUTION:

Do not reuse 1st-2nd synchronizer hub.

When press fitting, install with the side having the three
boss edge oil grooves facing the front side.

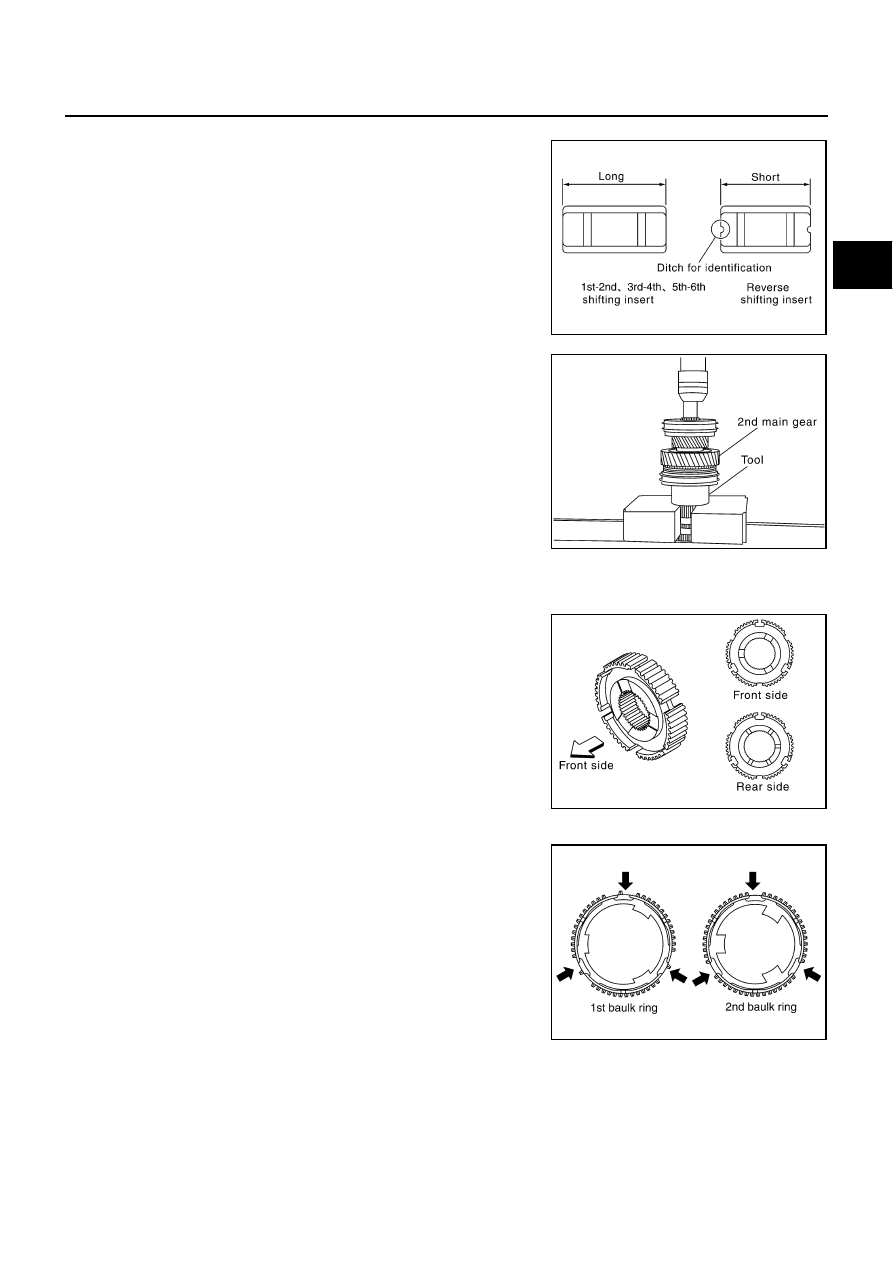

NOTE:
1st baulk ring has three spaces that four gear tooth is missing
and 2nd baulk ring has three spaces that two gear teeth are
missing.

PCIB0608E

Tool number

: ST27861000 (

)

PCIB0202E

PCIB1364E

PCIB1314E
