Infiniti G35 (V35). Manual - part 636





MT-12

SHIFT CONTROL

SHIFT CONTROL

PFP:34103

Removal and Installation

NCS001AF

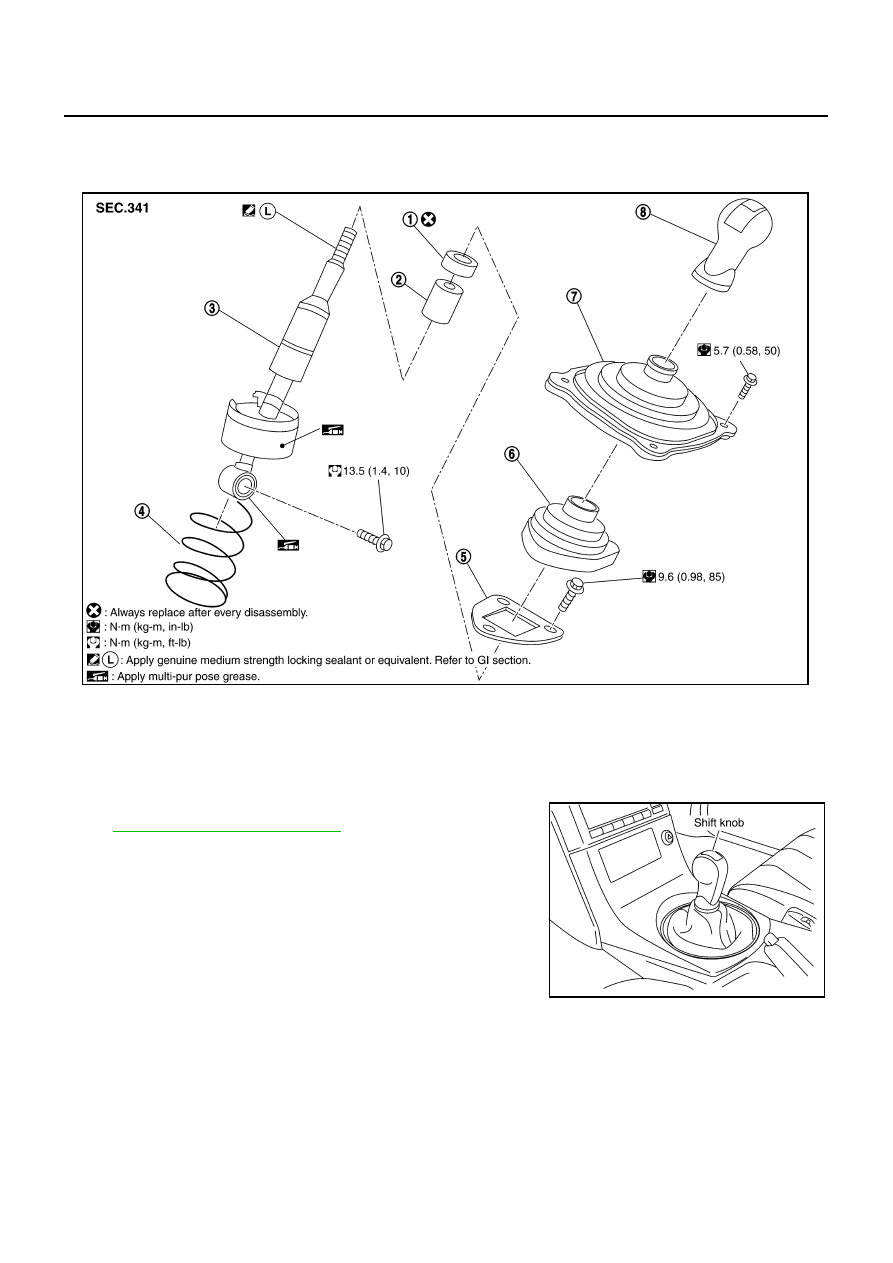

COMPONENTS

REMOVAL

1.

Remove shift knob with the following procedure.

a.

Release metal clips on console boot from center console. Refer
to

IP-11, "Removal and Installation"

 .

1.

Insulator

2.

Seat

3.

Control lever assembly

4.

Control lever spring

5.

Guide plate

6.

Control lever boot

7.

Hole cover

8.

Shift knob

PCIB0689E

PCIB0435E

SHIFT CONTROL

MT-13

D

E

F

G

H

I

J

K

L

M

A

B

MT

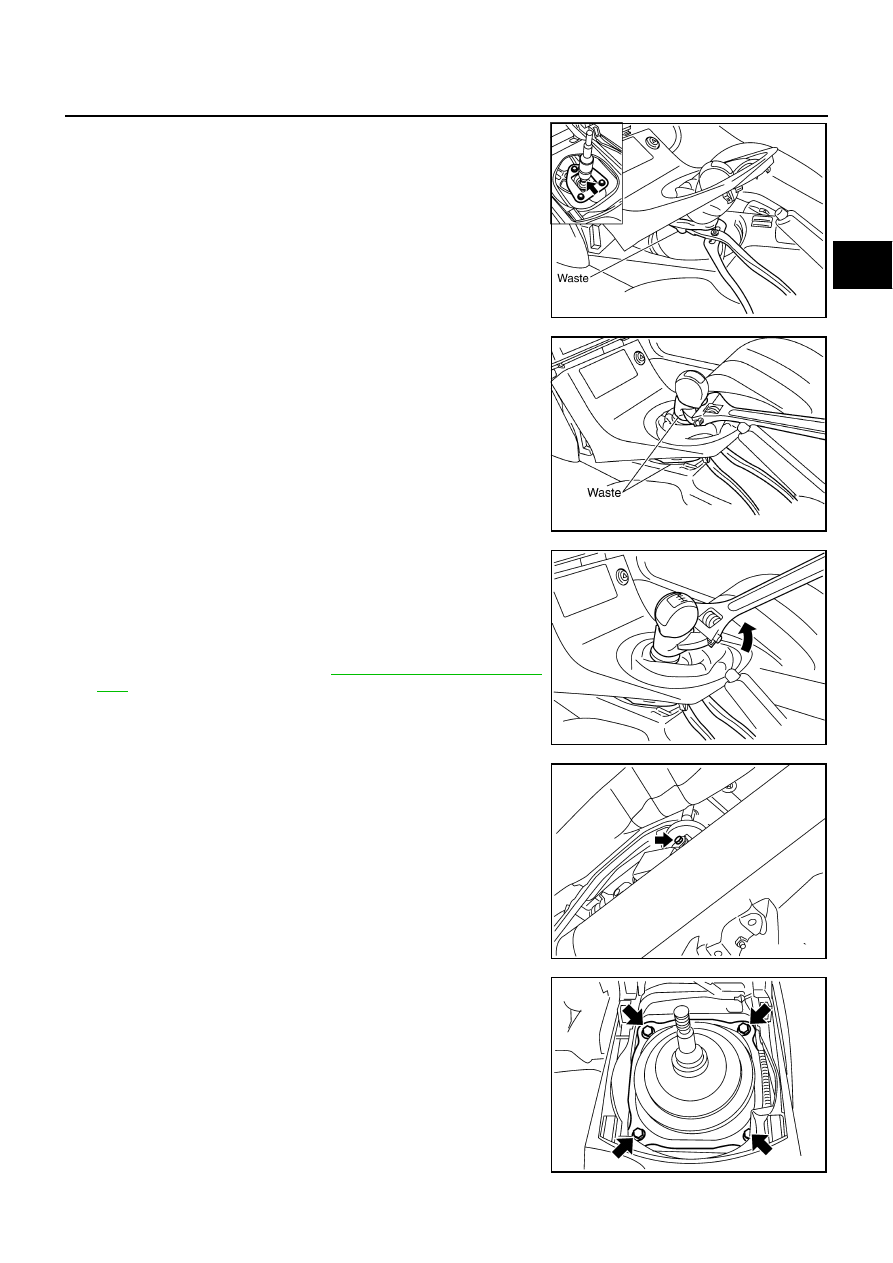

b.

Lift console boot, and push down hole cover. Set water pump
pliers or a suitable tool to control lever assembly.

CAUTION:

Put waste cloth between water pump pliers and control
lever assembly to avoid damaging control lever assembly.

c.

Set monkey wrench to shift knob.

CAUTION:

Put waste cloth between shift knob and monkey wrench to
avoid damaging shift knob.

d.

Keeping control lever in place with water pump pliers, turn mon-
key wrench counterclockwise to loosen shift knob.
NOTE:
Remove shift knob from control lever keeping water pump pliers
in place because a certain power to turn shift knob is still neces-
sary even after adhesive is peeled.

2.

Remove console boot. Refer to

IP-11, "Removal and Installa-

tion"

 .

3.

Release the boot, remove control rod mounting bolt, and sepa-
rate control lever and control rod.

4.

Remove the mounting bolts to remove hole cover.

5.

Remove the control lever boot.

SCIA2607E

SCIA2608E

SCIA2609J

SCIA1671E

SCIA1511E

MT-14

SHIFT CONTROL

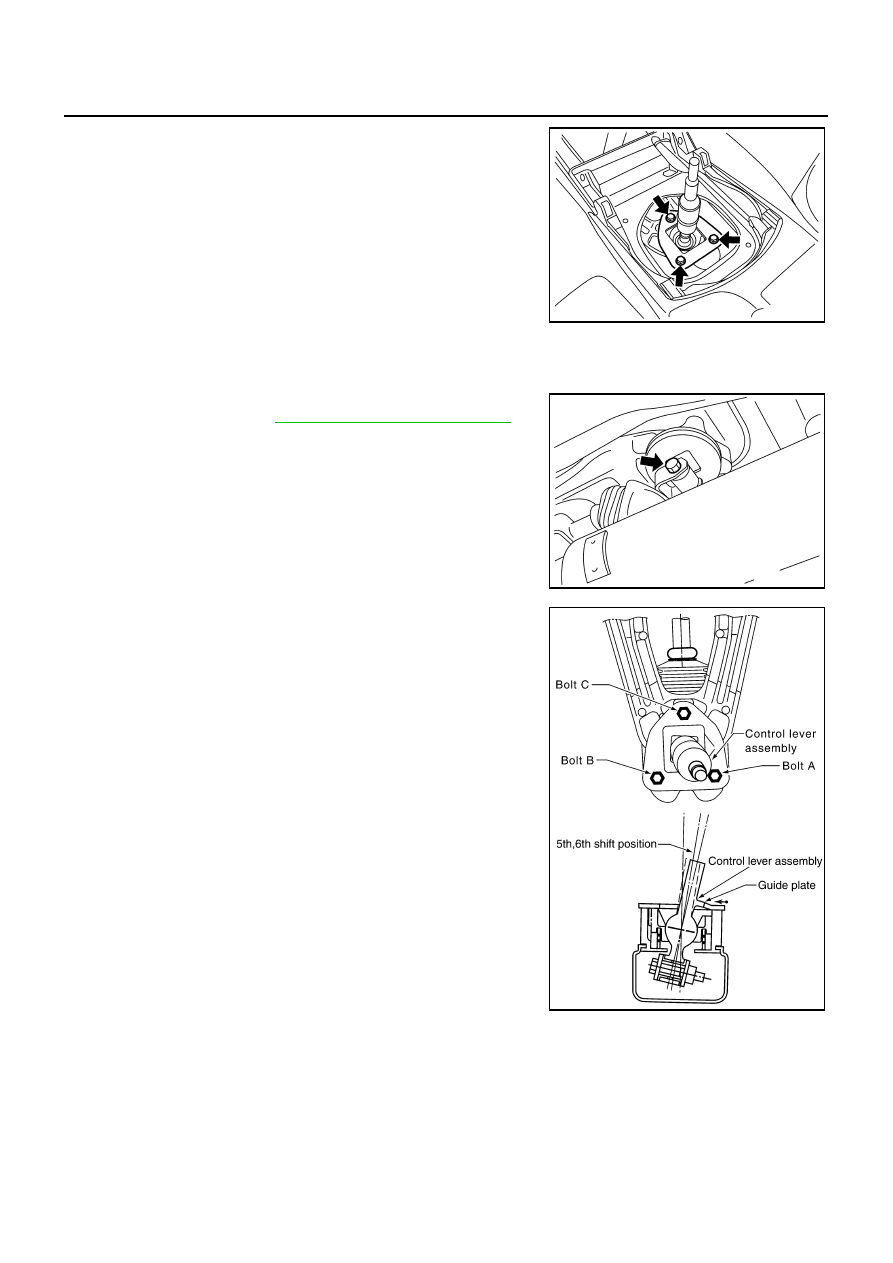

6.

Remove guide plate mounting bolts, and then remove control
lever assembly and control lever spring from control lever hous-
ing.

INSTALLATION

1.

Set control lever and control lever assembly spring in the control lever housing and loosely mount guide
plate.

2.

After installing control lever in control rod, tighten bolt to the
specified torque. Refer to

MT-12, "Removal and Installation"

 .

3.

After shifting control lever assembly into 6th gear, push it toward
reverse gear (to the right) until it comes to a stop.

4.

At the point where the control lever assembly stops, bring the
guide plate closer until guide plate stopper contacts control lever
assembly claw, and then loosely tighten mounting bolt A.

SCIA1365E

SCIA2561J

SCIA1665E

SHIFT CONTROL

MT-15

D

E

F

G

H

I

J

K

L

M

A

B

MT

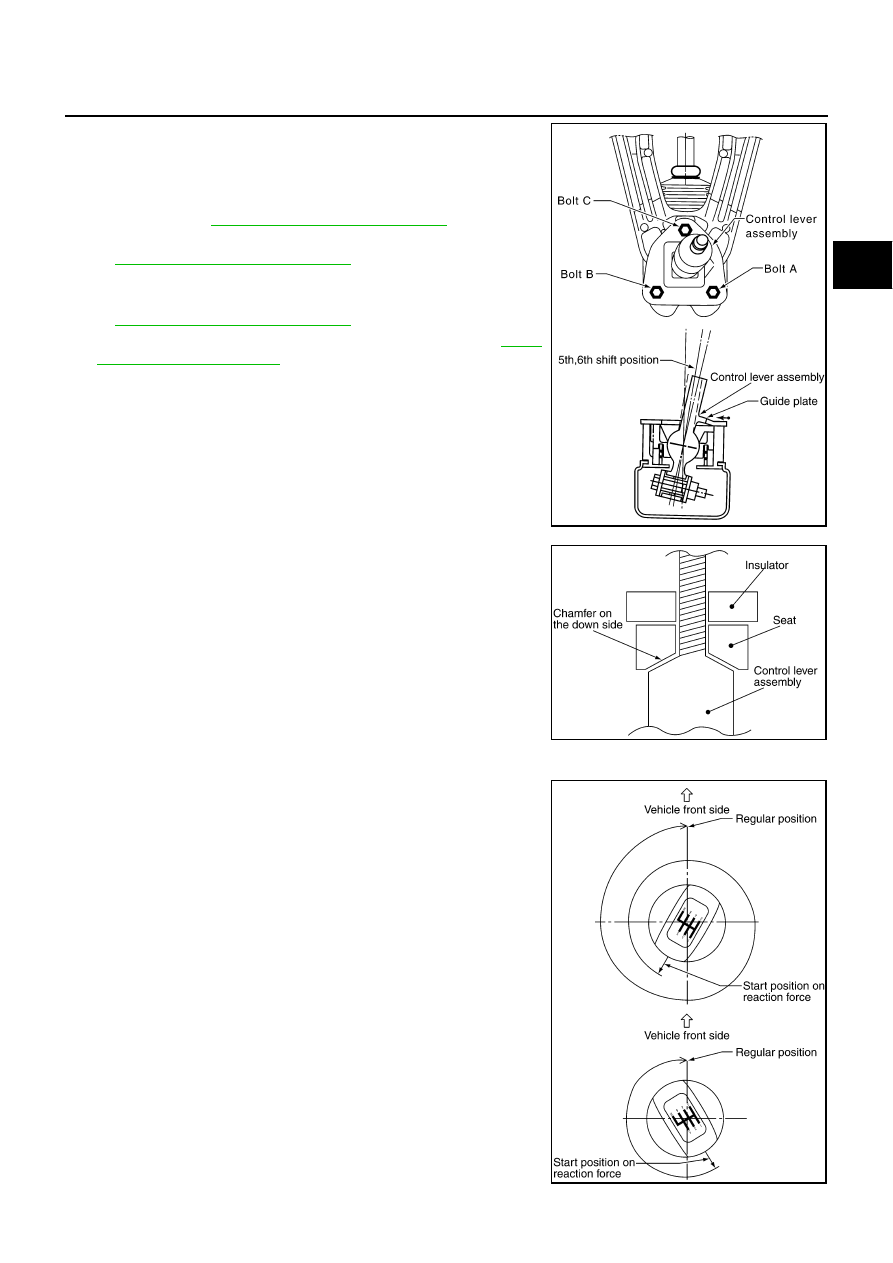

5.

After shifting control lever assembly into 5th gear, push it toward
reverse gear (to the right) until it comes to a stop.

6.

At the point where control lever assembly stops, bring guide
plate closer until the guide plate stopper contacts control lever
assembly claw, and then tighten mounting bolt C to the specified
torque. Refer to

MT-12, "Removal and Installation"

 .

7.

Tighten guide plate bolts A and B to the specified torque. Refer
to

MT-12, "Removal and Installation"

 .

8.

Install control lever boot.

9.

Install hole cover and tighten bolts to the specified torque. Refer
to

MT-12, "Removal and Installation"

 .

10. Install console boot to the center console. Refer to

IP-11,

"Removal and Installation"

 .

11. As shown in the figure, assemble seat and insulator to control

lever assembly.

CAUTION:

Do not reuse insulator.

12. Apply locking sealant to control lever threads, install shift knob.

CAUTION:

Remove the remaining adhesive on control lever and shift
knob threads.

13. Put the shift knob in the correct position as the following indicates.

a.

When tightening shift knob, if shift knob comes to the proper
position within 1/2 turn from the position at which resistance
begins to be felt, tighten it 1 more turn to set it in the proper posi-
tion.

b.

If it takes more than 1/2 turn from the position at which resis-
tance begins to be felt, tighten it to set it in the proper position.

CAUTION:

Do not adjust the knob with loosing.

After adjusting to the regular position, until 30 minutes
pass, do not operate the shift intensely such as screwing or
turning the shift knob to opposite direction since a locking
sealant because stiff.

SCIA1666E

SCIA1771E

SCIA1774E
