HEADLAMP - XENON TYPE -

General Information for Xenon Headlamp Trouble Diagnosis

NKS002NX

In most cases, malfunction of xenon headlamp - “does not illuminate”, “flickers” or “dark” - is caused by a mal-
functioning xenon bulb. A malfunctioning HID control unit or lamp housing, however, may be a cause. Be sure
to perform trouble diagnosis following the steps described below.

Caution:

NKS002NY

●

Installation or removal of connector must be done with lighting switch OFF.

●

Disconnect the battery cable from the negative terminal or remove power fuse.

CAUTION:

After the battery cables are disconnected, never open/close the driver and/or front passenger door
with the window in the full up position. The automatic window adjusting function will not work and
the side roof panel may be damaged.

●

When the lamp is illuminated (when lighting switch is ON), never touch harness, HID control unit, inside of
lamp, or lamp metal parts.

●

To check illumination, temporarily install lamp in vehicle. Be sure to connect power at vehicle side connec-
tor.

●

If error can be traced directly to electrical system, first check for items such as blown fuses and fusible
links, broken wires or loose connectors, dislocated terminals, and improper connections.

●

Never work with wet hands.

●

Using a tester for HID control unit circuit trouble diagnosis is prohibited.

●

Disassembling HID control unit or harnesses (bulb socket harness, ECM harness) is prohibited.

●

Immediately after illumination, light intensity and color will fluctuate, but there is nothing wrong.

●

When bulb has come to end of its life, brightness will drop significantly, it will flash repeatedly, or light color
will turn reddish.

Xenon Headlamp Trouble Diagnosis

NKS002NZ

1.

CHECK 1: XENON HEADLAMP LIGHTING

Install normal xenon bulb to corresponding xenon bulb headlamp, and check if lamp lights up.

OK or NG

OK

>> Replace xenon bulb.

NG

>> GO TO 2.

2.

CHECK 2: XENON HEADLAMP LIGHTING

Install normal HID control unit to corresponding xenon headlamp, and check if lamp lights up.

OK or NG

OK

>> Replace HID control unit.

NG

>> GO TO 3.

3.

CHECK 3: XENON HEADLAMP LIGHTING

Install normal xenon lamp housing assembly to corresponding xenon headlamp, and check if lamp lights up.

OK or NG

OK

>> Replace xenon headlamp housing assembly. [Malfunction in starter (boosting circuit) in xenon

headlamp housing]

NG

>> INSPECTION END

HEADLAMP - XENON TYPE -

LT-29

C

D

E

F

G

H

I

J

L

M

A

B

LT

Aiming Adjustment

NKS002O0

PREPARATION BEFORE ADJUSTING
For Details, Refer to the Regulations in Your Own Country.

Before performing aiming adjustment, check the following.

1.

Keep all tires inflated to correct pressures.

2.

Place vehicle on level ground.

3.

Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.

LOW BEAM AND HIGH BEAM

1.

Turn headlamp low beam ON.

2.

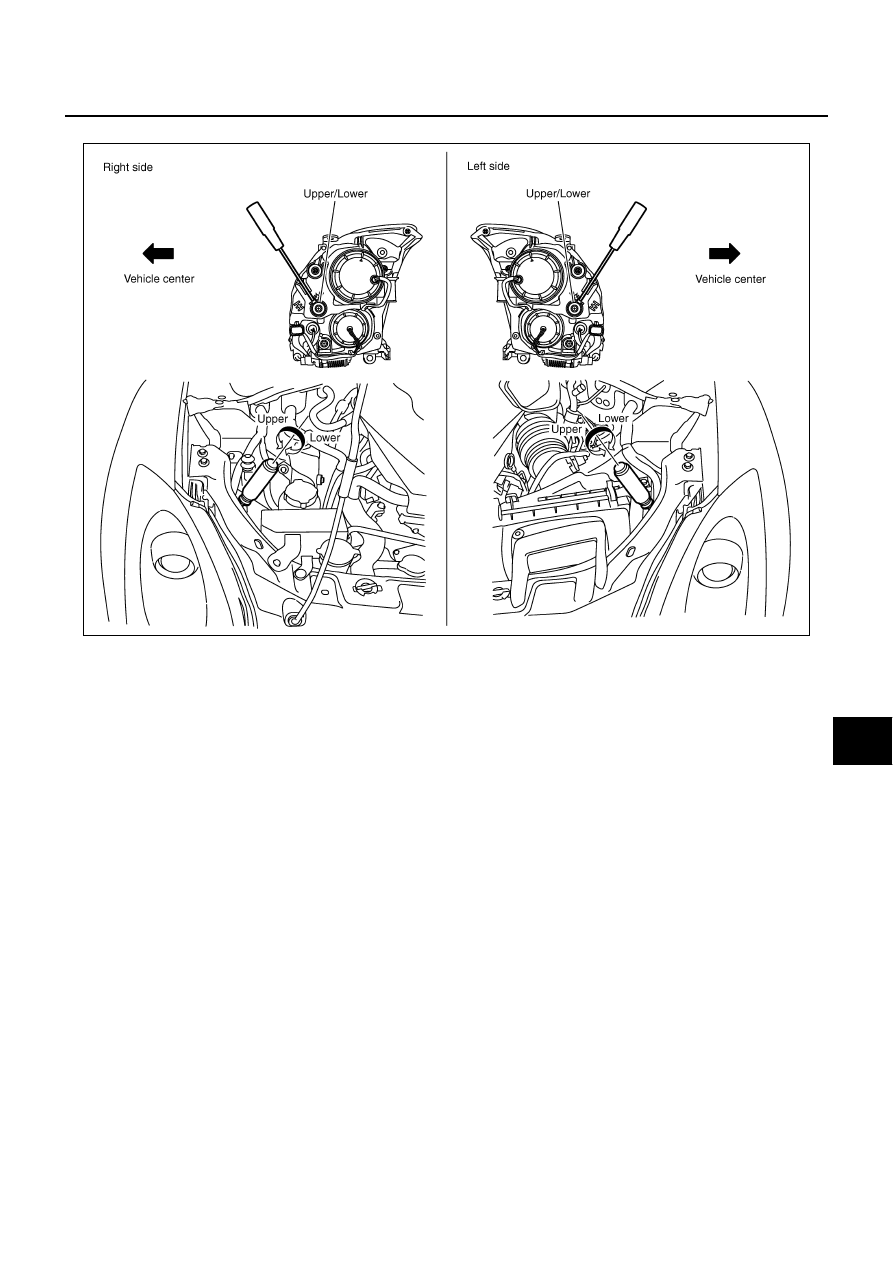

Use adjusting screws to perform aiming adjustment.

PKIC5940E

LT-30

HEADLAMP - XENON TYPE -

ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)

If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming.

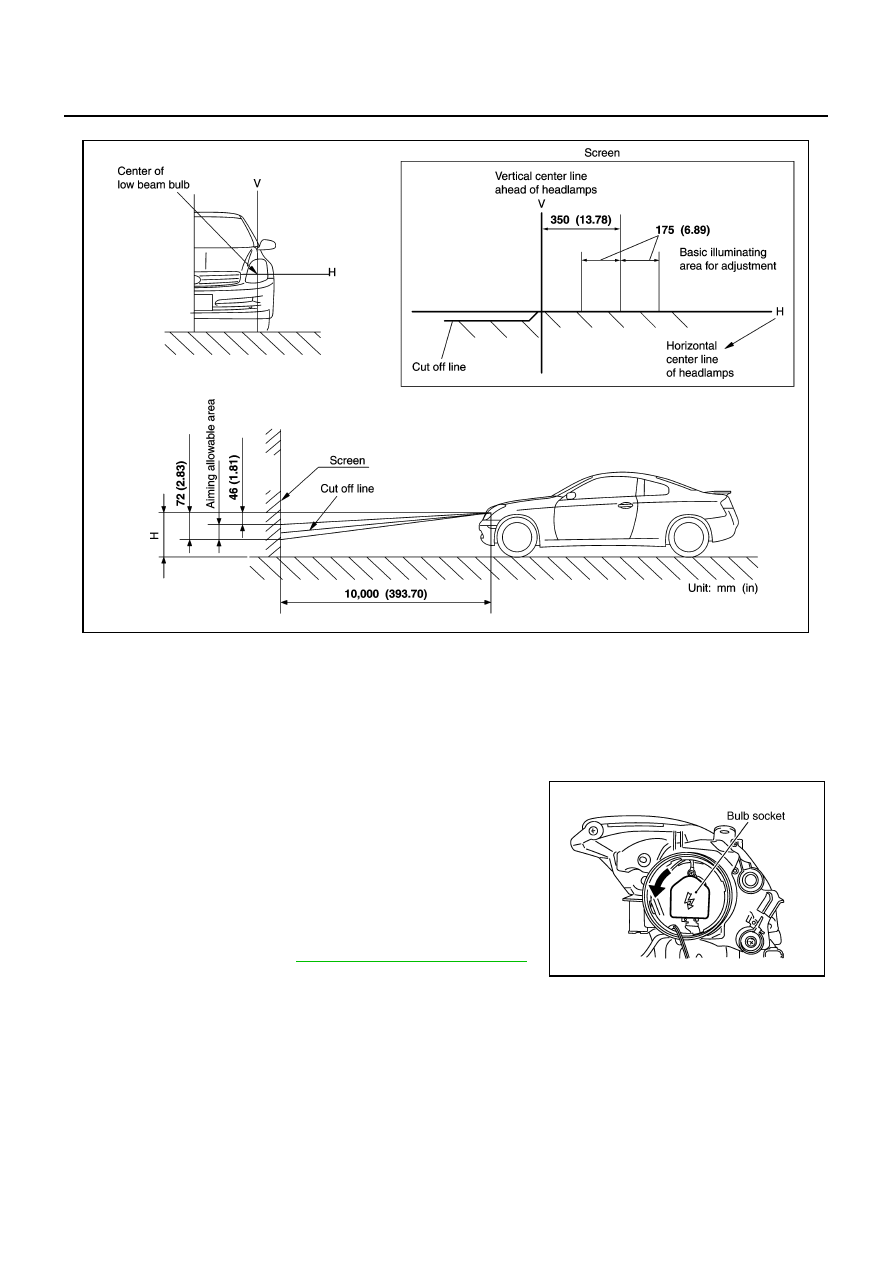

Use the aiming chart shown in the figure.

●

Basic illumination area for adjustment should be within the range shown on the aiming chart.
Adjust headlamp accordingly.

Bulb Replacement

NKS002O1

HEADLAMP LOW/HIGH BEAM

1.

Turn lighting switch OFF.

2.

Open the driver and front passenger window, and then discon-
nect the battery cable from the negative terminal or remove
power fuse.

CAUTION:

After the battery cables are disconnected, never open/close
the driver and/or front passenger door with the window in
the full up position. The automatic window adjusting func-
tion will not work and the side roof panel may be damaged.

3.

Remove headlamp. Refer to

LT-32, "Removal and Installation"

 .

4.

Turn plastic cap counterclockwise and unlock it.

5.

Turn bulb socket counterclockwise and unlock it.

6.

Unlock retaining spring and remove bulb from headlamp.

7.

Installation is the reverse order of removal.

PKIB6498E

PKIC5941E

HEADLAMP - XENON TYPE -

LT-31

C

D

E

F

G

H

I

J

L

M

A

B

LT

FRONT FOG LAMP

1.

Turn lighting switch OFF.

2.

Open the driver and front passenger window, and then disconnect the battery cable from the negative ter-
minal or remove power fuse.

CAUTION:

After the battery cables are disconnected, never open/close the driver and/or front passenger door
with the window in the full up position. The automatic window adjusting function will not work and
the side roof panel may be damaged.

3.

Remove fender protector (front). Refer to

EI-20, "FENDER PROTECTOR"

 .

4.

Turn plastic cap counterclockwise and unlock it.

5.

Disconnect bulb terminal.

6.

Unlock retaining spring and remove bulb from headlamp.

7.

Installation is the reverse order of removal.

PARKING LAMP

1.

Turn lighting switch OFF.

2.

Open the driver and front passenger window, and then disconnect the battery cable from the negative ter-
minal or remove power fuse.

CAUTION:

After the battery cables are disconnected, never open/close the driver and/or front passenger door
with the window in the full up position. The automatic window adjusting function will not work and
the side roof panel may be damaged.

3.

Remove fender protector (front). Refer to

EI-20, "FENDER PROTECTOR"

 .

4.

Push the claw of bulb socket and remove it.

5.

Remove bulb from its socket.

6.

Installation is the reverse order of removal.

FRONT TURN SIGNAL LAMP

1.

Turn lighting switch OFF.

2.

Open the driver and front passenger window, and then disconnect the battery cable from the negative ter-
minal or remove power fuse.

CAUTION:

After the battery cables are disconnected, never open/close the driver and/or front passenger door
with the window in the full up position. The automatic window adjusting function will not work and
the side roof panel may be damaged.

3.

Remove fender protector (front). Refer to

EI-20, "FENDER PROTECTOR"

 .

4.

Turn bulb socket counterclockwise and unlock it.

5.

Remove bulb from its socket.

6.

Installation is the reverse order of removal.

CAUTION:

After installing bulb, be sure to install plastic cap and bulb socket securely to insure watertightness.

Headlamp low/high beam (Xenon)

: 12 V - 35 W (D2S)

Front fog lamp

: 12 V - 55 W (H1)

Parking lamp

: 12 V - 5 W

Front turn signal lamp

: 1 2 V - 21 W (amber bulb)
