CONSULT-II CHECKING SYSTEM

GI-37

C

D

E

F

G

H

I

J

K

L

M

B

GI

Checking Equipment

NAS0001X

When ordering the following equipment, contact your NISSAN/INFINITI distributor.

CAUTION:

Previous CONSULT-II “I” and “Y” DLC-I and DLC-II cables should NOT be used anymore because
their DDL connector pins can be damaged during cable swapping.

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self- diagnosis depending on control unit which carry out CAN communication.

If CONSULT-II CONVERTER is not connected with CONSULT-II, vehicle occur the “FAIL SAFE
MODE” which is “LIGHT UP the HEAD LIGHT” and /or “COOLING FAN ROTATING” when CON-
SULT-II is started.

NOTE:

The CONSULT-II must be used in conjunction with a program card.
CONSULT-II does not require loading (Initialization) procedure.

Be sure the CONSULT-II is turned off before installing or removing a program card.

CONSULT-II Start Procedure

NAS0001Y

NOTE:
Turning ignition switch off when performing CAN diagnosis could cause CAN memory to be erased.

1.

Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.

2.

If necessary, turn on the ignition switch.

3.

Touch “START(NISSAN BASED VHCL)” or System Shortcut key
(eg: ENGINE) on the screen.

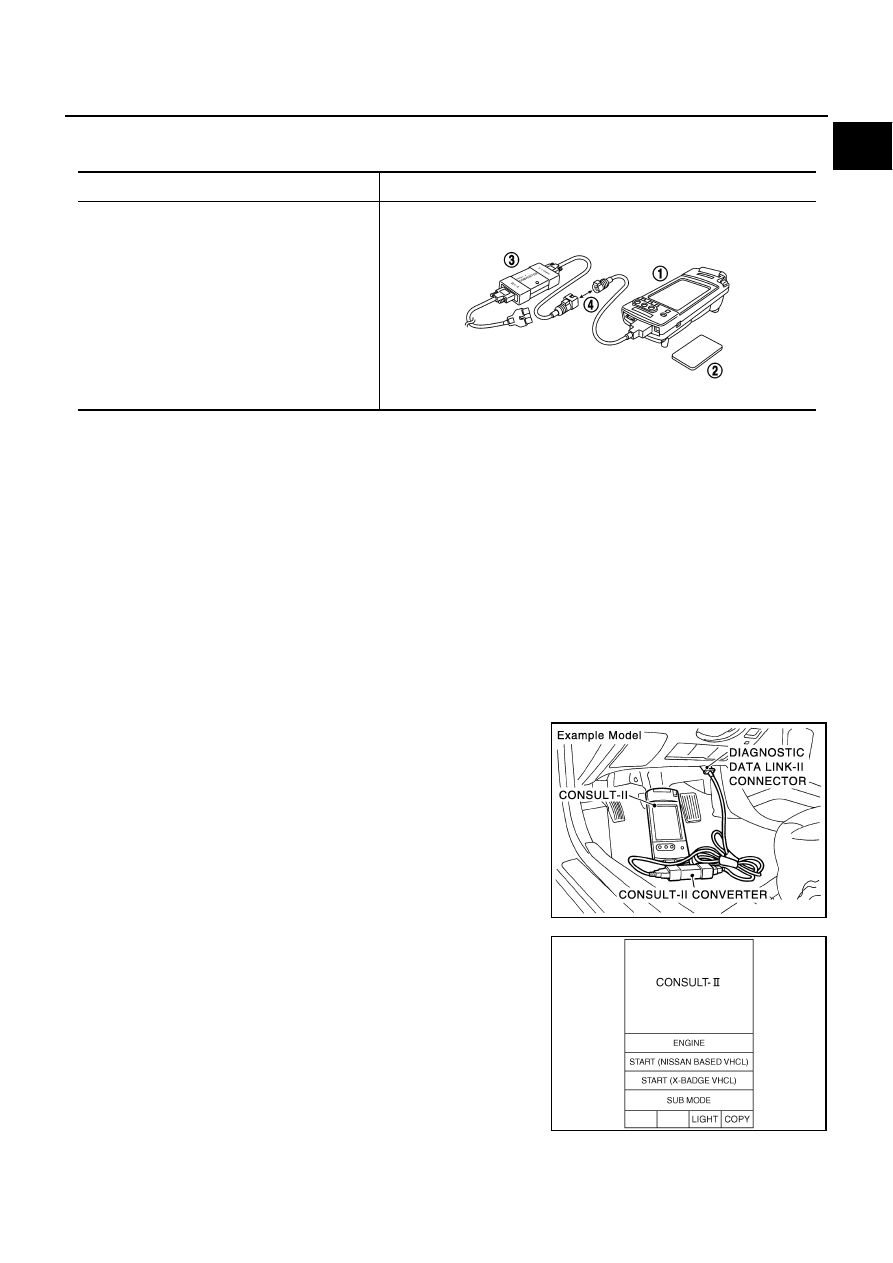

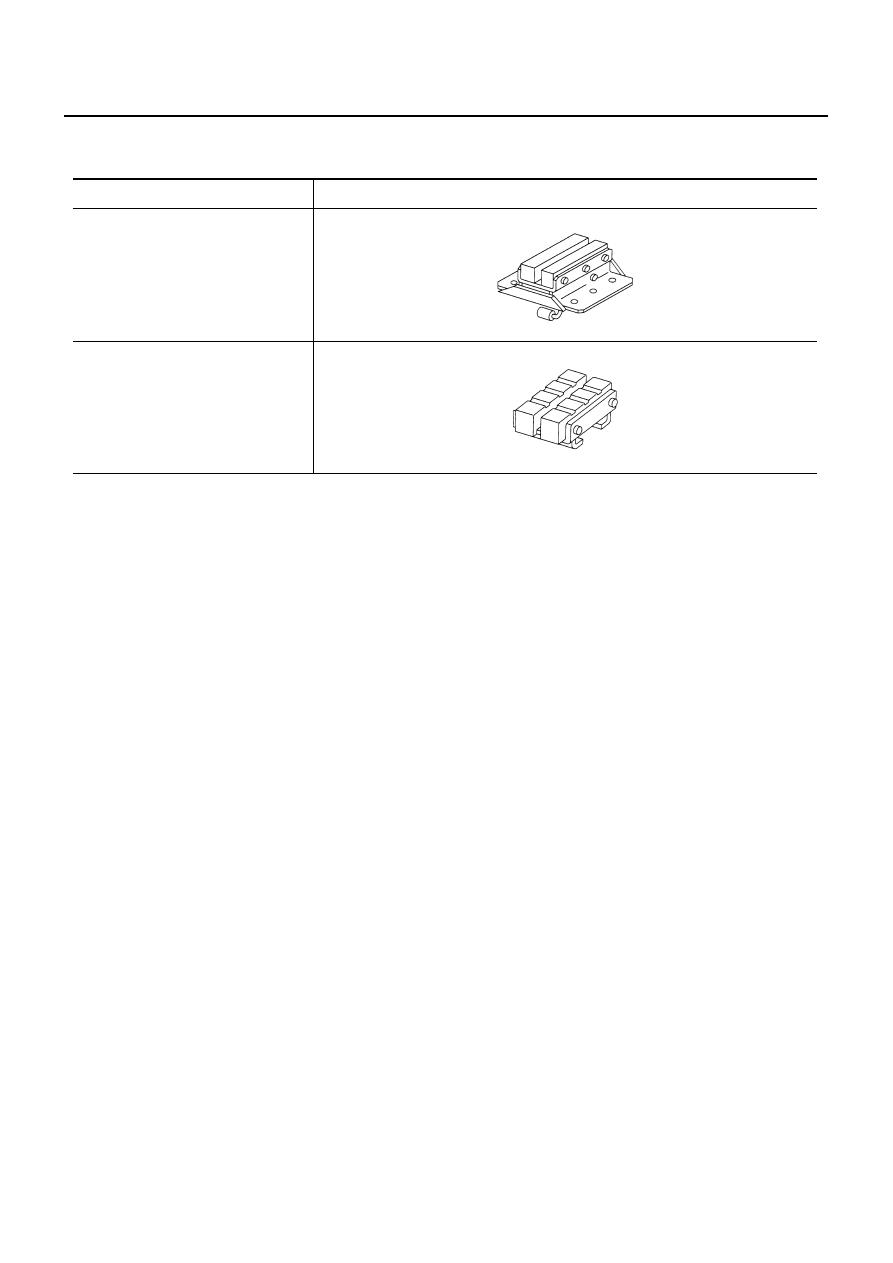

Tool name

Description

NISSAN CONSULT-II

1. CONSULT-II unit (Tester internal soft: Resident

version 3.3.0) and accessories

2. Program card UED06D and AEN06B (For

NATS)

3. CONSULT-II CONVERTER

4. “CONSULT-II Pigtail” Cable

SAIA0363E

PAIA0070E

SAIA0450E

GI-38

CONSULT-II CHECKING SYSTEM

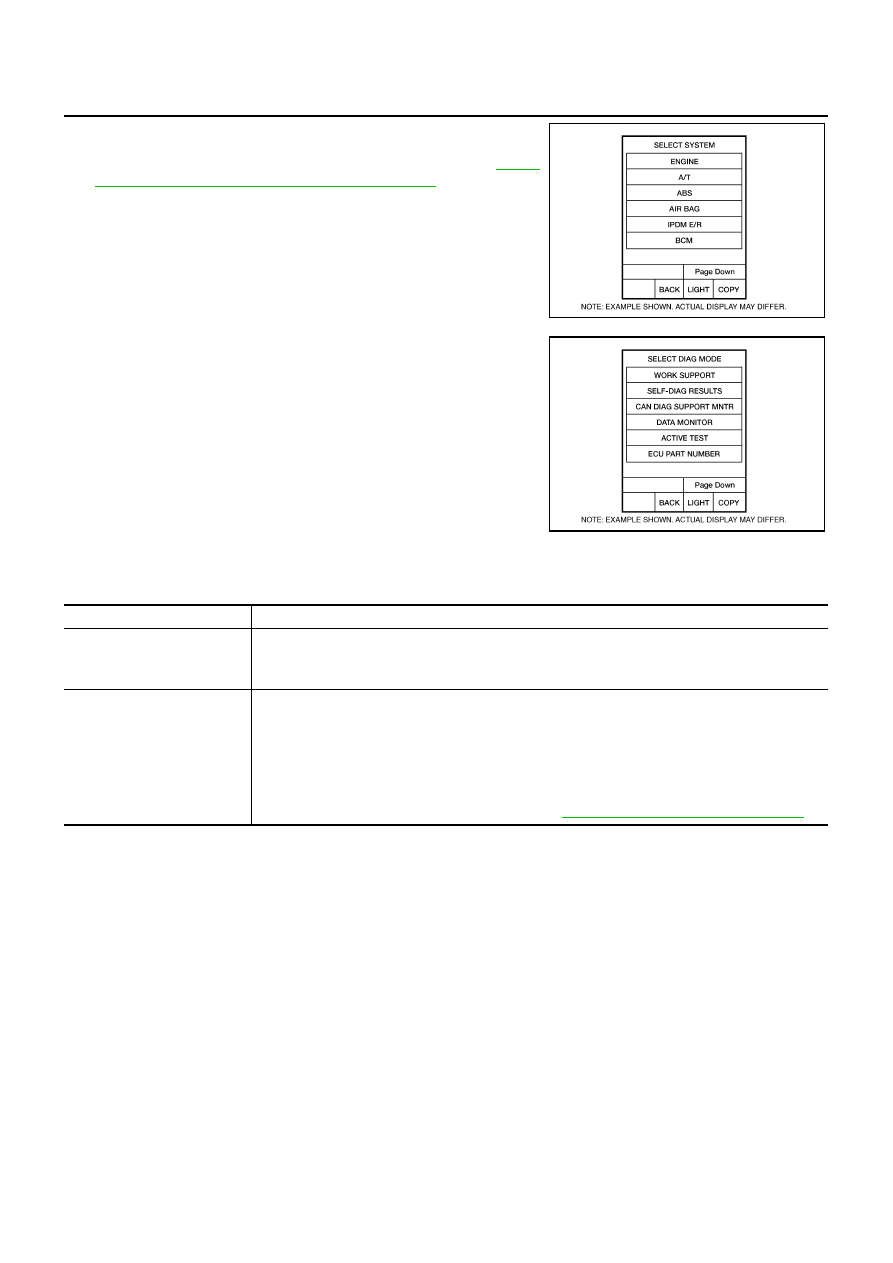

4.

Touch necessary system on  "SELECT SYSTEM" screen.
If necessary system is not indicated, check power supply and
ground of system control unit. If it is normal, refer to

GI-38,

"CONSULT-II Data Link Connector (DLC) Circuit"

 .

5.

Select the desired part to be diagnosed on the "SELECT DIAG
MODE" screen.

CONSULT-II Data Link Connector (DLC) Circuit

NAS0001Z

INSPECTION PROCEDURE

If the CONSULT-II cannot diagnose the system properly, check the following items.

NOTE:
The DDL1 and DDL2 circuits from DLC pins 12, 13, 14 and 15 may be connected to more than one system. A
short in a DDL circuit connected to a control unit in one system may affect CONSULT-II access to other sys-
tems.

BCIA0030E

BCIA0031E

Symptom

Check item

CONSULT-II cannot access
any system.

CONSULT-II DLC power supply circuit (Terminal 8) and ground circuit (Terminal 4) (For detailed
circuit, refer to “MIL & Data Link Connectors Wiring Diagram” in EC section.)

CONSULT-II DLC cable and CONSULT-II CONVERTER.

CONSULT-II cannot access
individual system. (Other sys-
tems can be accessed.)

CONSULT-II program card (Check the appropriate CONSULT-II program card for the system.
Refer to "Checking Equipment".)

Power supply and ground circuit for the control unit of the system (For detailed circuit, refer to wir-
ing diagram for each system.)

Open or short circuit between the system and CONSULT-II DLC (For detailed circuit, refer to wiring
diagram for each system.)

Open or short circuit CAN communication. Refer to

LAN-47, "CAN System Specification Chart"

 .

CONSULT-II CHECKING SYSTEM

GI-39

C

D

E

F

G

H

I

J

K

L

M

B

GI

CIRCUIT DIAGRAM

TAWM0055E

GI-40

LIFTING POINT

LIFTING POINT

PFP:00000

Commercial Service Tools

NAS00020

CAUTION:

Every time the vehicle is lifted up,  maintain the complete vehicle curb condition.

Since the vehicle's center of gravity changes when removing main parts on the front side (engine,
transmission, suspension etc.), support a jack up point on the rear side garage jack with a mission
jack or  equivalent.

Since the vehicle's center of gravity changes when removing main parts on the rear side (rear axle,
suspension, etc.), support a jack up point on the front side garage jack with a mission jack or
equivalent.

Be careful not to smash or do not do anything that would affect piping parts.

Garage Jack and Safety Stand

NAS00021

WARNING:

Park the vehicle on a level surface when using the jack. Make sure to avoid damaging pipes,
tubes, etc. under the vehicle.

Never get under the vehicle while it is supported only by the jack. Always use safety stands when
you have to get under the vehicle.

Tool name

Description

Board on attachment

Safety stand attachment

S-NT001

S-NT002
