FRONT SUSPENSION ASSEMBLY

FSU-9

C

D

F

G

H

I

J

K

L

M

A

B

FSU

Removal and Installation

NES00026

REMOVAL

1.

Remove tires from vehicle with power tool.

2.

Remove brake caliper with power tool. Hang it in a place where it will not interfere with work. Refer to

BR-

21, "FRONT DISC BRAKE"

 .

3.

Remove disc rotor.Refer to

BR-23, "Removal and Installation of Brake Caliper Assembly"

 .

4.

Remove undercover with power tool.

5.

Remove mounting bolts and nuts, then remove front cross bar from vehicle with power tool.

6.

Remove steering hydraulic piping bracket from front suspension member. Refer to

PS-36, "HYDRAULIC

LINE"

 .

7.

Remove steering gear and front suspension member attachment bolts and hang steering gear on vehicle.
Refer to

PS-19, "POWER STEERING GEAR AND LINKAGE"

 .

8.

Set jack under engine.

CAUTION:

When setting jack to engine, use a wooden block or an equivalent for the setting.

9.

Remove mounting bolt and nut between shock absorber and transverse link with power tool.

10. Remove cotter pin of upper link ball joint, then loosen mounting nut.

11. Use a ball joint remover (suitable tool) to remove upper link from steering knuckle. Be careful not to dam-

age ball joint boot.

CAUTION:

Tighten temporarily mounting nut to prevent damage to threads and to prevent ball joint remover
(suitable tool) from coming off.

12. Remove mounting nut and washer located at the bottom of stabilizer connecting rod, and then remove

stabilizer connecting rod from transverse link with power tool. Refer to

FSU-18, "STABILIZER BAR"

 .

13. Remove mounting nuts between engine mounting insulator and front suspension member. Refer to

EM-

131, "ENGINE ASSEMBLY"

 .

14. Remove mounting nuts between front suspension member and body with power tool.

15. Remove front suspension assembly from vehicle.

INSTALLATION

●

Refer to

FSU-8, "Components"

  for tightening torque. Install in the reverse order of removal.

NOTE:
Refer to component parts location and do not reuse non-reusable parts.

●

Perform final tightening of shock absorber lower side (rubber bushing) under unladen condition with tires
on ground. Check wheel alignment. Refer to

FSU-20, "SERVICE DATA AND SPECIFICATIONS (SDS)"

 .

1.

Mounting insulator

2.

Bound bumper

3.

Spring upper seat

4.

Coil spring

5.

Shock absorber

6.

Stopper rubber

7.

Upper link

8.

Cotter pin

9.

Front axle

10. Steering stopper bracket

11. Compression rod

12. Washer

13. Transverse link

14. Stabilizer connecting rod

15. Front suspension member

16. Stabilizer bar

17. Stabilizer clamp bracket

18. Stabilizer bushing

19. Stabilizer clamp

20. Front cross bar

Refer to

GI-10, "Components"

 ,for the symbols in figure.

FSU-10

COIL SPRING AND SHOCK ABSORBER

COIL SPRING AND SHOCK ABSORBER

PFP:54302

Removal and Installation

NES00027

REMOVAL

1.

Remove tire from vehicle with power tool.

2.

Remove harness of wheel sensor from shock absorber. Refer to

BRC-58, "WHEEL SENSOR"

 .

CAUTION:

Do not pull on wheel sensor harness.

3.

Remove mounting nuts of brake hose from shock absorber. Refer to

BR-11, "BRAKE PIPING AND

HOSE"

 .

4.

Remove mounting bolt and nut between shock absorber and transverse link with power tool.

5.

Remove mounting nuts on mounting insulator with power tool, then remove shock absorber from vehicle.

INSTALLATION

●

Refer to

FSU-8, "Components"

  for tightening torque. Install in the reverse order of removal.

NOTE:
Refer to component parts location and do not reuse non-reusable parts.

●

Perform final tightening of shock absorber lower side (rubber bushing) under unladen condition with tires
on ground. Check wheel alignment. Refer to

FSU-20, "SERVICE DATA AND SPECIFICATIONS (SDS)"

 .

Disassembly and Assembly

NES00028

DISASSEMBLY

NOTE:
Make sure piston rod on shock absorber is not damaged when removing components from shock absorber.

1.

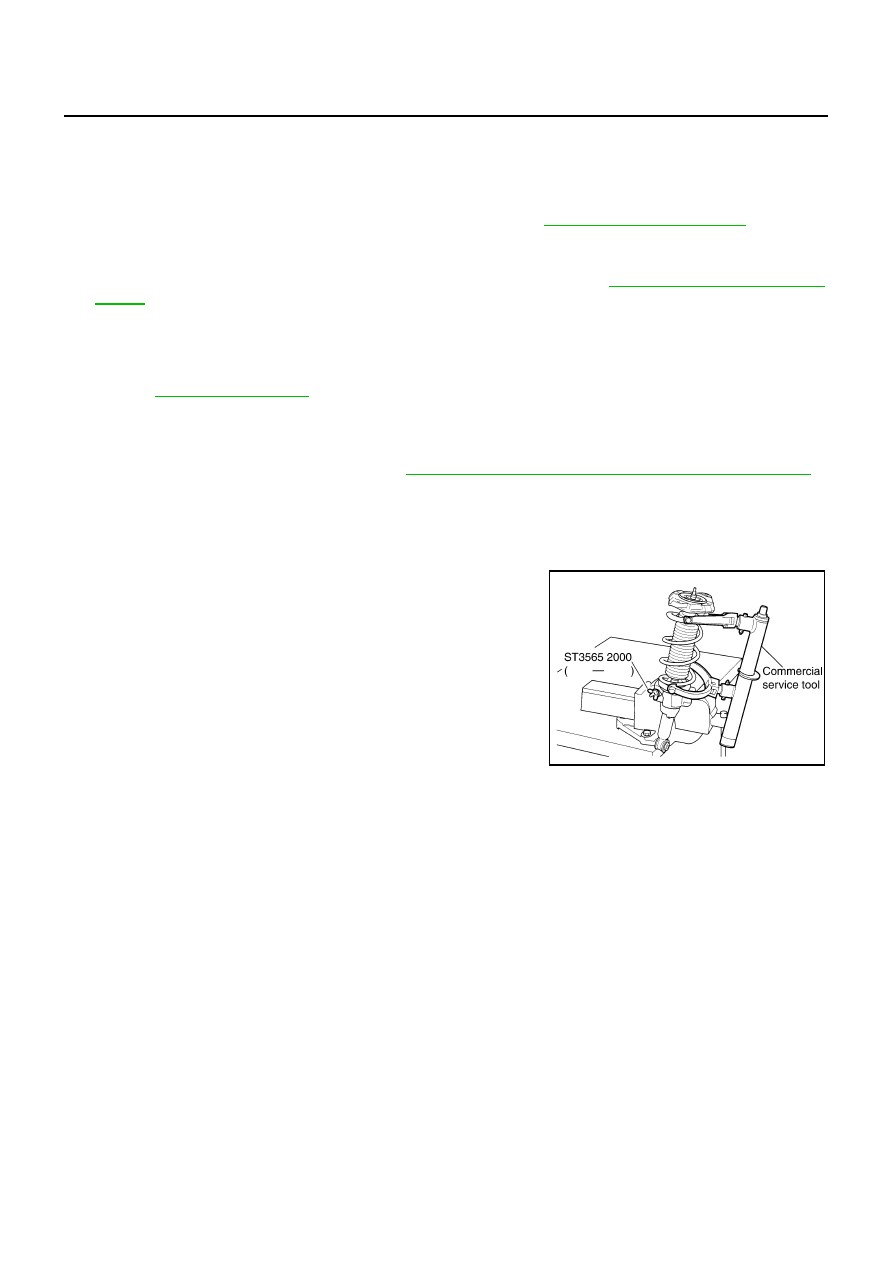

Install strut attachment (SST) to shock absorber and fix it in a
vise.

CAUTION:

When installing strut attachment (SST) to shock absorber,
wrap a shop cloth around shock absorber to protect it from
damage.

2.

Using a spring compressor (commercial service tool), compress
coil spring between spring upper seat and spring lower seat (on
shock absorber) until coil spring is free.

CAUTION:

Be sure spring compressor (commercial service tool) is
securely attached to coil spring. Compress coil spring.

3.

Check that coil spring between spring upper seat and spring lower seat is free and then secure piston rod
tip so that piston rod does not turn, and remove piston rod lock nut.

4.

Remove mounting insulator, bound bumper, spring upper seat. Then remove coil spring from shock
absorber.

5.

Gradually release spring compressor (commercial service tool), and remove coil spring.

CAUTION:

Loosen while marking sure coil spring attachment position does not move.

6.

Remove strut attachment (SST) from shock absorber.

SEIA0224E

COIL SPRING AND SHOCK ABSORBER

FSU-11

C

D

F

G

H

I

J

K

L

M

A

B

FSU

INSPECTION AFTER DISASSEMBLY
Shock Absorber Inspection

●

Check shock absorber for deformation, cracks, damage, and replace if necessary.

●

Check piston rod for damage, uneven wear or distortion, and replace if necessary.

●

Check welded and sealed areas for oil leakage, and replace if necessary.

Mounting Insulator and Rubber Parts Inspection

Check mounting insulator for cracks and rubber parts for wear. Replace them if necessary.

Coil Spring Inspection

Check coil spring for cracks, wear, damage, and replace if necessary.

ASSEMBLY

NOTE:
Make sure piston rod on shock absorber is not damaged when attaching components to shock absorber.

1.

Install strut attachment (SST) to shock absorber and fix it in a
vise.

CAUTION:

When installing strut attachment (SST) to shock absorber,
wrap a shop cloth around shock absorber to protect it from
damage.

2.

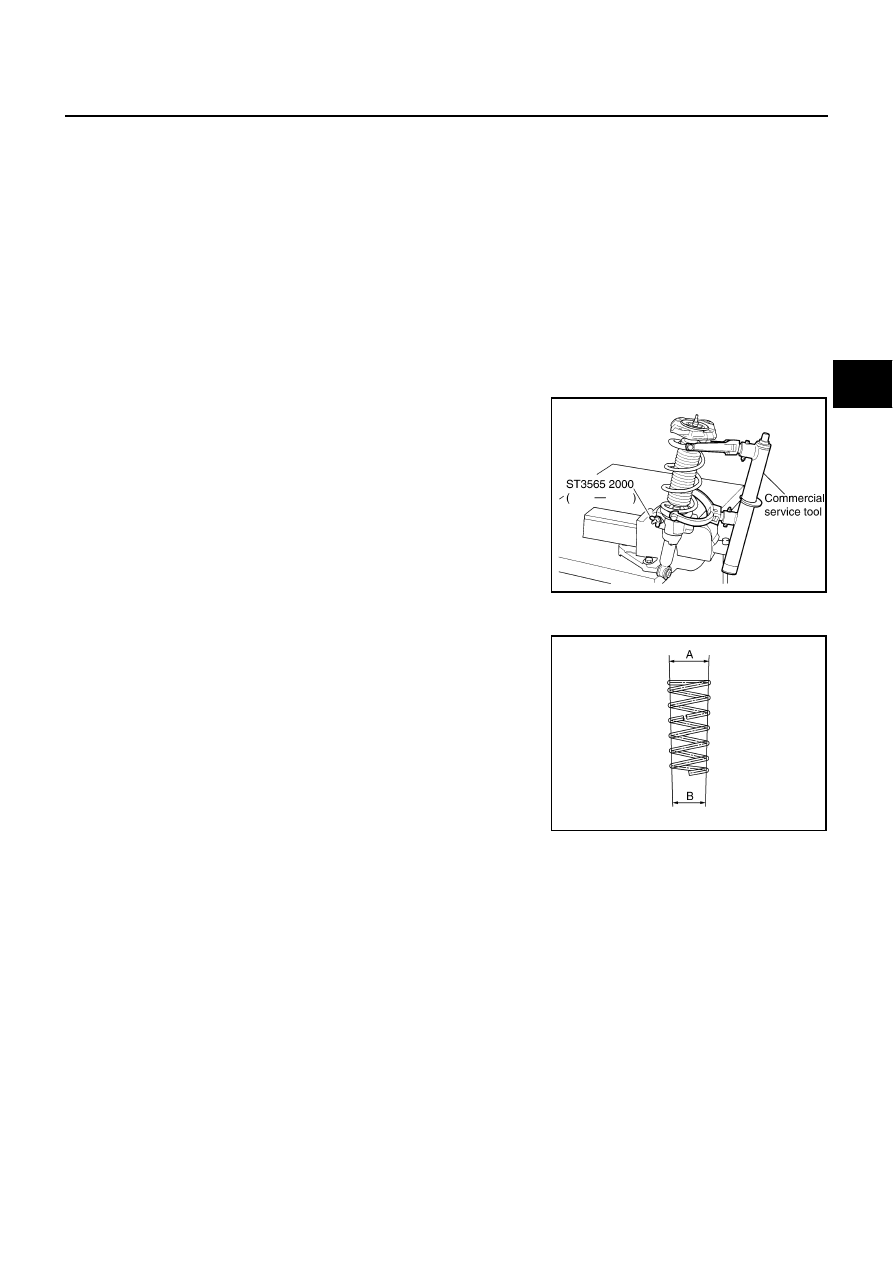

Compress coil spring using a spring compressor (commercial
service tool), and install it onto shock absorber.

CAUTION:

●

Install coil spring as shown in the figure with large diame-
ter side (A) up and small diameter side (B) down.

●

Be sure spring compressor (commercial service tool) is
securely attached to coil spring. Compress coil spring.

3.

Apply soapy water to bound bumper and insert into mounting
insulator.

CAUTION:

Do not use machine oil.

SEIA0224E

PEIA0108E

FSU-12

COIL SPRING AND SHOCK ABSORBER

4.

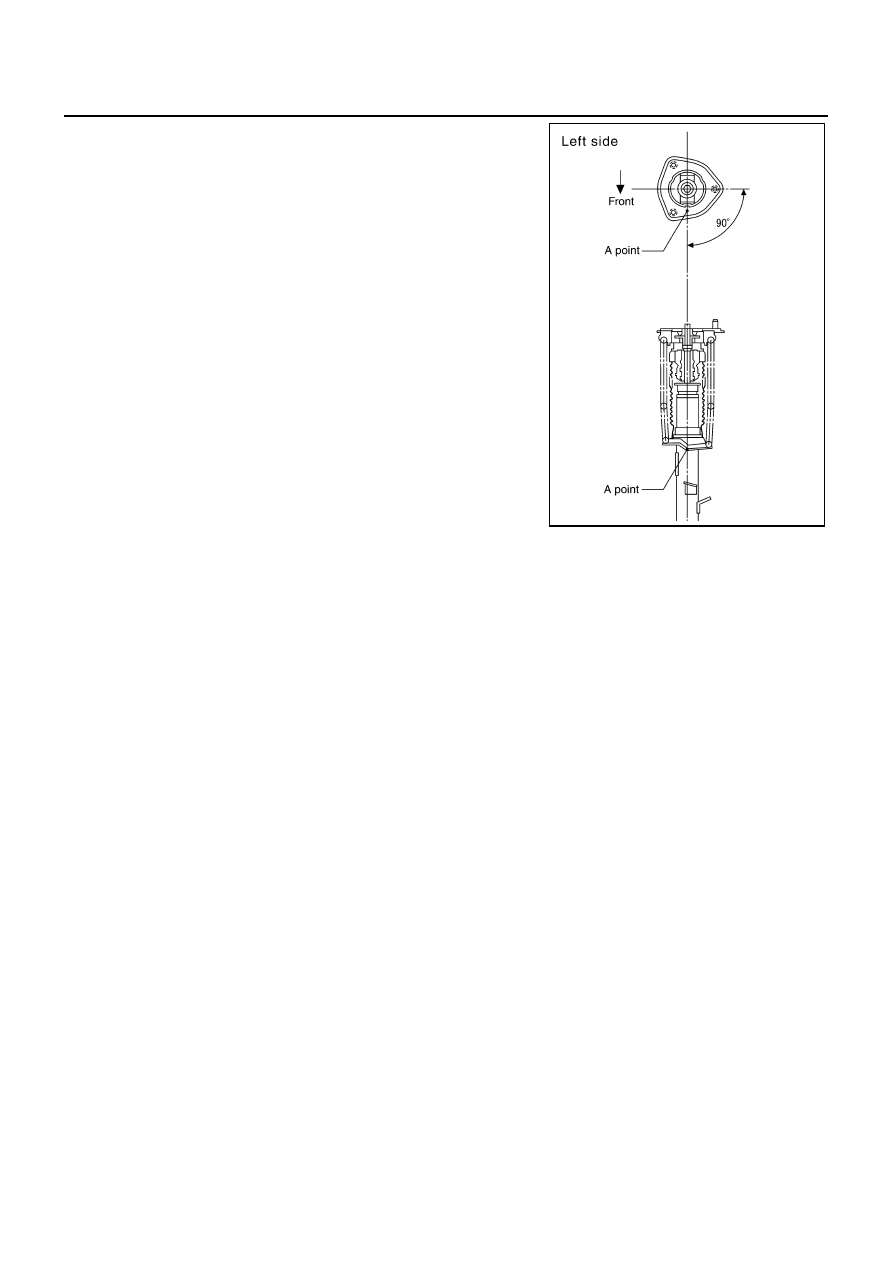

Attach spring upper seat and mounting insulator as shown in the
figure.

CAUTION:

●

Make sure coil spring is securely seated in spring mount-
ing groove of spring upper seat.

●

The bottom part of spring should be at the piston of A
point of spring seat.

5.

Secure piston rod tip so that piston rod does not turn, and
tighten the specified torque on piston rod lock nut.

6.

Gradually release spring compressor (commercial service tool),
and remove coil spring.

CAUTION:

Loosen spring compressor (commercial service tool) while
making sure coil spring attachment position does not
move.

7.

Remove strut attachment (SST) from shock absorber.

SEIA0239E
