a.

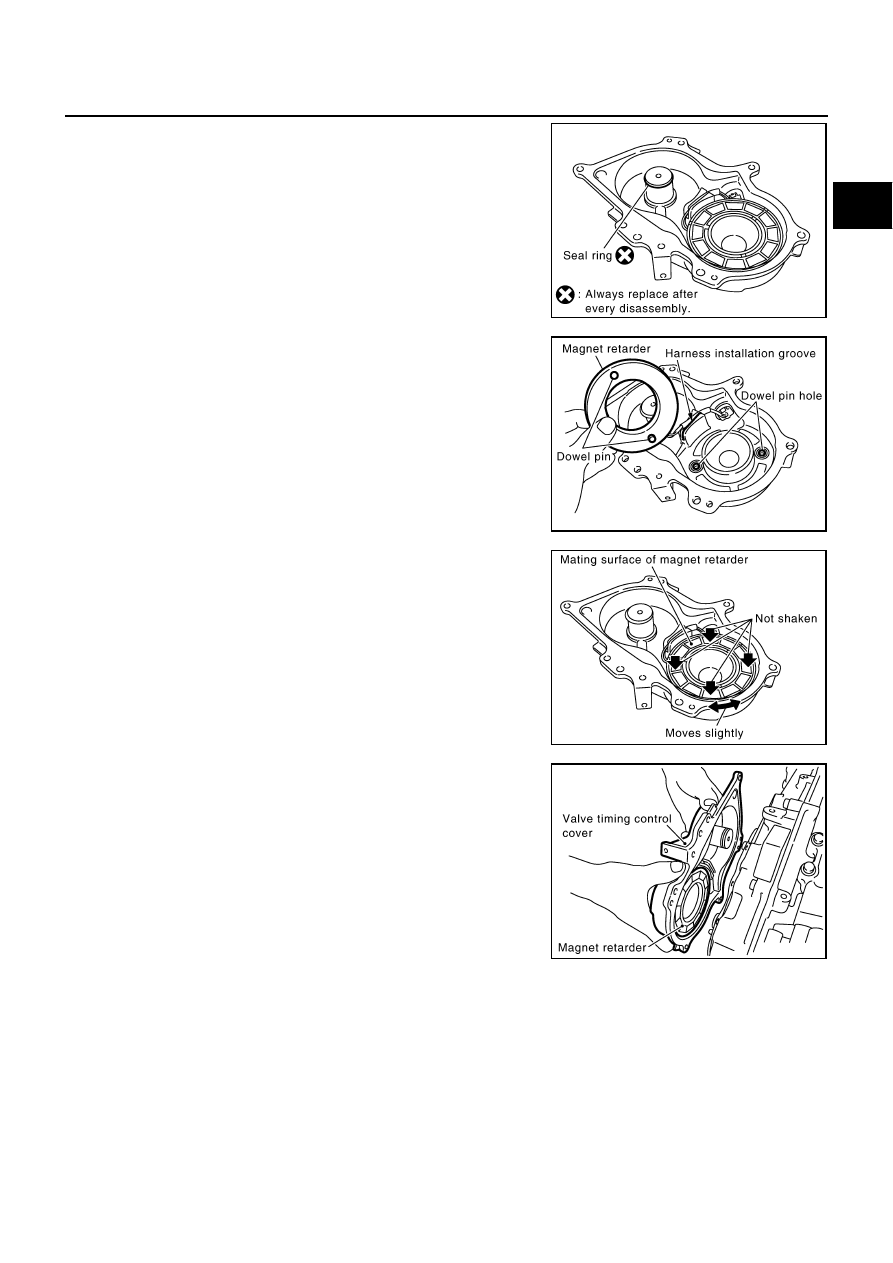

Install new seal rings in shaft grooves.

b.

Install magnet retarder aligning the dowel pins of the back with
the cover side dowel pin holes securely. Simultaneously insert
the harness into the installation groove securely.
NOTE:
Figure shows the structure of the parts. Therefore, magnet
retarder is being removed from the cover in this figure. But, if
magnet retarder is in the correct position, omit step “b” and per-
form step “c”.

c.

To check the joint between dowel pins and dowel pin holes,
check the looseness in the axle direction by pushing the mating
surface of magnet retarder at several places and the circumfer-
ential looseness (between dowel pins and dowel pin holes) by
twisting in the circumferential direction.

CAUTION:

Always perform this procedure when removing because the
gap between dowel pins and dowel pin holes may not be
caused on purpose.

d.

Install valve timing control cover to front timing chain case.

CAUTION:

●

Do not face the magnet retarder side down to prevent
magnet retarder from dropping.

●

Check the mating surface of magnet retarder and the
drum of exhaust side camshaft sprocket for foreign mate-
rials.

●

Align the center of both shaft holes of the shaft and the
intake side camshaft sprocket, and then insert them.

●

Be careful not to drop the seal ring from the shaft groove.

●

When setting the valve timing control cover in position
by hand, if valve timing control cover is not contacting with the front timing chain case, the
dowel pin of magnet retarder may not be aligned with the dowel pin holes of cover. In this case,
return to step “b”.

PBIC3571E

PBIC3572E

PBIC3573E

PBIC3561E

EM-80

TIMING CHAIN

e.

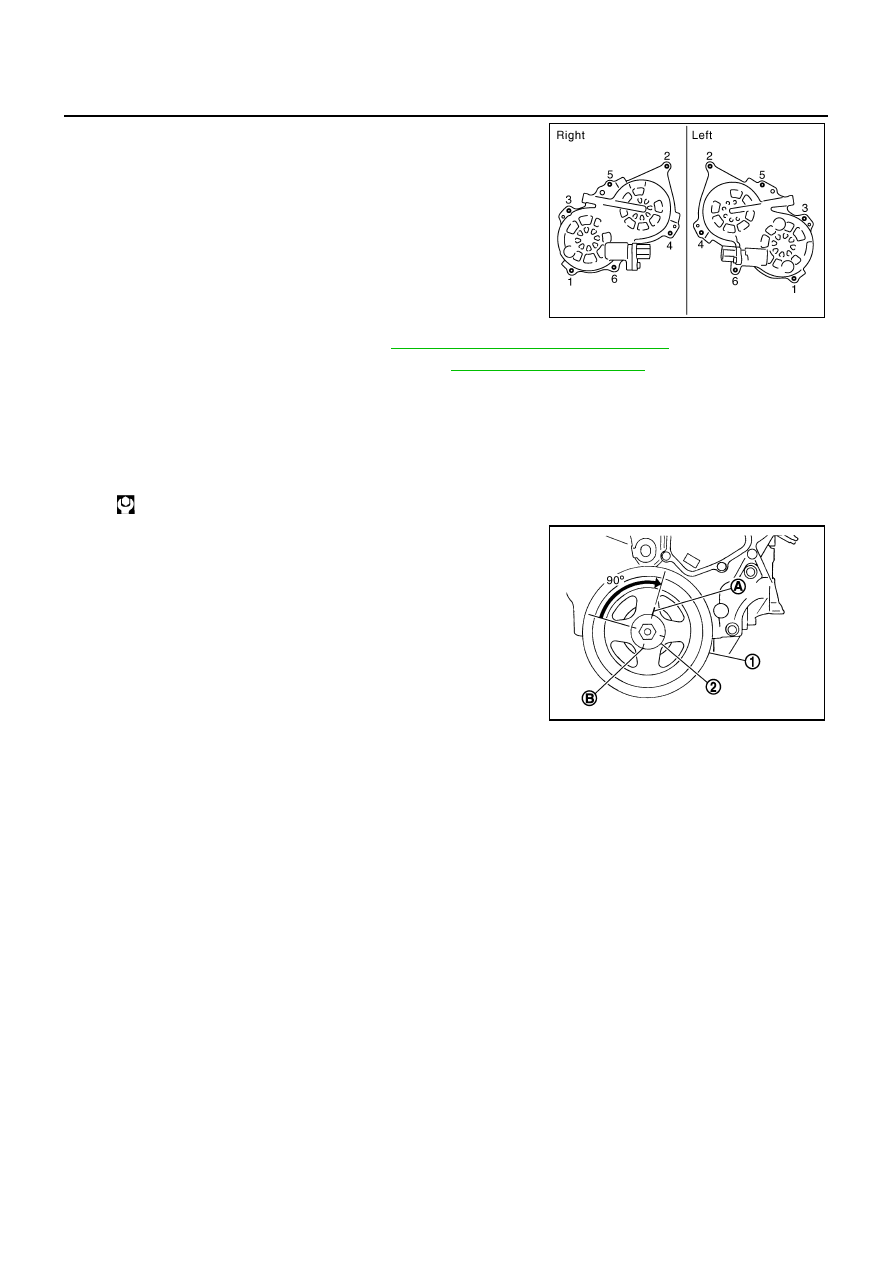

Tighten mounting bolts in numerical order as shown in the fig-
ure.

CAUTION:

Completely tighten the mounting bolts with the seat surface
of valve timing control cover contacting with front timing
chain case.

16. Install oil pans (upper and lower). Refer to

EM-29, "OIL PAN AND OIL STRAINER"

 .

17. Install rocker covers (right and left banks). Refer to

EM-44, "ROCKER COVER"

 .

18. Install crankshaft pulley as follows:
a.

Fix crankshaft using ring gear stopper [SST: KV10117700 (J44716)].

b.

Install crankshaft pulley, taking care not to damage front oil seal.

●

When press-fitting crankshaft pulley with plastic hammer, tap on its center portion (not circumference).

c.

Tighten crankshaft pulley bolt.

d.

Place a matching mark (A) on crankshaft pulley (1) aligning with
the matching (B) of crankshaft pulley bolt (2). Tighten the bolt 90
degrees (one marks).

19. Rotate crankshaft pulley in normal direction (clockwise when viewed from engine front) to confirm it turns

smoothly.

20. Install in the reverse order of removal after this step.

PBIC3560E

 : 44.1 N·m (4.5 kg-m, 33 ft-lb)

PBIC4627J

TIMING CHAIN

EM-81

C

D

E

F

G

H

I

J

K

L

M

A

EM

INSPECTION AFTER INSTALLATION
Inspection for Leaks

The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

●

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to

MA-10, "RECOMMENDED FLUIDS AND LUBRICANTS"

 .

●

Use procedure below to check for fuel leakage.

–

Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.

–

Start engine. With engine speed increased, check again for fuel leakage at connection points.

●

Run engine to check for unusual noise and vibration.

NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in the guide may
generate a pounding noise during and just after engine start. However, this is normal. Noise will stop after
hydraulic pressure rises.

●

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

●

Bleed air from lines and hoses of applicable lines, such as in cooling system.

●

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.

Summary of the inspection items:

* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

Removal and Installation (A/T Models)

NBS002UQ

NOTE:

●

This section describes procedures for removing/installing front timing chain case and timing chain related
parts, and rear timing chain case, when oil pan (upper) needs to be removed/installed for engine overhaul,
etc.

●

To remove/install front timing chain case, timing chain, and its related parts without removing oil pan
(upper), refer to

EM-47, "FRONT TIMING CHAIN CASE"

 .

REMOVAL

1.

Remove engine cover with power tool. Refer to

EM-18, "INTAKE MANIFOLD COLLECTOR"

 .

2.

Remove air cleaner case assembly. Refer to

EM-16, "AIR CLEANER AND AIR DUCT"

 .

3.

Remove undercover with power tool.

4.

Release the fuel pressure. Refer to

EC-81, "FUEL PRESSURE RELEASE"

 .

5.

Disconnect the battery cable from the negative terminal.

6.

Drain engine coolant from radiator. Refer to

CO-10, "Changing Engine Coolant"

 .

CAUTION:

●

Perform this step when engine is cold.

●

Do not spill engine coolant on drive belts.

7.

Drain engine oil. Refer to

LU-9, "Changing Engine Oil"

 .

CAUTION:

●

Perform this step when engine is cold.

●

Do not spill engine oil on drive belts.

8.

Separate engine harnesses removing their brackets from front timing chain case.

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Other oils and fluid*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gases

—

Leakage

—

EM-82

TIMING CHAIN

9.

Remove intake manifold collectors (upper and lower) with power tool. Refer to

EM-18, "INTAKE MANI-

FOLD COLLECTOR"

 .

10. Remove radiator cooling fan assembly. Refer to

CO-21, "COOLING FAN"

 .

11. Remove drive belts. Refer to

EM-14, "DRIVE BELTS"

 .

12. Remove A/C compressor from bracket with piping connected, and temporarily secure it aside. Refer to

ATC-136, "Components"

 .

13. Remove power steering oil pump from bracket with piping connected, and temporarily secure it aside.

Refer to

PS-31, "POWER STEERING OIL PUMP"

 .

14. Remove power steering oil pump bracket. Refer to

PS-31, "POWER STEERING OIL PUMP"

 .

15. Remove alternator. Refer to

SC-21, "CHARGING SYSTEM"

 .

16. Remove water bypass hose, water hose clamp and idler pulley bracket from front timing chain case.

17. Remove right and left intake valve timing control covers.

●

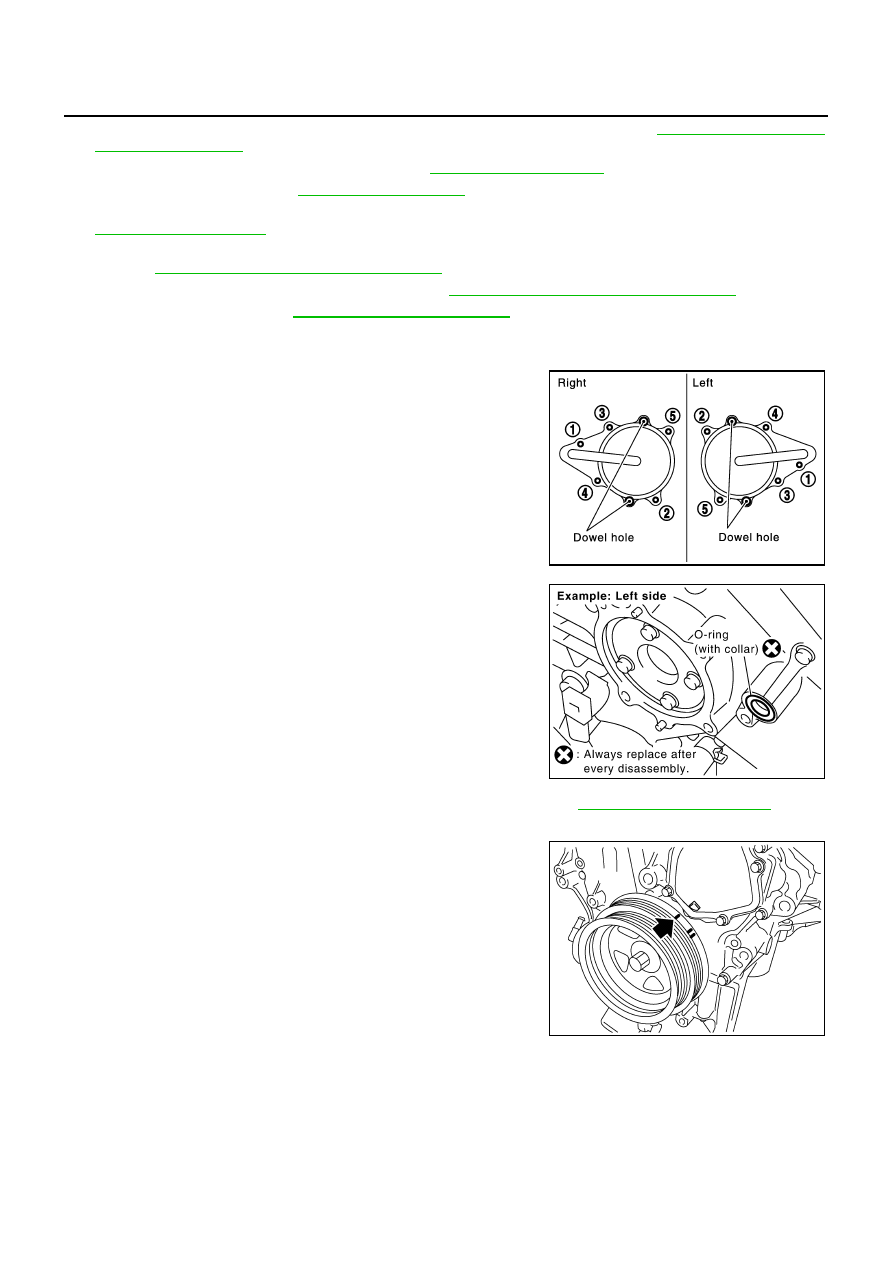

Loosen bolts in reverse order as shown in the figure.

●

Use seal cutter [SST: KV10111100 (J37228)] or  equivalent
tool to cut liquid gasket for removal.

CAUTION:

Shaft is internally jointed with intake camshaft sprocket
center hole. When removing, keep it horizontal until it is
completely disconnected.

18. Remove collared O-ring from front timing chain case (left and

right side).

19. Remove rocker covers (right and left banks) with power tool. Refer to

EM-44, "ROCKER COVER"

 .

20. Obtain No. 1 cylinder at TDC of its compression stroke as follows:
a.

Rotate crankshaft pulley clockwise to align timing mark (grooved
line without color) with timing indicator.

SEM728G

PBIC2045E

KBIA1717J
