CLUTCH

PRECAUTIONS .......................................................... 2

Precautions for Battery Service ................................ 2
Service Notice or Precaution .................................... 2

PREPARATION ........................................................... 3

Special Service Tools  ............................................... 3
Commercial Service Tools ........................................ 3

NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 4

NVH Troubleshooting Chart  ..................................... 4

CLUTCH PEDAL  ........................................................ 5

On-Vehicle Inspection and Adjustment  .................... 5
Removal and Installation  .......................................... 6

COMPONENTS .................................................... 6
REMOVAL ............................................................. 6
INSPECTION AFTER REMOVAL  ......................... 6
INSTALLATION ..................................................... 6

CLUTCH FLUID  .......................................................... 7

Bleeding ................................................................... 7

CLUTCH MASTER CYLINDER  .................................. 8

Components ............................................................. 8
Removal and Installation  .......................................... 8

REMOVAL ............................................................. 8
INSTALLATION ..................................................... 9

Disassembly and Assembly  ..................................... 9

DISASSEMBLY ..................................................... 9
INSPECTION AFTER DISASSEMBLY  ............... 10
ASSEMBLY ......................................................... 10

OPERATING CYLINDER ...........................................11

Components ............................................................11

Removal and Installation  ........................................ 11

REMOVAL ........................................................... 11
INSTALLATION ................................................... 11

Disassembly and Assembly .................................... 11

DISASSEMBLY ................................................... 11
INSPECTION AFTER DISASSEMBLY ................ 11
ASSEMBLY ......................................................... 12

CLUTCH PIPING ....................................................... 13

Removal and Installation  ........................................ 13

CLUTCH RELEASE MECHANISM ........................... 14

Removal and Installation  ........................................ 14

COMPONENTS ................................................... 14
REMOVAL ........................................................... 14
INSPECTION AFTER REMOVAL  ....................... 14
INSTALLATION ................................................... 15

CLUTCH DISC, CLUTCH COVER ............................ 16

Removal and Installation  ........................................ 16

COMPONENTS ................................................... 16
REMOVAL ........................................................... 16
INSPECTION AND ADJUSTMENT AFTER
REMOVAL ........................................................... 16
INSTALLATION ................................................... 17

SERVICE DATA AND SPECIFICATIONS (SDS)  ...... 18

Clutch Control System ............................................ 18
Clutch Master Cylinder  ........................................... 18
Clutch Operating Cylinder  ...................................... 18
Clutch Disc  ............................................................. 18
Clutch Cover ........................................................... 18
Clutch Pedal  ........................................................... 18

CL-2

PRECAUTIONS

PRECAUTIONS

PFP:00001

Precautions for Battery Service

NCS0009V

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

Service Notice or Precaution

NCS0009W

●

Recommended fluid is brake fluid “DOT 3”. Refer to

MA-10, "RECOMMENDED FLUIDS AND LUBRI-

CANTS"

 .

●

Never reuse drained brake fluid.

●

Be careful not to splash brake fluid on painted areas.

●

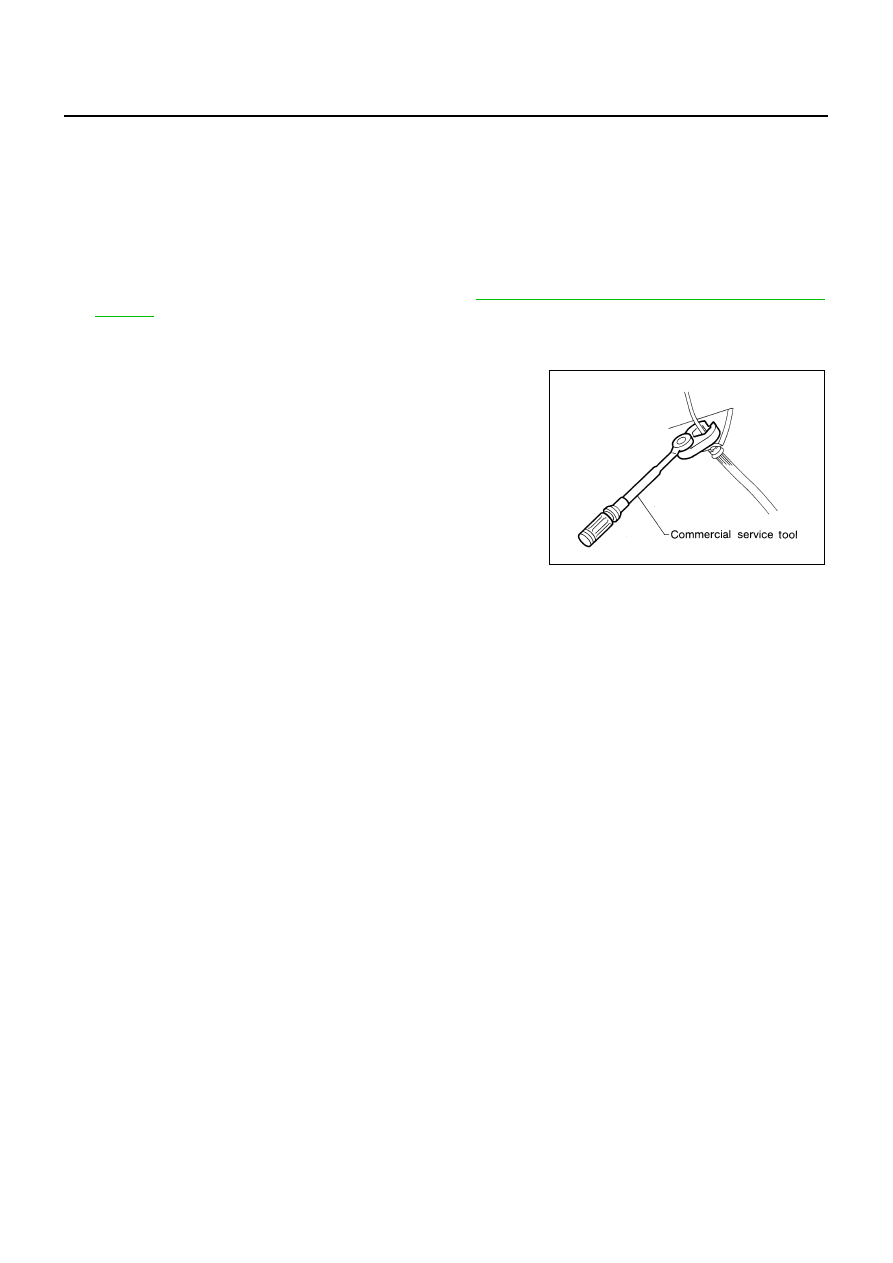

When removing and installing clutch piping, use Tool.

●

Use new brake fluid to clean or wash all parts of master cylinder
and operating cylinder.

●

Never use mineral oils such as gasoline or kerosene. It will ruin
the rubber parts of the hydraulic system.

WARNING:

After cleaning clutch disc, wipe it with a dust collector. Do not
use compressed air.

SBR686C

PREPARATION

CL-3

D

E

F

G

H

I

J

K

L

M

A

B

CL

PREPARATION

PFP:00002

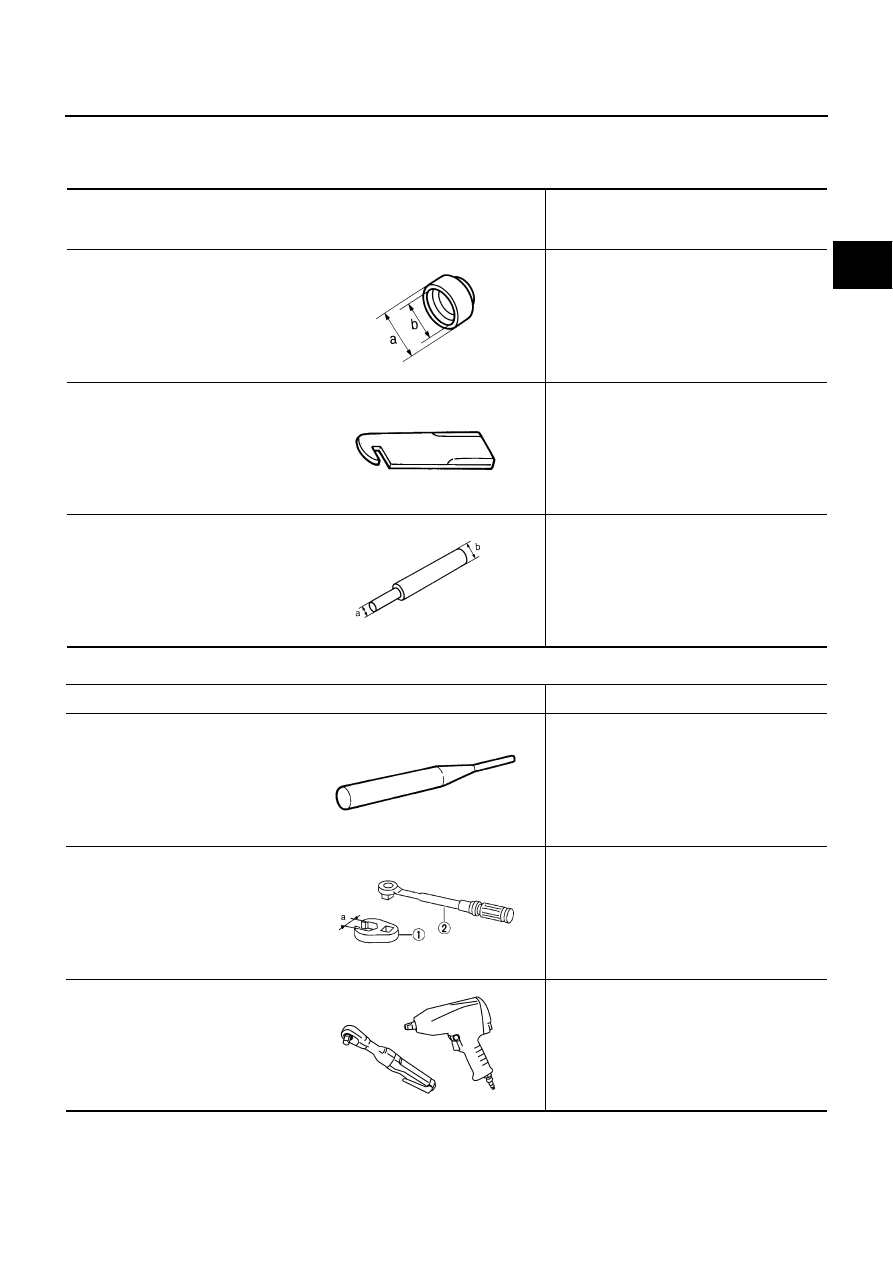

Special Service Tools

NCS0009X

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

NCS0009Y

Tool number
(Kent-Moore No.)
Tool name

Description

KV30101400
(

—

)

Drift
a: 51 mm (2.01 in) dia.
b: 44 mm (1.73 in) dia.

Installing release bearing

ST20050240
(

—

)

Diaphragm adjusting wrench

Adjusting unevenness of diaphragm spring of
clutch cover

ST20670000
(

—

)

Clutch aligning bar
a: 15 mm (0.59 in) dia.
b: 23 mm (0.91 in) dia.

Installing clutch disc

ZZA0838D

ZZA0508D

ZZA1178D

Tool name

Description

Pin punch
Tip diameter: 4.5 mm (0.177 in) dia.

Removing and installing master cylinder
spring pin

1.  Flare nut crowfoot

a: 10 mm (0.39 in)

2. Torque wrench

Removing and installing clutch piping

Power tool

Loosening bolts and nuts

ZZA0515D

S-NT360

PBIC0190E

CL-4
