BODY REPAIR

BL-247

C

D

E

F

G

H

J

K

L

M

A

B

BL

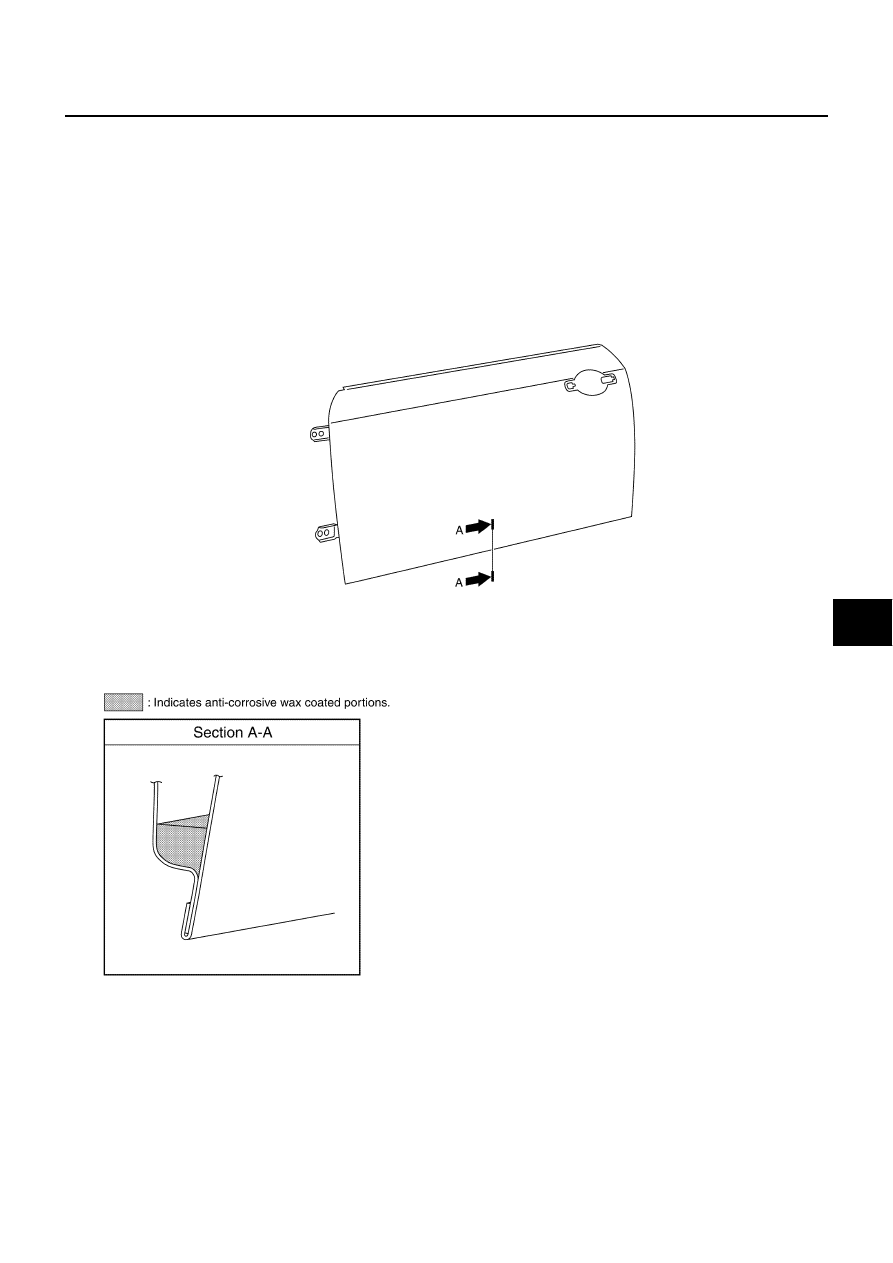

ANTI-CORROSIVE WAX

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-
tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of
the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf
life.

SIIA2131E

BL-248

BODY REPAIR

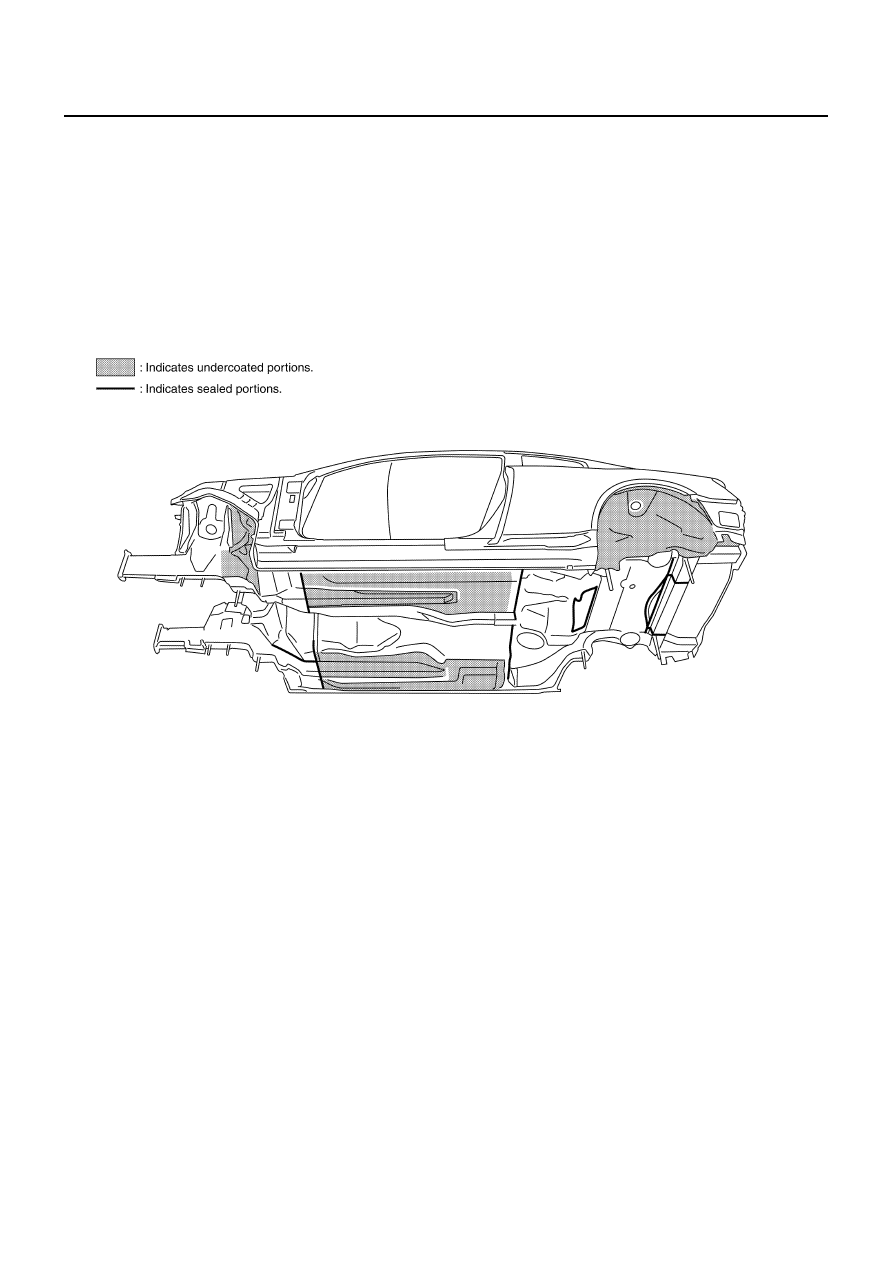

UNDERCOATING

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-
ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-
ing which is rust preventive, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

Precautions in Undercoating

1.

Do not apply undercoating to any place unless specified (such as the areas above the muffler and three
way catalyst which are subjected to heat).

2.

Do not undercoat the exhaust pipe or other parts which become hot.

3.

Do not undercoat rotating parts.

4.

Apply bitumen wax after applying undercoating.

5.

After putting seal on the vehicle, put undercoating on it.

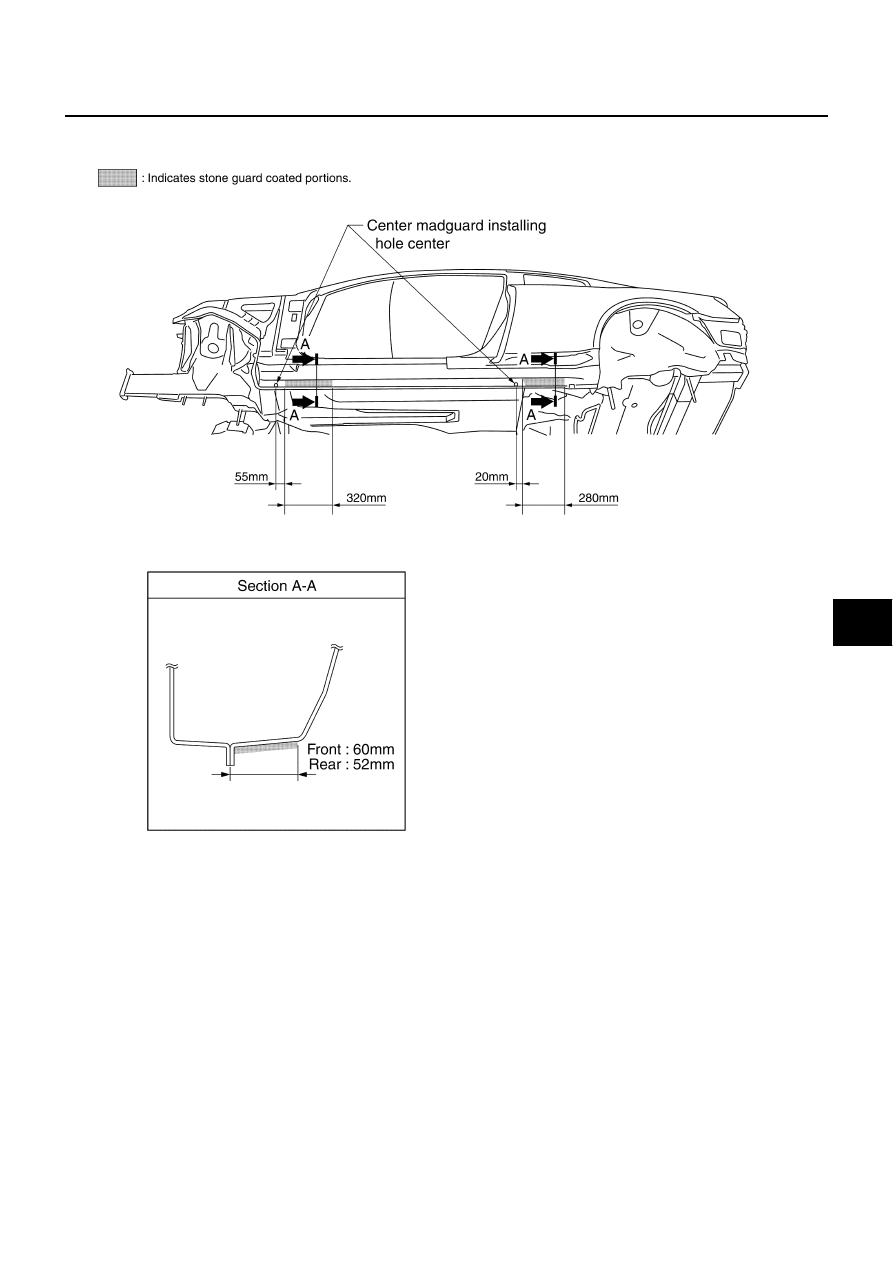

STONE GUARD COAT

To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an additional layer
of Stone Guard Coating over the ED primer coating. When replacing or repairing these panels, apply Stone

SIIA2132E

BODY REPAIR

BL-249

C

D

E

F

G

H

J

K

L

M

A

B

BL

Guard coating to the same portions as before. Use a coating which is rust preventive, durable, shock-resistant
and has a long shelf life.

SIIA2133E

BL-250

BODY REPAIR

Body Sealing

NIS000DP

DESCRIPTION

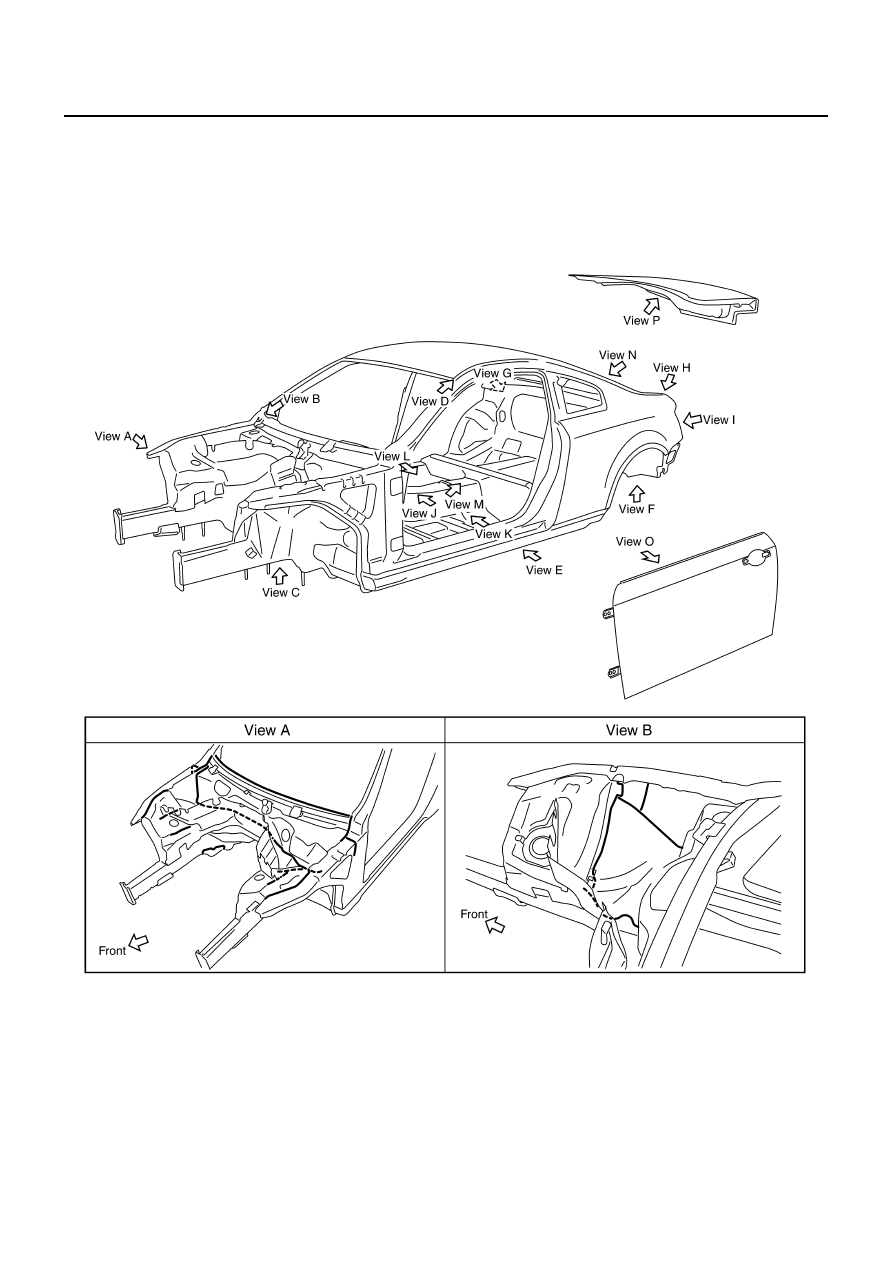

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these
areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of
sealant and not to allow other unaffected parts to come into contact with the sealant.

SIIA2134E
