BCM (BODY CONTROL MODULE)

BCS-11

C

D

E

F

G

H

I

J

L

M

A

B

BCS

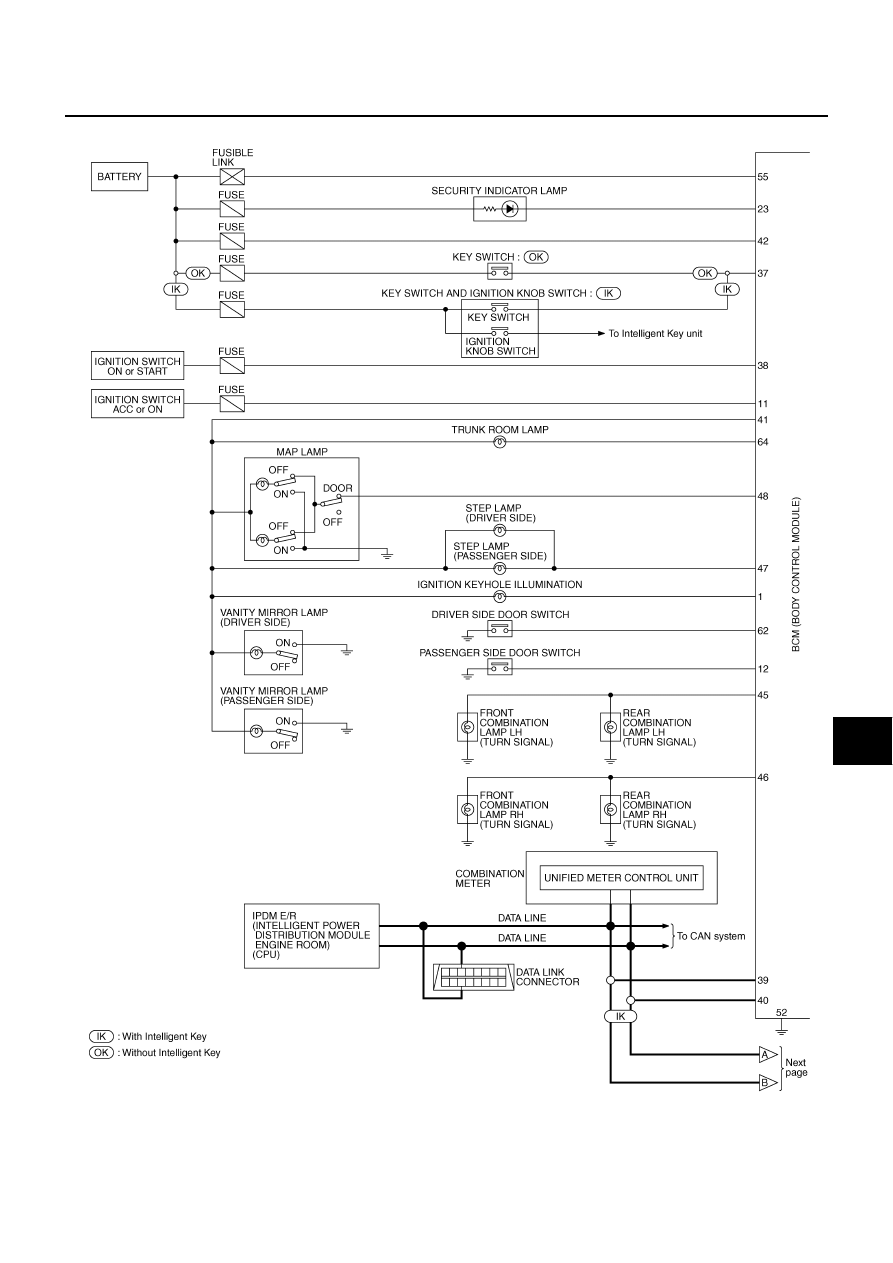

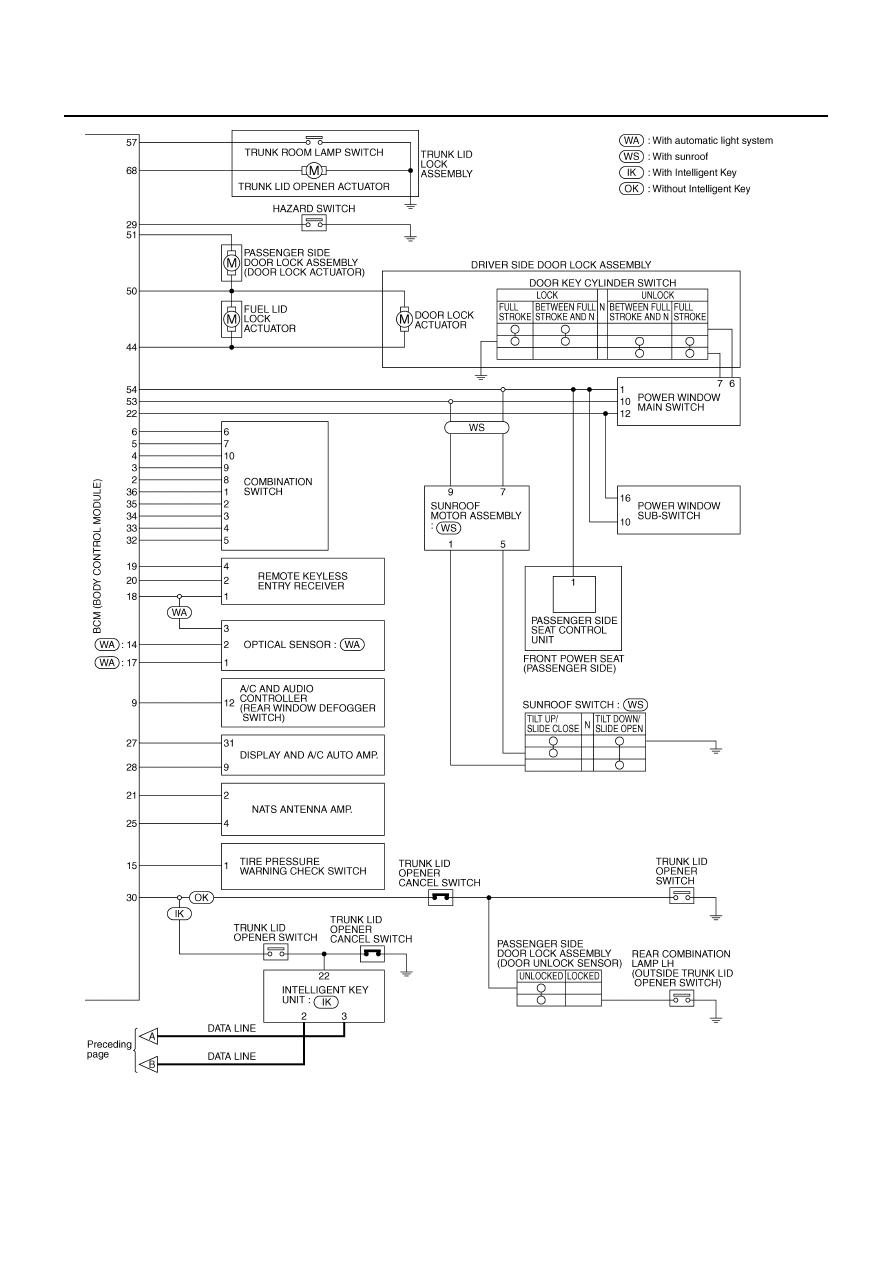

Schematic

NKS000N1

TKWM3493E

BCS-12

BCM (BODY CONTROL MODULE)

TKWM4939E

BCM (BODY CONTROL MODULE)

BCS-13

C

D

E

F

G

H

I

J

L

M

A

B

BCS

CONSULT-II Function (BCM)

NKS000N2

CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.

CONSULT–II BASIC OPERATION

Refer to

GI-37, "CONSULT-II Start Procedure"

 .

ITEMS OF EACH PART

NOTE:
CONSULT-II displays systems equipped in the vehicle.

×

:Applicable

BCM diagnostic test item

Check item, diagnostic test mode

Content

Inspection by part

WORK SUPPORT

Changes setting of each function.

SELF- DIAG RESULTS

BCM performs self-diagnosis of CAN communication.

DATA MONITOR

Displays the input data of BCM in real time.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can
be read.

ACTIVE TEST

Gives a drive signal to a load to check the operation.

ECU PART NUMBER

BCM part number can be read.

CONFIGURATION

(Not be used.)

System and item

CONSULT-II display

Diagnostic test mode (Inspection by part)

WORK

SUPPORT

SELF

−

DIAG

RESULTS

DATA

MONI-

TOR

CAN

DIAG
SUP-

PORT

MNTR

ACTIVE

TEST

ECU

PART

NUMBER

CON-

FIGU-

RATION

BCM

BCM

×

×

×

×

×

Note

Power door lock system

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Room lamp timer

INT LAMP

×

×

×

Remote keyless entry sys-
tem

MULTI REMOTE ENT

×

×

×

Headlamp

HEAD LAMP

×

×

×

Wiper

WIPER

×

×

×

Turn signal lamp
Hazard lamp

FLASHER

×

×

Blower fan switch signal
A/C switch signal

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

Combination switch

COMB SW

×

IVIS

IMMU

×

×

Interior lamp battery saver

BATTERY SAVER

×

×



×



Trunk lid opener

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

Retained power control

RETAINED PWR

×

×

×

Oil pressure switch

SIGNAL BUFFER

×

×

Low tire pressure warning
system

AIR PRESSURE
MONITOR

×

×

×

×

Panic system

PANIC ALARM

×

BCS-14

BCM (BODY CONTROL MODULE)

NOTE:
This item is displayed, but should not be used.
