ON-VEHICLE SERVICE

AT-243

D

E

F

G

H

I

J

K

L

M

A

B

AT

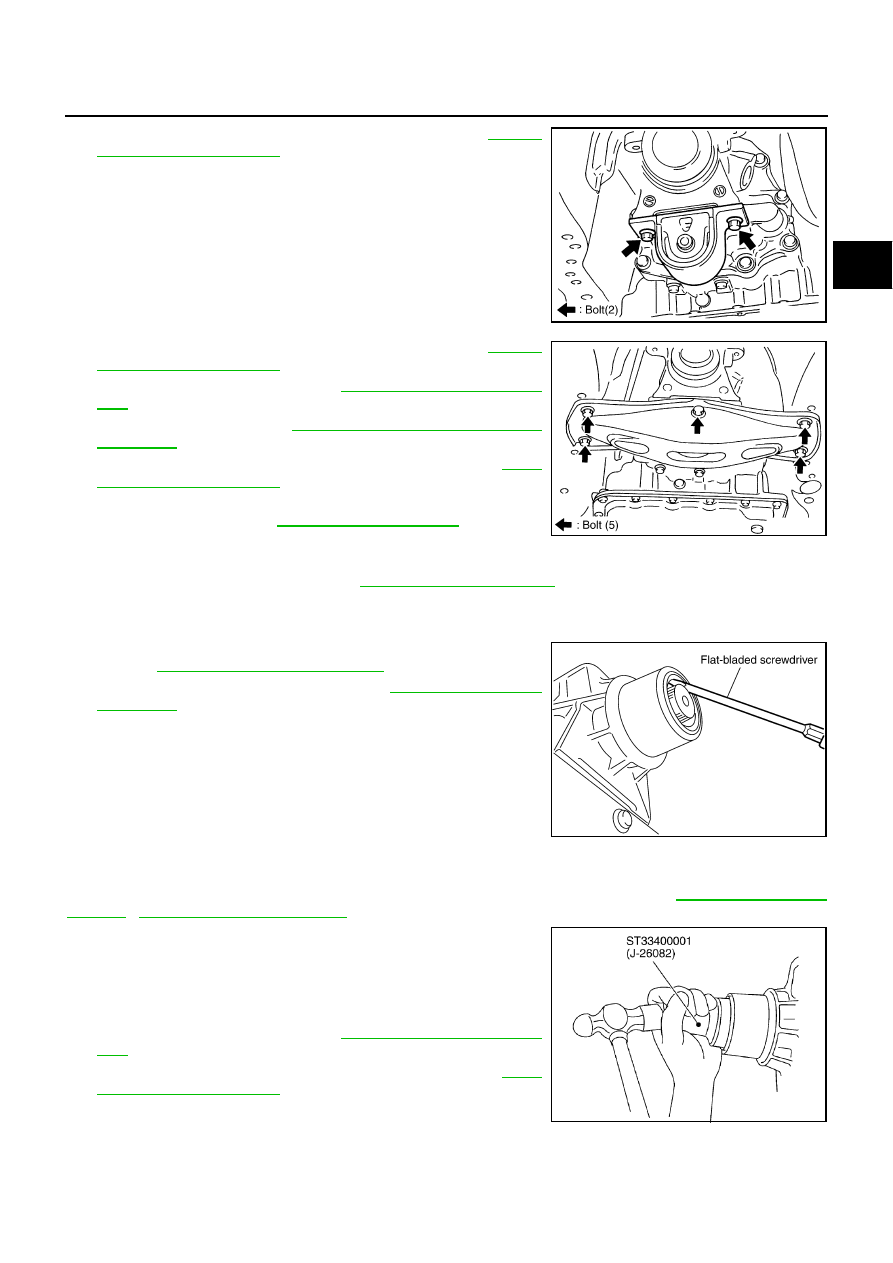

13. Install engine mounting insulator (rear). Refer to

AT-251,

"Removal and Installation"

 .

14. Install rear engine mounting member. Refer to

AT-251,

"Removal and Installation"

 .

15. Install rear propeller shaft. Refer to

PR-4, "Removal and Installa-

tion"

 .

16. Install control rod. Refer to

AT-215, "Control Rod Removal and

Installation"

 .

17. Install exhaust front tube and center muffler. Refer to

EX-3,

"Removal and Installation"

 .

18. Install drain plug to oil pan, and then tighten drain plug to the

specified torque. Refer to

AT-225, "COMPONENTS"

 .

CAUTION:

Do not reuse drain plug gasket.

19. Pour ATF into A/T assembly. Refer to

AT-12, "Changing A/T Fluid"

 .

Rear Oil Seal

NCS000IX

REMOVAL

1.

Remove exhaust front tube and center muffler with power tool.
Refer to

EX-3, "Removal and Installation"

 .

2.

Remove rear propeller shaft. Refer to

PR-4, "Removal and

Installation"

 .

3.

Remove rear oil seal using a flat-bladed screwdriver.

CAUTION:

Be careful not to scratch rear extension assembly.

INSTALLATION

CAUTION:

After completing installation, check A/T fluid leakage and A/T fluid level. Refer to

AT-12, "Changing A/

T Fluid"

 ,

AT-12, "Checking A/T Fluid"

 .

1.

As shown in the figure, use the drift to drive rear oil seal into rear
extension assembly until it is flush.

CAUTION:

●

Do not reuse rear oil seal.

●

Apply ATF to rear oil seal.

2.

Install rear propeller shaft. Refer to

PR-4, "Removal and Installa-

tion"

 .

3.

Install exhaust front tube and center muffler. Refer to

EX-3,

"Removal and Installation"

 .

SCIA6258E

SCIA6257E

SCIA3428E

SCIA5310E

AT-244

ON-VEHICLE SERVICE

Revolution Sensor

NCS000IY

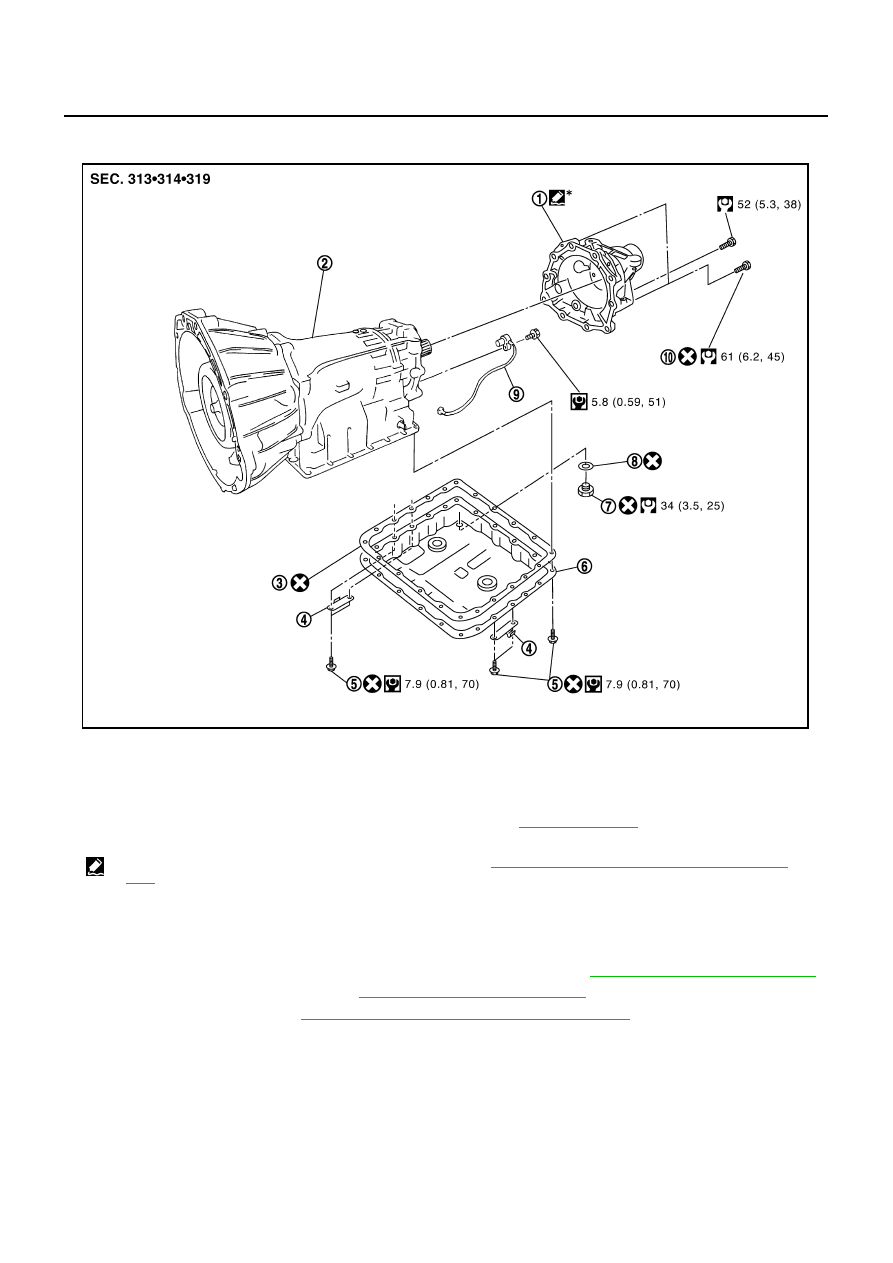

COMPONENTS

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Drain ATF through drain plug.

3.

Remove exhaust front tube and center muffler with power tool. Refer to

EX-3, "Removal and Installation"

 .

4.

Remove rear propeller shaft. Refer to

PR-4, "Removal and Installation"

 .

5.

Remove control rod. Refer to

AT-215, "Control Rod Removal and Installation"

 .

1.

Rear extension

2.

A/T

3.

Oil pan gasket

4.

Clip

5.

Oil pan mounting bolt

6.

Oil pan

7.

Drain plug

8.

Drain plug gasket

9.

Revolution sensor

10.

Self-sealing bolt

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-10, "Components"

 .

However, refer to the following symbols for others.

*

: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-46, "Recommended Chemical Products and Seal-

ants"

 .

SCIA8043E

ON-VEHICLE SERVICE

AT-245

D

E

F

G

H

I

J

K

L

M

A

B

AT

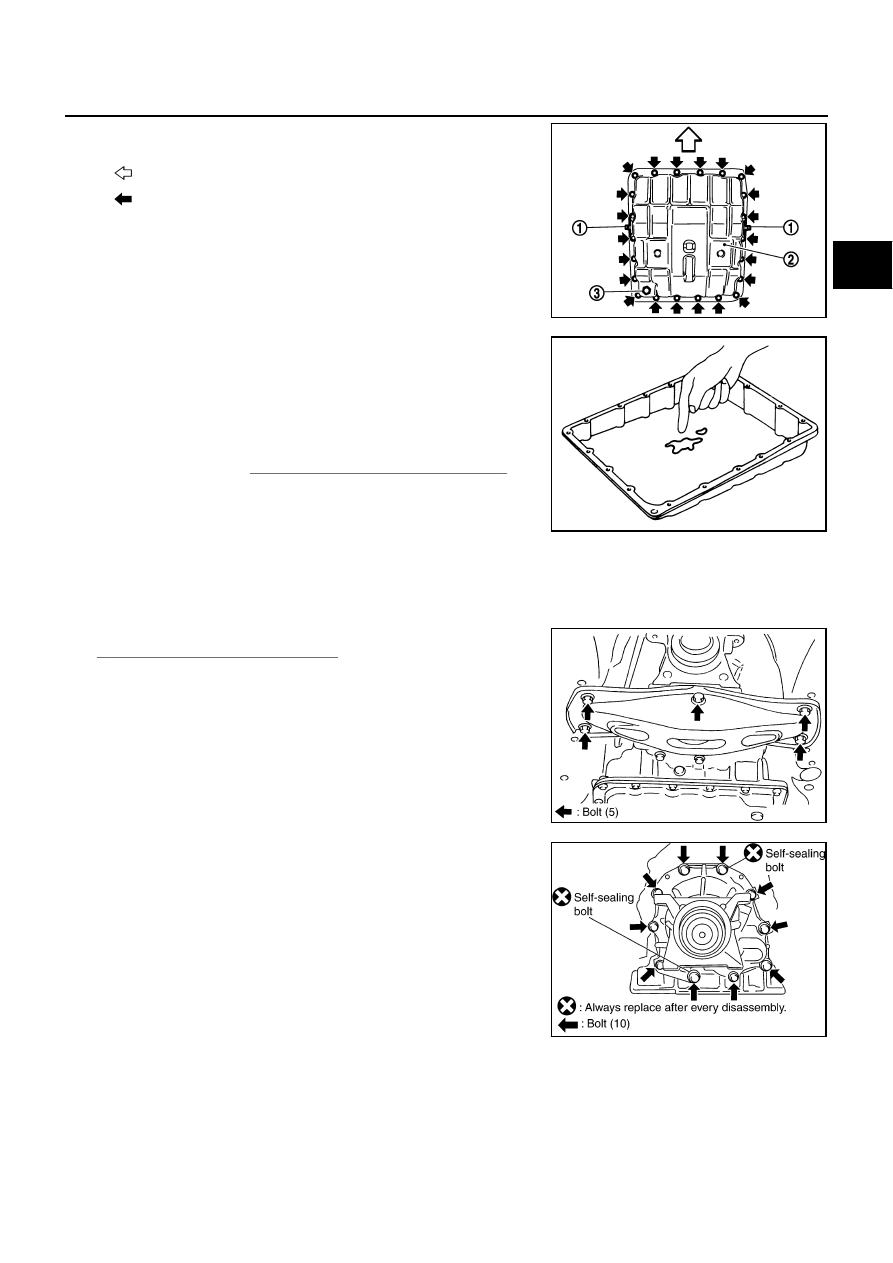

6.

Remove clips (1).

7.

Remove oil pan (2) and oil pan gasket.

●

: Vehicle front

●

: Bolt (22)

●

Drain plug (3)

8.

Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish build up. Varnish can cause valves, servo, and clutches
to stick and can inhibit pump pressure.

●

If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to

AT-14, "A/T Fluid Cooler Cleaning"

.

9.

Support A/T assembly with a transmission jack.

CAUTION:

When setting transmission jack, place wooden blocks to prevent from damaging control valve
with TCM and transmission case.

10. Remove rear engine mounting member with power tool. Refer to

AT-251, "Removal and Installation"

 .

11. Remove tightening bolts for rear extension assembly and trans-

mission case.

SCIA8117E

SCIA5199E

SCIA6257E

SCIA6941E

AT-246

ON-VEHICLE SERVICE

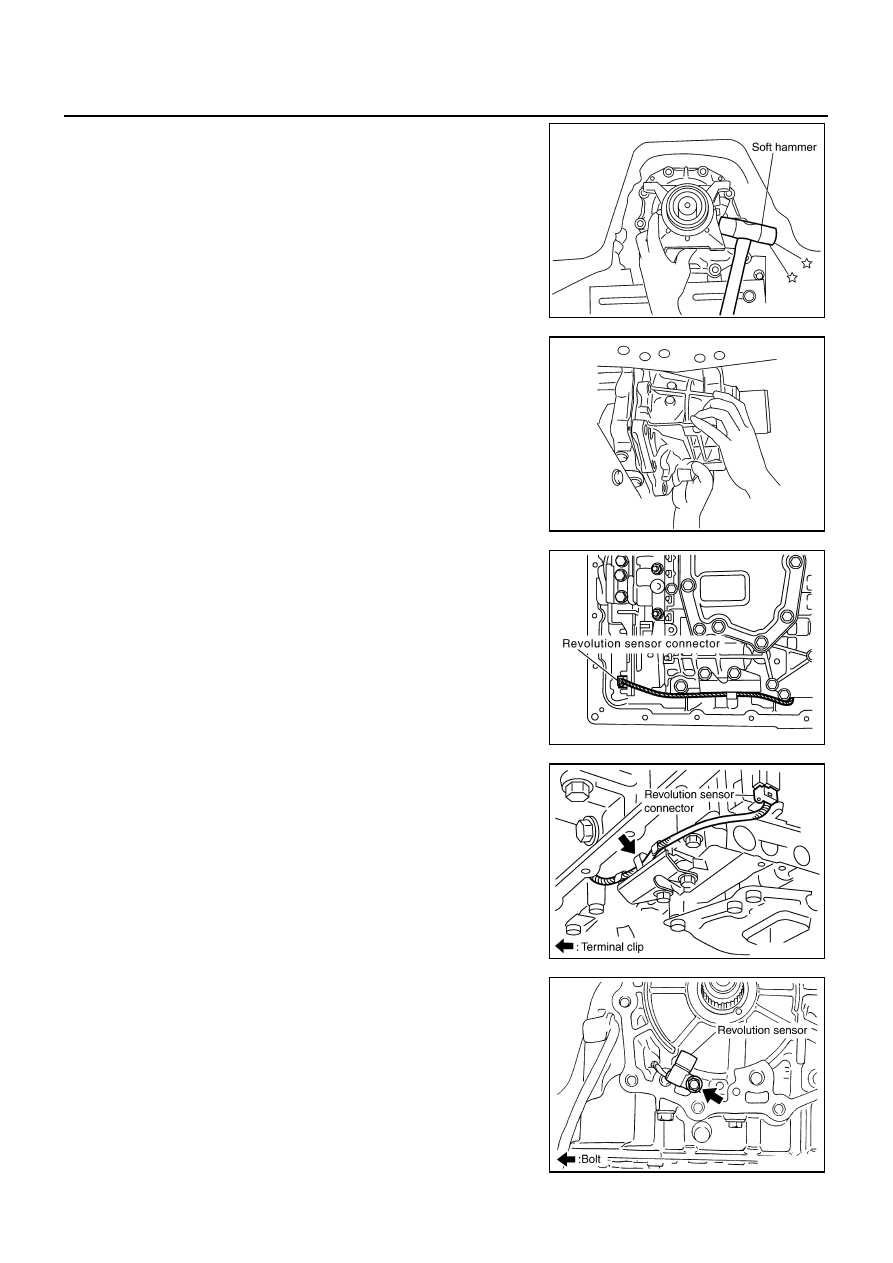

12. Tap rear extension assembly with a soft hammer.

13. Remove rear extension assembly from transmission case. (With

needle bearing.)

14. Disconnect revolution sensor connector.

CAUTION:

Be careful not to damage connector.

15. Straighten terminal clip to free revolution sensor harness.

16. Remove revolution sensor from transmission case.

CAUTION:

●

Do not subject it to impact by dropping or hitting it.

●

Do not disassemble.

●

Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.

●

Do not place in an area affected by magnetism.

SCIA3432E

SCIA3431E

SCIA7524E

SCIA7525E

SCIA3997E
