ON-VEHICLE SERVICE

AT-235

D

E

F

G

H

I

J

K

L

M

A

B

AT

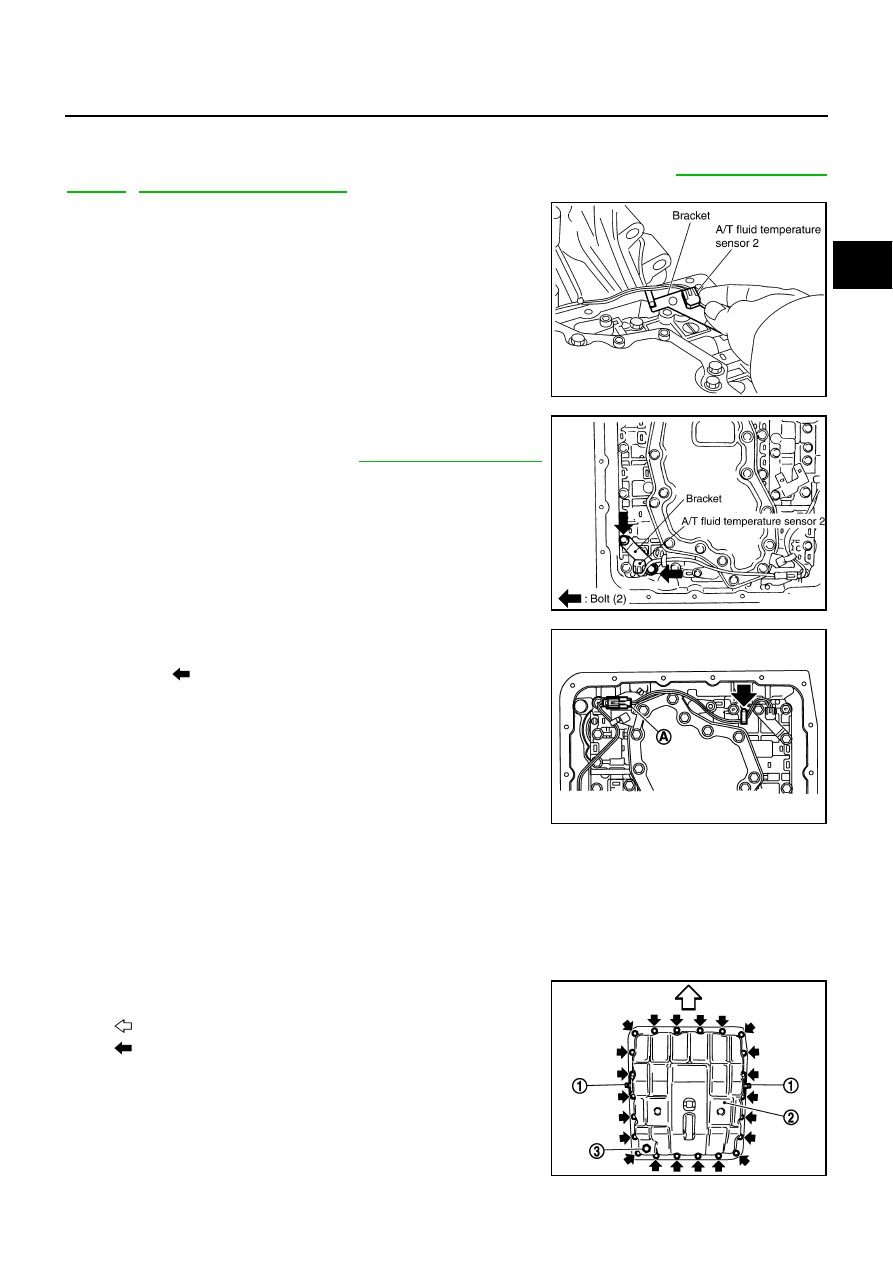

Installation

CAUTION:

After completing installation, check A/T fluid leakage and A/T fluid level. Refer to

AT-12, "Changing A/

T Fluid"

 ,

AT-12, "Checking A/T Fluid"

 .

1.

Install A/T fluid temperature sensor 2 to bracket.

2.

Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM, and then tighten A/T fluid temperature sensor 2
bolts to the specified torque. Refer to

AT-225, "COMPONENTS"

.

3.

Connect A/T fluid temperature sensor 2 connector (A).

4.

Securely fasten A/T fluid temperature sensor 2 harness with ter-
minal clip (

).

5.

Install oil pan to transmission case.

a.

Install oil pan gasket to oil pan.

CAUTION:

●

Do not reuse oil pan gasket.

●

Install it in the direction to align hole positions.

●

Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.

b.

Install oil pan (2) (with oil pan gasket) and clips (1) to transmis-
sion case.

●

: Vehicle front

●

: Bolt (22)

CAUTION:

●

Install it so that drain plug (3) comes to the position as
shown in the figure.

●

Be careful not to pinch harnesses.

●

Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.

SCIA5264E

SCIA5302E

SCIA8125E

SCIA8117E

AT-236

ON-VEHICLE SERVICE

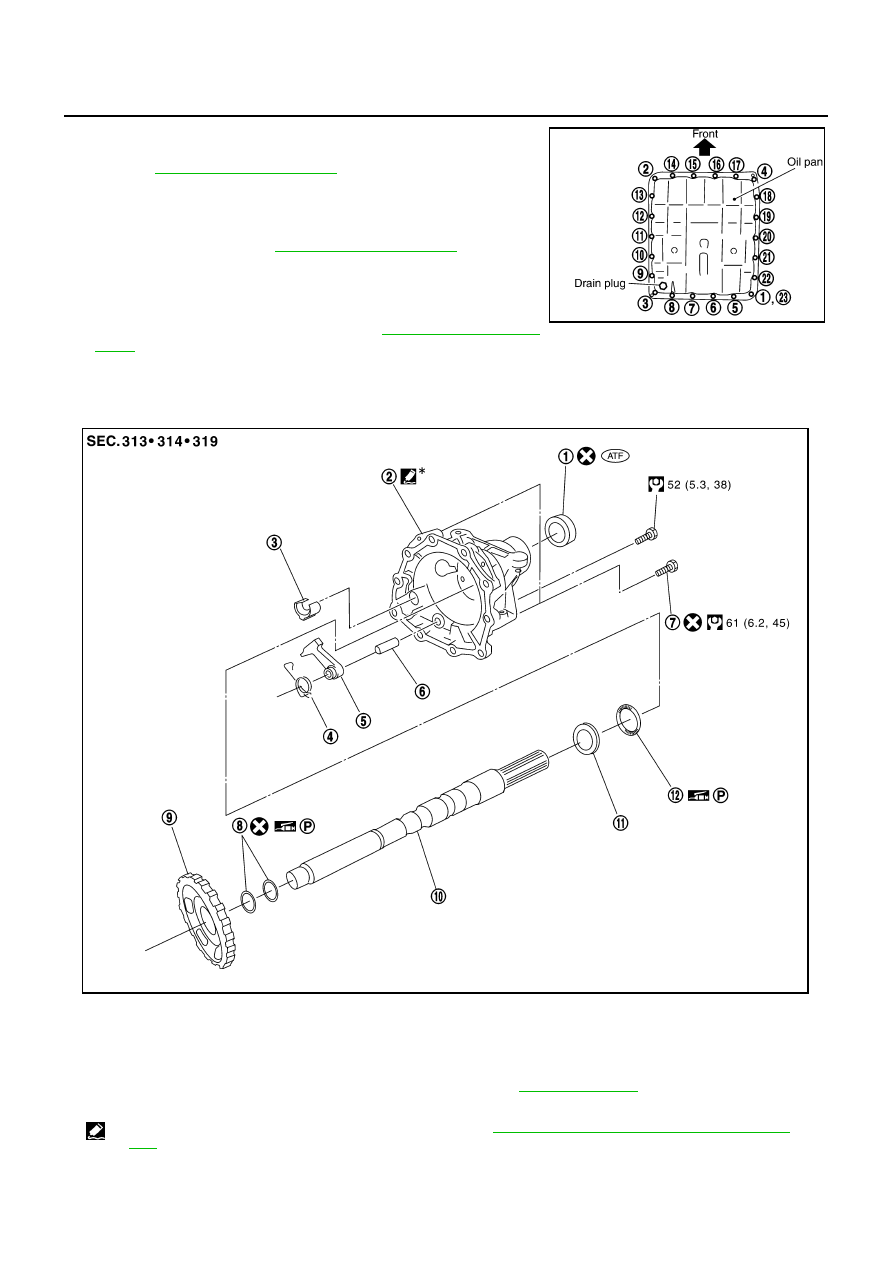

c.

Tighten oil pan mounting bolts to the specified torque in numeri-
cal order shown in the figure after temporarily tightening them.
Refer to

AT-225, "COMPONENTS"

 .

CAUTION:

Do not reuse oil pan mounting bolts.

6.

Install drain plug to oil pan, and then tighten drain plug to the
specified torque. Refer to

AT-225, "COMPONENTS"

 .

CAUTION:

Do not reuse drain plug gasket.

7.

Connect heated oxygen sensor 2 harness connector.

8.

Pour ATF into A/T assembly. Refer to

AT-12, "Changing A/T

Fluid"

 .

9.

Connect the battery cable to the negative terminal.

Parking Components

NCS000IW

COMPONENTS

SCIA4113E

1.

Rear oil seal

2.

Rear extension

3.

Parking actuator support

4.

Return spring

5.

Parking pawl

6.

Pawl shaft

7.

Self-sealing bolt

8.

Seal ring

9.

Parking gear

10.

Output shaft

11.

Bearing race

12. Needle bearing

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-10, "Components"

 .

However, refer to the following symbols for others.

*

: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-46, "Recommended Chemical Products and Seal-

ants"

 .

SCIA7030E

ON-VEHICLE SERVICE

AT-237

D

E

F

G

H

I

J

K

L

M

A

B

AT

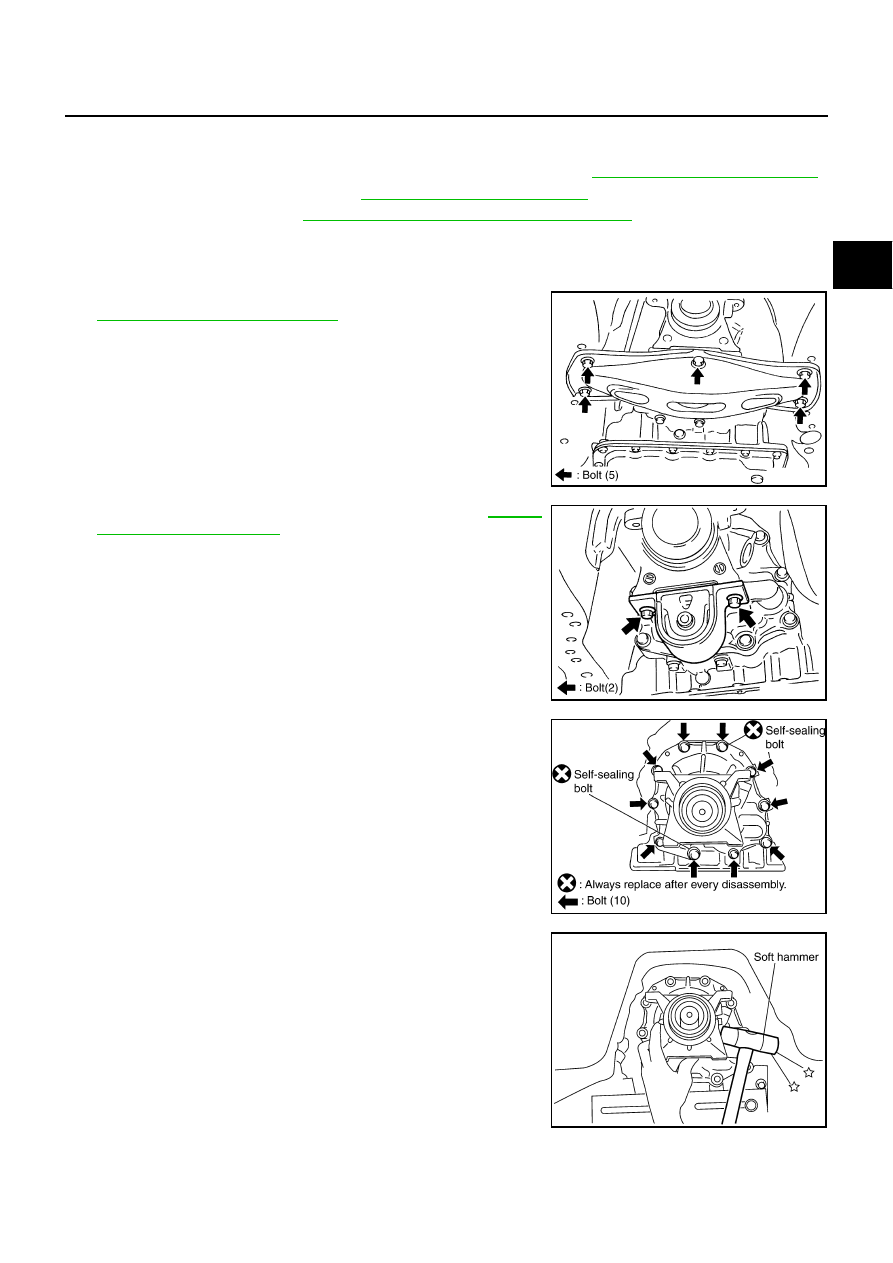

REMOVAL

1.

Drain ATF through drain plug.

2.

Remove exhaust front tube and center muffler with power tool. Refer to

EX-3, "Removal and Installation"

 .

3.

Remove rear propeller shaft. Refer to

PR-4, "Removal and Installation"

 .

4.

Remove control rod. Refer to

AT-215, "Control Rod Removal and Installation"

 .

5.

Support A/T assembly with a transmission jack.

CAUTION:

When setting transmission jack, be careful not to allow it to collide against the drain plug.

6.

Remove rear engine mounting member with power tool. Refer to

AT-251, "Removal and Installation"

 .

7.

Remove engine mounting insulator (rear). Refer to

AT-251,

"Removal and Installation"

 .

8.

Remove tightening bolts for rear extension assembly and trans-
mission case.

9.

Tap rear extension assembly with a soft hammer.

SCIA6257E

SCIA6258E

SCIA6941E

SCIA3432E

AT-238

ON-VEHICLE SERVICE

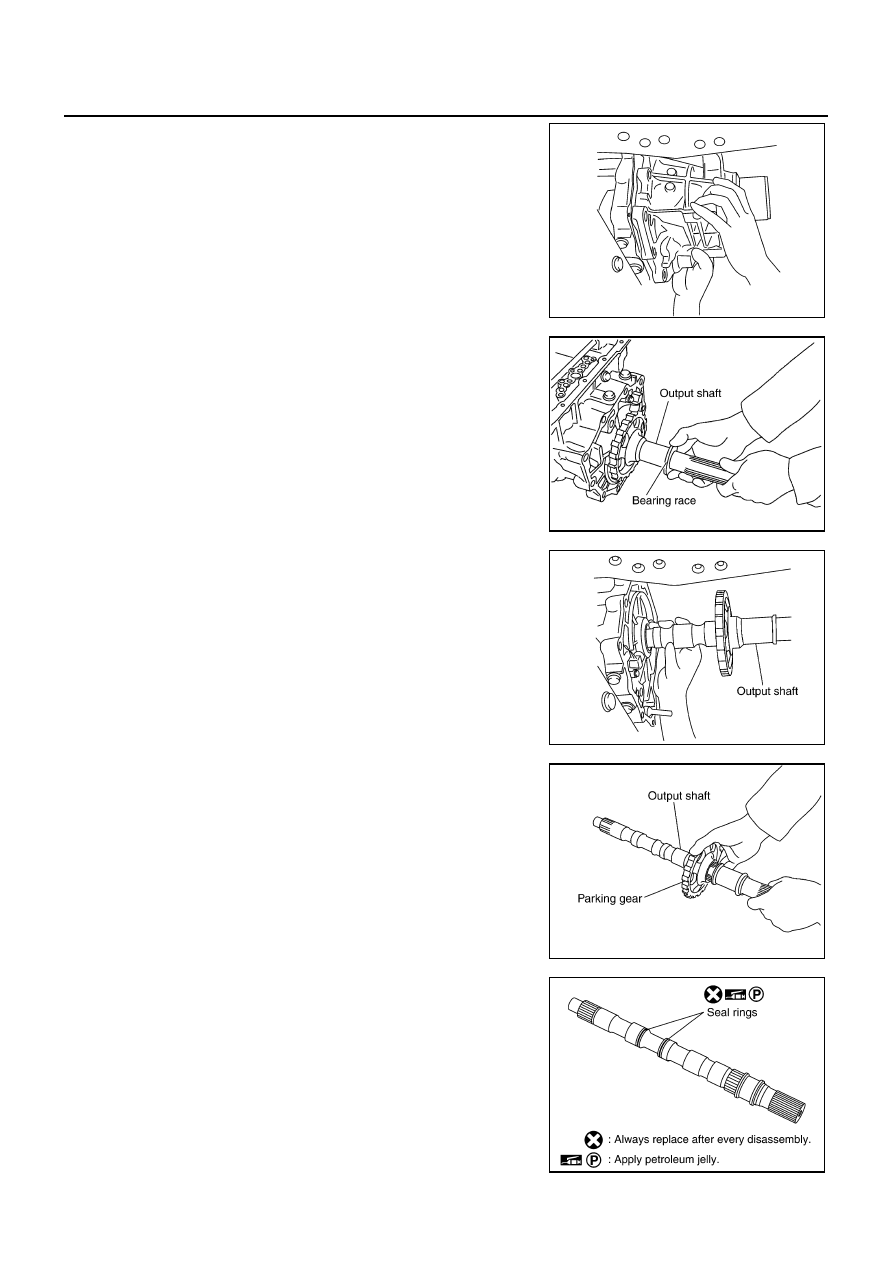

10. Remove rear extension assembly from transmission case. (With

needle bearing.)

11. Remove bearing race from output shaft.

12. Remove output shaft from transmission case by rotating left/

right.

13. Remove parking gear from output shaft.

14. Remove seal rings from output shaft.

SCIA3431E

SCIA5245E

SCIA5246E

SCIA5247E

SCIA5209E
