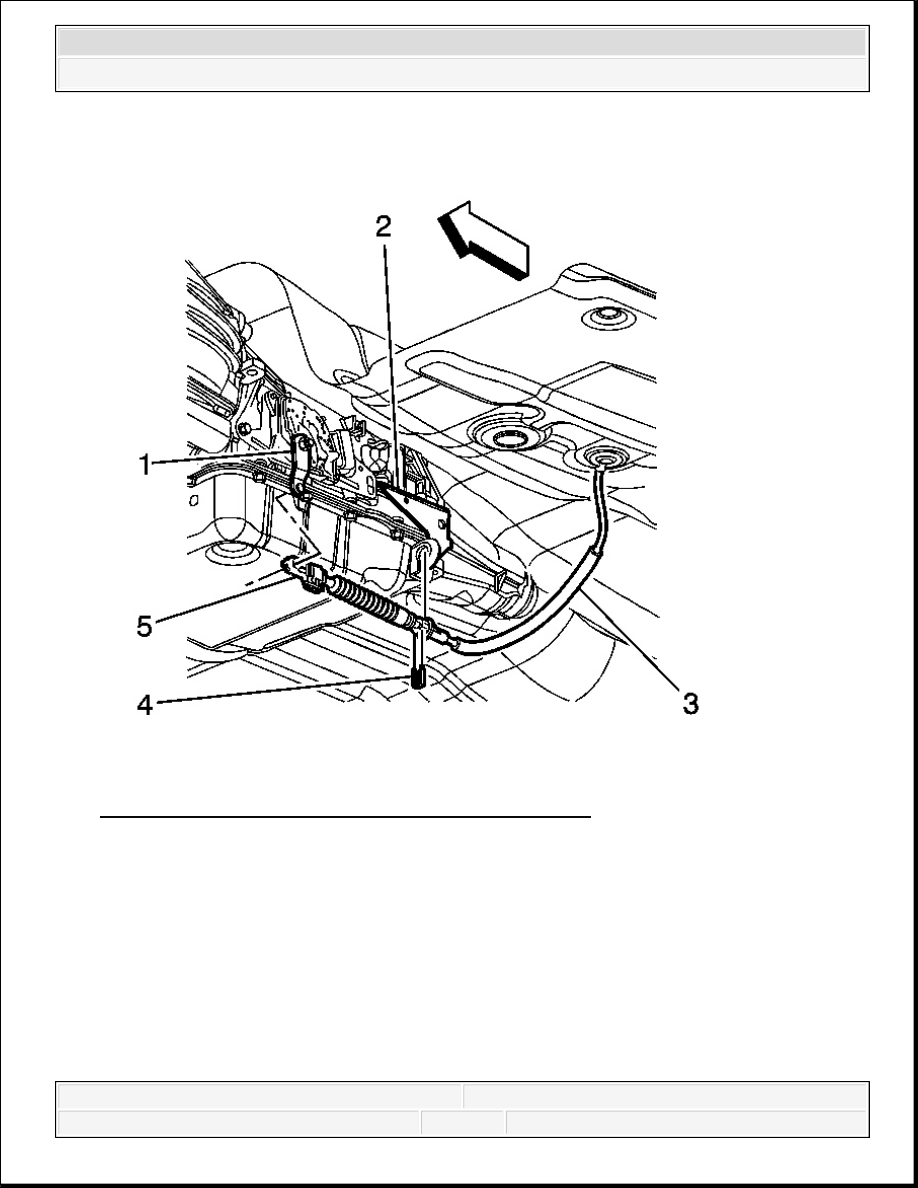

Fig. 30: View Of Range Selector Cable & Components
Courtesy of GENERAL MOTORS CORP.

3. Complete the following in order to disconnect the range selector cable (3) from the

transmission range selector lever ball stud.

1. Insert a flat-bladed tool between the range selector cable end (5) and the range

selector lever (1).

2. Pry the range selector cable end (5) away from the range selector lever (1).

4. Remove the retainer (4) from the range selector cable (3).

IMPORTANT: Do not pull on the boot portion of the cable.

2007 Hummer H3

2007 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - H3

5. Push the range selector cable locking tabs inward toward each other to release from the

bracket (2).

6. Lower the vehicle.

7. Remove the cowl side trim panel. Refer to Cowl Side Trim Panel Replacement .

8. Pull the driver side carpet up, enough to access the range selector cable.

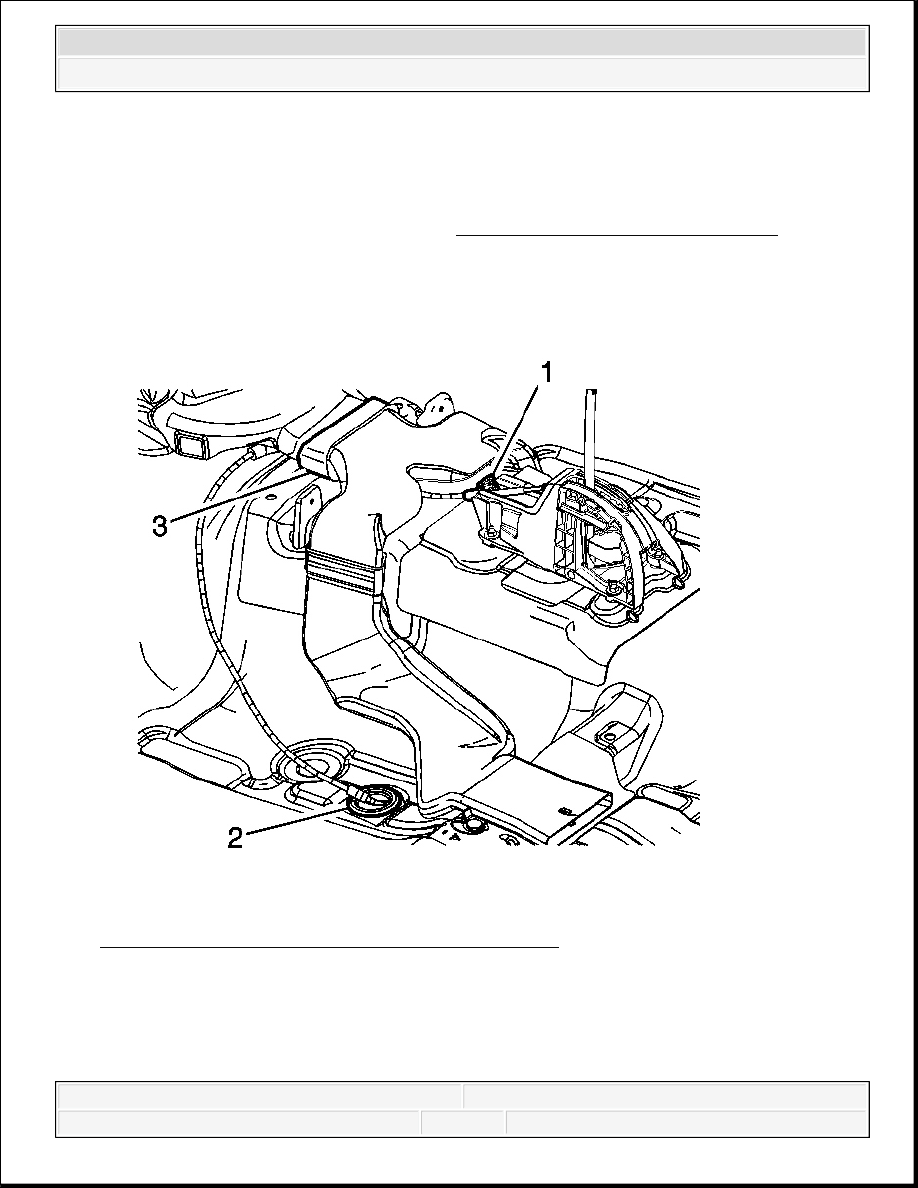

Fig. 31: Identifying Cable & Floor Panel Grommet
Courtesy of GENERAL MOTORS CORP.

9. Pull the cable grommet (2) up through the floor panel.

10. Make note of the cable routing under the heat duct (3).

2007 Hummer H3

2007 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - H3

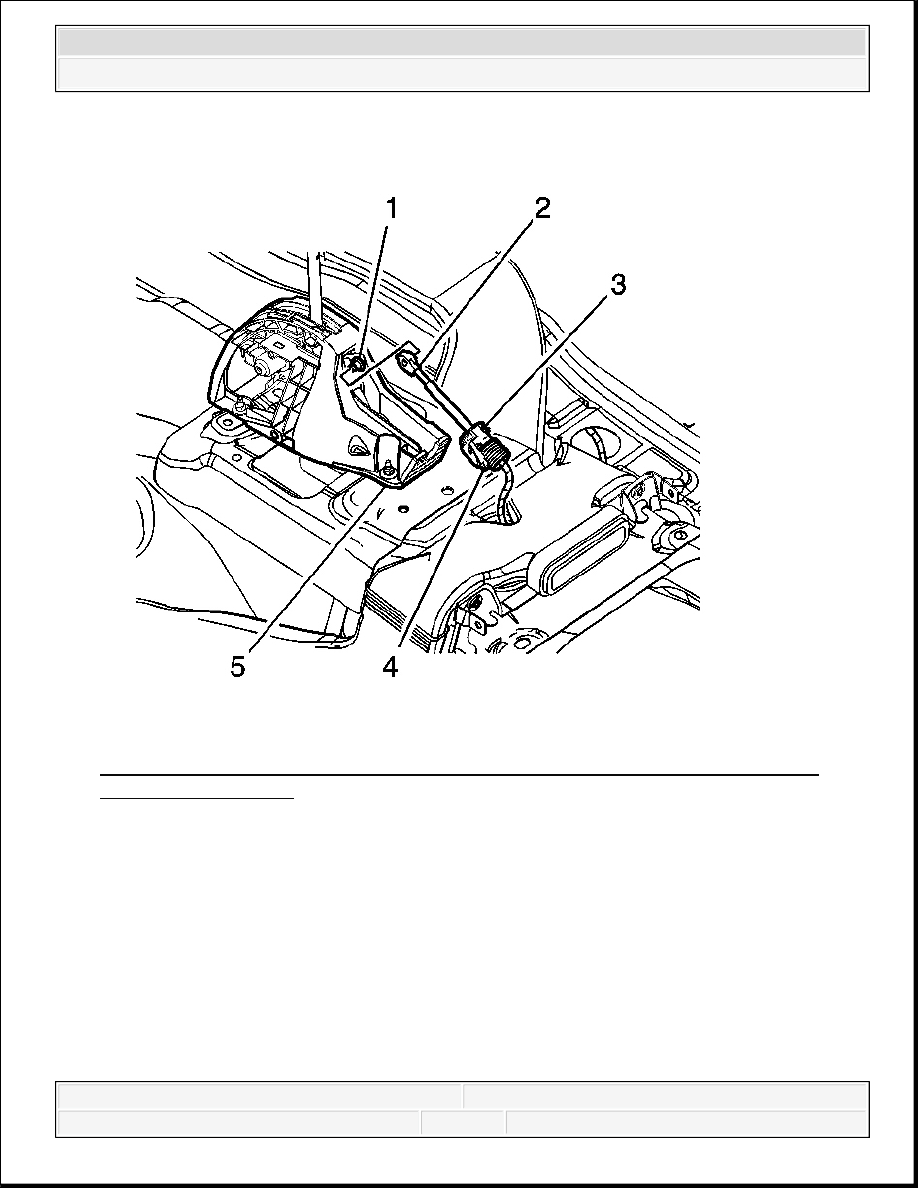

Fig. 32: View Of Transmission Range Selector Lever, Shift Control Assembly &
Range Selector Cable
Courtesy of GENERAL MOTORS CORP.

11. Use a flat-bladed tool to separate the range selector cable (2) from the transmission range

selector lever ball stud (1).

12. Release the cable retainer (4) from the shift control assembly (5).

13. Remove the range selector cable (3) from the vehicle.

Installation Procedure

2007 Hummer H3

2007 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - H3

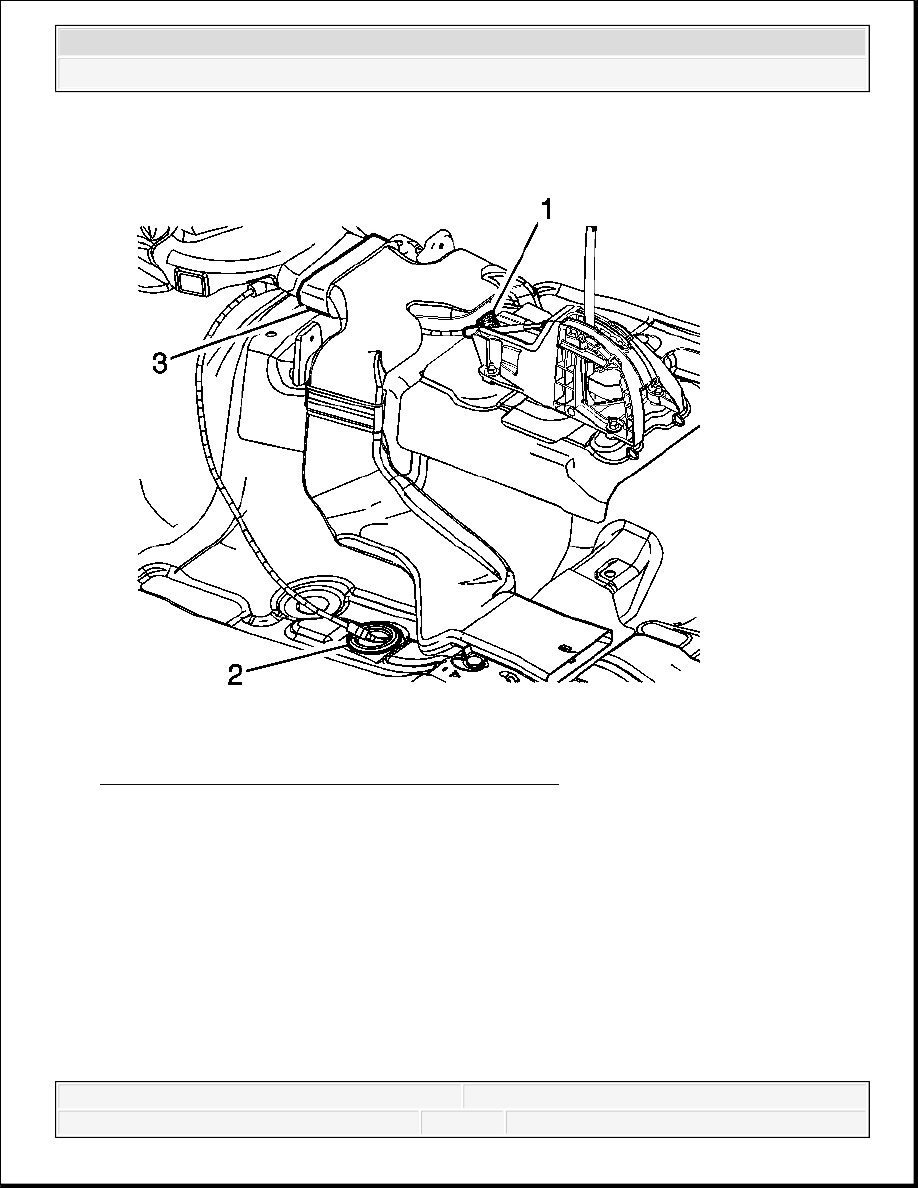

Fig. 33: Identifying Cable & Floor Panel Grommet
Courtesy of GENERAL MOTORS CORP.

1. Insert the range selector cable through the floor panel and seat the cable grommet (2).

2. Route the range selector cable under the heat duct (3).

2007 Hummer H3

2007 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - H3
