Hummer H1 (1992-1998). Manual - part 25





2-88

Change 2

2-32. FUEL INJECTION PUMP REPAIR (Cont'd)

N

NO

OT

TE

E

Some 6.5L injection pumps are equipped with a TP sensor instead
of a kick-down switch. There are four capscrews securing the TP
sensor to the housing.

10.

Deleted.

11.

Remove cam pin (10) and cam (11) from throttle shaft (1).

12.

Remove two retaining clips (15) from rocker lever pin (16). Discard clips (15).

13.

Remove rocker lever pin (16) and rocker lever (13) from housing (4).

14.

Using Torx drive, remove screw (14) from face cam (8) and remove face cam (8) and washer (7) from
throttle shaft (1).

N

NO

OT

TE

E

• Perform steps 15 and 16 for 6.5L engines and for 6.2L engines

1990 and above.

• Perform step 17 for pre-1990 engines.

15.

Turn throttle shaft (1) to low idle and release the governor thrust spring (5) from housing boss (6).

16.

Remove throttle shaft (1) and governor thrust spring (5) from housing (4), and remove two
O-rings (3) and spacer (2) from throttle shaft (1). Discard O-rings (3).

17.

Remove throttle shaft (1) from housing (4), and remove two O-rings (3) and spacer (2) from
throttle shaft (1). Discard O-rings (3).

18.

Hold metering valve (19) and raise governor linkage hook (17) from valve arm pin (18).

19.

Hold governor arm (22) forward and pull linkage hook (17) back and detach from governor arm (22).

20.

Remove linkage hook (17), governor arm (22), and spring (21) from housing (4).

21.

Remove spring (21) from linkage hook (17) and governor arm (22).

22.

Remove metering valve (19) from housing (4).

23.

Using 1/8-in. hex head driver, remove vent wire socket head screw (20) from housing (4).

Change 2          2-89

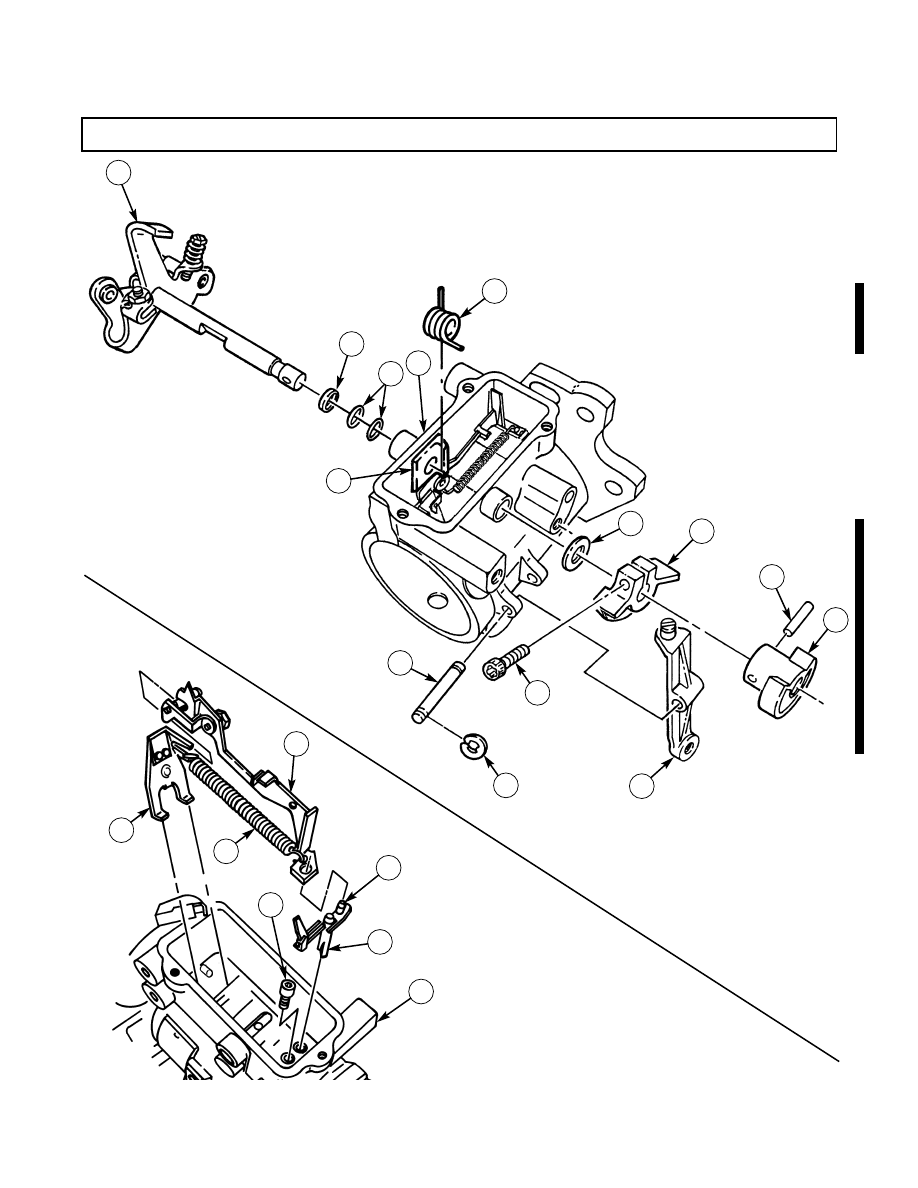

2-32. FUEL INJECTION PUMP REPAIR (Cont'd)

1

2

4

5

7

8

10

11

13

14

15

16

6

3

17

18

19

4

20

21

22

2-90

Change 2

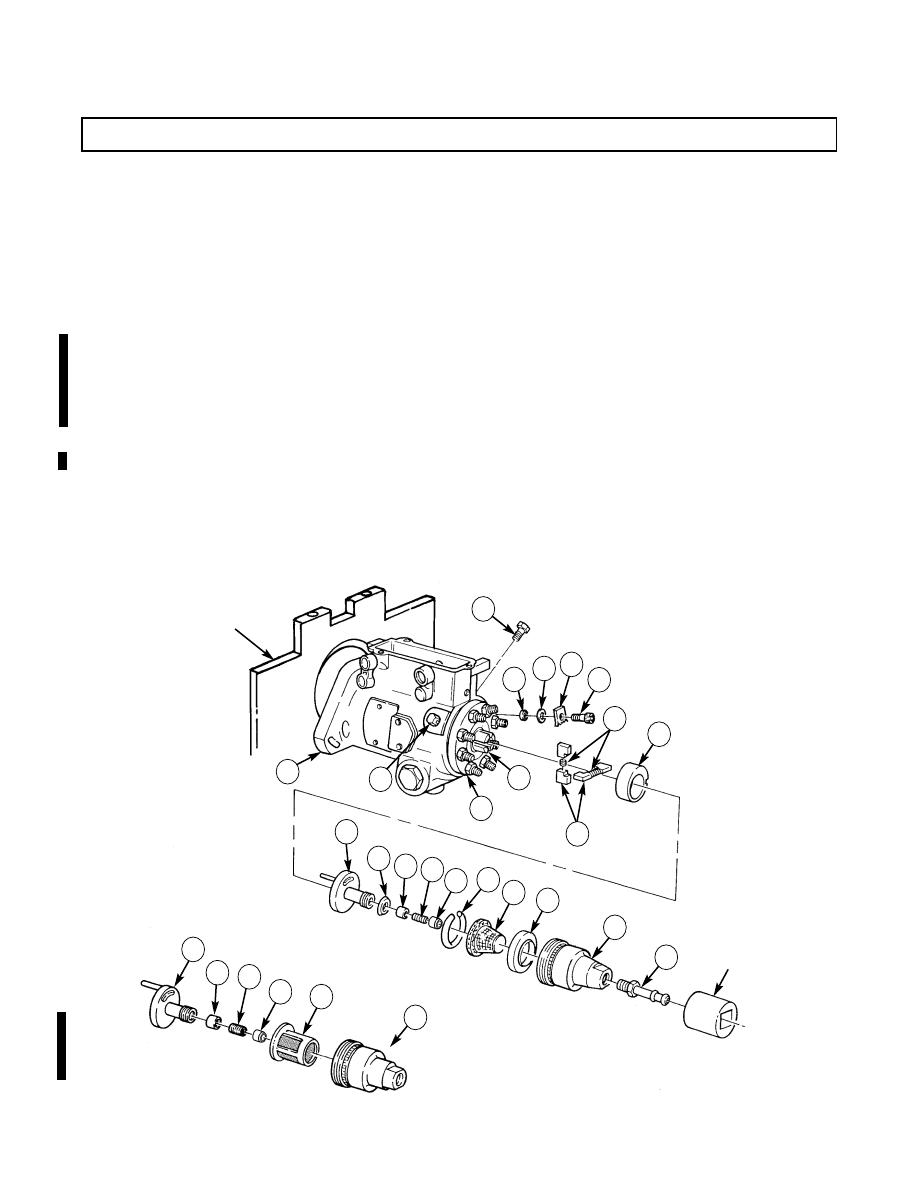

2-32. FUEL INJECTION PUMP REPAIR (Cont'd)

24.

Using 5/32-in. hex head driver, remove transfer pump end cap socket-head locking screw (5),
plate (4), rubber washer (2), and flat washer (3) from hydraulic head (20). Discard washer (2).

25.

Remove inlet tube assembly (8) from fuel pump end cap (9).

26.

Using end cap wrench, remove fuel pump end cap (9) from hydraulic head (20).

27.

Remove regulator (17) from fuel pump end cap (9).

N

NO

OT

TE

E

Early production injection pumps have an inlet filter screen,
retaining ring, and seal or pressure plate. Late production pumps
have a different configuration screen which does not require a
retaining ring and seal or pressure plate. When repairing early
production pumps, replace the screen with a late production one.

28.

Remove inlet filter screen (11) and pressure plate (10), if applicable, from regulator (17).

29.

Remove retaining ring (12) and screen (11) from pressure plate (10), if applicable.

30.

Remove inlet filter screen seal (16), end plate adjusting plug (13), spring (14), and piston (15) from
regulator (17). Discard adjusting plug (13) and seal (16). Tag spring (14) and piston (15) for
assembly.

31.

Remove transfer pump liner (7), four blades (18), and two springs (6).

32.

Remove head-locking capscrews (1) and (21) from housing (22).

HOLDING

FIXTURE

END CAP WRENCH

EARLY PRODUCTION

LATE PRODUCTION

1

2

3

4

5

6

7

18

19

20

21

22

17

16

15 14

12

11

10

9

9

8

13

17

15

14

11

13

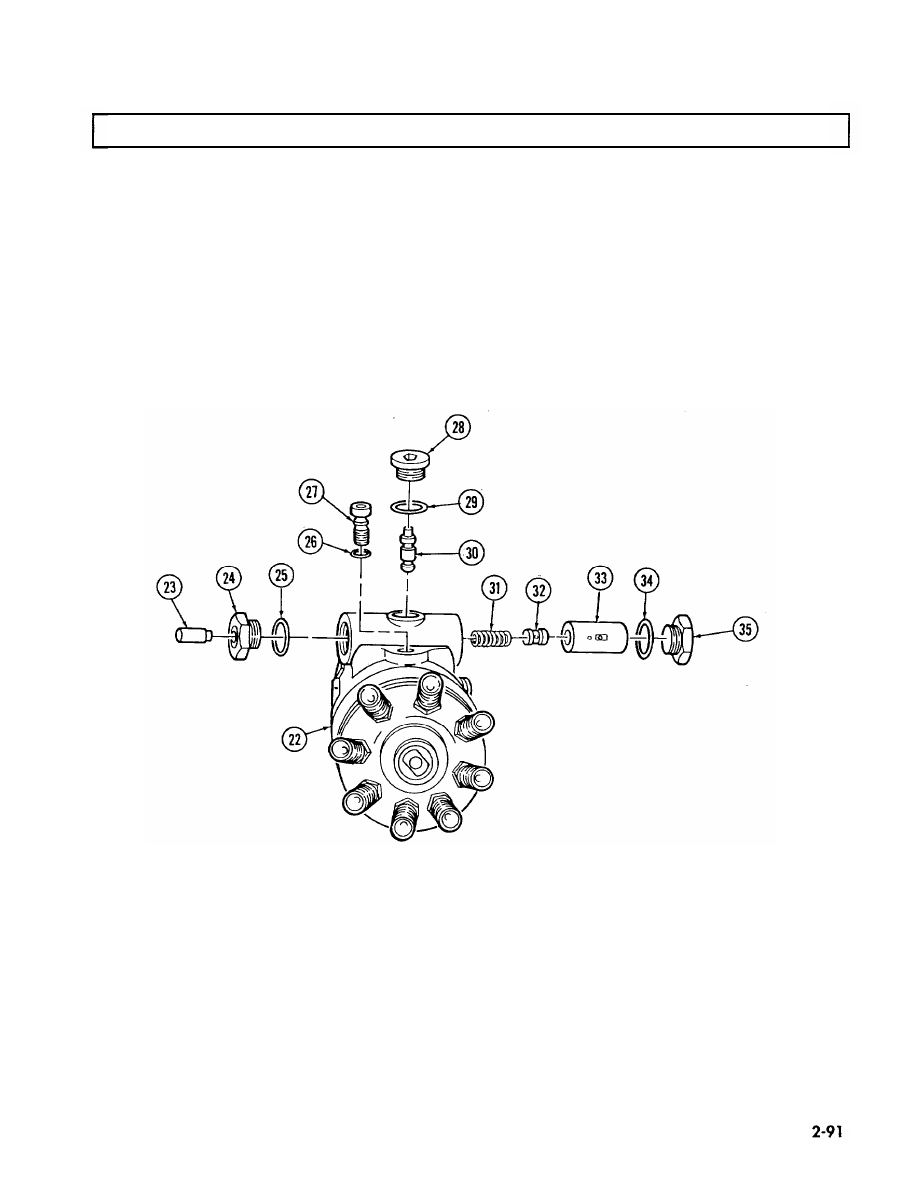

2-32. FUEL INJECTION PUMP REPAIR (Cont’d)

33.

34.

35.
36.
37.

38.

39.

Rotate housing (22) and holding fixture in vise so advance plug (28) faces upward.
Using 5/16-in. hex head driver, remove head locating screw (27) and O-ring (26). Discard
O-ring (26).

Remove spring side plug assembly (24) and O-ring (25) from housing (22). Disard O-ring (25).
Remove servo advance plunger (23) from spring side plug (24).
Using 1/4-in. hex head driver, remove advance plug (28), cam advance pin (30), and O-ring (29) from
housing (22). Discard O-ring (29).

Remove power side advance piston hole plug (35) and O-ring (34). Discard O-ring (34).
Remove servo advance piston assembly (33) from housing (22). Tap piston assembly (33) to remove
spring (31) and valve (32). Tag spring (31) for assembly.
