№		Номер детали	Наименование запчасти
1		190003989315 [Clamp]	Clamp
2		WG9112530148 [Hose]	Hose
3		199112530008 [Pipe]	Pipe
3		AZ9112531051 [Pipe]	Pipe
4		199112530049 [Pipe]	Pipe
5		WG9112530188 [Hose Joint]	Hose Joint
6		199112530047 [Pipe]	Pipe
7		190003989318 [Clamp]	Clamp
8		WG9112530149 [Hose]	Hose
9		WG1600840031 [Hose]	Hose
10		1900043989301 [Clamp]	Clamp
11		WG9112530237 [Aftercooler]	Aftercooler
11		WG9112530269 [Aftercooler]	Aftercooler
12		WG9112530323 [Radiator]	Radiator
12		WG9112530385 [Radiator]	Radiator
13		Q150B0816 [Bolt]	Bolt
14		Q40008 [Washer]	Washer
15		Q41208 [Spring washer]	Spring washer
16		Q150B0820 [Bolt]	Bolt
17		Q40308 [Spring washer]	Spring washer
18		Q40108 [Plain washer]	Plain washer
19		1780 530009 [Fastening rail]	Fastening rail
20		Q150B1018 [Bolt]	Bolt
21		Q40310 [Spring washer]	Spring washer
22		Q40110 [Plain washer]	Plain washer
23		Q33208 [Check nut]	Check nut
24		190003980204 [Clamp]	Clamp
25		190003989300 [Clamp]	Clamp
26		WG9114530138 [Hose]	Hose
27		190003989308 [Clamp]	Clamp
28		WG9100530130 [Hose]	Hose
29		190003171697 [Wire fastener]	Wire fastener
30		199112530302 [Pipe]	Pipe
31		WG9114530139 [Hose]	Hose
32		WG9112530451 [Hose]	Hose
33		WG9112530470 [Hose]	Hose
34		WG9100530126 [Junction pipe]	Junction pipe
35		WG9112530451 [Hose]	Hose
35		WG9112530469 [Hose]	Hose
36		WG1000060237 [Hose]	Hose
37		199112530315 [Bracket]	Bracket
38		Q150B0830 [Bolt]	Bolt
39		190003990005 [Clamp]	Clamp
40		Q150B0875 [Bolt]	Bolt
41		190003932961 [Washer]	Washer
42		135700730116 [Spacer sleeve]	Spacer sleeve
43		199100530146 [Bracket]	Bracket
44		Q150B0850 [Bolt]	Bolt
45		199100530145 [Water pipe]	Water pipe
46		199114530117 [Hose]	Hose
47		AZ9112530401 [Right bracket]	Right bracket
47		AZ9619530401 [Right bracket]	Right bracket
48		AZ9112530402 [Shim]	Shim
49		WG9112530355 [Expansion tank]	Expansion tank
50		Q150B0825 [Bolt]	Bolt
51		AZ9112530475 [Left bracket]	Left bracket
51		AZ9619530002 [Left bracket]	Left bracket
52		Q150B1030 [Bolt]	Bolt
53		WG9112540161 [Clamp]	Clamp
54		199112530118 [Bracket]	Bracket
55		Q33210 [Cheek nut]	Cheek nut
56		WG80A 540083 [Rubber cushion]	Rubber cushion
57		199112530117 [Bracket]	Bracket
58		Q340B10 [Nut]	Nut
59		190003129804 [Seal belt]	Seal belt
60		Q340B08 [Nut]	Nut
61		WG9112530313 [Shroud]	Shroud
61		WG9112530700 [Shroud]	Shroud
62		199100530161 [Rubber cushion]	Rubber cushion

COOLING SYSTEM FOR WD615.62/87(EXPANSION TANK REAR) (B1-13) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		190003989315 [Clamp]	Clamp
2		WG9112530148 [Hose]	Hose
3		199112530008 [Pipe]	Pipe
3		AZ9112531051 [Pipe]	Pipe
4		199112530049 [Pipe]	Pipe
5		WG9112530188 [Hose]	Hose
6		199112530047 [Pipe]	Pipe
7		19000389318 [Clamp]	Clamp
8		WG9112530149 [Hose]	Hose
9		WG9112530468 [Hose]	Hose
10		190003989301 [Clamp]	Clamp
11		WG9112530237 [Aftercooler]	Aftercooler
11		WG9112530269 [Aftercooler]	Aftercooler
12		WG9112530323 [Radiator]	Radiator
12		WG9112530385 [Radiator]	Radiator
13		Q150B0816 [Bolt]	Bolt
14		Q40008 [Washer]	Washer
15		Q41208 [Sping washer]	Sping washer
16		Q150B0820 [Bolt]	Bolt
17		Q40308 [Sping washer]	Sping washer
18		Q40108 [Plain washer]	Plain washer
19		1780 530009 [Fastening rail]	Fastening rail
20		Q150B1018 [Bolt]	Bolt
21		Q40310 [Sping washer]	Sping washer
22		Q40110 [Plain washer]	Plain washer
23		Q33208 [Check nut]	Check nut
24		190003980204 [Clamp]	Clamp
25		190003989300 [Clamp]	Clamp
26		WG9112530481 [Hose]	Hose
27		190003989308 [Clamp]	Clamp
28		WG9100530130 [Hose]	Hose
29		190003171697 [Wire fastener]	Wire fastener
30		199112530302 [Pipe]	Pipe
31		WG9112530480 [Hose]	Hose
32		WG1600840031 [Hose]	Hose
33		WG9112530470 [Hose]	Hose
34		WG9100530126 [Junction pipe]	Junction pipe
35		AZ9112530469 [Hose]	Hose
36		WG1000050237 [Hose]	Hose
37		199112530315 [Bracket]	Bracket
38		Q150B0830 [Bolt]	Bolt
39		190003990005 [Clamp]	Clamp
40		Q150B0875 [Bolt]	Bolt
41		190003932961 [Washer]	Washer
42		135700730116 [Spacer sleeve]	Spacer sleeve
43		199100530146 [Bracket]	Bracket
44		Q150B0850 [Bolt]	Bolt
45		199100530145 [Water pipe]	Water pipe
46		199114530117 [Hose]	Hose
47		AZ9112530317 [Washer]	Washer
48		AZ9112530464 [Bracket]	Bracket
49		AZ9112530333 [Expansion tank]	Expansion tank
50		Q150B1040 [Bolt]	Bolt
51		WG9100530161 [Rubber cushion]	Rubber cushion
52		Q150B1030 [Bolt]	Bolt
53		WG9112540161 [Clamp]	Clamp
54		199112530118 [Bracket]	Bracket
55		Q33210 [Check nut]	Check nut
56		WG80A 540083 [Rubber cushion]	Rubber cushion
57		199112530117 [Bracket]	Bracket
58		Q340B10 [Nut]	Nut
59		WG9112530313 [Shroud]	Shroud
59		WG9112530700 [Shroud]	Shroud
60		190003129804 [Seal belt]	Seal belt

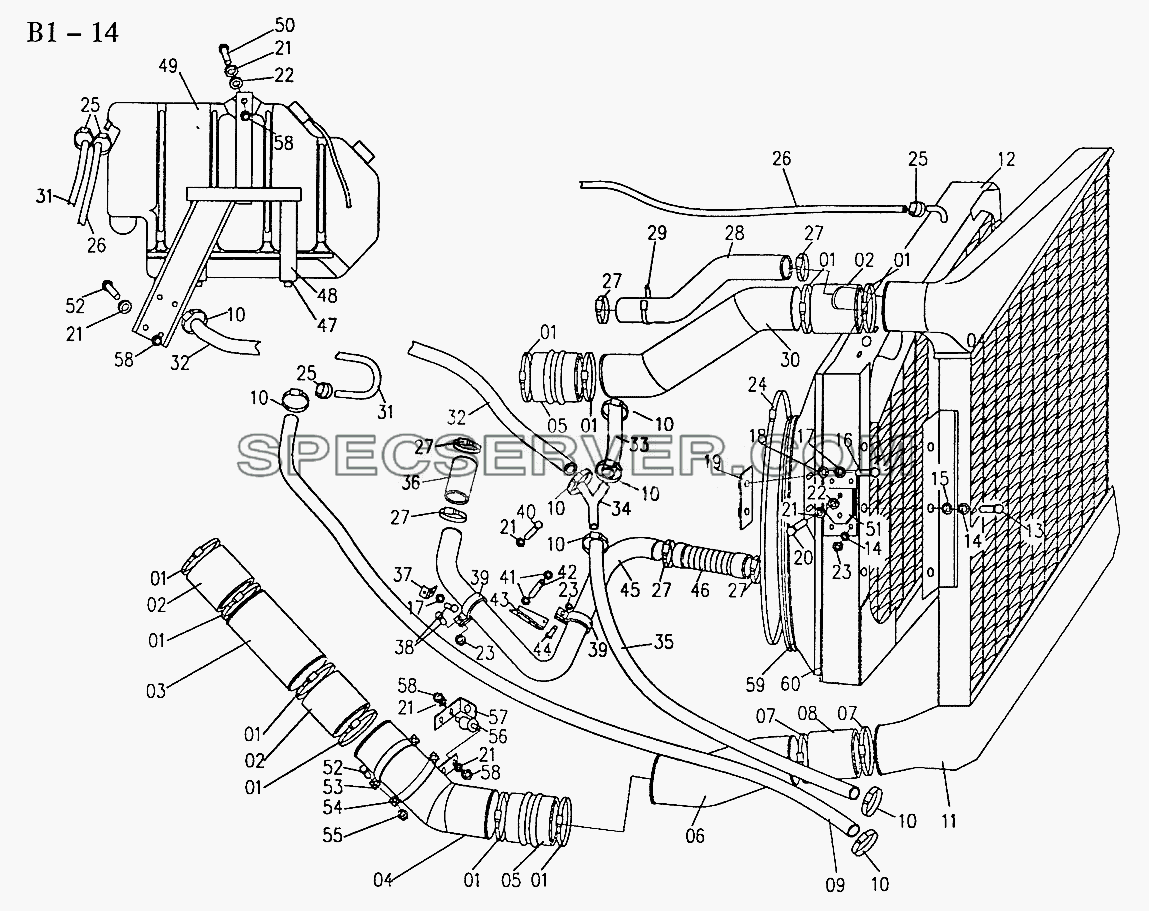

COOLING SYSTEM FOR WD615.69/47 (B1-14) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		190003989315 [Clamp]	Clamp
2		WG9112530148 [Hose]	Hose
3		AZ9112531051 [Pipe]	Pipe
4		199112530049 [Pipe]	Pipe
5		WG9112530188 [Hose Joint]	Hose Joint
6		199112530047 [Pipe]	Pipe
7		19000389318 [Clamp]	Clamp
8		WG9112530149 [Hose]	Hose
9		WG9112530468 [Hose]	Hose
10		190003989301 [Clamp]	Clamp
11		WG9112531060 [Aftercooler]	Aftercooler
12		WG9112531001 [Radiator]	Radiator
12		WG9112531077 [Radiator]	Radiator
13		Q150B0816 [Bolt]	Bolt
14		Q40008 [Washer]	Washer
15		Q41208 [Sping washer]	Sping washer
16		Q150B0820 [Bolt]	Bolt
17		Q40308 [Sping washer]	Sping washer
18		Q40108 [Plain washer]	Plain washer
19		1780 530009 [Fastening rail]	Fastening rail
20		Q150B1018 [Bolt]	Bolt
21		Q40310 [Sping washer]	Sping washer
22		Q40110 [Plain washer]	Plain washer
23		Q33208 [Check nut]	Check nut
24		190003129804 [Seal belt]	Seal belt
25		190003989300 [Clamp]	Clamp
26		199114530428 [Hose]	Hose
27		190003989308 [Clamp]	Clamp
28		WG9112531053 [Hose]	Hose
29		190003171697 [Wire fastener]	Wire fastener
30		AZ9632530003 [Pipe]	Pipe
31		199100530125 [Hose]	Hose
32		WG1600840031 [Hose]	Hose
33		WG9112530470 [Hose]	Hose
34		WG9100530126 [Junction pipe]	Junction pipe
35		AZ9112530469 [Hose]	Hose
36		WG1000060241 [Hose]	Hose
37		161500010032 [Bracket]	Bracket
38		Q150B0830 [Bolt]	Bolt
39		190003990037 [Clamp]	Clamp
40		Q150B0875 [Bolt]	Bolt
41		190003932961 [Washer]	Washer
42		135700730116 [Spacer sleeve]	Spacer sleeve
43		199100530146 [Bracket]	Bracket
44		AZ9632530011 [Fastening rail]	Fastening rail
45		AZ9112531059 [Water pipe]	Water pipe
46		WG9112531005 [Hose]	Hose
47		AZ9112530317 [Washer]	Washer
48		AZ9632530030 [Bracket]	Bracket
49		WG9632530333 [Expansion tank]	Expansion tank
50		Q150B1040 [Bolt]	Bolt
51		WG9112531055 [Pipe]	Pipe
52		Q150B1030 [Bolt]	Bolt
53		WG9112540161 [Clamp]	Clamp
54		199112530118 [Bracket]	Bracket
55		Q33210 [Check nut]	Check nut
56		WG80A 540083 [Rubber cushion]	Rubber cushion
57		199112530117 [Bracket]	Bracket
58		Q340B10 [Nut]	Nut
59		AZ9112531076 [Shroud]	Shroud
59		AZ9632530006 [Shroud]	Shroud
60		WG9100530161 [Rubber cushion]	Rubber cushion
61		WG9112531057 [Hose]	Hose
62		190003989310 [Clamp]	Clamp

AIR FILTER FOR STANDARD CAB (B1-15) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9100770028 [Bellows]	Bellows
-		WG9112190001-1 [Filter]	Filter
1		WG9100190120 [Aif filter]	Aif filter
1		WG9112190001 [Air filter C]	Air filter C
2		WG1200190040 [Switch]	Switch
3		199114190151 [Bracket]	Bracket
3		AZ9632190005 [Bracket]	Bracket
4		Q150B1440 [Screw]	Screw
5		Q33214 [Nut]	Nut
6		WG9012190130 [Strap]	Strap
7		199100190065 [Stiffening plate]	Stiffening plate
8		1280 550027 [Bolt]	Bolt
9		1280 550028 [Bolt]	Bolt
10		1280 550029 [Tension screw]	Tension screw
11		WG7017190037 [Air hose]	Air hose
12		190003989316 [Clamp]	Clamp
12		190003989318 [Clamp]	Clamp
12		199112190055 [Clamp]	Clamp
13		199114190078 [Siphon]	Siphon
14		WG9100190045 [Air duct]	Air duct
15		199100190070 [Joint]	Joint
16		199100190018 [Fastening strip]	Fastening strip
17		199100190019 [Fastening strip]	Fastening strip
18		Q150B0820TF2 [Screw]	Screw
19		Q40208 [Washer]	Washer
20		Q33208 [Nut]	Nut
21		WG9014540007 [Round buffer]	Round buffer
22		199112190055 [Palte]	Palte
23		AZ9112190098 [Suction pipe]	Suction pipe
24		AZ9112190096 [Bracket]	Bracket
25		Q150B0830 [Screw]	Screw
26		Q341B08 [Nut]	Nut
27		Q40308 [Spring washer]	Spring washer
29		Q40208 [Washer]	Washer

AIR FILTER FOR CAB WITH MED, HIGH ROOF (B1-16) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9100770028 [Bellows]	Bellows
-		WG9112190001-1 [Filter]	Filter
1		WG9100190120 [Horizontal air filter]	Horizontal air filter
1		WG9112190001 [Air filter]	Air filter
2		WG1200190040 [Switch]	Switch
3		199114190151 [Bracket]	Bracket
3		AZ9112190050 [Bracket]	Bracket
3		AZ9112190151 [Bracket]	Bracket
3		AZ9632190005 [Bracket hor.]	Bracket hor.
4		Q151B1450 [Screw]	Screw
5		190003888458 [Nut]	Nut
6		AZ9100190026 [Strap]	Strap
6		WG9012190130 [Strap]	Strap
7		199100190065 [Stiffening plate]	Stiffening plate
8		1280 550027 [Bolt]	Bolt
8		1280 550028 [Bolt]	Bolt
9		1280 550029 [Tension screw]	Tension screw
10		WG7017190037 [Air hose]	Air hose
10		WG9100190082 [Air hose]	Air hose
10		WG9112190065 [Air hose]	Air hose
10		WG9112190153 [Air hose]	Air hose
11		190003989318 [Clamp]	Clamp
11		199112190065 [Clamp]	Clamp
12		Q150B0820 [Screw]	Screw
13		Q33208 [Nut]	Nut
14		WG9112190085 [Air duct]	Air duct
15		JN162-1109070 [Silentbloc]	Silentbloc
16		Q150B0816 [Screw]	Screw
17		Q40208 [Washer]	Washer
18		WG9100190148 [Suction pipe]	Suction pipe
19		Q150B0835Q [Screw]	Screw
20		Q40208 [Washer]	Washer
21		AZ9112190095 [Siphon]	Siphon
22		190003989365 [Clamp]	Clamp
22		AZ9003980026 [Clamp]	Clamp
23		AZ9112190093 [Bracket]	Bracket
24		Q151B1030 [Screw]	Screw
25		Q40310 [Spring washer]	Spring washer
26		Q341B10 [Nut]	Nut
27		WG9100360134 [Ring]	Ring

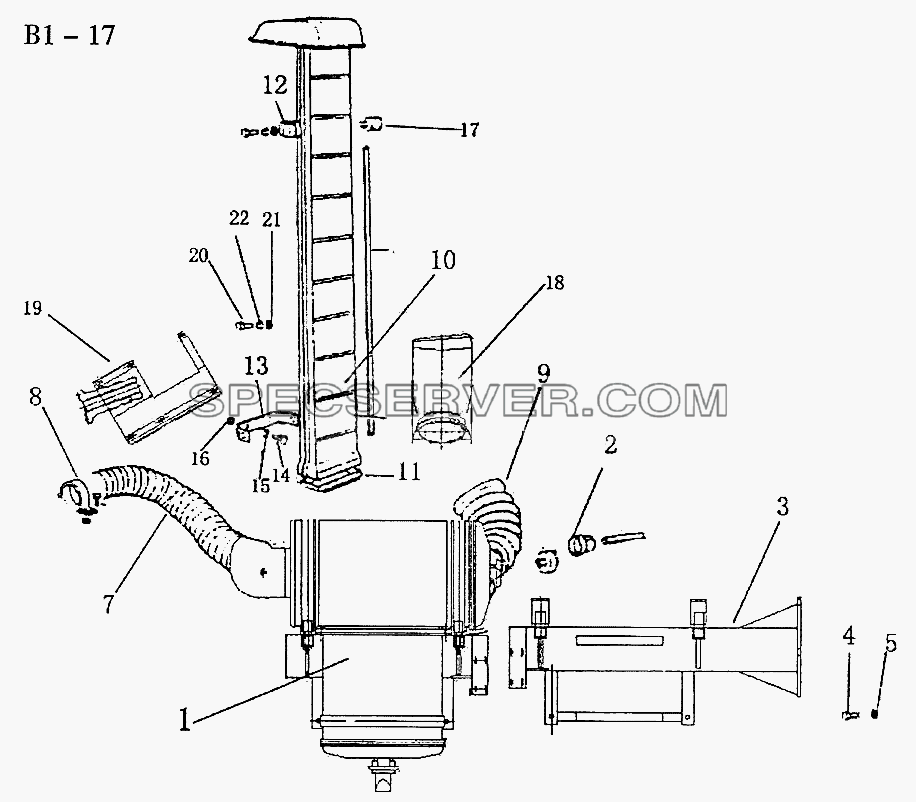

AIR FILTER FOR DESERT (B1-17) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9100190160-1 [Filter]	Filter
1		WG9100190160 [Air filter]	Air filter
1		WG9100190162 [Air filter]	Air filter
2		WG1200190040 [Switch]	Switch
3		AZ9100190140 [Bracket and Strap]	Bracket and Strap
3		AZ9100190286 [Bracket]	Bracket
4		199112190055 [Plate]	Plate
5		Q150B0835Q [Screw]	Screw
5		Q150B1445 [Screw]	Screw
6		Q33208 [Nut]	Nut
6		Q33210 [Nut]	Nut
7		WG9100190050 [Air hose]	Air hose
7		WG9100190081 [Air hose]	Air hose
8		190003989316 [Clamp]	Clamp
8		190003989318 [Clamp]	Clamp
8		199112190065 [Clamp]	Clamp
9		199114190078 [Siphon]	Siphon
10		WG9100190045 [Air duct]	Air duct
11		199100190070 [Joint]	Joint
12		199100190018 [Fastening strip]	Fastening strip
13		199100190019 [Fastening strip]	Fastening strip
14		Q150B0820TF2 [Screw]	Screw
15		Q40208 [Washer]	Washer
16		Q33208 [Nut]	Nut
17		WG9014540007 [Round buffer]	Round buffer
18		AZ9112190098 [Suction pipe]	Suction pipe
19		AZ9112190096 [Bracket]	Bracket
20		Q150B0830 [Screw]	Screw
21		Q341808 [Nut]	Nut
22		Q40208 [Washer]	Washer
