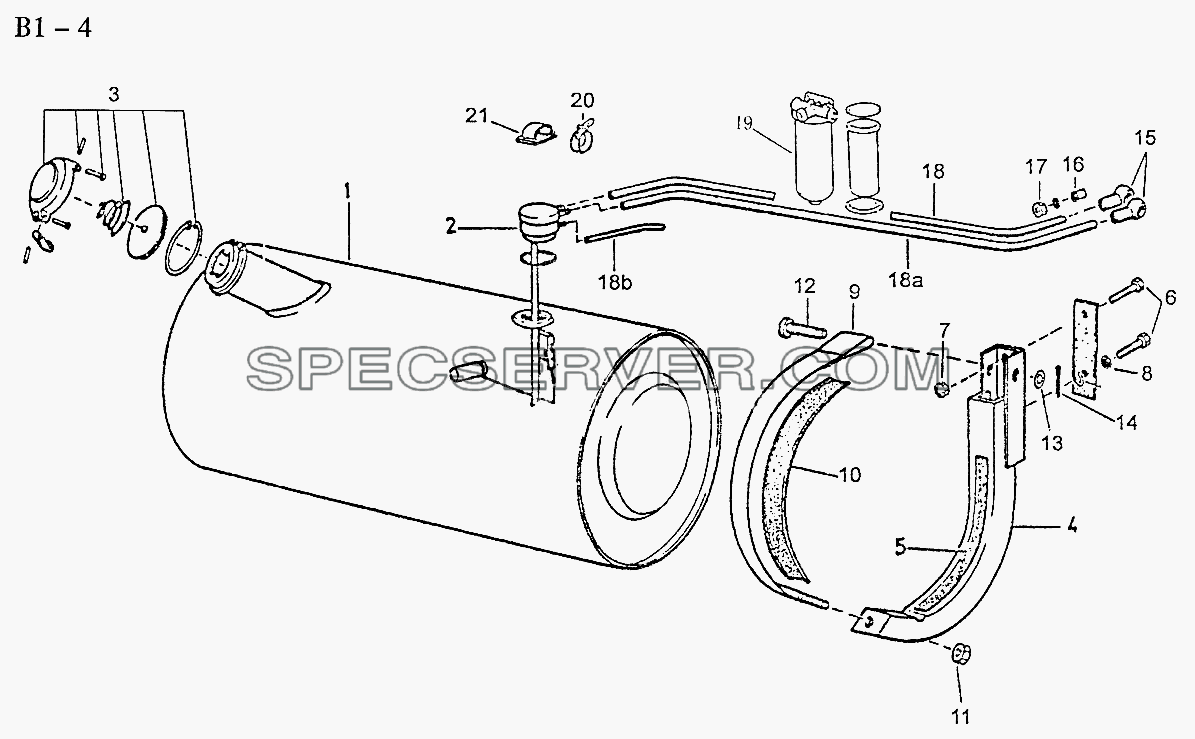

Запчасти: 200L FUEL TANK (B1-4) для Sinotruk 6x4 Tipper (371)

200L FUEL TANK (B1-4) для Sinotruk 6x4 Tipper (371) (список запасных частей)

200L FUEL TANK (B1-4) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- AZ9112550120 [Return line] Return line
- Q72314T5F [Gasket] Gasket
- WG9112550002-1 [Prefilter] Prefilter
1 WG9100550120 [Fuel tank] Fuel tank
2 WG9100550101 [Fuel gauge] Fuel gauge
3 199100550101 [Cover] Cover
4 199100550006 [Support] Support
4 BZ9112550050 [Support] Support
5 199100550009 [Base] Base
6 Q150B1445 [Screw] Screw
7 19000388458 [Nut] Nut
8 Q40314 [Spring washer] Spring washer
9 WG9100550011 [Strap] Strap
10 WG9100550081 [Base] Base
11 Q33210 [Nut] Nut
12 Q5101075 [Bolt] Bolt
13 Q40110 [Washer] Washer
14 Q5003214 [Split pin] Split pin
15 WG9014230017 [Joint] Joint
16 190003962621 [Screw] Screw
17 Q33210 [Nut] Nut
18 AZ9112550120 [Suction line] Suction line
19 WG9112550002 [Feul fielter C] Feul fielter C
20 190003171393 [Cable wrench] Cable wrench
21 199000770296 [Cilps] Cilps

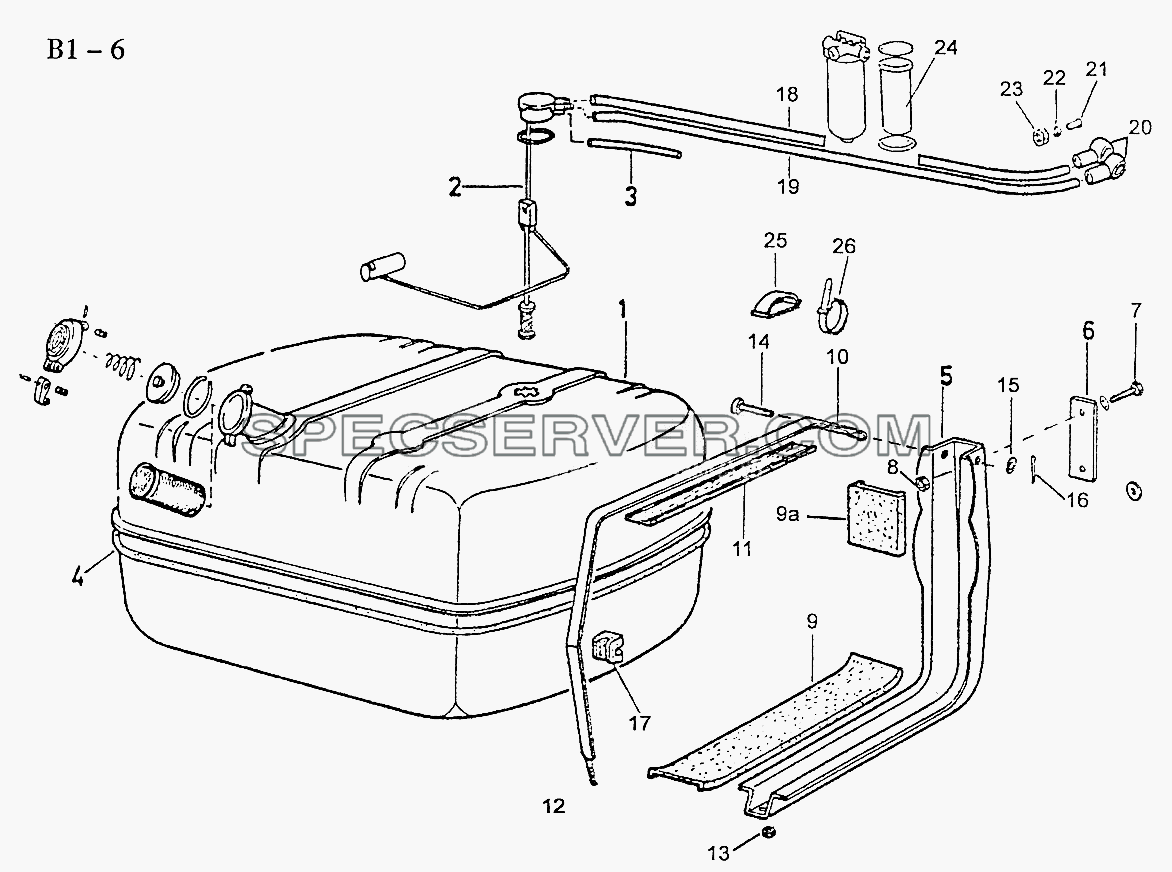

Запчасти: 380L FUEL TANK (B1-6) для Sinotruk 6x4 Tipper (371)

380L FUEL TANK (B1-6) для Sinotruk 6x4 Tipper (371) (список запасных частей)

380L FUEL TANK (B1-6) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- WG9112550002-1 [Profiter] Profiter
1 WG9112550001 [Fuel tank] Fuel tank
2 WG9114550125 [Fuel gauge] Fuel gauge
3 AZ9112550121 [Pipe] Pipe
4 190003179030 [Base] Base
5 WG9114550292 [Support] Support
6 199100550012 [Plate] Plate
6 199114550293 [Plate] Plate
7 Q151B1650TF2 [Screw] Screw
8 190003888627 [Nut] Nut
9 199114550012 [Base] Base
9 WG9114550113 [Base] Base
10 WG9114550011 [Strap] Strap
11 WG9100550089 [Base] Base
12 190003962621 [Screw] Screw
13 Q33210 [Nut] Nut
14 190003903197 [Bolt] Bolt
14 Q5101070 [Bolt] Bolt
15 Q40110 [Washer] Washer
16 Q5003214 [Split pin] Split pin
17 WG9114550015 [Base] Base
18 AZ9112550120 [Suction line] Suction line
19 AZ9112550120 [Return line] Return line
20 WG9014230017 [Joint] Joint
21 Q150B1060 [Screw] Screw
22 Q72314T5F [Gasket] Gasket
23 Q33210 [Nut] Nut
24 WG9112550002 [Fuel filter C] Fuel filter C
25 199000770296 [Clips] Clips
26 190003171697 [Cable binder] Cable binder
30 WG9100558002 [Change valve] Change valve
31 WG9130580190 [Change switch] Change switch

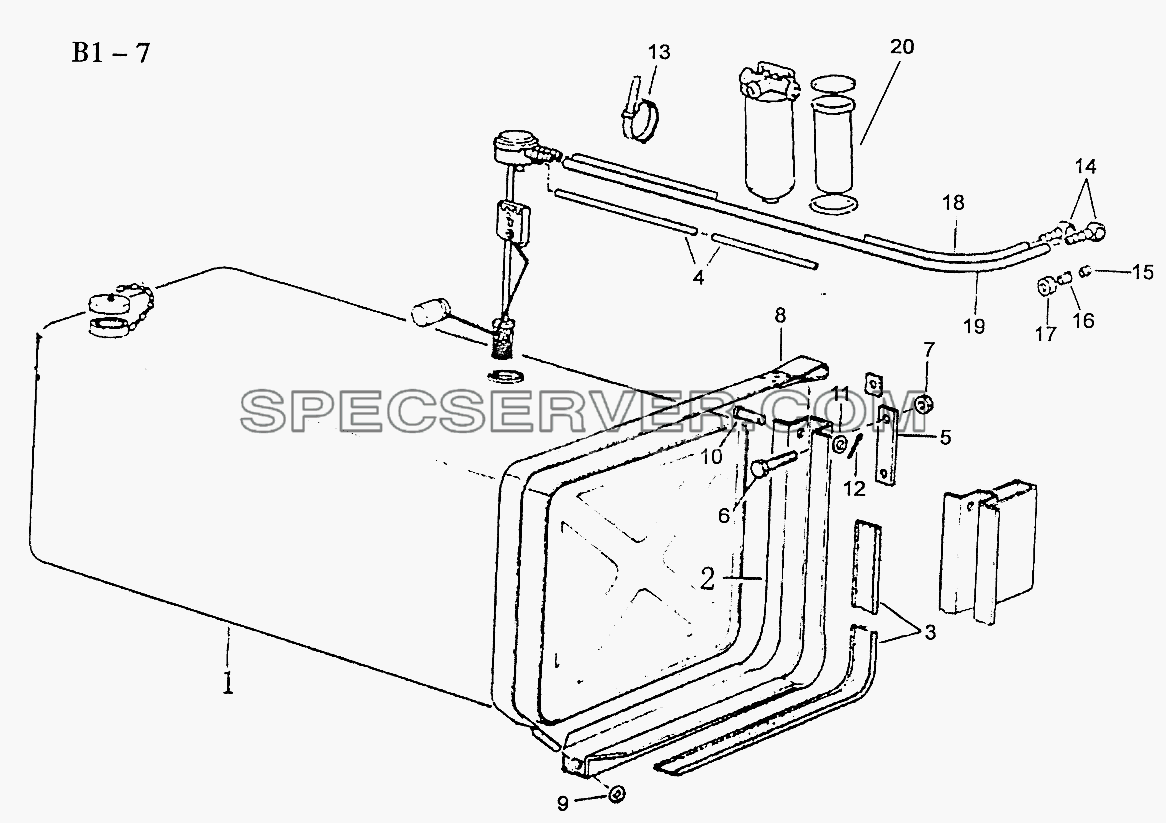

Запчасти: 400L FUEL TANK (B1-7) для Sinotruk 6x4 Tipper (371)

400L FUEL TANK (B1-7) для Sinotruk 6x4 Tipper (371) (список запасных частей)

400L FUEL TANK (B1-7) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 WG9114550042 [Fuel tank] Fuel tank
2 AZ9114550043 [Support] Support
2 WG9114550041 [Support] Support
3 AZ9118550014 [Base] Base
4 AZ9112550121 [Pipe] Pipe
5 AZ9224550001 [Plate] Plate
6 Q151B1655TF2 [Screw] Screw
7 190003888627 [Nut] Nut
8 WG9118550016 [Tension strap] Tension strap
9 190003888457 [Nut] Nut
10 Q5101670 [Bolt] Bolt
11 Q40016 [Washer] Washer
12 Q5004028 [Split pin] Split pin
13 190003171697 [Cable wrench] Cable wrench
14 WG9014230017 [Joint] Joint
15 190003962621 [Screw] Screw
16 Q72314T5F [Washer] Washer
17 Q33210 [Nut] Nut
18 AZ9112550120 [Suction line] Suction line
19 AZ9112550120 [Return line] Return line
20 WG9112550002 [Fuel filter C] Fuel filter C
21 WG9112550002-1 [Pre filter] Pre filter
Запчасти: 380L FUEL TANK FROM AL (B1-8) для Sinotruk 6x4 Tipper (371)

380L FUEL TANK FROM AL (B1-8) для Sinotruk 6x4 Tipper (371) (список запасных частей)

380L FUEL TANK FROM AL (B1-8) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1397 350169 [Angle] Angle
- Q340806 [Nut] Nut
- Q40106 [Washer] Washer
- WG9100360134 [Climp] Climp
- WG9112550002-1 [Profilter] Profilter
1 AZ9112550210 [Fuel tank] Fuel tank
2 AZ9112550220 [Support] Support
3 199112550128 [Plate] Plate
4 Q150B165TF2 [Screw] Screw
5 190003888627 [Nut] Nut
6 AZ9112550226 [Base] Base
7 AZ9112550225 [Strap] Strap
8 AZ9112550227 [Tension bolt] Tension bolt
9 AZ9112550228 [Tension bolt] Tension bolt
10 AZ9112550229 [Tension bolt] Tension bolt
11 AZ9112550230 [Screw] Screw
12 WG9014230017 [Joint] Joint
13 190003962621 [Screw] Screw
14 Q72314T5F [Washer] Washer
15 Q33210 [Nut] Nut
16 AZ9112550120 [Suction line] Suction line
17 AZ9112550120 [Return line] Return line
18 AZ9112550121 [Pipe] Pipe
19 WG9112550002 [Fuel filter C] Fuel filter C
20 190003171697 [Cable binder] Cable binder
EXHAUST PIPING FOR FRAME HEIGHT 243MM (B1-9) для Sinotruk 6x4 Tipper (371) (список запасных частей)

EXHAUST PIPING FOR FRAME HEIGHT 243MM (B1-9) для Sinotruk 6x4 Tipper (371) (список запасных частей)

EXHAUST PIPING FOR FRAME HEIGHT 243MM (B1-9) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 WG9112540015 [Gasket] Gasket
2 AZ9100540320 [Exhaust pipe(cast)] Exhaust pipe(cast)
2 AZ9112540255 [Exhaust pipe] Exhaust pipe
3 Q150B1045Q [Screw] Screw
4 Q33210 [Nut] Nut
5 AZ9112540147 [Corrugated flexibie metal tube] Corrugated flexibie metal tube
6 199112540146 [Angle] Angle
7 Q150B1030 [Screw] Screw
8 199112540162 [Clamp] Clamp
9 AZ9100540321 [Exhaust pipe] Exhaust pipe
9 WG9100540200 [Exhaust pipe] Exhaust pipe
10 WG9112540161 [Clamp] Clamp
11 Q150B1040 [Screw] Screw
12 190003999960 [Pipe clamp] Pipe clamp
13 WG9000540061 [Clamp] Clamp
14 WG9112540137 [Bracket] Bracket
15 Q150B1035 [Screw] Screw
16 WG9112540002 [Muffler] Muffler
16 WG9112540003 [Muffler] Muffler
17 Q33208 [Nut] Nut
18 Q150B0830 [Screw] Screw
19 WG9000540064 [Fixing strap] Fixing strap
20 199112540140 [Sheet] Sheet
21 Q150B1025 [Screw] Screw
22 Q40310 [Spring washer] Spring washer
23 WG84D 410007 [Rubber cushion] Rubber cushion
24 Q150B1022 [Screw] Screw
25 Q150B1018 [Screw] Screw
26 199100540144 [Bracket] Bracket
27 199112540113 [Pipe clamp] Pipe clamp
27 WG9112540329 [Pipe clamp] Pipe clamp
28 AZ9112540490 [Tail pipe] Tail pipe
28 WG9112540040 [Tail pipe] Tail pipe
28 WG9112540105 [Tail pipe] Tail pipe
29 AZ9100540320-1 [Operating cylinder] Operating cylinder
4x2,6x4 EXHAUST PIPING FOR FRAME HEIGHT 300MM (B1-10) для Sinotruk 6x4 Tipper (371) (список запасных частей)

4x2,6x4 EXHAUST PIPING FOR FRAME HEIGHT 300MM (B1-10) для Sinotruk 6x4 Tipper (371) (список запасных частей)

4x2,6x4 EXHAUST PIPING FOR FRAME HEIGHT 300MM (B1-10) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- AZ9632540003 [Fireprcof cover] Fireprcof cover
- WG9112540105 [Tail pipe] Tail pipe
1 WG9112540015 [Gasket] Gasket
2 AZ9112541512 [Exhaust pipe] Exhaust pipe
2 WG9100540198 [Exhaust pipe] Exhaust pipe
3 Q150B1045Q [Screw] Screw
4 Q33210 [Nut] Nut
5 WG9112540001 [Hose] Hose
6 199112540476 [Ange] Ange
6 AZ9112540475 [Ange] Ange
7 Q150B1030 [Screw] Screw
8 199112540162 [Clamp] Clamp
9 AZ9112540245 [Exhaust pipe] Exhaust pipe
9 AZ9112541500 [Exhaust pipe] Exhaust pipe
9 AZ9632540002 [Exhaust pipe] Exhaust pipe
10 199112540161 [Clamp] Clamp
11 Q150B1040 [Screw] Screw
12 190003999960 [Clamp] Clamp
13 WG9000540061 [Clamp] Clamp
14 WG9112540137 [Bracket] Bracket
15 Q150B1035 [Screw] Screw
16 WG9112540002 [Muffler] Muffler
16 WG9112540003 [Muffler] Muffler
16 WG9112540174 [Muffler] Muffler
17 Q33208 [Nut] Nut
18 Q150B0830 [Screw] Screw
19 WG9000540064 [Strap] Strap
20 199112540140 [Sheet] Sheet
20 AZ9112540141 [Sheet] Sheet
21 Q150B1025 [Screw] Screw
22 Q40310 [Spning washer] Spning washer
23 WG84D410007 [Rubber cushion] Rubber cushion
24 Q150B1022 [Screw] Screw
25 Q150B1018 [Screw] Screw
26 199100540144 [Bracket] Bracket
27 199112540113 [Pipe clamp] Pipe clamp
27 WG9112540329 [Pipe clamp] Pipe clamp
28 AZ9112541111 [Tail pipe] Tail pipe
28 WG9112540040 [Tail pipe] Tail pipe
28 WG9112540163 [Tail pipe] Tail pipe
29 Q150B1090Q [Screw] Screw
