№		Номер детали	Наименование запчасти
1		WG9716270004 [Low voice pneumatic horn]	Low voice pneumatic horn
2		Q150B0625 [Screw]	Screw
3		Q40106 [Washer]	Washer
4		Q40306 [Spring washer]	Spring washer
5		190003179782 [Plastic pipe]	Plastic pipe
6		AZ9718360009 [Rubber sleeve]	Rubber sleeve
7		190003559482 [Nozzle]	Nozzle
8		WG9719360009 [Nozzle]	Nozzle
9		Q351C12T15 [Nut]	Nut
10		Q41212 [Toothed washer]	Toothed washer
11		199014280016 [Union nut]	Union nut
12		190003559561 [Cutting ring]	Cutting ring
13		190003559516 [Sleeve]	Sleeve

AIR LINE FOR CLUTCH BRAKE (C10-12) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9716270004 [Plastic pipe]	Plastic pipe
2		Q150B0625 [Nozzle]	Nozzle
3		Q40106 [Nozzle]	Nozzle
4		Q40306 [Nozzle]	Nozzle
5		190003179782 [Union nut]	Union nut
6		AZ9718360009 [Union nut]	Union nut
7		190003559482 [Cutting ring]	Cutting ring
8		WG9719360009 [Sleeve]	Sleeve

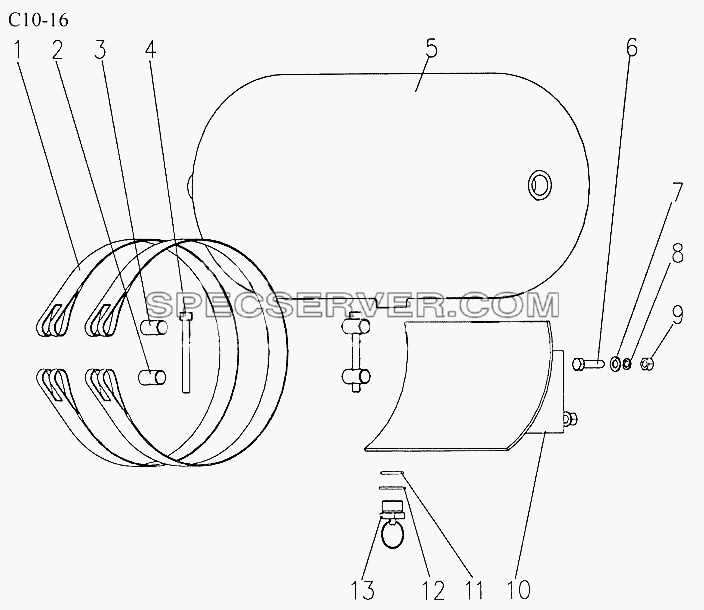

20L AIR RESERVOIR FIXATION (C10-16) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG99112270012 [Tension strap]	Tension strap
2		WG09 190017 [Tension bolt]	Tension bolt
3		WG700550013 [Tension bolt]	Tension bolt
4		Q218B0880 [Screw]	Screw
5		WG9003550087 [Air reservoir]	Air reservoir
6		Q150B0830 [Screw]	Screw
7		Q40108 [Washer]	Washer
8		Q40308 [Spring washer]	Spring washer
9		Q340B08 [Nut]	Nut
10		199100360105 [Bracket]	Bracket
11		WG9100360319 [Gasket]	Gasket
12		1680 250092 [Gasket]	Gasket
13		WG9000360115 [Drain valve]	Drain valve

AIR RESERVOIR FIXATION FOR TRACTOR TRUCK III (C10-17) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		Q5101048 [Bolt]	Bolt
2		WG99118360019 [Tension strap]	Tension strap
3		Q40110 [Washer]	Washer
4		Q5003214 [Split pin]	Split pin
5		WG9003550098 [40Lair reservoir]	40Lair reservoir
5		WG9014362117 [30Lair reservoir]	30Lair reservoir
6		Q150B1055 [Screw]	Screw
7		1293 250096 [Distance sleeve]	Distance sleeve
8		Q33210 [Nut]	Nut
9		AZ9118360004 [Bracket]	Bracket
10		WG9100360319 [Gasket]	Gasket
11		1680 250092 [Gasket]	Gasket
12		WG9000360115 [Drain valve]	Drain valve

CENTRAL CONTROL ELECTRICAL DASHBOARD I (B11-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9130583050 [Panel cluster I]	Panel cluster I
1		WG9130583051 [Panel cluster I]	Panel cluster I
2		WG9130583050-1 [Water temperature gauge]	Water temperature gauge
3		WG9130583050-2 [Signal lamp]	Signal lamp
4		WG9130583050-3 [Fuel level]	Fuel level
5		WG9130583050-4 [Clock]	Clock
6		WG9130583050-5 [Tachometer]	Tachometer
7		WG9130583050-6 [Barometer I]	Barometer I
8		WG9130583050-7 [Barometer II]	Barometer II
9		WG9130583003 [Speedometer and odometer]	Speedometer and odometer
10		139900580021 [Cover board]	Cover board
11		AZ9130581011 [Light switch]	Light switch
12		WG9100583056 [Speed sensor]	Speed sensor

CENTRAL CONTROL ELECTRICAL DASHBOARD II (B11-2) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q2140515 [Bolt]	Bolt
-		Q40105 [Washer]	Washer
1		WG9130583002 [Panel cluster II]	Panel cluster II
2		WG9130583214 [Indicator assembly]	Indicator assembly
3		WG9130583002-1 [Voltage gauge]	Voltage gauge
4		WG9130583002-2 [Oil pressure gauge]	Oil pressure gauge
5		WG9130583005 [Adjust lisht knob]	Adjust lisht knob
6		AZ9130581027 [Em-blinker system switch]	Em-blinker system switch
7		AZ9130583004 [Rubber block]	Rubber block
