№		Номер детали	Наименование запчасти
-		90003862532 [Screw]	Screw
-		90003931122 [Screw]	Screw
1		61560010094B [Gear case]	Gear case
2		61560010069 [Cover]	Cover
3		614 010040 [Joint]	Joint
4		614 010070 [Joint]	Joint
5		61500010012 [Flywheel housing]	Flywheel housing
6		61500010101 [Screw]	Screw
7		61500010037 [Gasket front]	Gasket front
8		1800210011 [Cover]	Cover
9		612600010193 [Plaque]	Plaque
10		90003802511 [Screw]	Screw
11		90003802523 [Screw]	Screw
12		90003802561 [Screw]	Screw
13		90003802576 [Screw]	Screw
14		90003800458 [Screw]	Screw
15		90003800571 [Screw]	Screw
16		90003802424 [Screw]	Screw
18		90003098086 [Joint]	Joint
19		90003813429 [Gear case]	Gear case
20		90003813470 [Gear case]	Gear case
21		90003811531 [Cover]	Cover
22		90003813443 [Cover]	Cover
23		90003813628 [Joint]	Joint
24		90003932023 [Joint]	Joint
25		90003813537 [Flywheel housing]	Flywheel housing
26		90003813527 [Flywheel housing]	Flywheel housing
27		90003888451 [Screw]	Screw
28		90003888452 [Screw]	Screw
29		90003888453 [Gasket]	Gasket
30		90003871252 [Gasket]	Gasket
31		90003871305 [Gasket]	Gasket
32		90003962621 [Cover]	Cover
33		90003098014 [Plaque]	Plaque
34		90003098015 [Screw]	Screw
36		90003930012 [Screw]	Screw
37		90003930271 [Screw]	Screw
38		90003932025 [Screw]	Screw
39		90003909603 [Screw]	Screw
40		90003901507 [Screw]	Screw
41		90003901604 [Screw]	Screw
42		61560010047 [Joint]	Joint
42		61560010090 [Spraying nozzle]	Spraying nozzle
43		90003813638 [Stud]	Stud
44		61500010008A [Cover]	Cover
45		90003962051 [Screw]	Screw
46		90003962020 [Screw]	Screw
47		614010084B [Joint]	Joint
48		614010083B [Cover]	Cover
49		AZ1500010336A [Front oil seal seat]	Front oil seal seat
50		614010106A [Shim]	Shim
51		90003862327 [Screw]	Screw

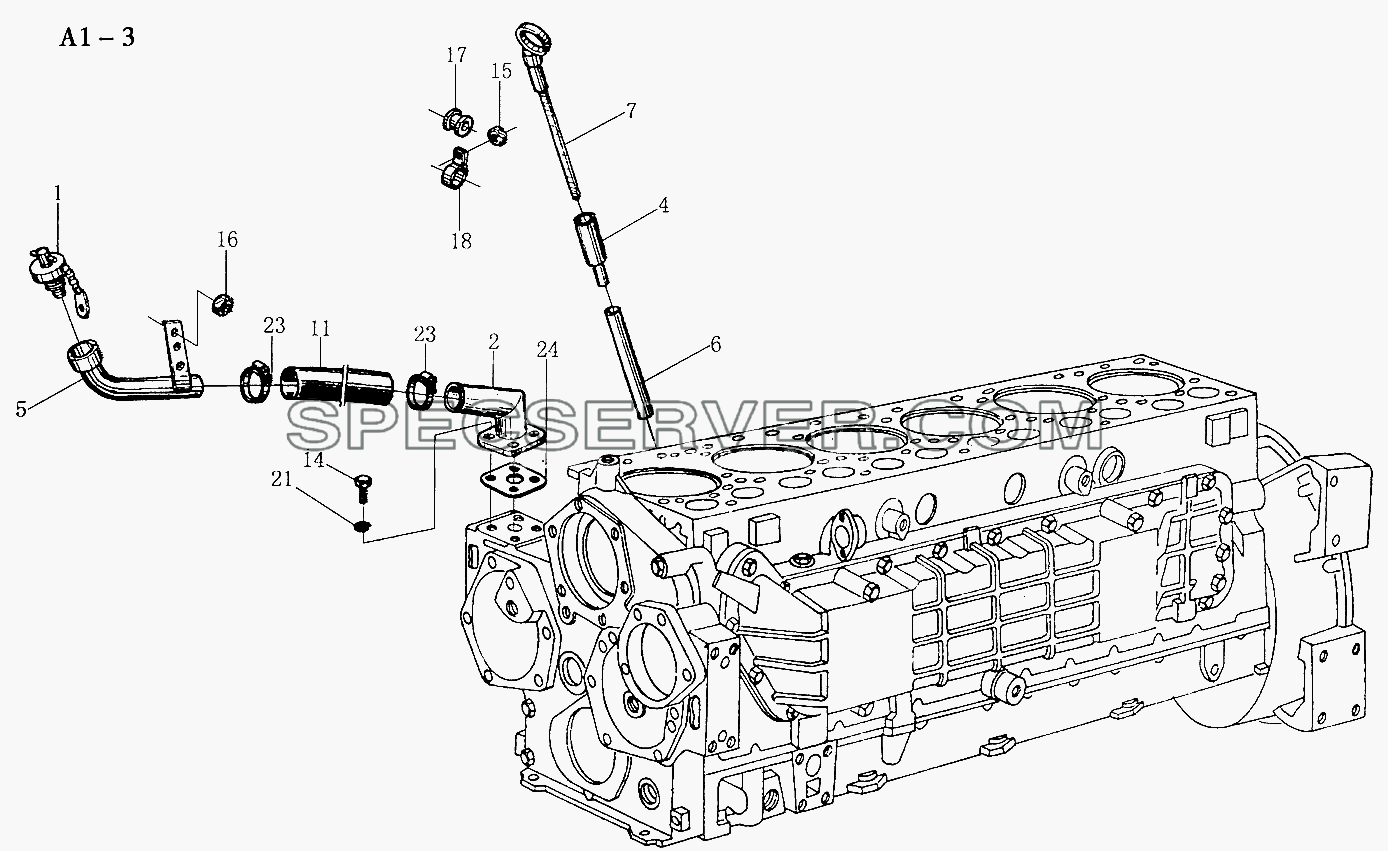

WD615 OIL FILLING PIPE (A1-3) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		612600010489 [Cover]	Cover
2		61560010028 [Filler neck]	Filler neck
5		612600010522 [Nozzle]	Nozzle
11		61500010079 [Hose]	Hose
14		90003802321 [Screw]	Screw
16		90003888451 [Nut]	Nut
21		90003931082 [Spring washer]	Spring washer
23		90003989306 [Hose clamp]	Hose clamp
24		614 010086 [Joint]	Joint
25		612600010532 [Oil dipstick]	Oil dipstick
25		612600010554 [Oil dipstick]	Oil dipstick
26		612600010533 [Jauge]	Jauge
26		61800010331 [Jauge]	Jauge
27		612600010557 [Nozzle]	Nozzle
27		61800010334 [Nozzle]	Nozzle
28		612600010638 [Clamp]	Clamp
29		612600010647 [Clamp]	Clamp
30		90003802411 [Screw]	Screw
31		612600010609 [Strut block]	Strut block
31		612600010616 [Strut block]	Strut block

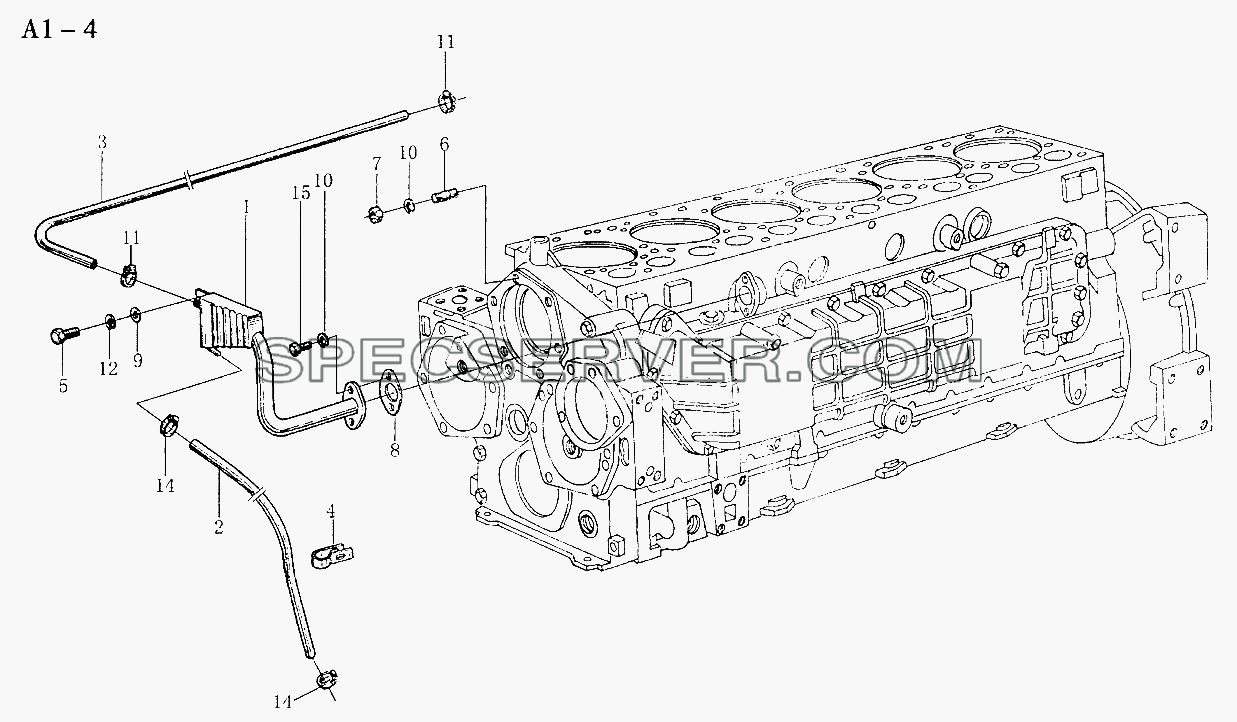

WD615 OIL SEPARATOR (A1-4) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		90003813429 [Stud]	Stud
-		90003813470 [Stud]	Stud
1		612600010267 [Oil Separator]	Oil Separator
2		61500010174 [Hose]	Hose
3		612G00040038 [Rubber hose]	Rubber hose
4		609E110049 [Clamp]	Clamp
5		90003802321 [Screw]	Screw
6		90003813447 [Stud]	Stud
7		90003871252 [Nut]	Nut
8		90003009303 [Joint]	Joint
9		90003936101 [J0int]	Joint
10		90003932023 [Spring washer]	Spring washer
11		90003989336 [Hose clamp]	Hose clamp
12		90003931082 [Spring washer]	Spring washer
13		90003179784 [Thermoplastic tubing]	Thermoplastic tubing
14		90003989336 [Hose clamp]	Hose clamp
15		90003862427 [Screw]	Screw

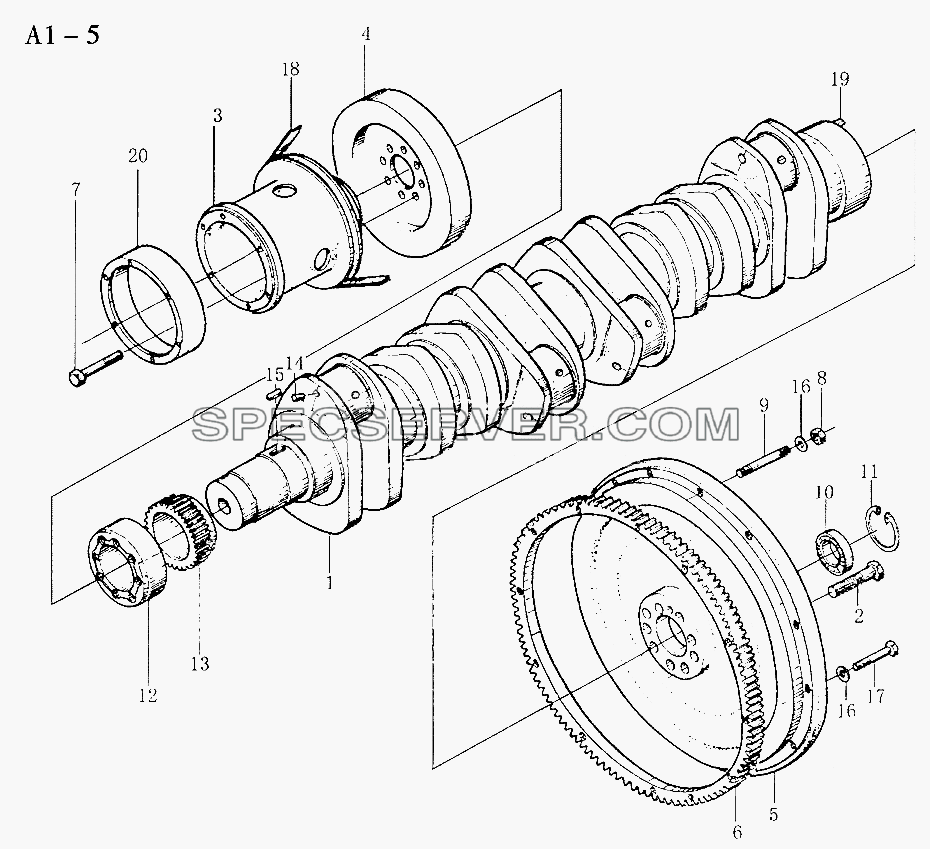

WD615 CRANK SHAFT, FLYWHEEL (A1-5) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		61200020024 [Crank shaft]	Crank shaft
1		61500020012 [Crank shaft]	Crank shaft
1		61500020071 [Crank shaft C]	Crank shaft C
1		61560020029 [Crank shaft C]	Crank shaft C
2		61500020046 [Screw]	Screw
3		61560020016 [Belt pulley]	Belt pulley
3		61560020017 [Belt pulley]	Belt pulley
4		61560020010 [Vibration damper]	Vibration damper
5		61560020041 [Fly wheel C]	Fly wheel C
6		81400020015 [Ring gear]	Ring gear
7		90003802558 [Screw]	Screw
8		90003871305 [Nut]	Nut
9		90003813571 [Stud]	Stud
10		90003311416 [Ball bearing]	Ball bearing
11		90003934310 [Circlip]	Circlip
12		61500020070 [Flange]	Flange
13		614 020038 [Crank shaft wheel]	Crank shaft wheel
14		90003961504 [Cylinderical pin]	Cylinderical pin
15		90003960569 [Key]	Кеу
16		90003932024 [Spring, washer]	Spring, washer
17		90003800579 [Screw]	Screw
18		81500060228 [V-belt-water pump]	V-belt-water pump
19		90003901418 [Cylinderical pin]	Cylinderical pin

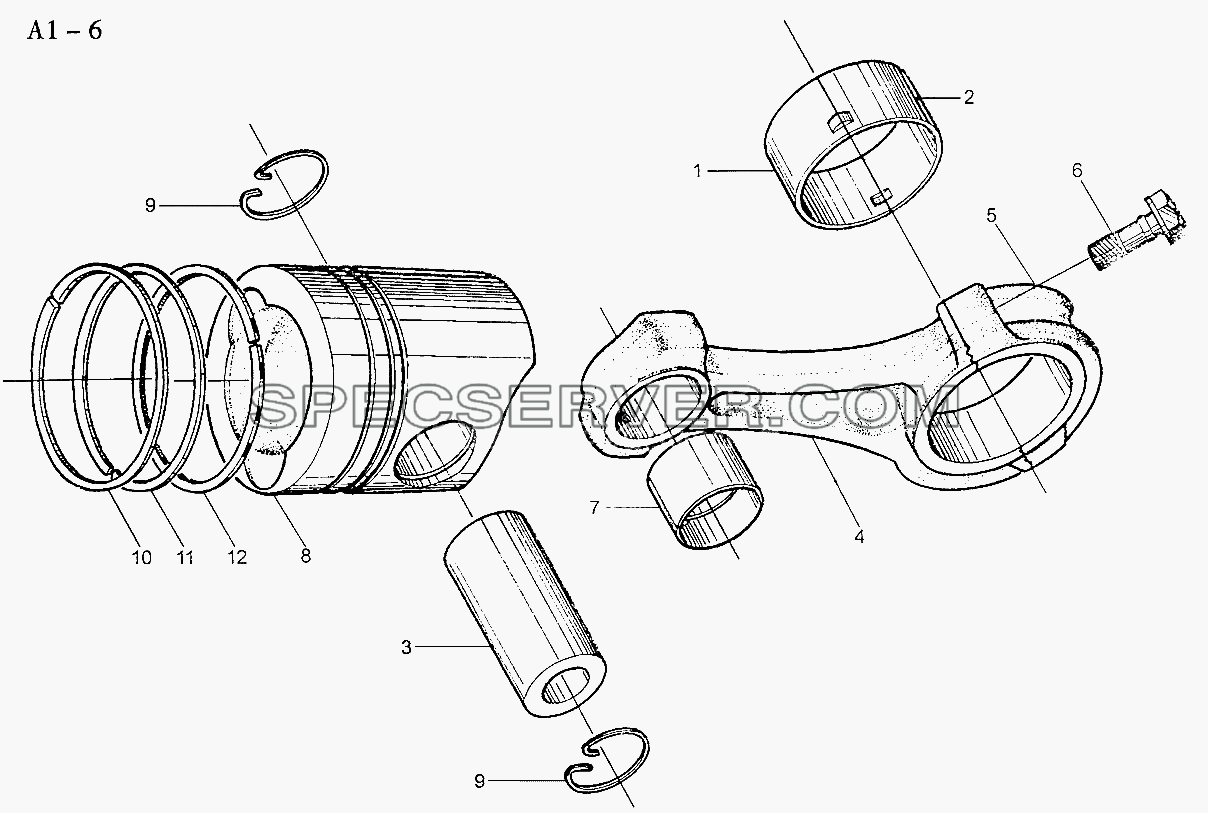

WD615 CONNECTING ROD, PISTON (A1-6) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		61500030008 [Connecting rod]	Connecting rod
-		61500030022 [Connecting cover]	Connecting cover
-		61500030067 [Bush]	Bush
-		61560030043 [Piston]	Piston
-		61560030045 [Spiral spring oil ring]	Spiral spring oil ring
-		61560030047 [Double ladderring]	Double ladderring
-		61560030078 [Conical ring]	Conical ring
-		81500030023 [Screw]	Screw
-		81560030012 [Bolt]	Bolt
1		61560030033 [Sheel pin]	Sheel pin
2		61560030034 [Sheel pin]	Sheel pin
3		61560030013 [Bolt]	Bolt
4		61500030009 [Connecting rod assembly]	Connecting rod assembly
8		61560030042 [Piston assembly]	Piston assembly

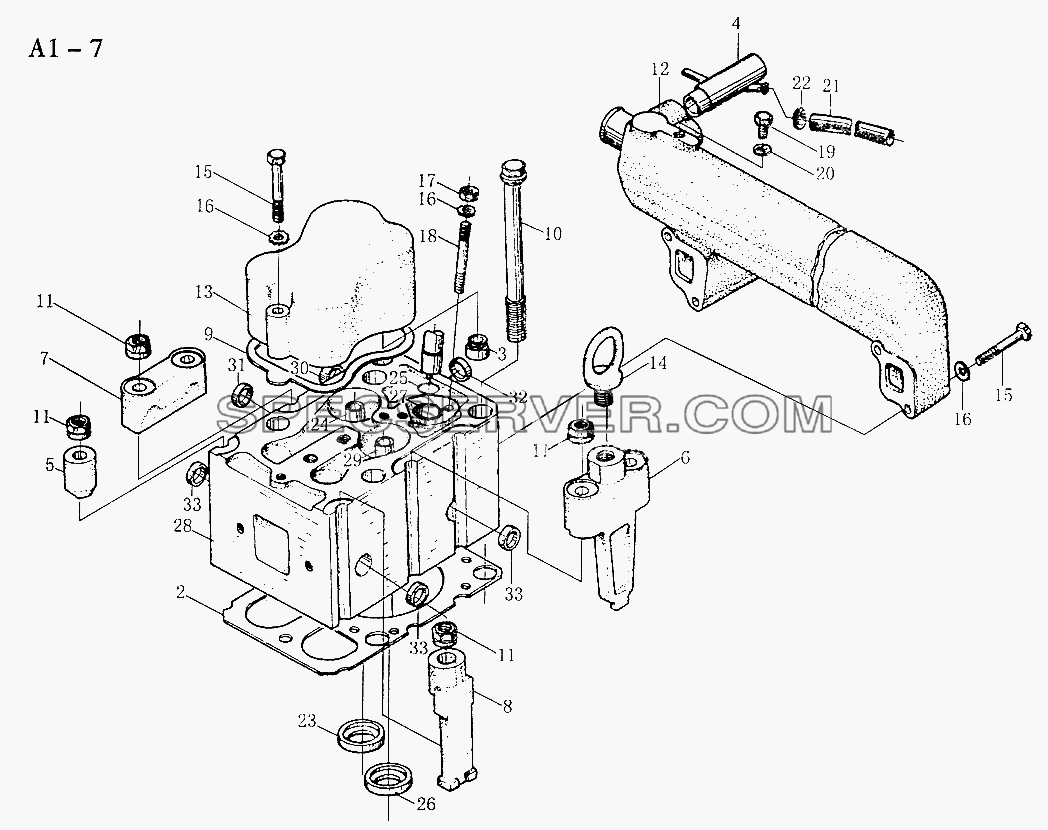

WD615 CYLINDER HEAD (A1-7) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		61500040058 [Cylinder head]	Cylinder head
2		61500040049 [Joint]	Joint
3		61560040032 [Scraper]	Scraper
4		61500060045 [Connecting piece]	Connecting piece
5		61200040023 [Clip]	Clip
6		61500040012 [Clip]	Clip
7		61500040009 [Clip]	Clip
8		61200040027 [Clip]	Clip
9		61560040039 [Joint]	Joint
10		61500040023 [Screw]	Screw
11		61200040034 [Nut]	Nut
12		61500040102 [Pipe]	Pipe
13		614 040065 [Cover]	Cover
14		614 010388 [Screw]	Screw
15		90003800466 [Screw]	Screw
16		90003932023 [Spring washer]	Spring washer
17		90003871252 [Nut]	Nut
18		90003813471 [Stud]	Stud
23		61560040057 [Ring]	Ring
24		61560040051 [Valve guide]	Valve guide
25		406 060010 [Gasket]	Gasket
26		81560040037 [Valve-seat ring]	Valve-seat ring
27		61560040049 [Nozzle holder]	Nozzle holder
28		61500040040 [Cylinder head]	Cylinder head
29		61500040014 [Spring base]	Spring base
30		90003989277 [Cover plug]	Cover plug
31		90003989721 [Cover plug]	Cover plug
32		90003989725 [Cover plug]	Cover plug
33		90003989294 [Cover plug]	Cover plug
