№		Номер детали	Наименование запчасти
1		WG1642870231 [Sun visor]	Sun visor
1		WG1644870002 [Sun visor]	Sun visor
2		AZ1644870003 [Bracket]	Bracket
2		WG1642870232 [Side bracket right]	Side bracket right
3		WG1642870234 [Middle bracket right]	Middle bracket right
4		WG1642870235 [Middle bracket left]	Middle bracket left
5		AZ1644870003 [Bracket]	Bracket
5		WG1642870233 [Side bracket Ieft]	Side bracket Ieft
6		AZ1672870121 [Rubber pad]	Rubber pad
6		AZ1672870121 [Rubber pad]	Rubber pad
7		Q40208 [Washer]	Washer
8		Q150B0820 [Screw]	Screw
9		Q340B06 [Nut]	Nut
10		Q40206 [Washer]	Washer
11		AZ1642870043 [Rubber pad]	Rubber pad
11		AZ1642870043 [Rubber pad]	Rubber pad
11		AZ1644870004 [Bracket]	Bracket
12		AZ1608870008 [Washer]	Washer
12		AZ1608870008 [Washer]	Washer
13		Q2140625 [Screw]	Screw
14		WG1642870236 [Side bracket]	Side bracket
15		Q150B0820 [Screw]	Screw
16		Q40208 [Washer]	Washer
17		AZ1672870121 [Rubber pad]	Rubber pad
18		Q150B0825 [Screw]	Screw
19		Q40208 [Washer]	Washer
20		Q340B08 [Nut]	Nut

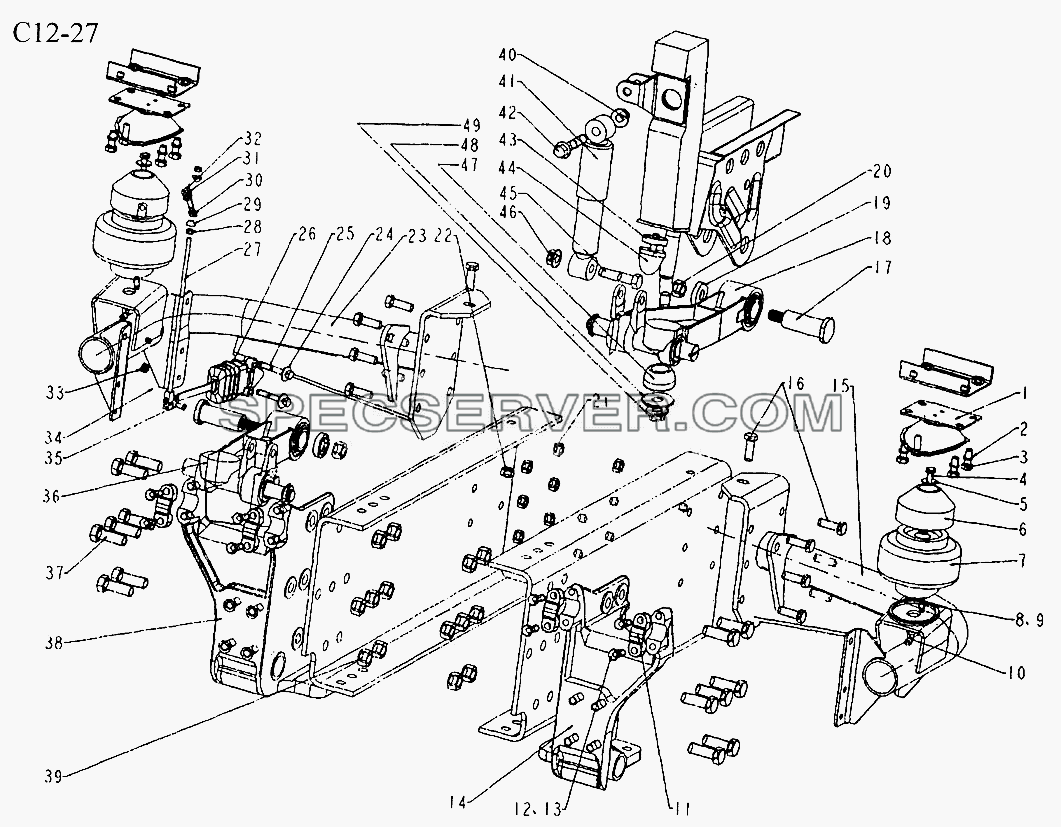

FRONT SUSPENSION OF DRIVER'S CAB (C12-27) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ1642430030 [Above base for air spring]	Above base for air spring
1		AZ1642430125 [Above base for screwy spring]	Above base for screwy spring
2		Q40310 [Spring washer]	Spring washer
3		Q150B1025 [Screw]	Screw
4		Q150B0820 [Screw]	Screw
5		Q41208 [Washer]	Washer
6		AZ1642430116 [Washer]	Washer
6		WG1642430033 [Guide]	Guide
7		AZ1642430085 [Air spring]	Air spring
7		WG1642430117 [Screwy spring]	Screwy spring
7		WG1642430118 [Screwy spring]	Screwy spring
8		Q40308 [Spring washer]	Spring washer
9		Q150B0820 [Screw]	Screw
10		WG1642430086 [Nozzle]	Nozzle
11		AZ1642430043 [Cover]	Cover
12		Q40312 [Spring washer]	Spring washer
13		Q150B1235 [Screw]	Screw
14		AZ1642430041 [Front support left]	Front support left
15		AZ1642430110 [Bottom spring bracket left]	Bottom spring bracket left
15		AZ1642430126 [Bottom spring bracket left]	Bottom spring bracket left
15		WG1642430010 [Bottom spring bracket left]	Bottom spring bracket left
16		Q151C1235 [Screw]	Screw
17		AZ1642430071 [Screw]	Screw
18		AZ1642430051 [Left swing arm]	Left swing arm
19		AZ1642430072 [Washer]	Washer
20		190003888459 [Nut]	Nut
21		190003888457 [Nut]	Nut
22		190003888457 [Nut]	Nut
23		AZ1642430127 [Bottom spring bracket right]	Bottom spring bracket right
23		WG1642430020 [Bottom spring bracket right]	Bottom spring bracket right
23		WG1642430120 [Bottom spring bracket right]	Bottom spring bracket right
24		Q40208 [Washer]	Washer
25		Q150B0855 [Screw]	Screw
26		WG1642440051 [Height control valve]	Height control valve
27		WG1642430035 [Brace rad I]	Brace rad I
28		Q340B09 [Nut]	Nut
29		AZ1642430036 [Ball washer]	Ball washer
30		AZ1642430034 [Connecting rod]	Connecting rod
31		Q340B08 [Nut]	Nut
32		Q41208 [Toothed washer]	Toothed washer
33		Q340B08 [Nut]	Nut
34		Q5002012 [Split pin]	Split pin
35		Q5100614 [Bolt]	Bolt
36		AZ1642430052 [Right swing arm]	Right swing arm
37		Q151B1645 [Screw]	Screw
38		AZ1642430042 [Front support right]	Front support right
39		190003888459 [Nut]	Nut
40		Q33014 [Nut]	Nut
41		AZ1642430091 [Shock absorber]	Shock absorber
42		Q1841470 [Nut]	Nut
43		AZ1642430082 [Washer]	Washer
44		WG1642430081 [Spring stop]	Spring stop
45		Q150B1460 [Screw]	Screw
46		Q33014 [Nut]	Nut
47		AZ1642430097 [Rubber stop]	Rubber stop
48		Q40216 [Washer]	Washer
49		Q33016 [Nut]	Nut

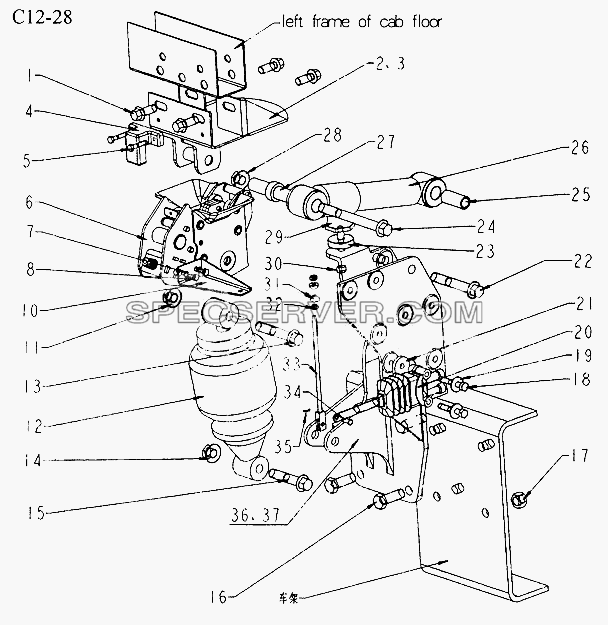

REAR SUSPENSION OF DRIVER'S CAB (C12-28) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		Q1841230 [Screw]	Screw
2		WG1642440040 [Above bracket left]	Above bracket left
3		WG1642440041 [Above bracket right]	Above bracket right
4		WG1642440052 [Sensor for cab lock]	Sensor for cab lock
5		Q150B0630 [Screw]	Screw
6		WG1642440101 [Hyd.lock]	Hyd.lock
7		Q40306 [Spring washer]	Spring washer
8		Q150B0610 [Screw]	Screw
9		WG1642440055 [Left bracket]	Left bracket
10		WG1642440056 [Right bracket]	Right bracket
11		Q33014 [Nut]	Nut
12		AZ1642440025 [Shock absorber]	Shock absorber
12		AZ1642440027 [Shock absorber (screwy spring)]	Shock absorber (screwy spring)
12		WG1642440028 [Shock absorber (screwy spring)]	Shock absorber (screwy spring)
13		Q1841480 [Screw]	Screw
14		Q33014 [Nut]	Nut
15		Q1841470 [Screw]	Screw
16		Q151B1445 [Screw]	Screw
17		190003888458 [Nut]	Nut
18		Q150B0850 [Screw]	Screw
19		Q40208 [Washer]	Washer
20		WG1642440051 [Height control valve]	Height control valve
21		AZ1642440035 [Plate]	Plate
22		Q1841490 [Screw]	Screw
23		AZ1642430082 [Washer]	Washer
24		Q18414140 [Screw]	Screw
25		AZ1642440032 [Bush II]	Bush II
26		AZ1642440021 [Stabilizer]	Stabilizer
27		AZ1642440031 [Bush I]	Bush I
28		Q33014 [Nut]	Nut
29		WG1642430081 [Stop]	Stop
30		Q340B10 [Nut]	Nut
31		AZ1642430036 [Ball washer]	Ball washer
32		Q340B06 [Nut]	Nut
33		WG1642440060 [Brace rod]	Brace rod
34		Q5100614 [Bolt]	Bolt
35		Q5002012 [Split pin]	Split pin
36		AZ1642440011 [Bottom bracket left]	Bottom bracket left
36		AZ1642440013 [Bottom bracket left]	Bottom bracket left
36		AZ1642440015 [Bottom bracket left]	Bottom bracket left
37		AZ1642440012 [Bottom bracket right]	Bottom bracket right
37		AZ1642440014 [Bottom bracket right]	Bottom bracket right
37		AZ1642440016 [Bottom bracket right]	Bottom bracket right
38		WG1642440070 [T-nozzle]	T-nozzle
39		WG1642440072 [Hose]	Hose

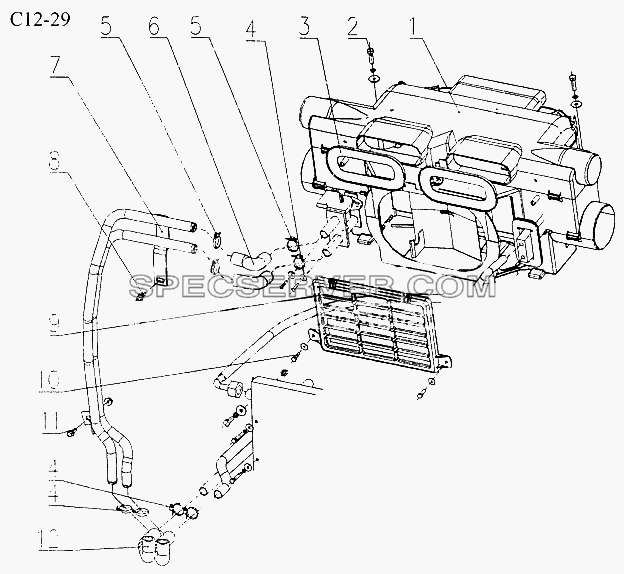

DRIVER'S CAB HEATlNG (C12-29) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ1630840013 [Bottom housing]	Bottom housing
-		AZ1630840014 [Fan]	Fan
-		AZ1630840014-1 [Motor of fan]	Motor of fan
-		AZ1630840015 [Air intake assembly]	Air intake assembly
-		AZ1630840036 [Air intake rear]	Air intake rear
-		AZ1630840037 [Air intake left]	Air intake left
-		AZ1630840038 [Air intake right]	Air intake right
-		AZ1630840040 [Air intake front]	Air intake front
-		AZ1630840063 [Connecter]	Connecter
-		AZ1630840066 [O-ring]	O-ring
-		AZ1630840072 [Output water pipe]	Output water pipe
-		AZ1630840073 [Input water pipe]	Input water pipe
-		AZ1630840074 [Water tank]	Water tank
-		AZ1630840091 [Water pipe]	Water pipe
-		AZ1630840092 [Seal strip]	Seal strip
-		AZ1630840312 [Middle housing]	Middle housing
-		AZ1630840319 [Water tank assembly]	Water tank assembly
-		AZ1630840320 [Valve]	Valve
-		AZ1630840321 [Electro speed changer]	Electro speed changer
-		AZ1630840323 [Electrical line]	Electrical line
-		Q2714216 [Screw]	Screw
-		Q33008 [Nut]	Nut
-		Q40206 [Washer]	Washer
-		Q40206 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40308 [Spring washer]	Spring washer
1		AZ1630840302 [Heater assembly with electro air intake]	Heater assembly with electro air intake
2		Q150B0830 [Screw]	Screw
3		AZ1630840062 [Rubber sleeve]	Rubber sleeve
4		Q2714825 [Screw]	Screw
5		190003989340 [Circlip]	Circlip
6		WG1642840091 [Hose I]	Hose I
7		AZ1642840013 [Steel pipe]	Steel pipe
8		Q1840816 [Screw]	Screw
9		AZ1642840084 [Protect net for air intake]	Protect net for air intake
10		Q150B0620 [Screw]	Screw
11		Q1840825 [Screw]	Screw
12		WG1642840092 [Hose II]	Hose II
13		WG1630840322 [Control panel]	Control panel
14		AZ1630820312 [Electrical line of air conditioner]	Electrical line of air conditioner
15		WG1630820313 [Temprature sensor]	Temprature sensor

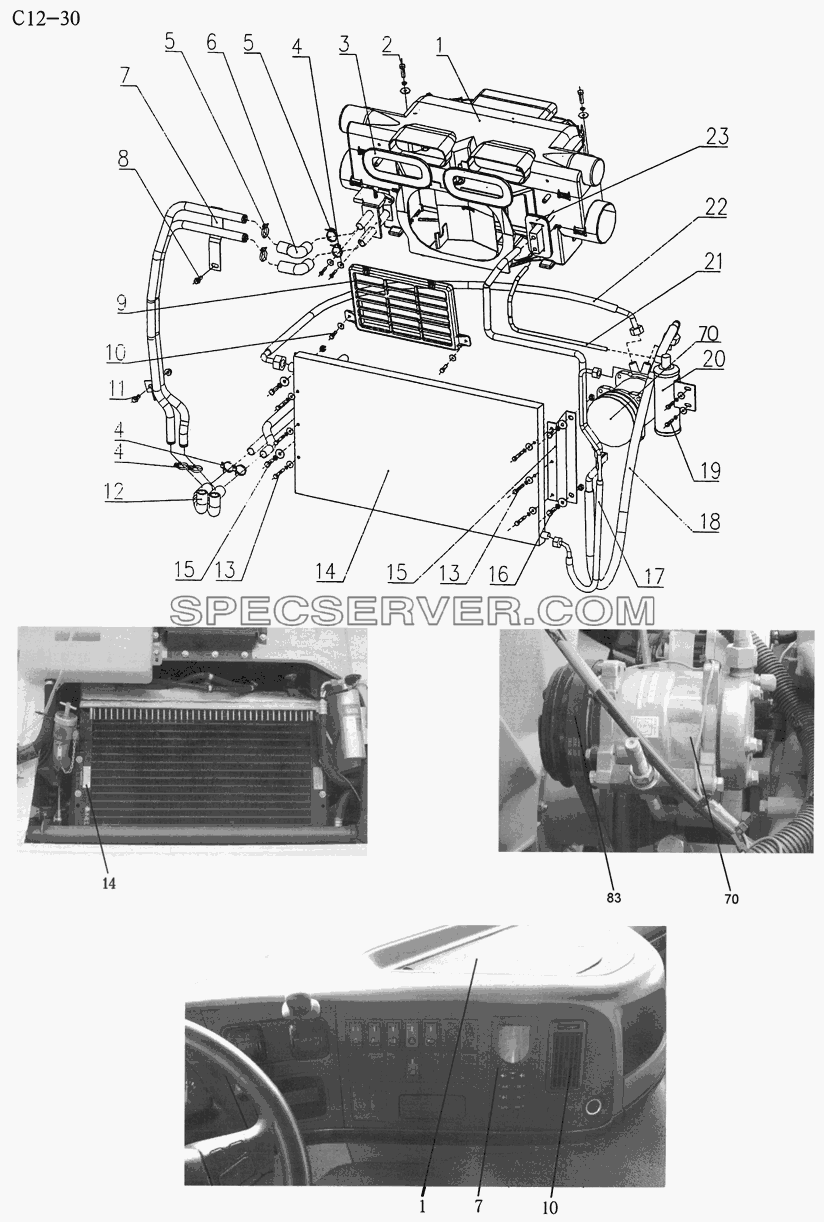

AIR CONDITIONER (C12-30) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

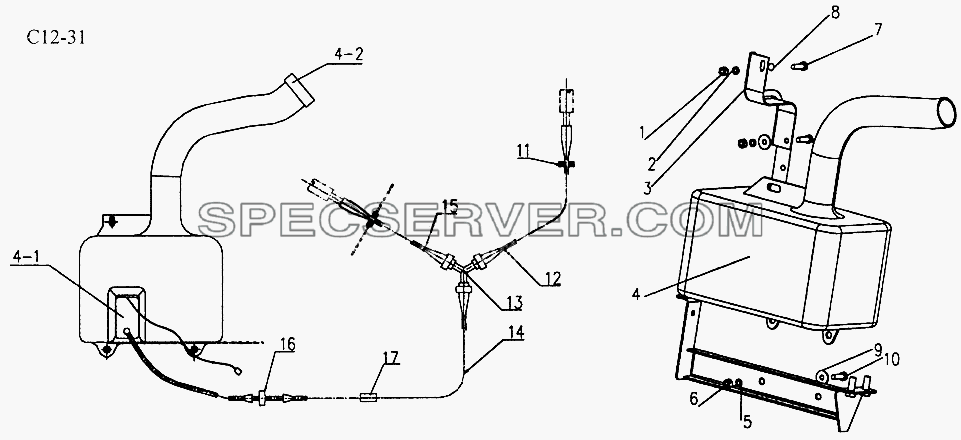

WINDSCREEN WASHING EQUIPMENT (C12-31) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ1630840013 [Bottom housing]	Bottom housing
-		AZ1630840015 [Air intake assembly]	Air intake assembly
-		AZ1630840016 [Seal ring]	Seal ring
-		AZ1630840021 [Plate]	Plate
-		AZ1630840034 [Bevel gear]	Bevel gear
-		AZ1630840035 [Shaft]	Shaft
-		AZ1630840036 [Air intake rear]	Air intake rear
-		AZ1630840037 [Air intake left]	Air intake left
-		AZ1630840038 [Air intake right]	Air intake right
-		AZ1630840039 [Rod I]	Rod I
-		AZ1630840040 [Air intake front]	Air intake front
-		AZ1630840041 [Rod]	Rod
-		AZ1630840045 [Rod II]	Rod II
-		AZ1630840046 [Rod III]	Rod III
-		AZ1630840047 [Rod IV]	Rod IV
-		AZ1630840049 [Rotary plate]	Rotary plate
-		AZ1630840050 [Rotary arm]	Rotary arm
-		AZ1630840051 [Torsion spring]	Torsion spring
-		AZ1630840052 [Washer]	Washer
-		AZ1630840053 [Base]	Base
-		AZ1630840053 [Base]	Base
-		AZ1630840063 [Clip]	Clip
-		AZ1630840063 [Clip]	Clip
-		AZ1630840065 [Snap ring]	Snap ring
-		AZ1630840066 [O-ring]	O-ring
-		AZ1630840072 [Water outlet pipe assembly]	Water outlet pipe assembly
-		AZ1630840073 [Water inlet pipe assembly]	Water inlet pipe assembly
-		AZ1630840074 [Water tank]	Water tank
-		AZ1630840091 [Water pipe]	Water pipe
-		AZ1630840092 [Seal strip]	Seal strip
-		AZ1630840093 [Seal strip II]	Seal strip II
-		AZ1630840311 [Above housing]	Above housing
-		AZ1630840312 [Middle housing]	Middle housing
-		AZ1630840313 [Lever]	Lever
-		AZ1630840314 [Rod]	Rod
-		AZ1630840315 [Shaft for bevel gear]	Shaft for bevel gear
-		AZ1630840319 [Water tank with electro valve]	Water tank with electro valve
-		AZ1630840320 [Water valve with electro switch]	Water valve with electro switch
-		AZ1630840321 [Fan speed changer]	Fan speed changer
-		AZ1630840323 [Electrical line for fan]	Electrical line for fan
-		AZ1630840324 [1# water changer]	1# water changer
-		AZ1630840325 [2# water changer]	2# water changer
-		AZ1630840326 [3# water changer]	3# water changer
-		AZ1630840401 [Gasket]	Gasket
-		AZ1642820010 [Evaporator assembly]	Evaporator assembly
-		AZ1642820010 [Fan]	Fan
-		AZ1642820010-1 [Expansion valve]	Expansion valve
-		AZ1642820010-2 [Temperature sensor]	Temperature sensor
-		Q150B0830 [Screw]	Screw
-		Q2714216 [Screw]	Screw
-		Q2723525 [Screw]	Screw
-		Q2723525 [Screw]	Screw
-		Q2723525 [Screw]	Screw
-		Q33008 [Nut]	Nut
-		Q340B08 [Nut]	Nut
-		Q40206 [Washer]	Washer
-		Q40206 [Washer]	Washer
-		Q40206 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40306 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q43660 [Snap ring]	Snap ring
-		WG1500130016/3 [V-belt]	V-belt
-		WG1500139000/3 [Compressor]	Compressor
-		WG1642828011 [Bracket left for condenser]	Bracket left for condenser
-		WG1642828012 [Bracket right for condenser]	Bracket right for condenser
1		WG1642820002 [Air conditioner with electro air intake]	Air conditioner with electro air intake
3		AZ1630840062 [Rubber sleeve]	Rubber sleeve
4		Q2714825 [Screw]	Screw
5		190003989340 [Circlip]	Circlip
6		WG1642840091 [Hose I]	Hose I
7		AZ1642840013 [Steel pipe]	Steel pipe
8		Q1840816 [Screw]	Screw
9		AZ1642840084 [Protect net]	Protect net
10		Q150B0620 [Screw]	Screw
11		Q1840825 [Screw]	Screw
12		WG1642840092 [Hose II]	Hose II
13		Q150B0640 [Screw]	Screw
14		WG1630820073 [Condenser assembly]	Condenser assembly
15		WG1642820011 [Bracket left for condenser]	Bracket left for condenser
15		WG1642820012 [Bracket right for condenser]	Bracket right for condenser
16		Q150B0825 [Screw]	Screw
17		WG1642820017 [Condenser-receiver connect tube]	Condenser-receiver connect tube
18		WG1642820019 [Evaporator-compressor connect tube]	Evaporator-compressor connect tube
18		WG1642828019 [Evaporator-compressor connect tube]	Evaporator-compressor connect tube
19		Q150B0625 [Screw]	Screw
19		Q40206 [Washer]	Washer
19		Q40306 [Spring washer]	Spring washer
20		WG1642820015 [Receiver tank]	Receiver tank
21		WG1642820018/1 [Receiver-evaporator connect tube]	Receiver-evaporator connect tube
22		WG1642820016 [Compressor-condenser connect tube]	Compressor-condenser connect tube
22		WG1642828016 [Compressor-condenser connect tube]	Compressor-condenser connect tube
23		WG1630820019 [Rubber sleeve]	Rubber sleeve
24		WG1630840032 [Control panel]	Control panel
25

№		Номер детали	Наименование запчасти
-		WG1642860001-1 [Pump]	Pump
-		WG1642860001-2 [Cover]	Cover
1		Q340B06 [Nut]	Nut
2		Q40306 [Spring washer]	Spring washer
3		AZ1642860009 [Bracket]	Bracket
3		AZ1646860005 [Bracket]	Bracket
4		WG1642860001/1 [Washing equipment]	Washing equipment
4		WG1646860001 [Reservoir/pump]	Reservoir/pump
5		Q40308 [Spring washer]	Spring washer
6		340B08 [Nut]	Nut
7		Q150B0625 [Screw]	Screw
8		Q40206 [Washer]	Washer
9		Q40208 [Washer]	Washer
10		Q150B0830 [Screw]	Screw
11		AZ1642860007 [Protect ring]	Protect ring
12		AZ1642860003 [Hose I]	Hose I
13		116100770121 [V nozzle]	V nozzle
14		AZ1642860005 [Hose III]	Hose III
15		AZ1642860004 [Hose II]	Hose II
16		AZ1600860121 [Nozzle]	Nozzle
17		WG1600860008 [Clip]	Clip
18		AZ1646860004 [Bracket]	Bracket
