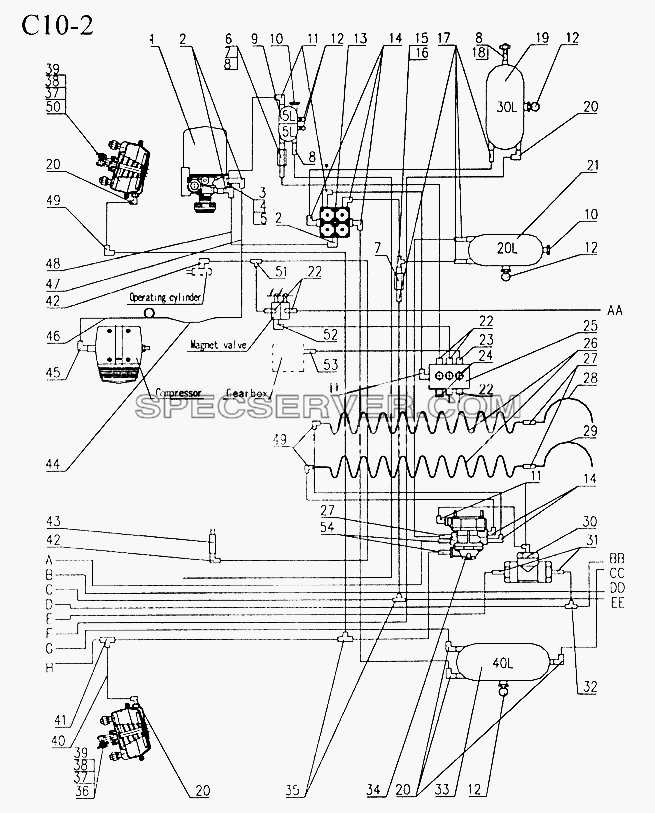

№		Номер детали	Наименование запчасти
-		AZ9725360108 [Pipe]	Pipe
-		AZ9725360109 [Pipe]	Pipe
-		WG17017361000 [Screwy protecting sleeve]	Screwy protecting sleeve
-		WG9123360200 [Protection sleeve (Ф20)]	Protection sleeve (Ф20)
-		WG9123360300 [Protection sleeve (Ф30)]	Protection sleeve (Ф30)
1		WG9100368471 [Air dryer]	Air dryer
2		190003559653 [Angle nozzle]	Angle nozzle
3		190003962612 [Female screw]	Female screw
4		WG99100270117 [Connecter]	Connecter
5		Q72312T5F [Gasket]	Gasket
6		190003559385 [Nozzle]	Nozzle
7		WG9000360112 [Check valve]	Check valve
8		190003559963 [Nozzle]	Nozzle
9		WG9100360044 [Air reservior (5L)]	Air reservior (5L)
9		WG9719360001 [Air reservior (5L+5L)]	Air reservior (5L+5L)
10		190003962038 [Screw]	Screw
11		WG9114360010 [Nozzle]	Nozzle
12		WG9000360115 [Drain valve]	Drain valve
13		WG9000360366 [4-circuit protecting valve]	4-circuit protecting valve
14		190003559946 [Angle nozzle]	Angle nozzle
15		WG99100360115 [Distributor]	Distributor
16		WG99100360161 [Nozzle]	Nozzle
17		190003559948 [Nozzle]	Nozzle
18		WG9000360314 [Test connector]	Test connector
19		WG9003550094 [Air reservior (30L)]	Air reservior (30L)
19		WG9003550098 [Air reservior (40L)]	Air reservior (40L)
19		WG9003550098 [Air reservior (40L)]	Air reservior (40L)
19		WG9014362009 [Air reservior (35L)]	Air reservior (35L)
19		WG9014362117 [Air reservior (Ф275/30L)]	Air reservior (Ф275/30L)
20		190003559955 [Angle nozzle]	Angle nozzle
21		WG9003550087 [Air reservior (20L)]	Air reservior (20L)
21		WG9003550087 [Air reservior (20L)]	Air reservior (20L)
21		WG9003550087 [Air reservior (20L)]	Air reservior (20L)
22		190003559766 [Nozzle]	Nozzle
23		Q80408 [Nozzle]	Nozzle
24		190003962019 [Screw]	Screw
25		AZ9100366156 [Nozzle]	Nozzle
26		WG9000360140 [Screwy line]	Screwy line
27		190003559490 [Nozzle]	Nozzle
28		WG9000360170 [Coupling]	Coupling
29		WG9000360171 [Coupling]	Coupling
30		WG9000360188 [Two way valve]	Two way valve
31		190003559947 [Nozzle]	Nozzle
32		190003559483 [Distributor]	Distributor
33		WG9003550098 [Air reservior (40L)]	Air reservior (40L)
33		WG9014362009 [Air reservior (35L)]	Air reservior (35L)
34		WG9000360180 [Trailer control valve]	Trailer control valve
35		WG17017360203 [Distributor]	Distributor
36		WG9000360100 [Diaphragm cylinder left]	Diaphragm cylinder left
37		190003903661 [Bolt]	Bolt
38		Q40114 [Washer]	Washer
39		Q5004022 [Split pin]	Split pin
40		WG17017360450 [Brake hose]	Brake hose
41		WG9100360112 [Screwing]	Screwing
42		190003559496 [Screwing]	Screwing
43		WG9719180010 [Exhaust brake]	Exhaust brake
44		WG99100360184 [Hose]	Hose
45		WG99000360410 [Screwing]	Screwing
46		AZ9719360101 [Pipe (Air corn pressor-hose)]	Pipe (Air corn pressor-hose)
47		AZ9719360103 [Pipe (Hose-Air dryer)]	Pipe (Hose-Air dryer)
48		AZ9719360102 [Pipe(dryer 4-cir.protection valve)]	Pipe(dryer 4-cir.protection valve)
49		190003559479 [Nozzle]	Nozzle
50		WG9000360101 [Diaphragm cylinder right]	Diaphragm cylinder right
51		190003559482 [Nozzle]	Nozzle
52		WG9100361003 [Screwing]	Screwing
53		WG99112280010 [Screwing]	Screwing
54		190003559945 [Screwing]	Screwing
55		AZ9725360101 [Pipe (22 Hole of 4-cir. Protection valve-reservior for rear axle)]	Pipe (22 Hole of 4-cir. Protection valve-reservior for rear axle)
56		AZ9725360103 [Pipe (21 Hole of 4-cir. Protection valve-reservior for front axle)]	Pipe (21 Hole of 4-cir. Protection valve-reservior for front axle)
57		AZ9725360106 [Pipe (24 Hole of 4-cir. Protection valve-reservior for hand brake)]	Pipe (24 Hole of 4-cir. Protection valve-reservior for hand brake)
60		WG9718360001 [KNORR/ABS magnetic valve]	KNORR/ABS magnetic valve
60		WG9718360002 [WABCO/ABS magnetic valve]	WABCO/ABS magnetic valve

BRAKE PARTS IN REAR SECT OF CHASSIS (C10-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003559474 [Nozzte]	Nozzle
-		190003559479 [Nozzte]	Nozzle
-		WG17017360460 [Brake Hose]	Brake Hose
-		WG9000360108 [Spring brake actuator]	Spring brake actuator
-		WG9003550006 [T-nozzle]	T-nozzle
-		WG9100360303 [Spring brake actuator]	Spring brake actuator
1		190003559496 [Angle nozzle]	Angle nozzle
2		190003559946 [Angle nozzle]	Angle nozzle
3		WG99100360114 [T-nozzle]	T-nozzle
4		WG9000360314 [Test connector]	Test connector
5		WG9000360108 [Spring brake actuator]	Spring brake actuator
5		WG9100360011 [Spring brake actuator]	Spring brake actuator
5		WG9100360303 [Spring brake actuator]	Spring brake actuator
6		WG9003550006 [T-nozzle]	T-nozzle
7		190003559479 [Nozzte]	Nozzle
8		190003559474 [Nozzte]	Nozzle
9		WG9000360134 [Relay valve]	Relay valve
10		190003962038 [Screw]	Screw
11		190003559948 [Nozzle]	Nozzle
12		WG17017360470 [Brake Hose]	Brake Hose
12		WG17017360470 [Brake Hose]	Brake Hose
12		WG17017360470 [Brake Hose]	Brake Hose
13		190003559947 [Nozzle]	Nozzle
14		190003559946 [Angle nozzle]	Angle nozzle
14		WG99100360112 [T-nozzle]	T-nozzle
15		190003903661 [Bolt]	Bolt
16		Q40114 [Washer]	Washer
19		WG9718360001 [ABS Magnetic valve/KNORR]	ABS Magnetic valve/KNORR
19		WG9718360002 [ABS Magnetic valve/WABCO]	ABS Magnetic valve/WABCO
20		WG17017360480 [Brake hose]	Brake hose
21		WG17017360480 [Brake hose]	Brake hose
22		WG9718360001 [ABS Magnetic valve/KNORR]	ABS Magnetic valve/KNORR
22		WG9718360002 [ABS Magnetic valve/WABCO]	ABS Magnetic valve/WABCO
23		WG17017360460 [Brake hose]	Brake hose
23		WG17017360470 [Brake hose]	Brake hose
24		WG17017360460 [Brake hose]	Brake hose

CONNECTOR FOR LINE A (C10-4-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		190003559516 [Union nut]	Union nut
2		190003559508 [Union nut]	Union nut
3		190003559561 [Cutting ring]	Cutting ring
4		190003559509 [Union nut]	Union nut
5		190003559558 [Cutting ring]	Cutting ring
6		190003559518 [Union nut]	Union nut
7		190003559564 [Cutting ring]	Cutting ring
8		190003559514 [Union nut]	Union nut
9		190003559563 [Cutting ring]	Cutting ring
10		190003559520 [Union nut]	Union nut
11		190003559562 [Cutting ring]	Cutting ring
12		190003559538 [Pressure ring]	Pressure ring
13		190003559539 [Gasket]	Gasket

CONNECTOR FOR LINE B (C10-4-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		190003559507 [Union nut]	Union nut
2		190003559556 [Cutting ring]	Cutting ring
3		199014280040 [Sleeve]	Sleeve
4		190003559516 [Union nut]	Union nut
5		190003559561 [Cutting ring]	Cutting ring
6		199014280016 [Sleeve]	Sleeve
7		190003559509 [Union nut]	Union nut
8		190003559558 [Cutting ring]	Cutting ring
9		199014280041 [Sleeve]	Sleeve
10		190003559518 [Union nut]	Union nut
11		190003559564 [Cutting ring]	Cutting ring
12		199014280042 [Sleeve]	Sleeve
13		190003559514 [Union nut]	Union nut
14		WG99100360253 [Ring]	Ring
15		WG99100360252 [Sleeve]	Sleeve
16		190003179778 [Plastic pipe]	Plastic pipe
17		190003179782 [Plastic pipe]	Plastic pipe
18		190003179781 [Plastic pipe]	Plastic pipe
19		190003179784 [Plastic pipe]	Plastic pipe
20		190003179785 [Plastic pipe]	Plastic pipe

BRACKET FOR BRAKE (C10-5) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9719360013 [Bracket for 4-cir. protection valve]	Bracket for 4-cir. protection valve
2		199014360140 [Angle for relay valve]	Angle for relay valve
3		AZ961836001 [Angle for relay valve]	Angle for relay valve
6		AZ9130360003 [Angle for trailer control valve]	Angle for trailer control valve
7		AZ9719360014 [Bracket for air dryer]	Bracket for air dryer
8		1880 360083 [Carrier]	Carrier
9		199000360315 [Carrier]	Carrier
10		199012360441 [Angle]	Angle
11		199000362186 [Angle]	Angle
12		199100360165 [Angle]	Angle
13		1397 350169 [Angle]	Angle
14		199100360168 [Angle]	Angle
15		199100360241 [Angle]	Angle
16		199100360207 [Support]	Support
17		199100360228 [Lashing]	Lashing
18		199100360229 [Angle]	Angle
19		199114360101 [Angle]	Angle
20		AZ9718360007 [Connecting plate]	Connecting plate
21		AZ9100360120 [Angle]	Angle
22		26600360022 [Angle]	Angle
23		199100360166 [Angle]	Angle
24		AZ9719360031 [Combination bracket]	Combination bracket
25		AZ9719360028 [U-Bracket]	U-Bracket
26		AZ9719360029 [Bracket for coupling]	Bracket for coupling

RARTS FOR BRAKE (C10-6) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		Q72312T5F [Gasket]	Gasket
2		190003098031 [Gasket]	Gasket
3		190003098015 [Gasket]	Gasket
4		WG9000360292 [Gasket]	Gasket
5		1406 070015 [Gasket]	Gasket
6		WG9100360319 [Gasket]	Gasket
7		1680 250092 [Gasket]	Gasket
8		138091360181 [Clamp]	Clamp
9		1188 730187 [Clamp]	Clamp
10		199000360408 [Clamp]	Clamp
11		1 93 760081 [Angle]	Angle
12		199100360174 [Clamp]	Clamp
13		1280 770028 [Clamp]	Clamp
14		199100360234 [Clamp]	Clamp
15		199100360134 [Distance sleeve]	Distance sleeve
16		199100360135 [Distance sleeve]	Distance sleeve
17		190003171390 [Wire fastener]	Wire fastener
18		190003171392 [Wire fastener]	Wire fastener
19		190003171393 [Wire fastener]	Wire fastener
20		190003559539 [Gasket]	Gasket
21		19900360477 [Gasket]	Gasket
22		1288730061 [O-ring]	O-ring
23		190003179045 [Protection sleeve]	Protection sleeve
24		1381F140090 [Protection sleeve]	Protection sleeve
