№		Номер детали	Наименование запчасти
-		WG9000360115 [Pressure valve]	Pressure valve
1		Valve
2		Spring plate
3		Valve staff
4		Housing
5		Circlip
6		Spring
7		Ring

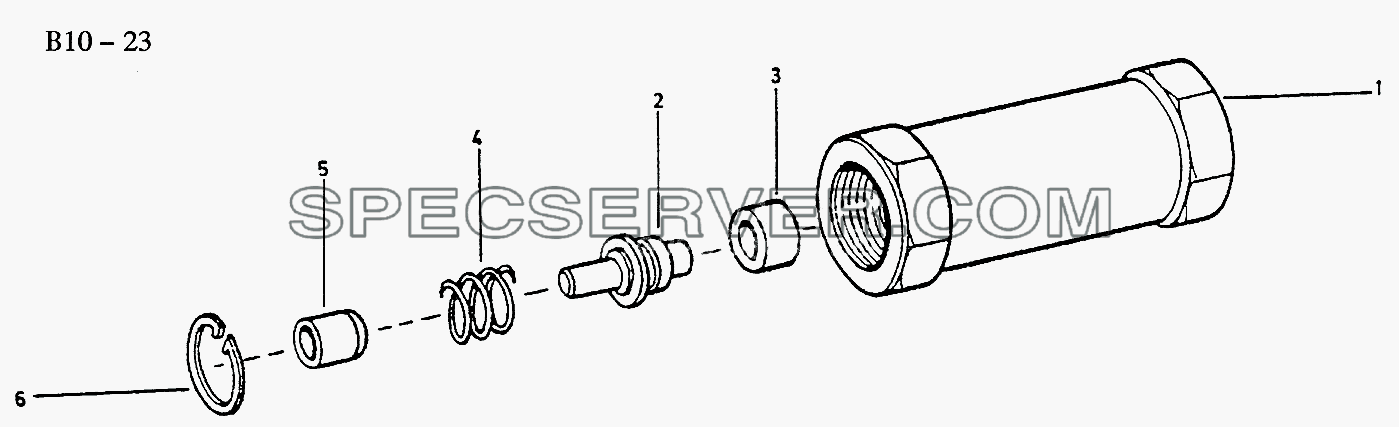

CHECK VALVE (B10-23) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199014350701 [Spaer parts]	Spaer parts
-		WG9000360112 [Cheek valve]	Cheek valve
1		Housing
2		1780 360846 [Piston]	Piston
3		1780 360731 [Valve ring]	Valve ring
4		Pressure spring
5		1780 360733 [Bush]	Bush
6		190003934100 [Retaining ring]	Retaining ring

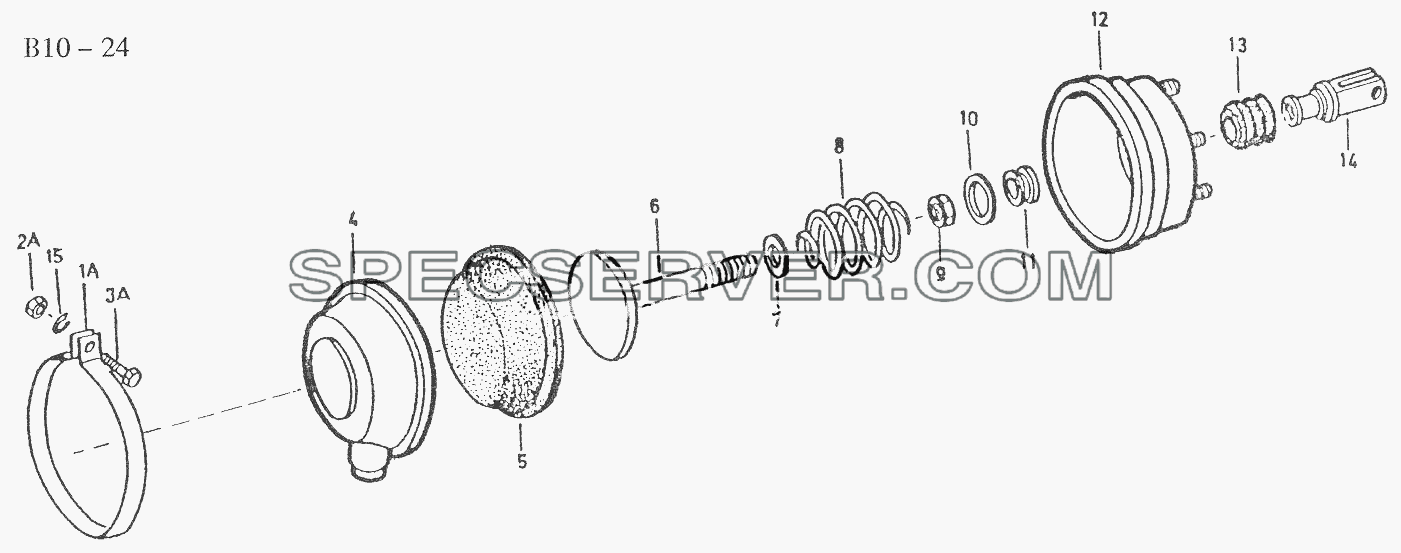

DIAPHRAGM CYLINDER (B10-24) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9000360100 [Diaphragm cylinder]	Diaphragm cylinder
-		WG9000360101 [Diaphragm cylinder]	Diaphragm cylinder
4		1880 361039 [Cover]	Cover
5		1880 360703 [Membrane]	Membrane
6		1880 361032 [Piston]	Piston
7		1880 361033 [Spring plate]	Spring plate
8		1880 360704 [Spring]	Spring
9		190003871333 [Nut]	Nut
10		1880 361035 [Spring plate]	Spring plate
11		1880 361034 [Holding]	Holding
12		Cylinder
13		1880 360705 [Siphon]	Siphon
14		1880 360706 [Fork head]	Fork head
15		190003931102 [Spring washer]	Spring washer

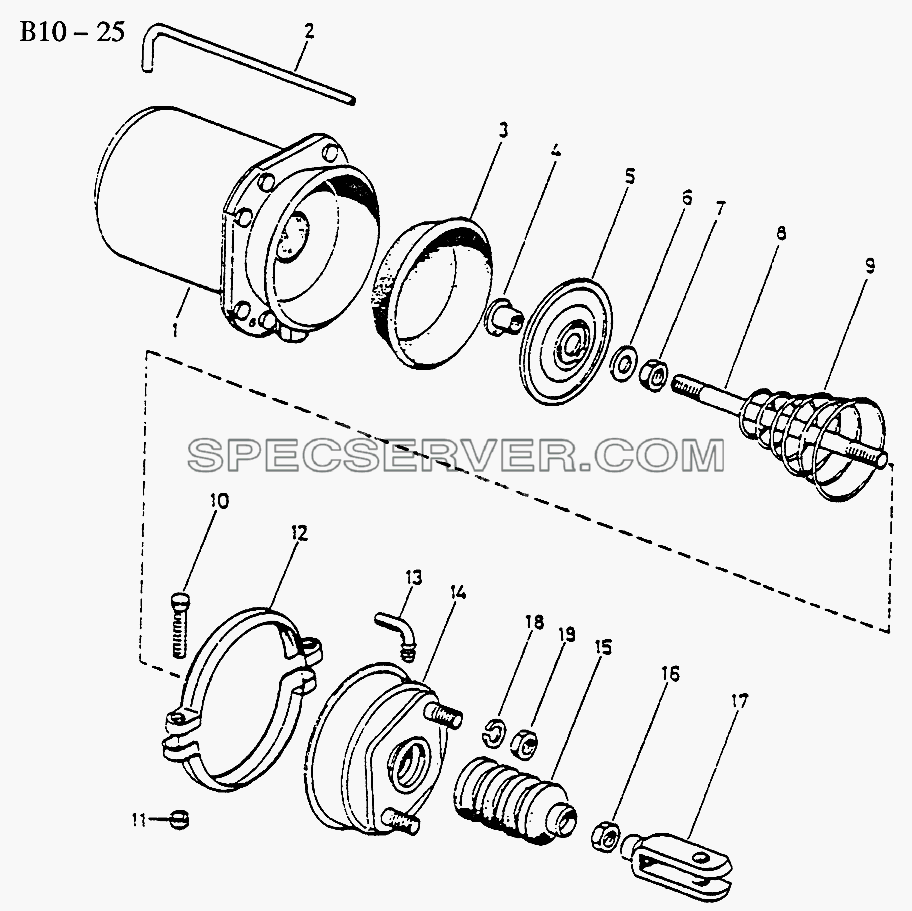

SPRING BRAKE ACTUATOR (B10-25) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9100360303 [Spring brake actuator]	Spring brake actuator
2		199100360736 [Repair set]	Repair set

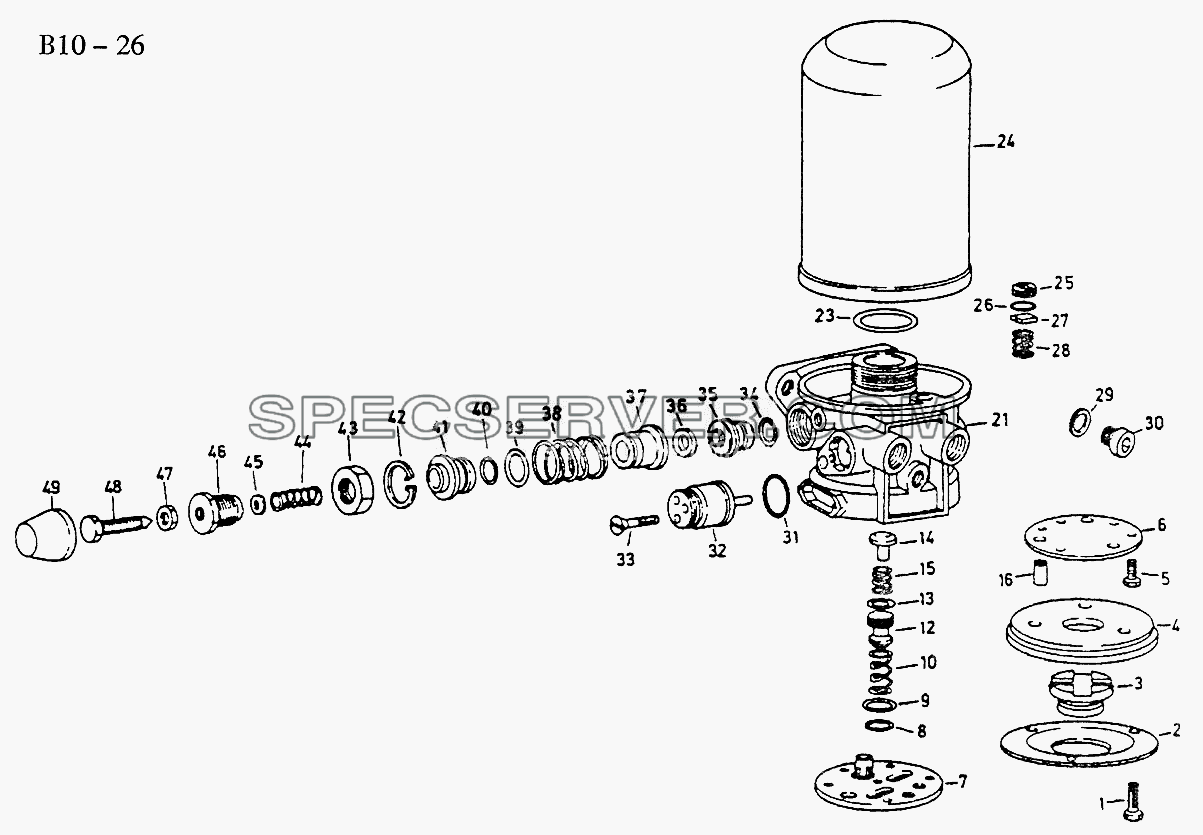

AIR DRYER (B10-26) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9000360412 [Air dryer]	Air dryer
21		SAD-3588101A [Housing]	Housing
24		SAD-3588201 [Filter cartridge]	Filter cartridge

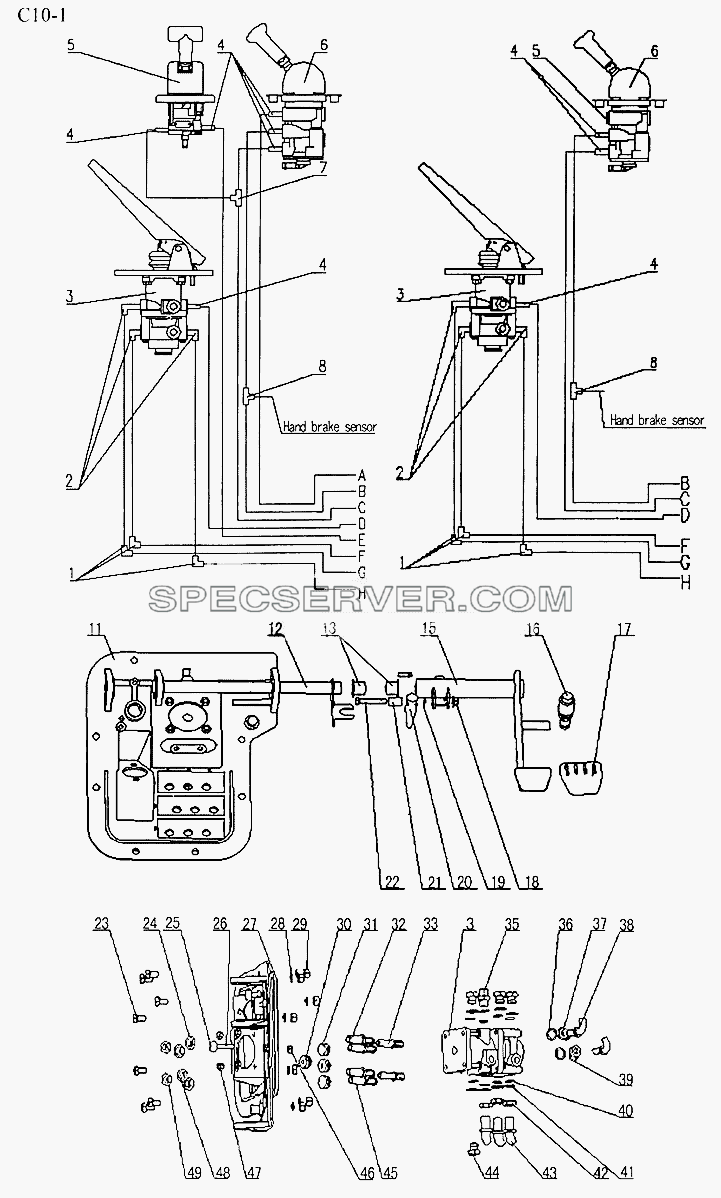

BRAKE MECHANISM IN CAB (C10-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q617B16 [Screw]	Screw
1		190003559479 [Nozzle]	Nozzle
2		190003559946 [Angle nozzle]	Angle nozzle
3		WG9719360005 [Service brake valve]	Service brake valve
4		190003559945 [Nozzle]	Nozzle
5		WG9719360030 [Hand brake valve for trailer]	Hand brake valve for trailer
6		WG9000360165 [Hand brake valve]	Hand brake valve
7		190003559483 [Nozzle]	Nozzle
8		WG99100360111 [Nozzle]	Nozzle
11		AZ9719360050 [Combination bracket]	Combination bracket
12		AZ9719360051 [Shaft]	Shaft
13		AZ9719360060 [Bush]	Bush
14		Q1840616 [Screw]	Screw
15		AZ9719360055 [Brake foot pedal]	Brake foot pedal
15		AZ9719364055 [Brake foot pedal]	Brake foot pedal
16		WG9100710006 [Brake lamp switch]	Brake lamp switch
17		AZ9123230226 [Rubber cover]	Rubber cover
18		Q341B08 [Nut]	Nut
19		Q5002016 [Split pin]	Split pin
20		AZ9719360063 [Push rod]	Push rod
21		AZ9719360062 [Bolt]	Bolt
22		Q173B0845 [Screw]	Screw
23		Q150B1016 [Screw]	Screw
24		Q351B14T15 [Nut]	Nut
25		AZ9123360067 [Plug]	Plug
26		Q150B0845 [Screw]	Screw
27		AZ9719360099 [Seal profile]	Seal profile
28		Q40310 [Spring washer]	Spring washer
29		Q340B10 [Nut]	Nut
30		AZ9719360018 [Rubber sleeve]	Rubber sleeve
31		AZ9719360019 [Plug]	Plug
32		AZ9719360010 [Joint]	Joint
33		AZ9719360009 [Angle screwing]	Angle screwing
35		190003559945 [Screwing]	Screwing
36		1288 730061 [Gasket]	Gasket
37		Q351C12T15 [Nut]	Nut
38		WG9100361003 [Angle screwing]	Angle screwing
39		199000360477 [Gasket]	Gasket
40		1406 070015 [Gasket]	Gasket
41		WG9000360292 [Gasket]	Gasket
42		Q351B16T15 [Nut]	Nut
43		190003559946 [Angle screwing]	Angle screwing
44		Q617B16 [Screw]	Screw
45		AZ9719360010 [Angle nozzle]	Angle nozzle
46		Q150B0830 [Screw]	Screw
47		Q340B08 [Nut]	Nut
48		Q33208 [Nut]	Nut
49		Q351B15T15 [Nut]	Nut
49		Q351C12T15 [Nut]	Nut
