№		Номер детали	Наименование запчасти
4		1269301125 [Transm.Housing]	Transm.Housing
11		0736301022 [Screw plug]	Screw plug
13		0736305016 [Screw plug]	Screw plug
43		0634801044 [Seal ring]	Seal ring
44		0636302016 [Screw plug]	Screw plug
46		0730361103 [Sealing cover]	Sealing cover
51		0501202407 [Suction otrainer]	Suction otrainer
54		0630531387 [Triangular ret.]	Triangular ret.
55		1269301124 [Injector tube]	Injector tube
75		0636301048 [Screw plug]	Screw plug
76		0736303005 [Screw plug]	Screw plug
80		2159107502(B) [Bracket C]	Bracket C
81		2159207003(B) [Bracket]	Bracket
82		2159307002 [Plate]	Plate
83		2159307001 [Pin]	Pin
84		2159307007 [Bracket]	Bracket
85		2159307004 [Pin]	Pin
86		2159107002(S) [Pneu.assist.Operating]	Pneu.assist.Operating
87		2159307006 [Lever]	Lever
88		0627207001 [Assist.power cylinder]	Assist.power cylinder
89		2159207003 [Bracket]	Bracket
90		Q150B1225 [Screw]	Screw
91		Q40312 [Washer]	Washer

CLUTCH HOUSING FOR ZF GEARBOX (A6-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1096302089 [Clutch Housing]	Clutch Housing
1		2159302008 [Clutch Housing]	Clutch Housing
2		Q151B1895TF2 [Screw]	Screw
3		1096302076 [Bearing]	Bearing
4		312322002 [Screw]	Screw
5		0634801152 [Gasket]	Gasket
6		99012210065 [Hose]	Hose
7		109301075 [Nozzel joint]	Nozzel joint
8		Q700B01 [Grease nippel]	Grease nippel
9		1156302010 [Fork]	Fork
9		2159302009 [Fork]	Fork
10		1156302011 [Screw]	Screw
11		1156302013 [Spring]	Spring
12		1156302014 [Spring]	Spring
13		2159202001 [Fork Shaft]	Fork Shaft
13		2159302013 [Fork Shaft]	Fork Shaft
14		1156302006 [Cotter]	Cotter
15		1156302012 [Bush]	Bush
15		2159302012 [Bush]	Bush
16		108302062 [Gasket]	Gasket
17		108302052 [Plate]	Plate
17		2159302052 [Plate]	Plate
18		0636015020 [Screw]	Screw
19		2159302011 [Bracket]	Bracket
20		116302027 [Snap ring]	Snap ring

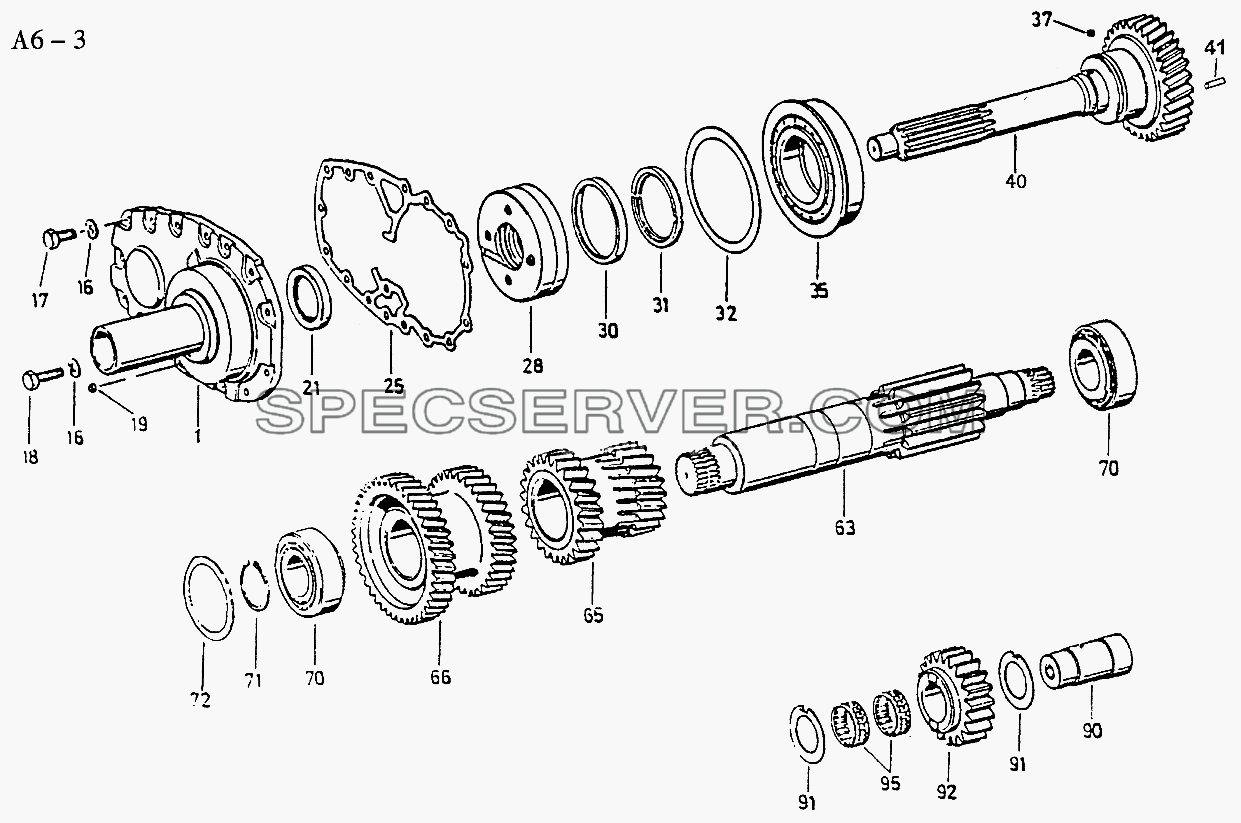

5S-111GP, 5S-150GP, 4S-130GP INPUTSHAFT, LAYSHAFF AND WHEELS (A6-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1269302159 [Cover]	Cover
1		1269302275 [Cover]	Cover
1		2159302003 [Cover]	Cover
17		0636015110 [Screw]	Screw
18		0636015120 [Screw]	Screw
19		0630361065 [Plug]	Plug
21		0734310110 [Shaft seal]	Shaft seal
21		0750111002 [Shaft seal]	Shaft seal
25		1269302161 [Gasket]	Gasket
26		1269202027 [Pump]	Pump
26		1269202104 [Pump]	Pump
30		0730061890 [Locking ring]	Locking ring
31		0769145010 [Spilt ring]	Spilt ring
32		0730102503 [Spacer dise series]	Spacer dise series
32		0769140013 [Spacer dise series]	Spacer dise series
35		0735410237 [Roller bearing]	Roller bearing
35		0750118129 [Roller bearing]	Roller bearing
35		0750118129-1 [Roller bearing]	Roller bearing
37		0635470012 [Cyl.roller]	Cyl.roller
40		1269296912 [Input shaft set]	Input shaft set
40		2128221001 [Drive shaft set]	Drive shaft set
40		2128221002 [Drive shaft set]	Drive shaft set
40		2159303004 [Input shaft set]	Input shaft set
63		1292303004 [Lay shaft]	Lay shaft
63		1292303004-1 [Lay shaft]	Lay shaft
63		2128303006 [Lay shaft]	Lay shaft
65		1292303006 [Gear 1-2gear]	Gear 1-2gear
65		1292303006 [Gear 1-2gear]	Gear 1-2gear
65		2159303002 [Gear 1-2gear]	Gear 1-2gear
66		1292303005 [Gear 3, 4 gear]	Gear 3, 4 gear
66		2128303001 [Double gear]	Double gear
66		2128303008 [Double gear]	Double gear
66		2159303003 [Gear 3, 4 gear]	Gear 3, 4 gear
70		0735370011 [Roller bearing]	Roller bearing
70		0750117010 [Roller bearing]	Roller bearing
71		0769144033 [Locking ring]	Locking ring
72		1269140004 [Spacer disc]	Spacer disc
90		1269305003 [Reverse gear]	Reverse gear
91		0730150064 [Guard plate]	Guard plate
92		1292305002 [Reverse gear]	Reverse gear
92		2128305001 [Reverse gear]	Reverse gear
95		0735320492 [Needle roller bearing]	Needle roller bearing
95		0750115011 [Needle roller bearing]	Needle roller bearing

5S-111GP, 5S-150GP, 4S-130GP MAIN SHAFT AND WHEELS (A6-4) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		2159304012 [Sleeve]	Sleeve
-		K808835 [Needle bearing rev. gear]	Needle bearing rev. gear
1		0630501028 [Locking ring]	Locking ring
2		0570304002 [Roller bearing]	Roller bearing
2		0735355014 [Roller bearing]	Roller bearing
2		0750116019 [Roller bearing]	Roller bearing
4		0769144033 [Circlip]	Circlip
5		0769140115 [Washer]	Washer
6		1268304142 [Clutch hub 4th gear]	Clutch hub 4th gear
6		1269304196 [Clutch hub 3, 4 gear]	Clutch hub 3, 4 gear
6		1310302045 [Clutch hub 3, 4 gear]	Clutch hub 3, 4 gear
7		1250304292 [Clutch hub 3rd gear]	Clutch hub 3rd gear
9		1268304594 [Synchr. ring]	Synchr. ring
9		1272304076 [Synchr. ring]	Synchr. ring
10		1268304143 [Detend]	Detend
10		1292304041 [Detend 3, 4 gear]	Detend 3, 4 gear
10		1310304158 [Detend 3, 4 gear]	Detend 3, 4 gear
12		1272304077 [Sliding sleeve]	Sliding sleeve
12		1310304195 [Sliding sleeve]	Sliding sleeve
16		0732040385 [Helical spring]	Helical spring
16		1311304021 [Helical spring]	Helical spring
17		0732040386 [Helical spring]	Helical spring
18		1240304278 [Pressure piece]	Pressure piece
18		1311304020 [Pressure piece]	Pressure piece
25		1292304047 [Gear 3rd gear]	Gear 3rd gear
25		2128304001 [Helical gear]	Helical gear
25		2129304005 [Gear 3rd gear]	Gear 3rd gear
26		0735320314 [Needle bearing 3rd gear]	Needle bearing 3rd gear
26		0735320499 [Needle bearing 3rd gear]	Needle bearing 3rd gear
27		115304009 [Bush]	Bush
27		1269304197 [Bush]	Bush
27		2159304010 [Bush]	Bush
30		1292304046 [Gear 2nd gear]	Gear 2nd gear
30		2128304016 [Helical gear]	Helical gear
30		2159304004 [Gear 2nd gear]	Gear 2nd gear
31		0735320418 [Needle cage]	Needle cage
31		0735320465 [Needle beating 2nd gear]	Needle beating 2nd gear
31		K808840 [Needle beating 2nd gear]	Needle beating 2nd gear
33		1250304351 [Clutch hub 1, 2 gear]	Clutch hub 1, 2 gear
33		1312304027 [Clutch hub 1, 2 gear]	Clutch hub 1, 2 gear
34		115144034 [V-ring]	V-ring
37		1272304076 [Synchr.ring]	Synchr.ring
37		1297304402 [Synchr.ring]	Synchr.ring
38		115304045 [Detend]	Detend
38		1292304052 [Detend 1st-2nd gear]	Detend 1st-2nd gear
38		2159304011 [Detend 1st-2nd gear]	Detend 1st-2nd gear
40		1240304375 [Sliding sleeve 1, 2 gear]	Sliding sleeve 1, 2 gear
40		1272304077 [Sliding sleeve]	Sliding sleeve
40		1312302057 [Sliding sleeve 1, 2 gear]	Sliding sleeve 1, 2 gear
42		0732040385 [Helical spring]	Helical spring
42		1311304021 [Helical spring]	Helical spring
43		0732040386 [Helical spring]	Helical spring
44		1240304278 [Pessure piece]	Pessure piece
44		1311304020 [Pessure piece]	Pessure piece
45		0735320401 [Needle bearing 1st gear]	Needle bearing 1st gear
45		0735320418 [Needle beating 1st gear]	Needle beating 1st gear
46		1292304045 [Gear 1st gear]	Gear 1st gear
46		2128304017 [Gear 1st gear]	Gear 1st gear
46		2159304003 [Gear 1st gear]	Gear 1st gear
60		1292304069 [Main shaft]	Main shaft
60		2128304007 [Main shaft]	Main shaft
60		2159304001 [Main shaft]	Main shaft
65		0735320466 [Needle bearing low, rev. gear]	Needle bearing low, rev. gear
65		K808840 [Needle bearing slow gear]	Needle bearing slow gear
65		K909822.5 [Needle bearing low, rev. gear]	Needle bearing low, rev. gear
70		1292304018 [Gear slow gear]	Gear slow gear
70		2159304014 [Gear slow gear]	Gear slow gear
75		1292304026 [Detend low. rev. gear]	Detend low. rev. gear
75		2159304015 [Detend low. rev. gear]	Detend low. rev. gear
76		0732040497 [Spring]	Spring
77		0635460010 [Ball]	Ball
78		1292304025 [Sliding sleeve]	Sliding sleeve
78		2128304006 [Sliding sleeve]	Sliding sleeve
78		2159304017 [Sliding sleeve slow-rev. gear]	Sliding sleeve slow-rev. gear
90		1292304017 [Gear reveser gear]	Gear reveser gear
90		2128304005 [Gear reveser gear]	Gear reveser gear
90		2159304016 [Gear reveser gear]	Gear reveser gear
92		1292304027 [Bush]	Bush
92		2159304009 [Bush]	Bush
95		0528304001 [Roller bearing]	Roller bearing
95		0750115081 [Roller bearing]	Roller bearing
95		2159304013 [Roller bearing]	Roller bearing
96		0630503020 [Snap ring]	Snap ring
96		115144034 [Snap ring]	Snap ring
97		1269304055 [Sun gear]	Sun gear
97		1286304022 [Sun gear]	Sun gear
110		1269304070 [Washer]	Washer
110		2128304010 [Washer]	Washer
120		0630015195 [Screw]	Screw
121		0666890004 [Wire]	Wire
125		0730061842 [Pipe]	Pipe

5S-111GP, 5S-150GP, 4S-130GP SHIFTING FORK (A6-5) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1250306263 [Gear change clamp]	Gear change clamp
5		115306003 [Sliding Pad]	Sliding Pad
5		115306006 [Sliding Pad]	Sliding Pad
5		1272334003 [Sliding Pad]	Sliding Pad
7		0730300005 [Spring disc]	Spring disc
11		1240306244 [Screw]	Screw
12		07312010915 [Screw]	Screw
12		1252306077 [Screw]	Screw
15		1269306022 [Connecting rod]	Connecting rod
15		1292306022 [Connecting rod]	Connecting rod
16		1251306064 [Connecting rod]	Connecting rod
16		1286306002 [Connecting rod]	Connecting rod
20		115206005 [Gear change clamp]	Gear change clamp
20		115206006 [Gear change clamp]	Gear change clamp
20		1246206011 [Gear change clamp]	Gear change clamp
25		1297306025 [Sliding pad]	Sliding pad
25		1297306028 [Sliding pad]	Sliding pad
30		1292206005 [Gear change clamp]	Gear change clamp
30		2128206001 [Gear change clamp]	Gear change clamp
30		2159206001 [Gear change clamp]	Gear change clamp

5S-111GP, 5S-150GP, 4S-130GP SHIFTING COVER (A6-6) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1269307283 [Gear change cover]	Gear change cover
1		1269307484 [Gear change cover]	Gear change cover
10		1269307026 [Gasket]	Gasket
11		0630361050 [Cover]	Cover
12		0630302091 [Spring washer]	Spring washer
13		0636010199 [Screw]	Screw
14		0636010190 [Screw]	Screw
15		0636010200 [Screw]	Screw
16		0636010176 [Screw]	Screw
18		0630603010 [Locking plate]	Locking plate
19		1250307252 [Spring loaded bolt]	Spring loaded bolt
20		0636301041 [Screw plug]	Screw plug
21		0730361073 [Sealing cover]	Sealing cover
30		1203307289 [Gasket]	Gasket
31		1249301040 [Cover]	Cover
32		0636015020 [Screw]	Screw
33		0501203944 [Sensor reverse gear]	Sensor reverse gear
34		0501309183 [Sealing gasket]	Sealing gasket
35		1240307441 [Connecting plate]	Connecting plate
36		0501307450 [Switch]	Switch
60		1269307200 [Gasket]	Gasket
61		1283307003 [Cover]	Cover
63		0636015278 [Screw]	Screw
91		9112710041 [Switch for idling pos.]	Switch for idling pos.
