№		Номер детали	Наименование запчасти
1		1268 301 024 [Gearbox Housing]	Gearbox Housing
2		0736 303 005 [Screw Plug]	Screw Plug
3		0736 301 022 [Screw Plug]	Screw Plug
4		0636 301 048 [Screw Plug]	Screw Plug
5		0736 305 016 [Screw Plug]	Screw Plug
6		0630 361 034 [Screw Plug]	Screw Plug
7		0768 310 001 [Screw Plug]	Screw Plug

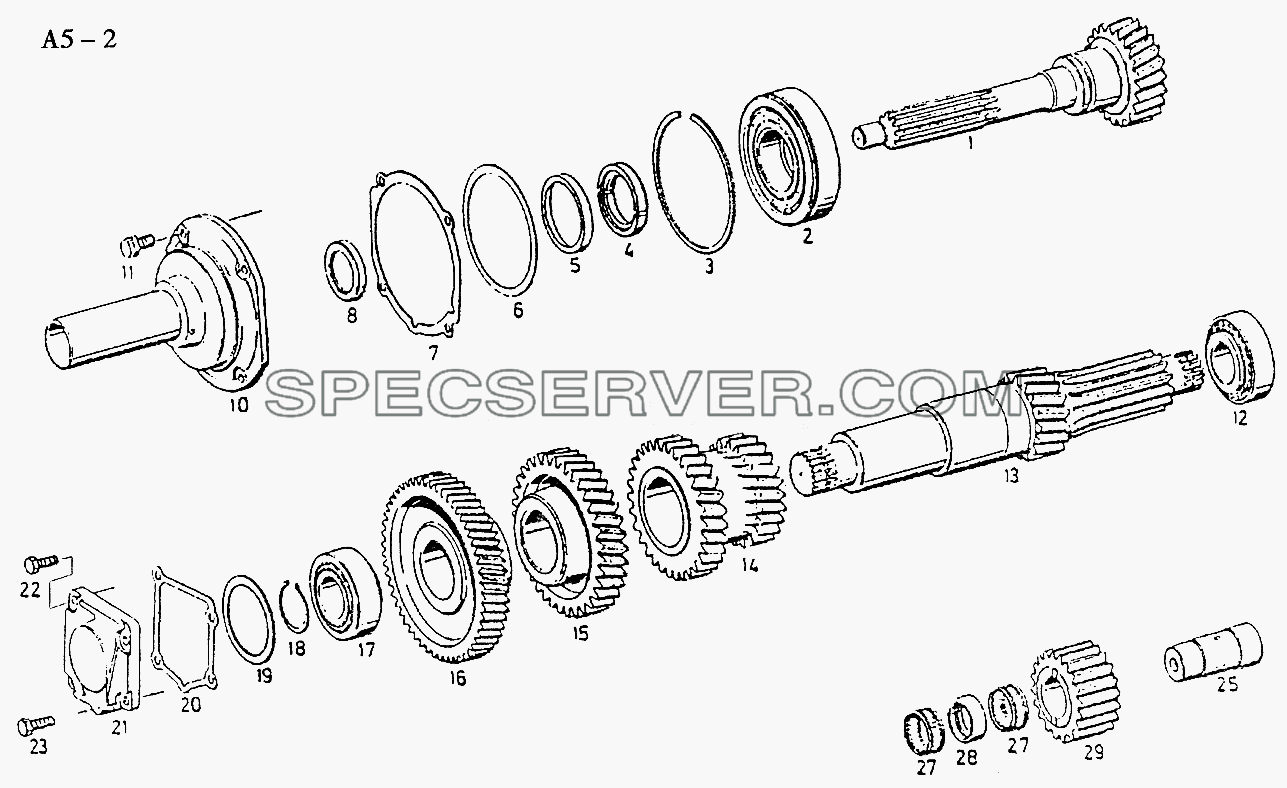

S6-120 INPUT SHAT, LAYSHAFT AND GEAR (A5-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		115 302 023 [Input Shaft]	Input Shaft
2		0735 410 039 [Roller Bearing]	Roller Bearing
3		0630 503 020 [Sp150 Snap Ring]	Sp150 Snap Ring
4		0730 102 629 [Split Ring]	Split Ring
4		0730 102 630 [Split Ring]	Split Ring
4		0730 102 631 [Split Ring]	Split Ring
4		0730 102 632 [Split Ring]	Split Ring
4		0730 103 509 [Split Ring]	Split Ring
4		0730 103 510 [Split Ring]	Split Ring
4		0730 106 673 [Split Ring]	Split Ring
4		0730 106 674 [Split Ring]	Split Ring
4		0730 106 675 [Split Ring]	Split Ring
4		0769 145 001(S) [Split Ring series]	Split Ring series
5		0730 361 046 [Retaning Ring]	Retaning Ring
6		0769 140 002(S) [Shim sereis]	Shim sereis
6		1205 308 016 [Shim]	Shim
6		1205 308 020 [Shim]	Shim
6		1205 308 040 [Shim]	Shim
7		1250 302 373 [Gasket]	Gasket
8		0734 310 108 [Shaft Seal]	Shaft Seal
10		1250 302 265 [Connection Plate]	Connection Plate
11		0636 015 120 [Hexagon Screw]	Hexagon Screw
12		0635 374 019 [Roller Bearing]	Roller Bearing
13		115 303 030 [Layshaft]	Layshaft
14		115 303 005 [Double Gear]	Double Gear
15		115 303 009 [Helical Gear]	Helical Gear
16		115 303 014 [Helical Gear]	Helical Gear
17		0735 370 011 [Roller bearing]	Roller bearing
18		0630 501 112 [Reatining Ring]	Reatining Ring
18		0630 501 114 [Reatining Ring]	Reatining Ring
18		0630 501 116 [Reatining Ring]	Reatining Ring
18		0630 501 118 [Reatining Ring]	Reatining Ring
18		0630 501 147 [Reatining Pang]	Reatining Pang
18		0630 501 148 [Reatining Pang]	Reatining Pang
18		0630 531 064 [Reatining Pang]	Reatining Pang
18		0630 531 065 [Reatining Ring]	Reatining Ring
18		0769 144 001(S) [Reatining Ring series]	Reatining Ring series
19		0730 102 060 [Shim]	Shim
19		0730 102 061 [Shim]	Shim
19		0730 102 062 [Shim]	Shim
19		0730 102 063 [Shim]	Shim
19		0730 102 064 [Shim]	Shim
19		0730 102 065 [Shim]	Shim
19		0730 102 066 [Shim]	Shim
19		0730 102 067 [Shim]	Shim
19		0730 102 068 [Shim]	Shim
19		0730 102 069 [Shim]	Shim
19		0730 102 070 [Shim]	Shim
19		0730 102 071 [Shim]	Shim
19		0730 102 072 [Shim]	Shim
19		0730 102 073 [Shim]	Shim
19		0730 102 074 [Shim]	Shim
19		0730 102 098 [Shim]	Shim
19		0730 102 099 [Shim]	Shim
19		0730 102 100 [Shim]	Shim
19		0730 102 101 [Shim]	Shim
19		0730 102 102 [Shim]	Shim
19		0730 102 103 [Shim]	Shim
19		0730 102 104 [Shim]	Shim
19		0730 102 105 [Shim]	Shim
19		0730 102 106 [Shim]	Shim
19		0730 103 115 [Shim]	Shim
19		0730 103 116 [Shim]	Shim
19		0730 103 117 [Shim]	Shim
19		0730 103 118 [Shim]	Shim
19		0730 103 119 [Shim]	Shim
19		0730 103 120 [Shim]	Shim
19		0730 103 121 [Shim]	Shim
19		0730 103 122 [Shim]	Shim
19		0730 103 123 [Shim]	Shim
19		0730 103 124 [Shim]	Shim
19		0769 140 045(S) [Shim series]	Shim series
20		1268 303 071 [Gasket]	Gasket
21		1268 303 066 [Cover]	Cover
22		0636 015 114 [Hexagon Screw]	Hexagon Screw
23		0636 015 124 [Hexagon Screw]	Hexagon Screw
25		1250 305 003 [Reverse Idler Shaft]	Reverse Idler Shaft
27		0735 320 492 [Needle Cage]	Needle Cage
28		1250 305 006 [Bush]	Bush
29		115 305 002 [Reverse Idler Gear]	Reverse Idler Gear

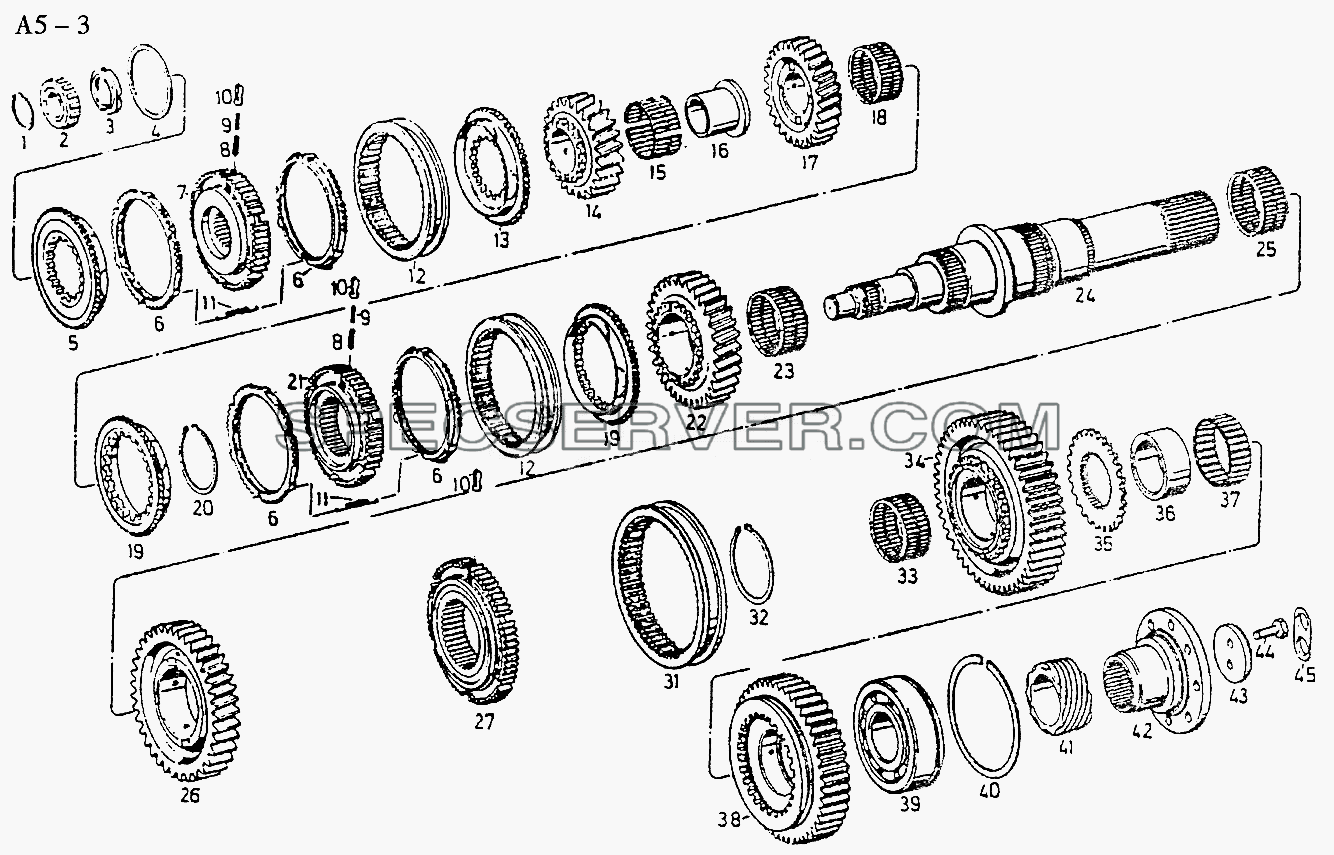

S6-120 MAIN SHAFT, SYNCHRONIZATION (A5-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		0630 531 217 [Retaining Ring]	Retaining Ring
2		0735 455 012 [Roller Bearing]	Roller Bearing
3		0630 501 111 [Retaining Ring]	Retaining Ring
3		0630 501 112 [Retaining Ring]	Retaining Ring
3		0630 501 113 [Retaining Ring]	Retaining Ring
3		0630 501 114 [Retaining Ring]	Retaining Ring
3		0630 501 115 [Retaining Ring]	Retaining Ring
3		0630 501 116 [Retaining Ring]	Retaining Ring
3		0630 501 117 [Retaining Ring]	Retaining Ring
3		0630 501 118 [Retaining Ring]	Retaining Ring
3		0630 501 145 [Reatining Ring]	Reatining Ring
3		0630 501 146 [Retaining Ring]	Retaining Ring
3		0630 501 147 [Retaining Ring]	Retaining Ring
3		0630 501 148 [Retaining Ring]	Retaining Ring
3		0630 501 150 [Retaining Ring]	Retaining Ring
3		0630 501 151 [Retaining Ring]	Retaining Ring
3		0630 501 159 [Retaining Ring]	Retaining Ring
3		0630 501 160 [Retaining Ring]	Retaining Ring
3		0630 501 294 [Retaining Ring]	Retaining Ring
3		0630 501 295 [Retaining Ring]	Retaining Ring
3		0630 501 296 [Retaining Ring]	Retaining Ring
3		0630 501 298 [Retaining Ring]	Retaining Ring
3		0630 501 299 [Retaining Ring]	Retaining Ring
3		0630 531 064 [Retaining Ring]	Retaining Ring
3		0630 531 065 [Retaining Ring]	Retaining Ring
3		0769 144 033(S) [Retaining Ring series]	Retaining Ring series
4		0730 002 680 [Shim]	Shim
4		0730 002 681 [Shim]	Shim
4		0730 002 682 [Shim]	Shim
4		0730 002 683 [Shim]	Shim
4		0730 002 684 [Shim]	Shim
4		0730 002 776 [Shim]	Shim
4		0730 002 777 [Shim]	Shim
4		0730 002 778 [Shim]	Shim
4		0730 002 780 [Shim]	Shim
4		0730 005 557 [Shim]	Shim
4		0769 140 115(S) [Shim series]	Shim series
5		115 304 058 [6G.Clutch Body]	6G.Clutch Body
6		1297 304 402 [Synchrowizer Ring]	Synchrowizer Ring
7		115 304 056 [Detend]	Detend
8		1311 304 021 [Compression spring]	Compression spring
10		1311 304 020 [Pressure Piece]	Pressure Piece
12		1312 302 057 [Sliding Sleeve]	Sliding Sleeve
13		115 304 057 [5G.clutch Body]	5G.clutch Body
14		115 304 062 [6G.gear]	6G.gear
15		0735 320 499 [Needle Bearing]	Needle Bearing
16		1268 304 141 [Bush]	Bush
17		115 304 065 [4G.gear]	4G.gear
18		0735 320 204 [Needle Bearing]	Needle Bearing
19		1312 304 027 [3/4G.Clutch Body]	3/4G.Clutch Body
20		0630 501 050 [Shim]	Shim
20		0630 501 304 [Shim]	Shim
20		0630 531 301 [Shim]	Shim
20		0769 144 003(s) [Shim series]	Shim series
21		115 304 055 [3/4G.Synchron.Body]	3/4G.Synchron.Body
22		115 304 068 [3G.Gear]	3G.Gear
23		0735 320 407 [3G.Needle Cage]	3G.Needle Cage
24		1268 304 274 [Main Shaft]	Main Shaft
25		0735 320 111 [2G.Needle Case]	2G.Needle Case
26		1126 304 002 [2G.Gear]	2G.Gear
27		1126 304 006 [1/2G.Synchronzer Body]	1/2G.Synchronzer Body
31		1126 304 004 [1/2G.Sliding Sleeve]	1/2G.Sliding Sleeve
32		0630 501 054 [Retaining Ring]	Retaining Ring
32		0630 531 302 [Retaining Ring]	Retaining Ring
32		0630 531 303 [Retaining Ring]	Retaining Ring
32		0769 144 002(S) [Retaining Ring series]	Retaining Ring series
33		0735 320 206 [1G.Needle Cage]	1G.Needle Cage
34		1126 304 001 [1G.Spur Gear]	1G.Spur Gear
35		1250 304 006 [Rg.Clutch Body]	Rg.Clutch Body
36		0730 160 344 [Bush]	Bush
37		0735 320 154 [Needle Cace]	Needle Cace
38		115 304 079 [Rg.Spur Gear]	Rg.Spur Gear
39		0635 333 049 [Ball Bearing]	Ball Bearing
40		0630 503 020 [Snap Ring]	Snap Ring
41		1250 304 198 [Speedometer Worm]	Speedometer Worm
42		1268 304 149 [Output Flange(plane)]	Output Flange(plane)
42		1268 304 149-1 [Ф165 Toothed Flange]	Ф165 Toothed Flange
43		1240 304 117 [Washer]	Washer
44		0636 016 012 [Hexagon Screw]	Hexagon Screw
45		1250 304 353 [Lockking Plate]	Lockking Plate

S6-120 REAR COVER (A5-4) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		0730 002 665 [Shim]	Shim
-		0730 002 666 [Shim]	Shim
-		0730 002 667 [Shim]	Shim
-		0730 002 668 [Shim]	Shim
-		0730 002 669 [Shim]	Shim
-		0730 002 670 [Shim]	Shim
-		0730 002 671 [Shim]	Shim
-		0730 002 672 [Shim]	Shim
1		1268 308 012 [Rear Cover]	Rear Cover
2		1268 308 003 [Gasket]	Gasket
3		0769 140 051(S) [Shim series]	Shim series
4		0630 361 046 [Sealing Cap]	Sealing Cap
5		0734 310 109 [Shaft Seal]	Shaft Seal
6		0734 300 093 [Shaft Seal]	Shaft Seal
7		0636 015 127 [Hexagon Screw]	Hexagon Screw
8		0636 015 110 [Hexagon Screw]	Hexagon Screw
9		1250 308 057 [Speedmeter Pinion]	Speedmeter Pinion
10		1250 308 007 [Speed Conn.Shaft]	Speed Conn.Shaft
11		0634 316 057 [O-Ring]	O-Ring
12		1250 308 017 [Speed Conn.Dee]	Speed Conn.Dee
13		0631 306 713 [Parallel Pin]	Parallel Pin
14		0634 300 185 [Shaft Seal]	Shaft Seal
16		1250 308 130 [Screw]	Screw
17		0737 006 078 [Hexagon Nut]	Hexagon Nut
18		1238 308 201 [Gasket]	Gasket
19		1268 308 165 [Cover]	Cover
21		0636 016 005 [Hexagon Screw]	Hexagon Screw
22		0731 101 250 [Speed Gearbox]	Speed Gearbox
23		0501 308 001 [Cover]	Cover

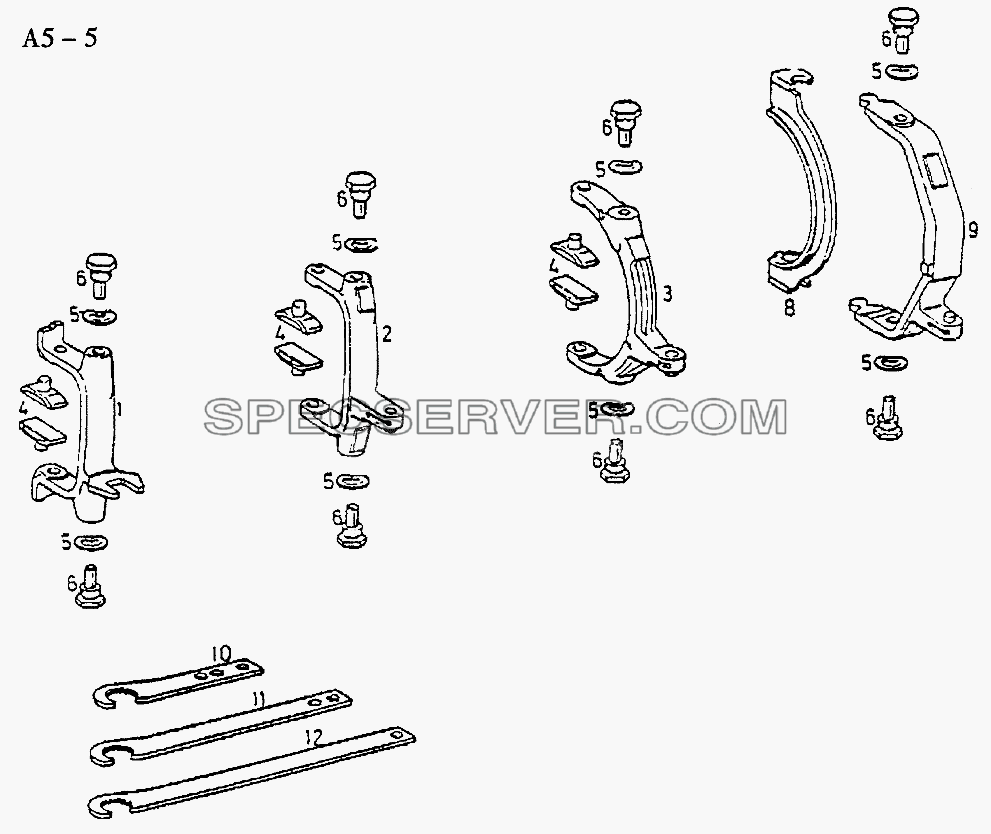

S6-120 SHIFTING GEAR FORK (A5-5) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1126 306 001 [1/2G.Sliding Pad]	1/2G.Sliding Pad
-		1240 306 242 [Articulat Bolt]	Articulat Bolt
1		115 306 009 [5/6G.Gear Shift Fork]	5/6G.Gear Shift Fork
2		115 206 006 [3/4G.Gear Shift Fork]	3/4G.Gear Shift Fork
3		1268 206 040 [1/2G.Gear Shift Fork]	1/2G.Gear Shift Fork
4		115 306 006 [Sliding Pad]	Sliding Pad
5		0730 300 005 [Spring Washer]	Spring Washer
6		1252 306 077 [Articulat Bolt]	Articulat Bolt
8		1268 306 035 [Sliding Bow]	Sliding Bow
9		1246 206 008 [Dang Link]	Dang Link
10		1269 306 022 [3/4G.Dang Link]	3/4G.Dang Link
11		1268 306 096 [1/2G.Dang Link]	1/2G.Dang Link
12		1240 306 214 [Rg.Gear Shift Fork]	Rg.Gear Shift Fork

S6-120 GEARSHAFT COVER AND ROTRY SELECTOR MECHANISM (A5-6) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		0637 011 532 [Locking Nut]	Locking Nut
-		1240 307 339 [5/6G.Driver]	5/6G.Driver
1		1250 307 450 [Gear shift Cover]	Gear shift Cover
2		1250 306 182 [Gasket]	Gasket
3		0630 302 091 [Spring Washer B10]	Spring Washer B10
4		0636 010 172 [Hexagon Screw]	Hexagon Screw
5		0636 010 174 [Hexagon Screw]	Hexagon Screw
6		0636 010 200 [Hexagon Screw]	Hexagon Screw
7		0636 010 190 [Hexagon Screw]	Hexagon Screw
8		0636 010 179 [Hexagon Screw]	Hexagon Screw
10		0736 303 005 [Screw Plug]	Screw Plug
11		112 365 064 [Type Plate]	Type Plate
12		0630 603 010 [Locking Platte]	Locking Platte
13		1250 207 254 [Spring loaded screw]	Spring loaded screw
14		0501 203 944 [Switch]	Switch
15		0501 309 183 [Gasket]	Gasket
16		0636 015 020 [Hexagon Screw]	Hexagon Screw
17		1240 307 441 [Plate]	Plate
19		0630 302 090 [Spring washer]	Spring washer
20		0630 015 092 [Hexagon Screw]	Hexagon Screw
22		0635 300 053 [Niddle bearing]	Niddle bearing
25		0636 301 041 [Screw]	Screw
26		1240 307 424 [Cover]	Cover
27		1252 307 060 [Gasket]	Gasket
28		1250 307 600 [Detent Bolt]	Detent Bolt
29		0732 041 244 [Compression Spring]	Compression Spring
30		1240 307 346 [Shaft]	Shaft
31		0730 361 073 [Sealing Cap]	Sealing Cap
33		0735 470 007 [Roller]	Roller
34		115 307 001 [Detent Secment]	Detent Secment
35		1240 307 338 [Driver]	Driver
36		1240 307 374 [Driver]	Driver
37		0631 329 072 [Slotted Spring Pin]	Slotted Spring Pin
38		0631 329 145 [Slotted Spring Pin]	Slotted Spring Pin
39		0730 061 091 [Stop Bush]	Stop Bush
40		0630 532 138 [V-Ring]	V-Ring
41		0730 104 083 [Washer]	Washer
42		0730 001 156 [Washer]	Washer
43		0732 040 022 [Compression Spring]	Compression Spring
44		0732 040 237 [Compression Spring]	Compression Spring
45		0501 204 714 [Ball Joint]	Ball Joint
49		1240 207 113 [Connect Ion Part]	Connect Ion Part
50		0637 011 527 [Locking Nut]	Locking Nut
51		0732 107 019 [Ball joint (left)]	Ball joint (left)
52		0637 006 091 [Hexagon Nut]	Hexagon Nut
53		0736 620 056 [Draw Bar]	Draw Bar
54		0637 006 027 [Hexagon Nut]	Hexagon Nut
55		0732 107 018 [Ball joint (left)]	Ball joint (left)
56		1269 307 350 [Support Plate]	Support Plate
57		0630 001 014 [Washer]	Washer
58		0636 010 192 [Hexagon Screw]	Hexagon Screw
67		1250 307 634 [Gear Shift Housing]	Gear Shift Housing
79		1240 307 433 [Gear shift Lever]	Gear shift Lever
80		1238 307 411 [Gear shift Shaft]	Gear shift Shaft
81		0636 010 159 [Protecting Cap]	Protecting Cap
82		0637 006 102 [Hexagon Screw]	Hexagon Screw
83		1250 307 662 [Hexagon Nut]	Hexagon Nut
84		0635 300 053 [Needle Sleeve]	Needle Sleeve
86		0634 300 302 [Shaft Seal]	Shaft Seal
89		0634 307 367 [Rod Wiper]	Rod Wiper
91		0732 612 005 [Breather]	Breather
